MIKROTIK
(RBLHGR & R11e-LTE-US) 3G/4G/LTE Client with Integrated 17 dBi High Gain Antenna, Bands (2,4,5,12)
(RBLHGR & R11e-LTE-US) 3G/4G/LTE Client with Integrated 17 dBi High Gain Antenna, Bands (2,4,5,12)
Couldn't load pickup availability
(RBLHGR & R11e-LTE-US) 3G/4G/LTE Client with Integrated 17 dBi High Gain Antenna, Bands (2,4,5,12)
Important Note: This device has been operated under the conditions of use with the mobile operator TELCEL in a city environment. Its operation with other operators and other regions of the country is not guaranteed.

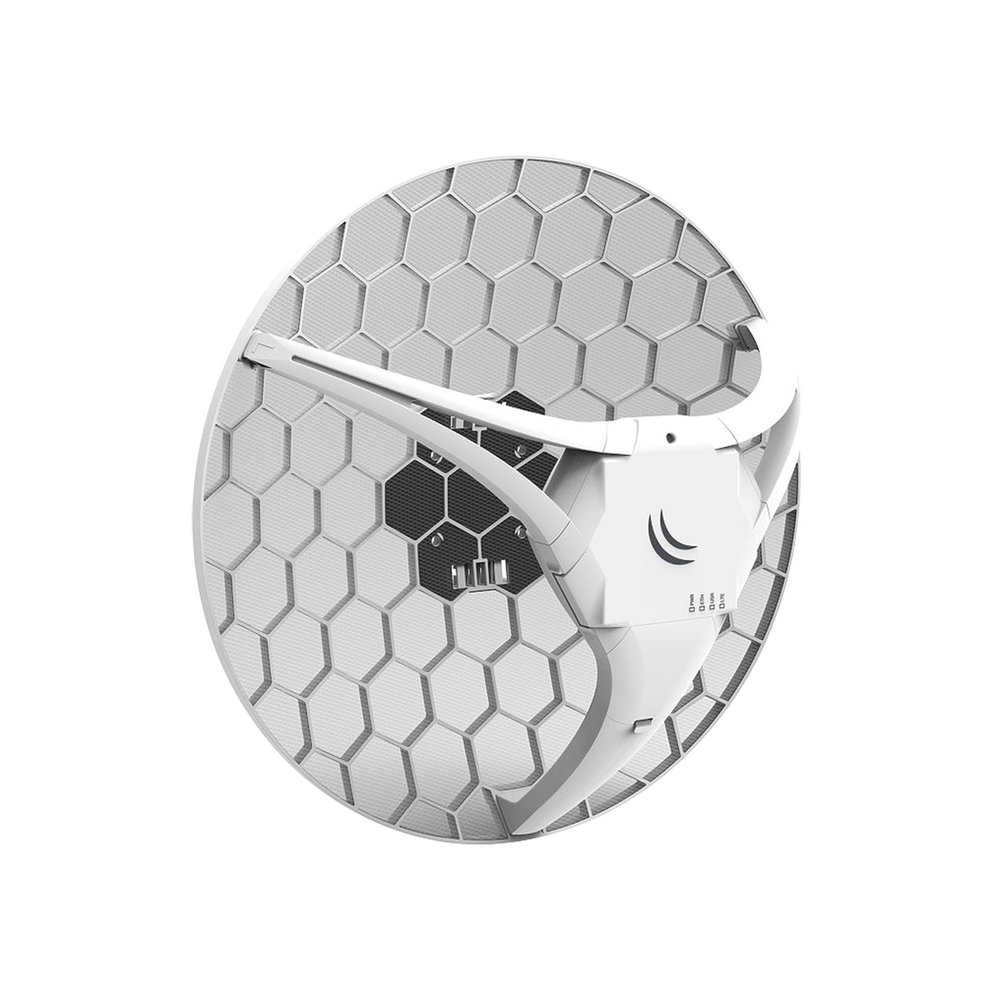

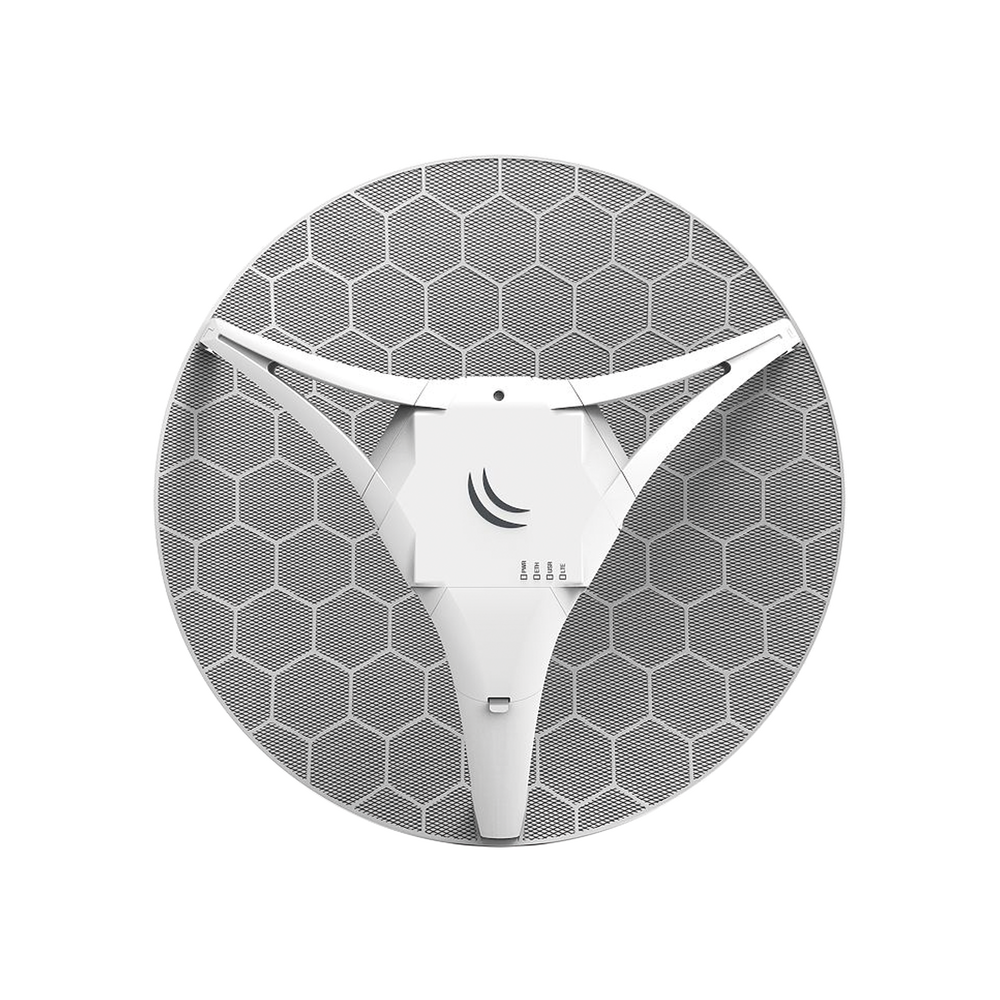

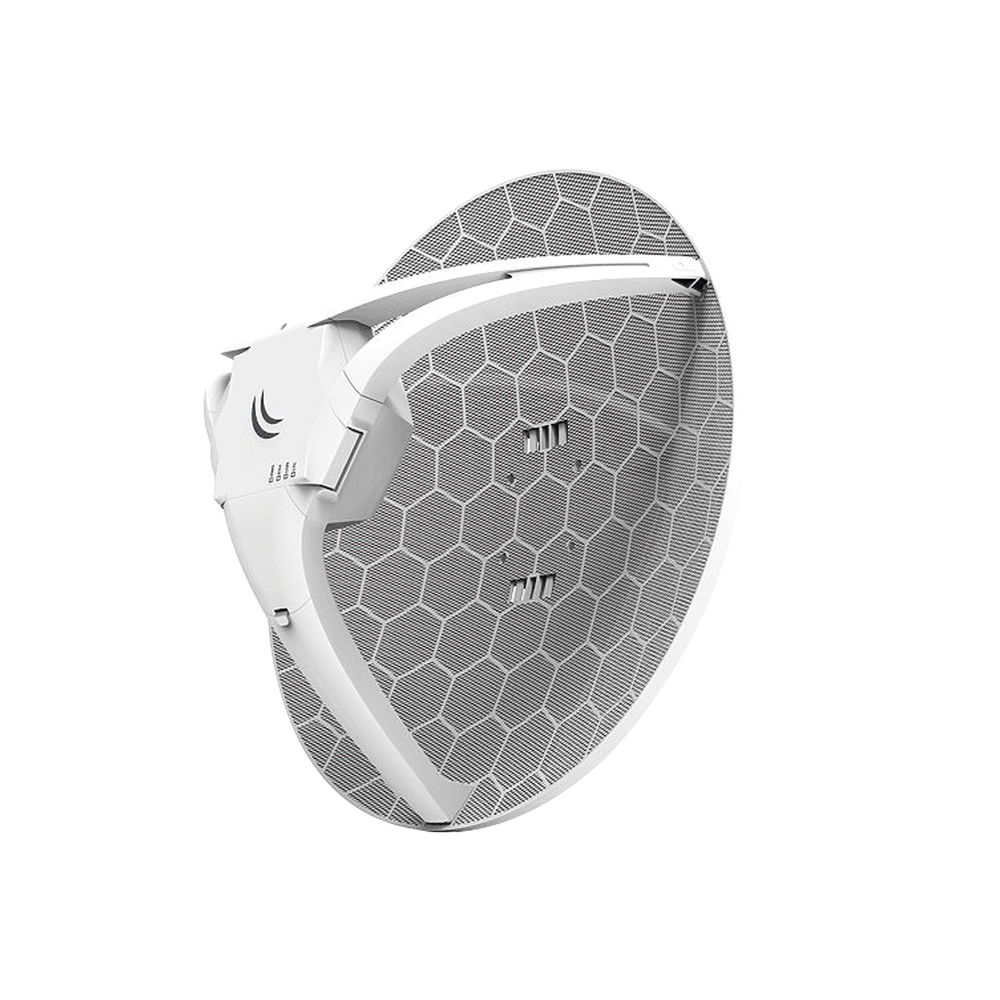

The LHG LTE kit is a device for remote locations within cellular network coverage. Install it outdoors on a pole, mast, or any sufficiently tall structure. Because it's a large, high-gain antenna, the device is capable of connecting to cell towers in extreme rural locations, giving it the ability to provide internet access where nothing else is available.
The unit is equipped with an Ethernet port, has a built-in high-quality Category 4 modem for speeds up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR & R11e-LTE-US includes an LTE modem that supports LTE bands 2, 4, 5, and 12, which are primarily used by mobile operators in the United States, Canada, and Latin America.
Specs
| Details | |
|---|---|
| Product code | RBLHGR&R11e-LTE-US |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 391 x 391 x 227 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 60°C |
Feeding Details
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input voltage | 12-57 V |
| Number of DC inputs | 1 (PoE-IN) |
| Maximum power consumption | 6 W |
Mobile
| Details | |
|---|---|
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz) |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Extra connections
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
Accessories included:
Low stock: 1 left
MODELO: LHG-LTE-KIT-US
