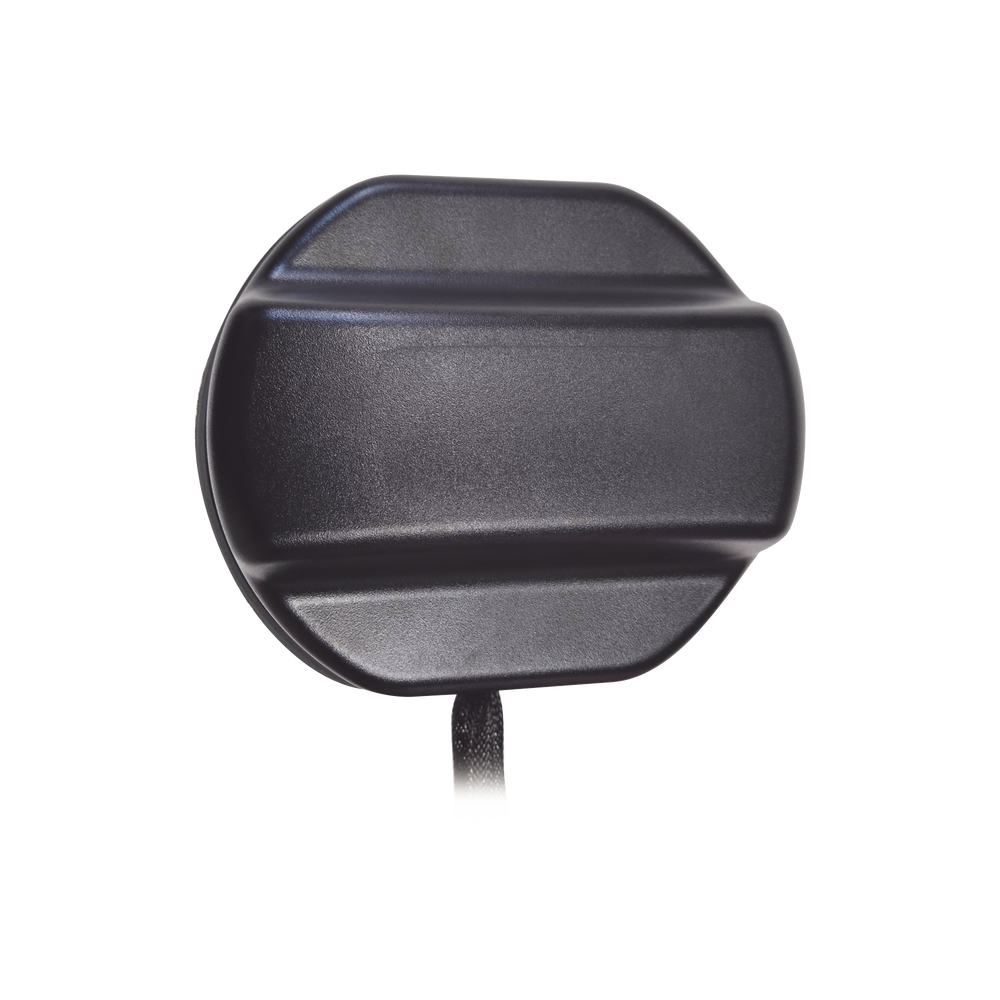

Multi-band GNSS antenna, with multiple 4G LTE ports and MIMO connectivity

Multi-band GNSS antenna, with multiple 4G LTE ports and MIMO connectivity

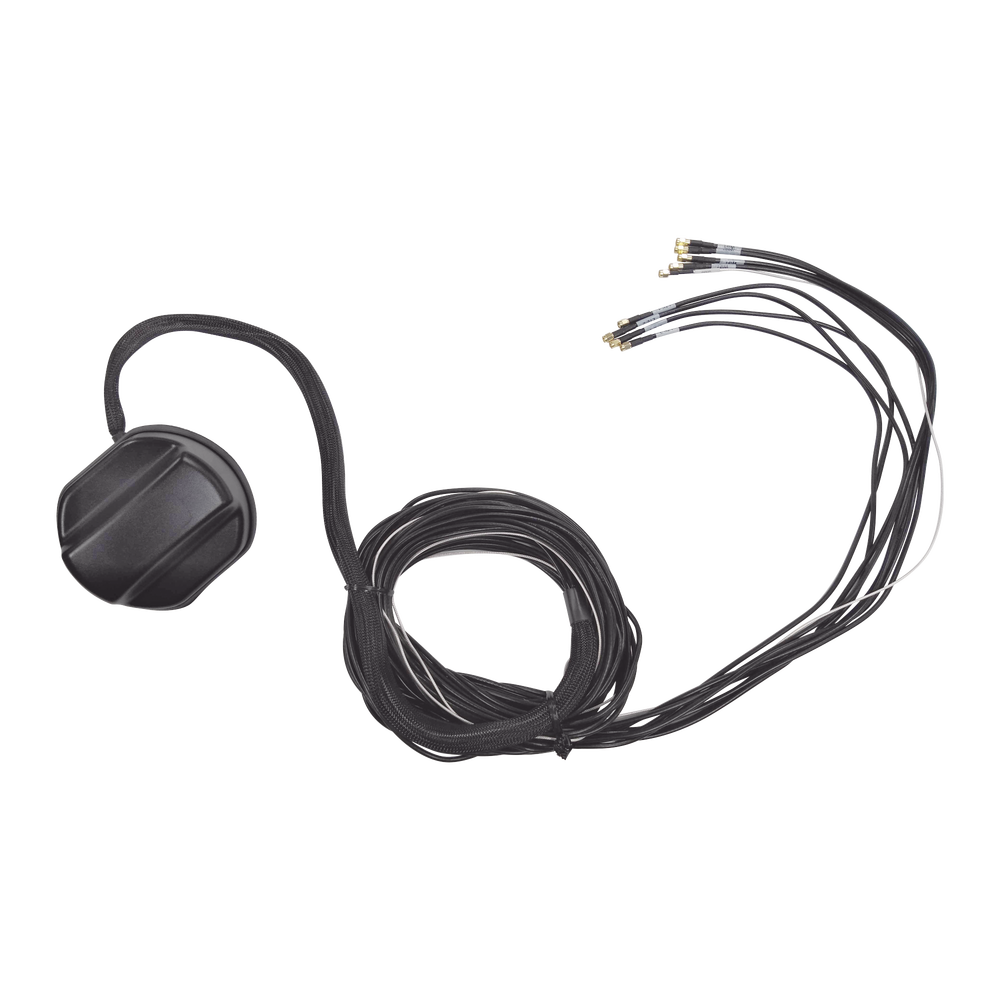

Multi-band GNSS Antenna. The Coach™ II dual-carrier antenna platform is designed to meet the increasingly complex RF communication system requirements in transportation and IIoT applications. These antennas feature four 4G LTE elements compatible with the world’s leading multi-network cellular routers that support carrier aggregation for high-speed data transmissions required in dense RF environments used in intelligent transportation systems (ITS). The platform also incorporates dual-band 802.11ac MIMO Wi-Fi connectivity with four Wi-Fi element options. Additionally, the antennas include PCTEL’s proprietary high-rejection multi-GNSS technology for high-precision tracking and asset management. Low-profile housing options in black or white are available. Features • 1-inch metal stud mount with slotted locknut provides a single cable exit for easy antenna installation and/or replacement. • The IP67-compliant design provides maximum protection against water and dust ingress in harsh environmental conditions (when installed on the sealed surface). • Patented high-rejection filtering enables broadband coverage while achieving superior out-of-band rejection for all GNSS frequencies.
