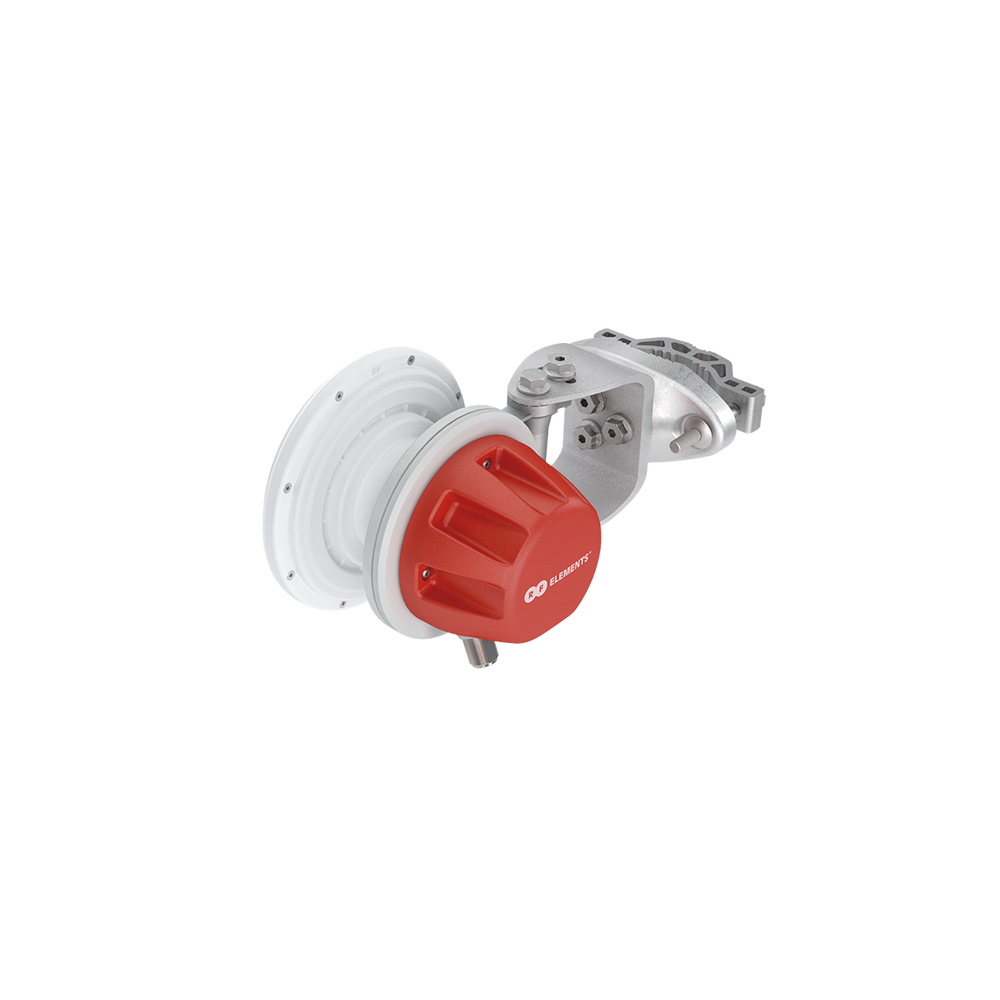

Carrier Class GEN2 80° 10.4 dBi 5180-6400 MHz Symmetrical Sector Antenna with connectors, improved support and higher quality materials for high noise environments

Carrier Class GEN2 80° 10.4 dBi 5180-6400 MHz Symmetrical Sector Antenna with connectors, improved support and higher quality materials for high noise environments

Game that changes the sector's antenna

The Symmetrical Horn Carrier Class Gen2 is a scalar horn with the same main beam size in both horizontal and vertical planes, equipped with N-female connectors. Since 2014, our horns have addressed the key shortcomings of mainstream sector antenna technologies, providing excellent noise rejection, network scalability, and performance improvements.

Proven by tens of thousands of installations worldwide, RF elements Symmetrical Horn Carrier Class antennas are the new standard for fast, sustainable wireless connectivity.

Single beam performance

The CC Gen2 symmetrical horn has a unique beam shape and properties. The main beam cross-section is circular: the azimuth and elevation beamwidths are identical.

Without side lobes

The CC Gen2 symmetrical horn has no sidelobes, concentrating energy into a single beam. This property conserves the most important resource in the world of wireless communications: spectrum. As a result of its unique radiation properties, the radio collects and propagates significantly less noise compared to mainstream sector antennas. The noise problem is directly related to an antenna's sidelobes—practically, an unavoidable feature of the most competitive products. The CC Gen2 symmetrical horn behaves differently; it is essentially "deaf" outside the main beam.

Broadband performance

The Symmetrical Horn CC Gen2's radiation pattern is frequency-independent, and its gain is stable across the entire operating bandwidth. These characteristics make the Symmetrical Horn CC Gen2 excellent sector antennas.

Excellent gain across the spectrum

The Symmetrical Horn CC Gen2 antenna covers an ultra-wide bandwidth: 5180-6400 MHz! At the same time, the gain is stable across the entire band.

Coverage Without Nullity

Mainstream sector antennas have a radiation pattern that is broad in azimuth but flat in elevation. If an AP is too high, clients placed too close will suffer from a weak AP signal.

Innovative scalability

Symmetrical Horn CC Gen2 facilitates wireless network scalability. Its unique beam performance and excellent co-location capabilities enable higher-density sectors compared to traditional sector technology.

The CC Gen2 symmetrical horn features precise main beam widths, spanning from 30 to 90 degrees – a range of models suitable for any situation.

Maximum spectrum efficiency for all

The CC Horn Gen2 symmetrical antenna supports dense co-location of narrow sectors with excellent isolation. It unlocks RF performance not previously possible. This is an advantage that horns offer, regardless of the radio platform used.

Shown on the right is a tower with twelve symmetrical 30° horn antennas installed, covering 360°, while reusing only two channels. 'Impressive' is the new standard.

N-type connectors

Symmetrical horn carrier-class antennas have N-type female connectors, used with a wide range of radios. For example, Mimosa™, Cambium Networks™ PMP450, LigoWave™, and many others. Users of UBNT™ Rocket M5 Titanium, MikroTik™ pluggable radios (NetBox™, BaseBox™, and NetMetal™) can also use coaxial ports on carrier-class symmetrical horn antennas.

Compact size

The Symmetrical CC Horn Gen2 antenna is compact, with only 20-25% of the footprint of traditional sector antennas. It saves tower rental costs and makes it possible to install Symmetrical CC Horn Gen2 antennas where regular sectors would not be permitted due to their shape and size.

Robust and Durable

The Symmetrical Horn CC Gen2 has a solid aluminum body, built to last and withstand any weather conditions. We use only the finest materials: cast, stamped, and extruded aluminum; high-quality polypropylene, UV-resistant polycarbonate; and stainless steel hardware.

Improved material and support, 2 "N" type female connectors, Opening: 80° vertical 80° horizontal, Includes mounting, 1 year warranty
