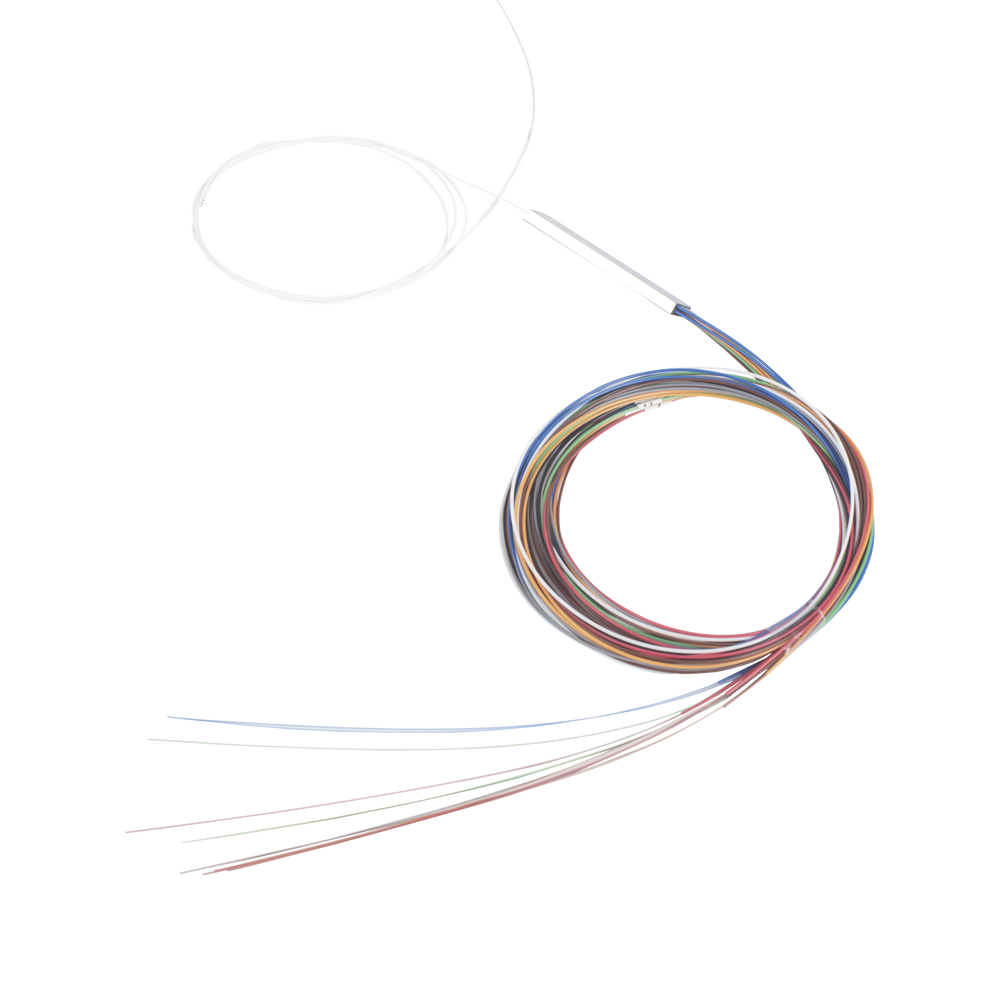

Splitter (Divisor Óptico) tipo PLC, de 1x16, para fusión (sin conectores)

PLC type splitter, 1x16, for fusion (without connectors)

Sale price  $46,153 Regular price  $53,545
Skip to product information
Splitter (Divisor Óptico) tipo PLC, de 1x16, para fusión (sin conectores)

PLC type splitter, 1x16, for fusion (without connectors)

Sale price  $46,153 Regular price  $53,545
Shipping calculated at checkout.
Marca
FIBERHOME
Referencia / SKU
PLC-116-S
Disponibilidad
500 unidades disponibles
Descripción y especificaciones

PLC type splitter, 1x16, for fusion (without connectors)

The PLC optical splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective and space-saving solution for the network. The PLC splitter uniformly divides an optical signal from one or two input ports to multiple output ports. It can operate in wavelengths from 1260 to 1650 nm. Its compact size allows for installation in underground, aerial, pole, pedestal, and rack systems.

The FiberHome PLC Splitter adopts patented low-loss technology. It features low insertion loss, low polarization loss, and high port uniformity. All products fully comply with Telcordia GR-1209 and GR-1221 standards, and all materials used comply with the RoHS directive. PLC Splitters are available in a wide variety of configurations, including pre-terminated boxes for harsh environments, compact square enclosures, or flat tubes.

Technical Specifications:

  • Input: Pigtail Loose tube without connector
  • Output: Pigtail Loose tube without connector
  • Complies with G.657A fiber optic standard
  • 1X16 divisor
  • Operating Temperature: -40 to 85ºC
  • Relative Humidity: 20~95 (%RH)

Optical Properties:

  • Operating Wavelengths: 1260 ~ 1650 nm
  • Maximum input power: >300 mW
  • Directivity: >55 dB
  • WDL: <0.5 dB
  • PDL: <0.3 dB
  • Uniformity: <1.2 dB
  • Insertion Loss: ≤13.8 dB
  • Return Loss: > 55 dB

Applications:

  • FTTx
  • LAN, WAN
  • CATV
  • Tests and Measurements
