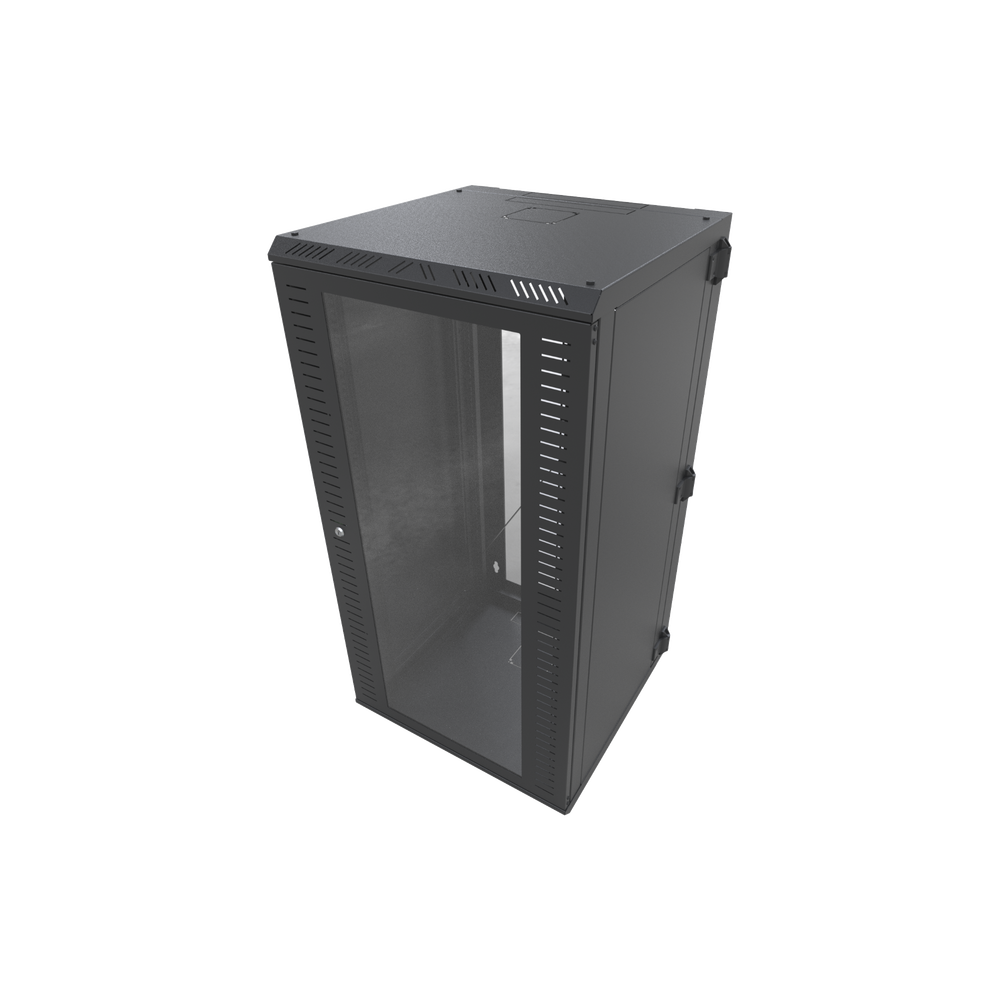

24-Unit 19" Wall-Mounted Swing-Out Cabinet with Glass Window

24-Unit 19" Wall-Mounted Swing-Out Cabinet with Glass Window

Characteristics:

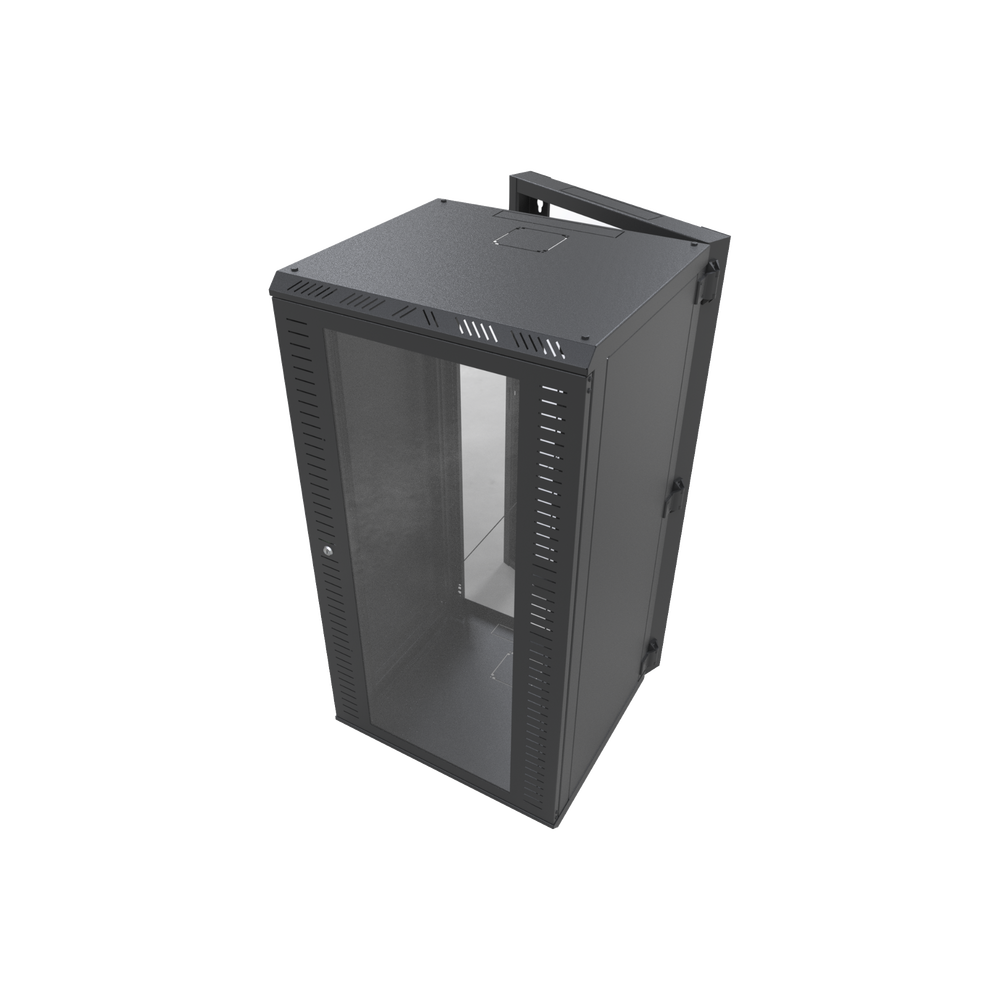

• The body rotates on its right axis to work with the equipment connections freely.

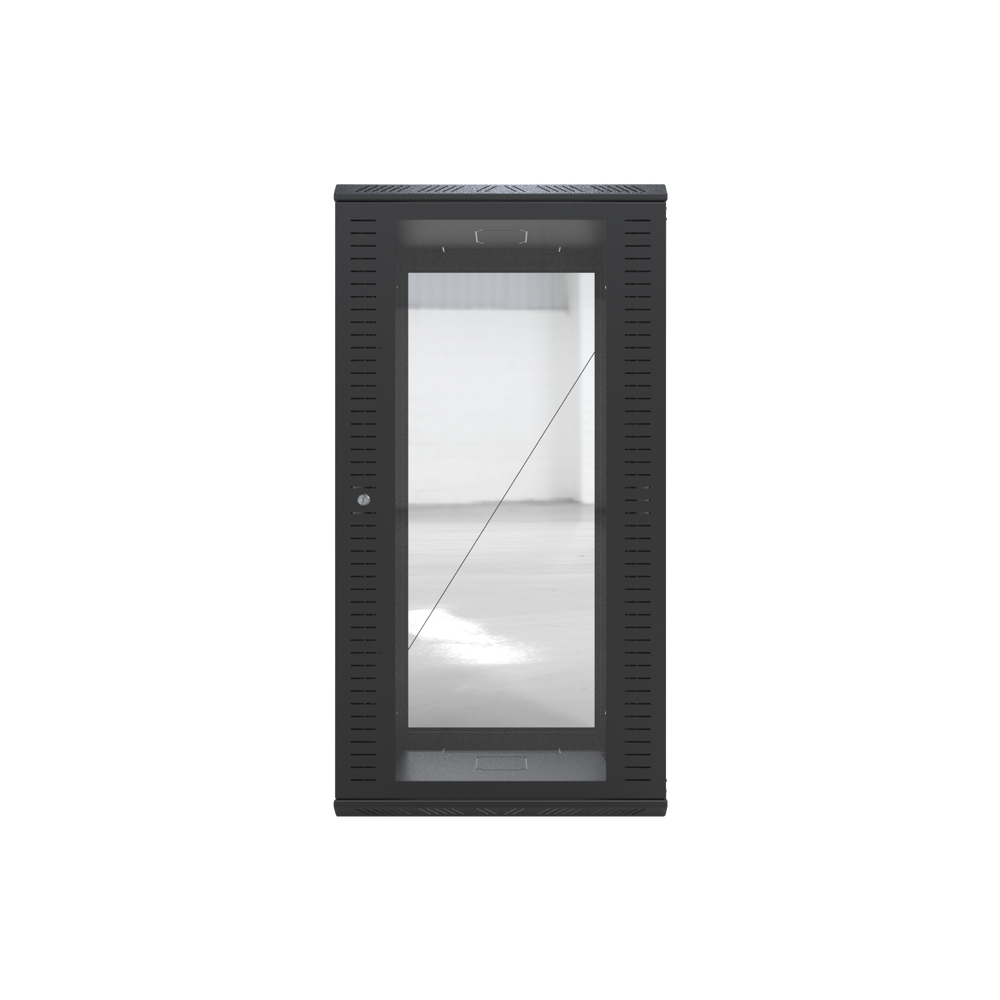

• Impact-resistant safety glass window.
• Removable sides for greater versatility.

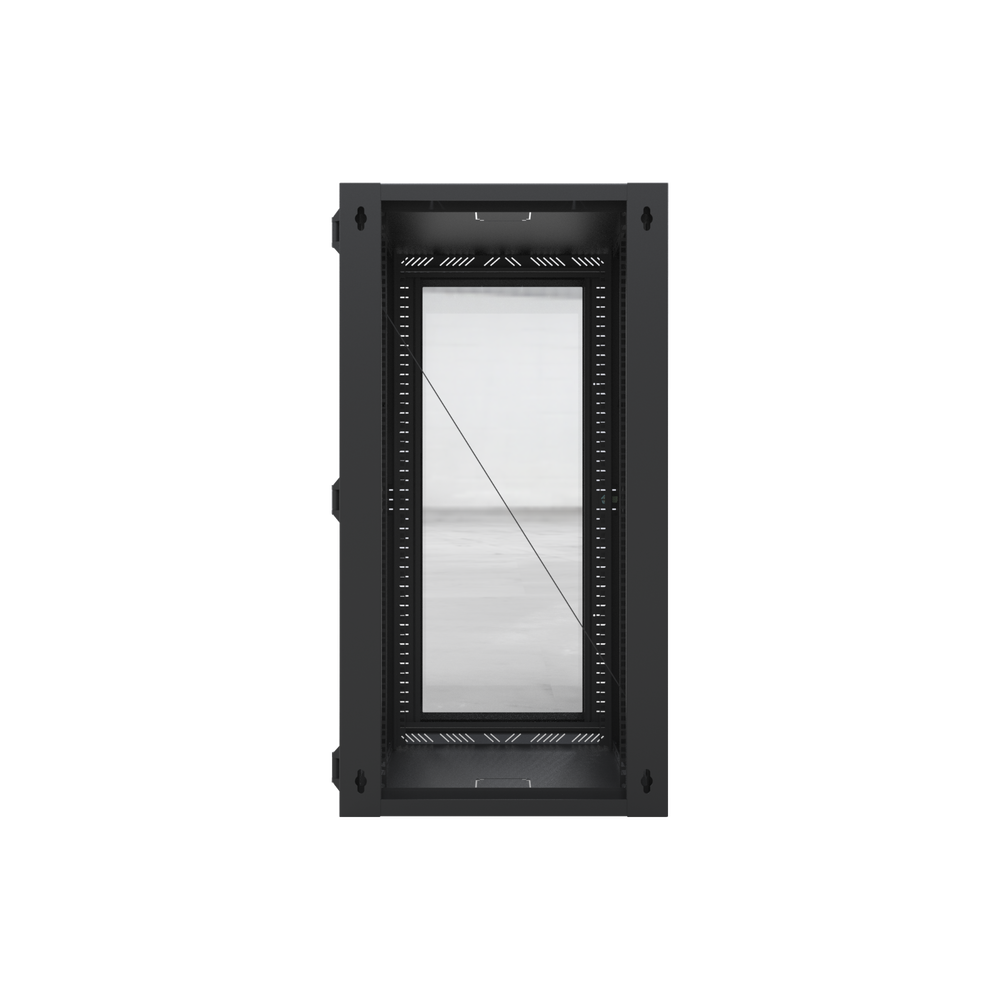

• The front rack supports can be moved closer or further away for better equipment installation.
• Double sheet metal (on the front door and on the side to fold down the body).
• Option to run wiring to the wall and to the top and bottom of the frame.
• You can remove the door to facilitate equipment installation.
• The door can be positioned to open in both directions.
• Welded main body to ensure stability.


Application:

•Radio communication equipment such as repeaters and sources.
•Security monitoring stations for recorders and switchboards.
•Over-the-air data transmission control centers.
•To manage high-performance copper and fiber patch cables with the added benefit of security through the use of shields.

Physical Characteristics:

• Application: Interior.
• Material: Steel.
• Rack Units: 24.

• Dimensions: 600 x 1154 x 594 mm (width x height x depth).

1 Rack Unit = 1.75' = 44.45 mm (Height)

Paint:

•Semi-matte black color.
•Applied by a 5-step electrostatic baking process: Degreasing, rinsing, iron phosphate, rinsing and sealing.
•Polyester Base Paint.

Recommendations:

• Make sure the installation is performed by a trained professional.
• Periodically check that the hardware is properly tightened.
• Schedule a maintenance plan to remove excess dust and dirt from your installed equipment.



FOR ANY QUESTIONS OR COMMENTS, PLEASE CONTACT THE ENGINEERING DEPARTMENT.
