921 PROX HID, EM Keypad Reader / iClass SEOS (non-clonable) / iClass SE/ iClass SR/ iClass / Mifare Classic, DesFire, Bluetooth / Lifetime Warranty

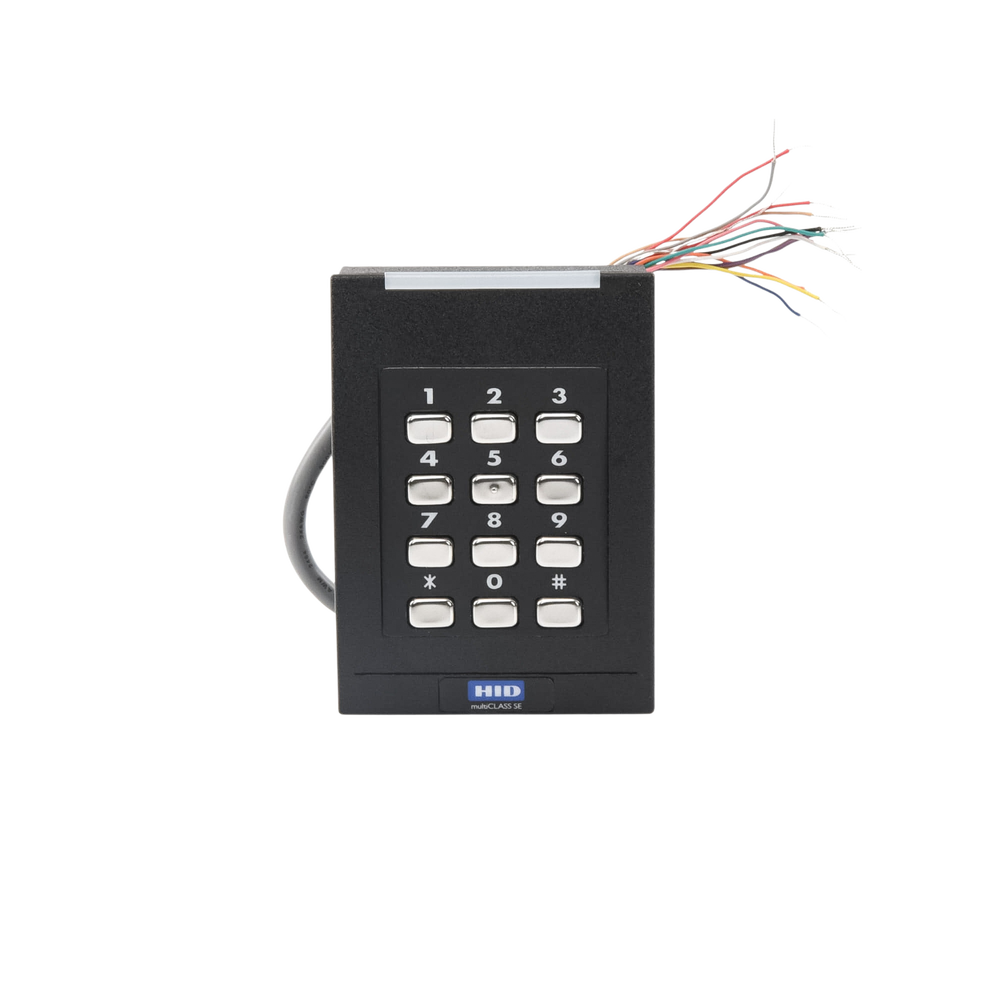

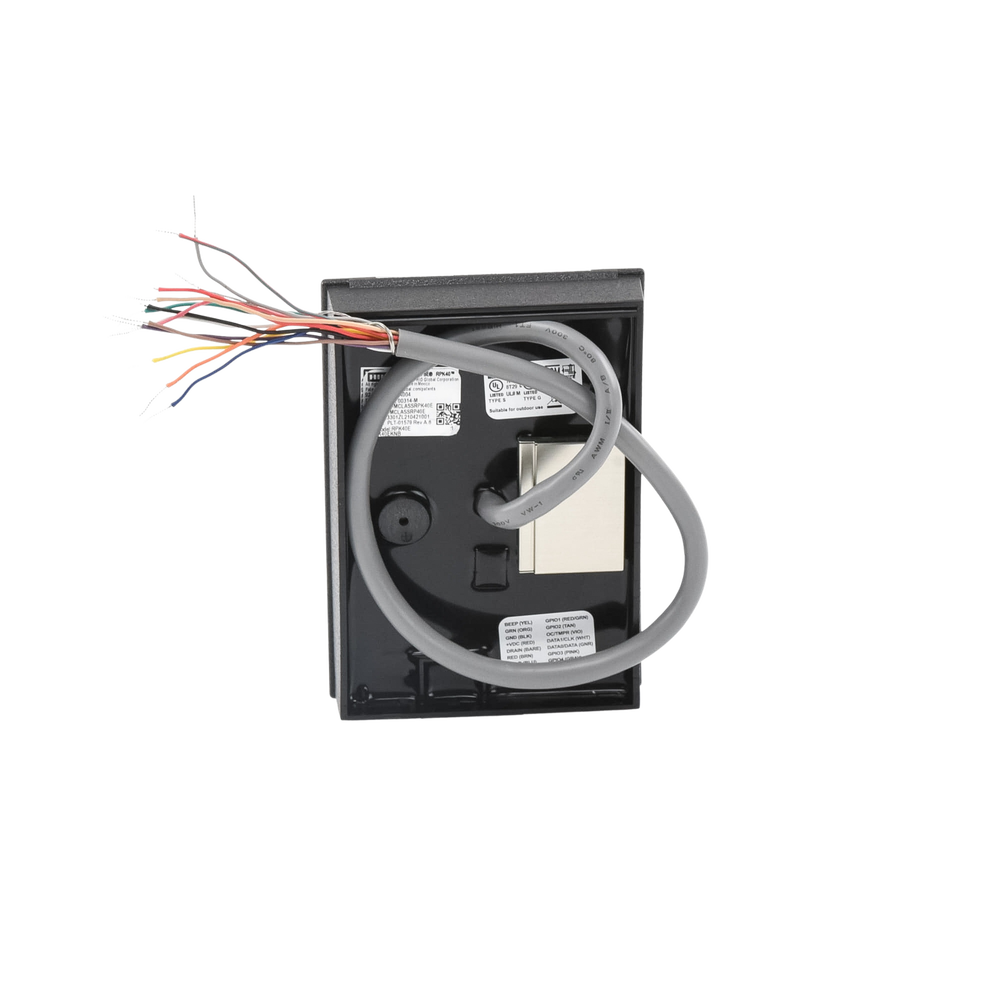

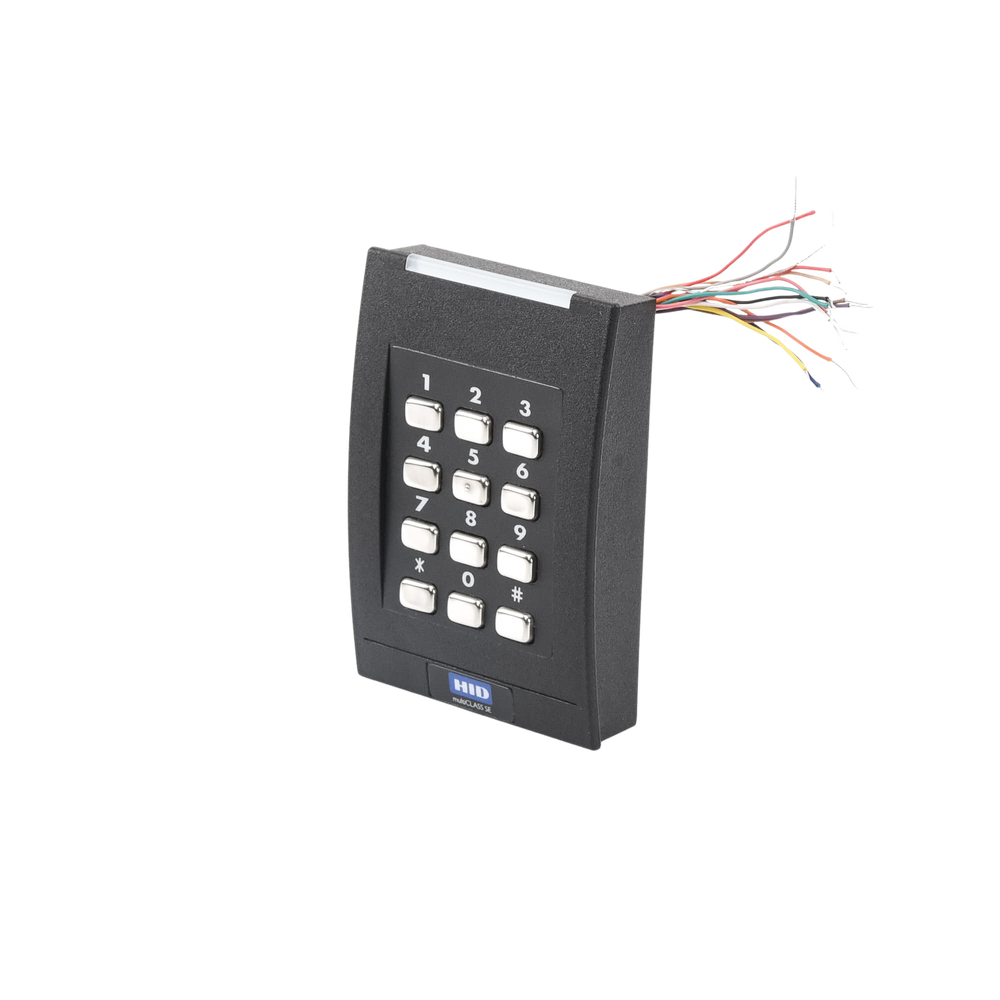

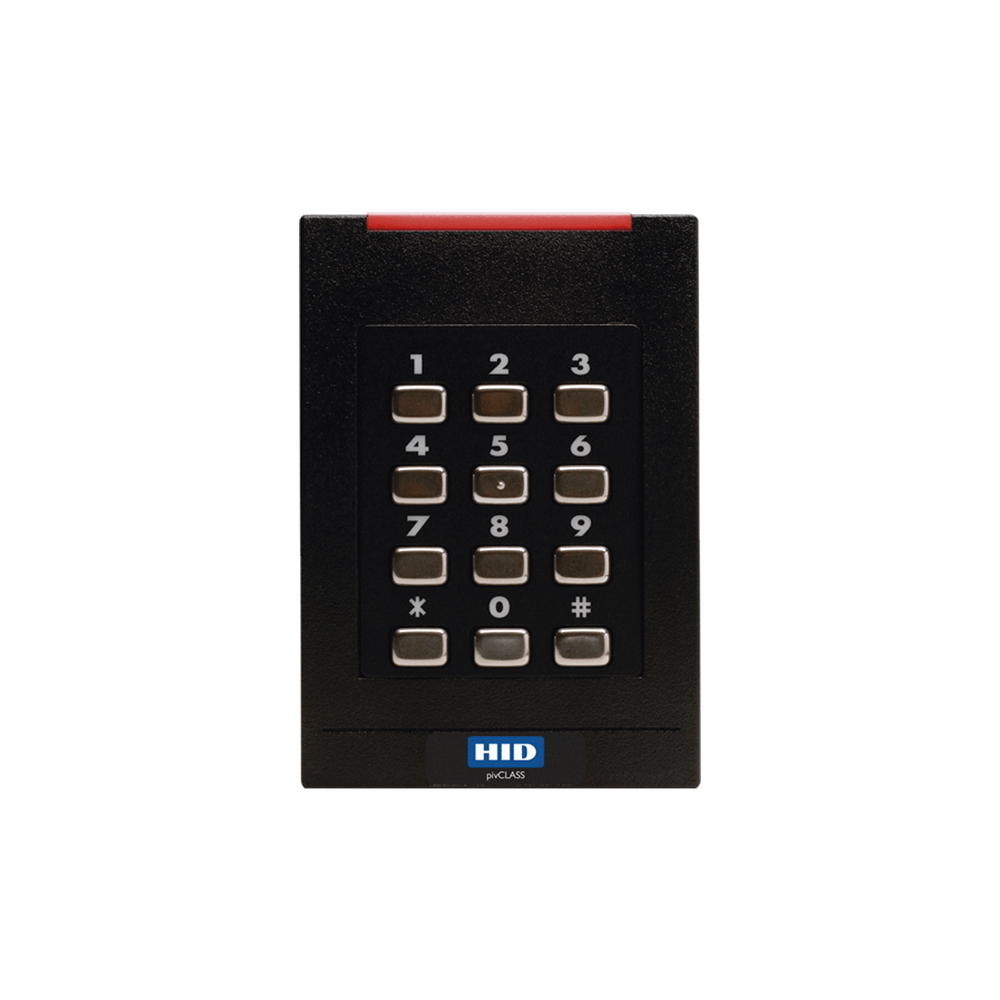

• RK40 Reader ( 921PMNNEKMA004 ).
• Multi-format HID Proximity, EM Proximity, AWID, iClass, iClass SEOS/iClass SE/iClass SR/iClass/Mifare Classic, DesFire, Mobile ID via NFC. Bluetooth for use with MobileID
• Wiegand communication.
• The reading range in SEOS technology is 1 cm.
• Terminal strip.
• Operating voltage: 5-16 Vdc.
• Black color.
• Lifetime warranty.
• Dimensions: 8.5 x 12.2 x 2.8 cm
• Weight: 228 g.
• Requires Wiegand driver to operate: Here

NOTE:

There are three different exits:

• 4 bits ( default ) Output type example : PIN 1234 0001 0010 0011 0100
• 8 bits Output type example : PIN 1234 11100001 11010010 11000011 10110100
• 26 bits (Emulates the H10301 format, the PIN must be a number from 1 to 65535, the FC is programmed into the reader when configuring it).

You can order the configuration cards:

• SEC9XCRD0003R (26- bit Keypad)
• SEC9X-CRD-0-001V (Keypad 8 bits )
• SEC9XCRD00003 (Keypad 4 bits )
