(CCR1016-12S-1S+) Cloud Core Router 12 SFP ports, 1 SFP+ 10G, with redundant power supply
(CCR1016-12S-1S+) Cloud Core Router 12 SFP ports, 1 SFP+ 10G, with redundant power supply
- Marca
- MIKROTIK
- Referencia / SKU
-
CCR1016-12S-1S+
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones
(CCR1016-12S-1S+) Cloud Core Router 12 SFP ports, 1 SFP+ 10G, with redundant power supply
CCR1016-12S-1S +
The CCR1016 is an industrial-grade router with a 16-core Tilera CPU architecture. If you need millions of packets per second, the Cloud Core Router is your best choice.

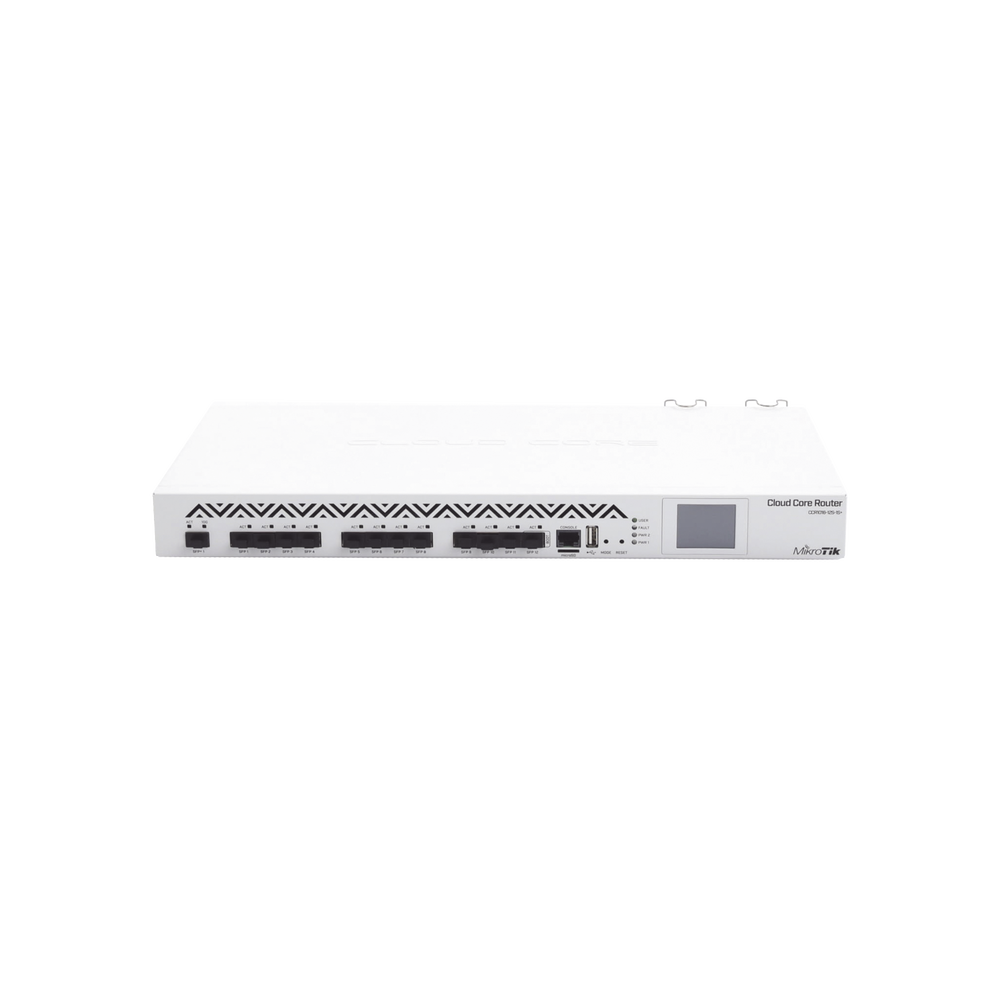

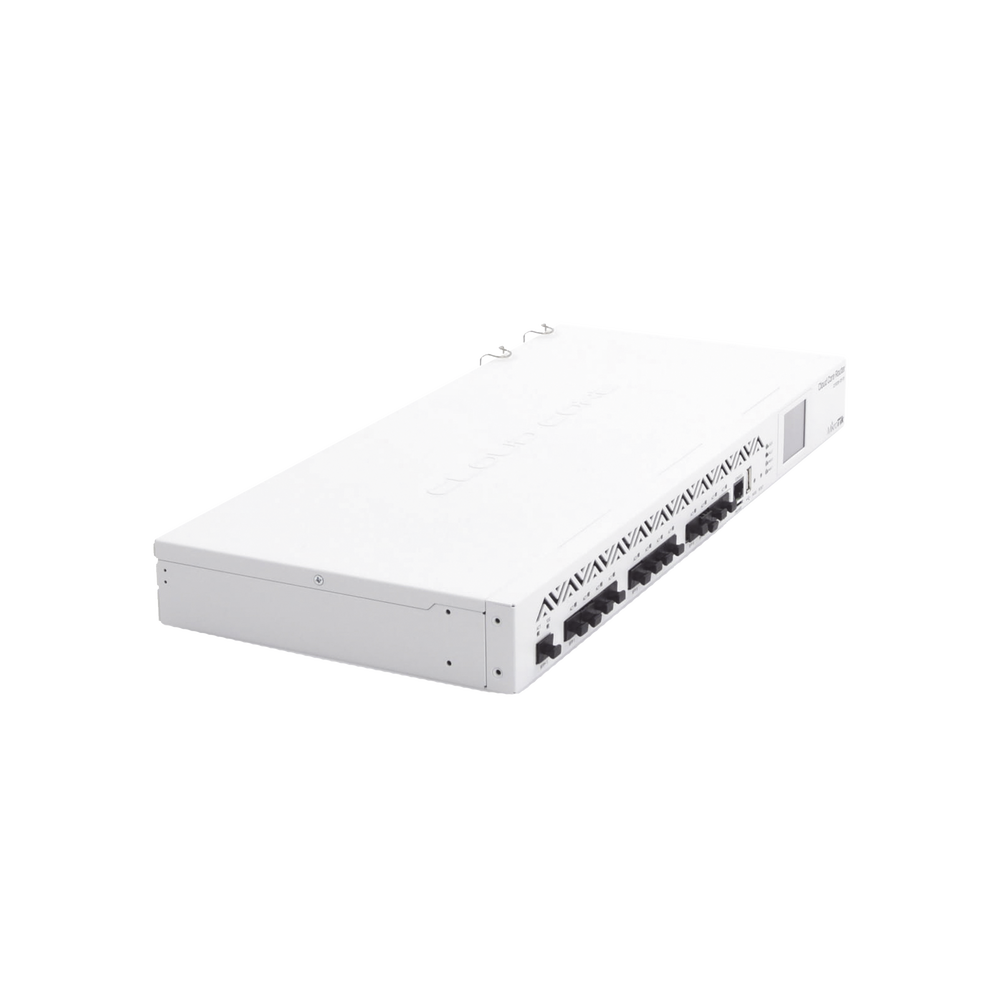

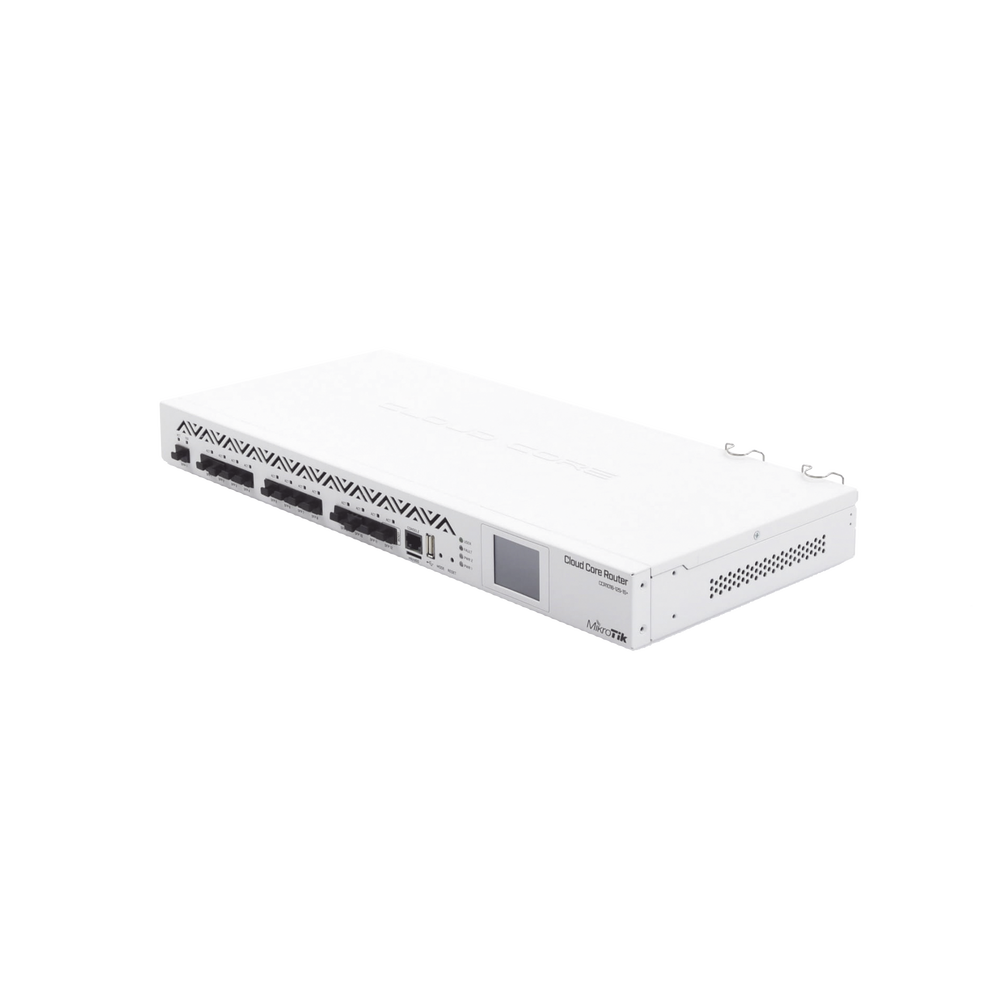

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It comes in a 1U rackmount enclosure and also features a serial console port, a touchscreen LCD display, and a USB port.

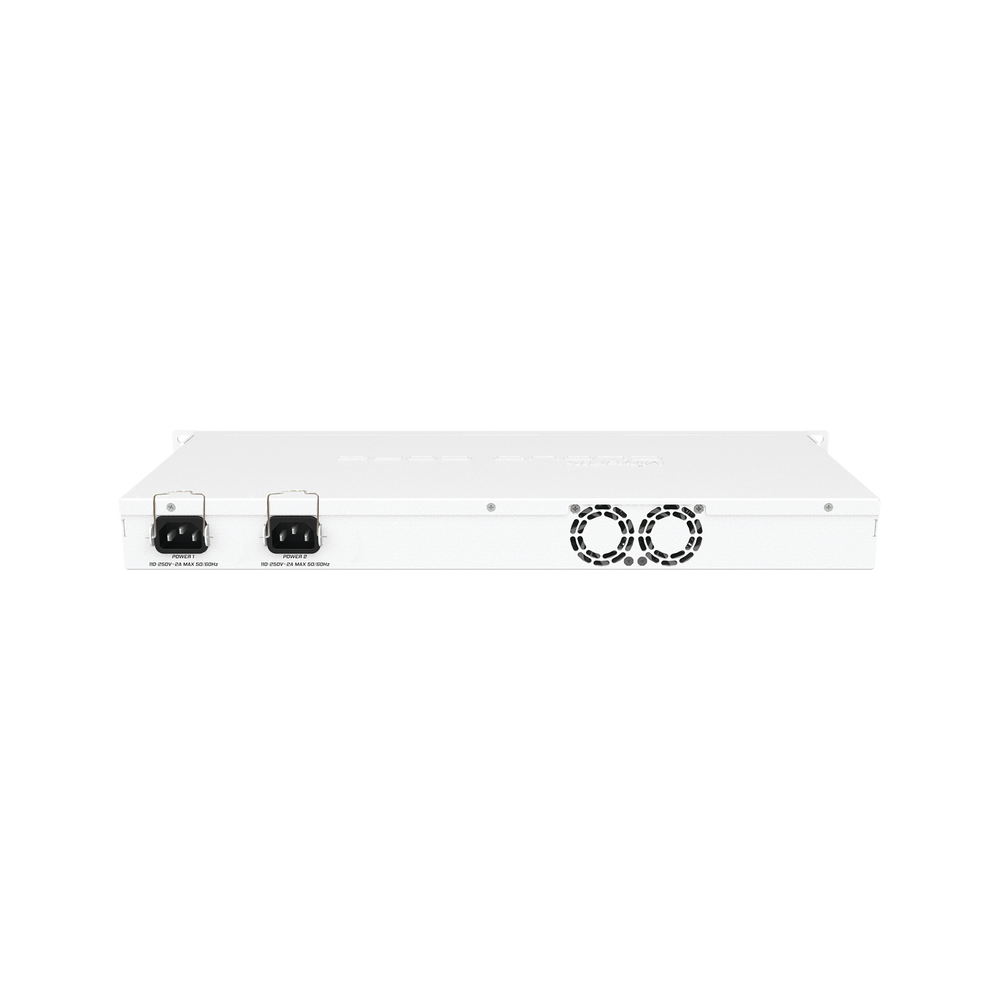

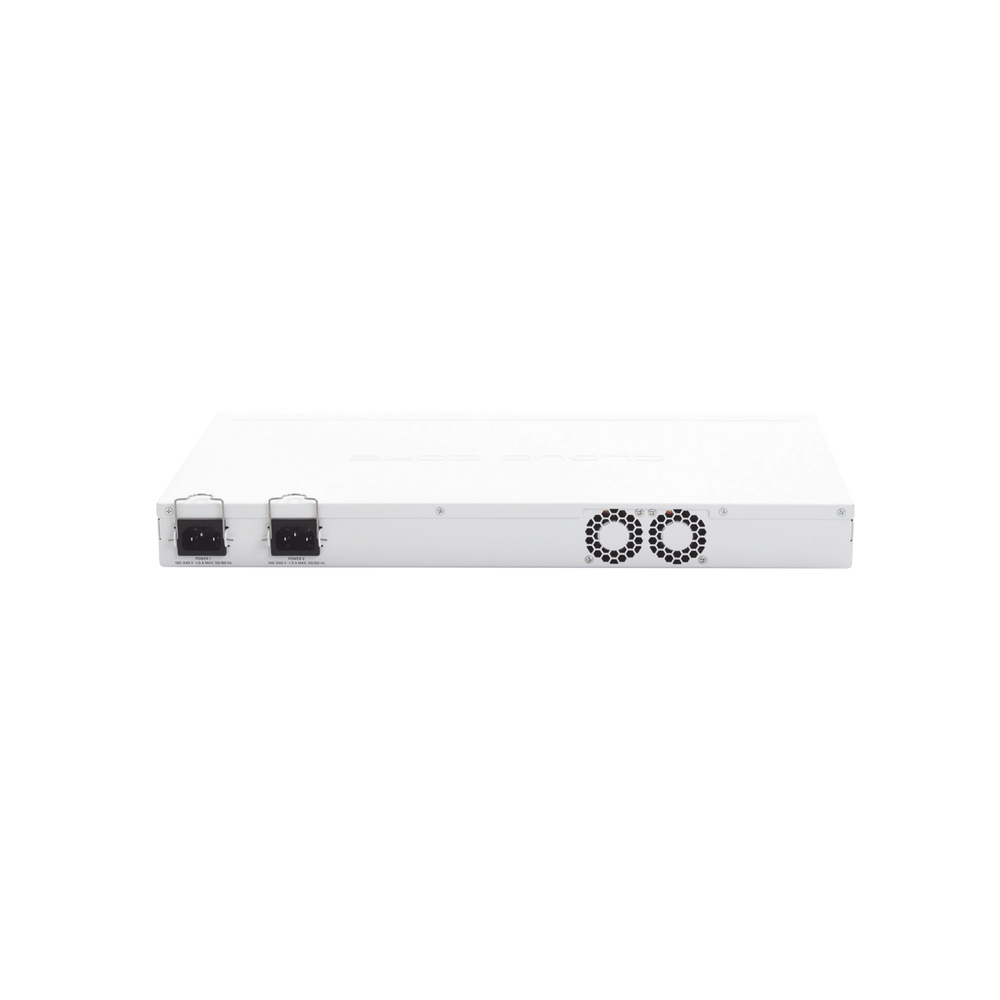

The CCR1016-12S-1S+ comes with redundant power supplies and a 10/100/1000M copper SFP module.
*1 year warranty.
Main features of RouterOS
Specs
| Details | |
|---|---|
| Product code | CCR1016-12S-1S+ |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU cores | 16 |
| Nominal CPU frequency | 1.2 GHz |
| Dimensions | 443 x 197 x 44 mm |
| License level | 6 6 |
| Operating system | RouterOS |
| RAM size | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Room temperature tested | -20°C to 60°C |
Feeding
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Maximum energy consumption | 47.5 W |
| Maximum power consumption without accessories | 34 W |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yeah |
| SFP ports | 12 |
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory cards | 1 |
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU Temperature Monitor | Yeah |
| PCB Temperature Monitor | Yeah |
| Mode button | Yeah |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE/RED, EAC, ROHS |
Parts included
-
Shelf ears -
RJ45 SFP copper module -
2x IEC cables
