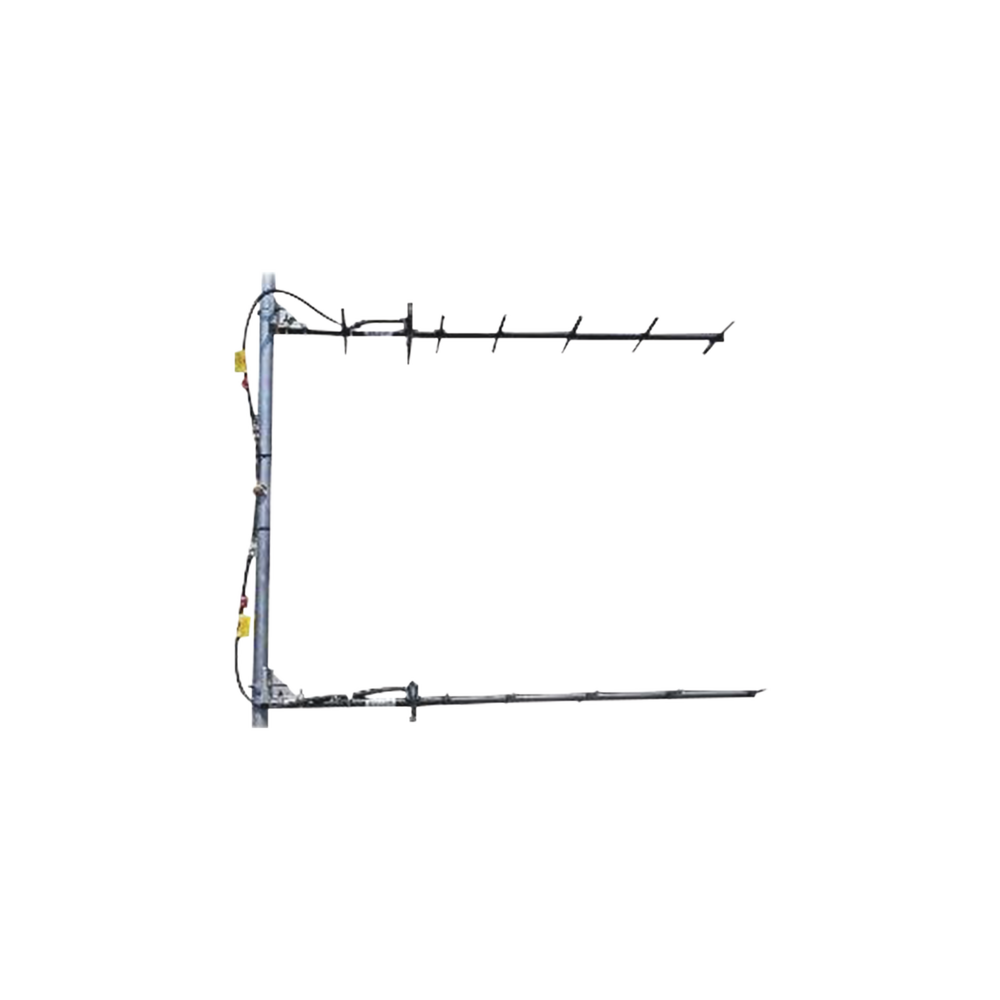

7-element Dual Directional Yagi Antenna, 403-430 MHz, 12.5 dB, 27 MHz, 250 Watt, N Female.

7-element Dual Directional Yagi Antenna, 403-430 MHz, 12.5 dB, 27 MHz, 250 Watt, N Female.

Double Yagi Antenna, 7 elements, 450-470 MHz, 12.5 dB, 250 Watt, N Female.

• Frequency range: 403-430 MHz.
• Bandwidth: 27 MHz.
• Gain (nominal): 12.5 dB.
• Input VSWR (max): 1.5:1
• Polarization: Vertical or Horizontal.
• Impedance: 50 Ohm.
• Pattern: Directional.
• Aperture (Horizontal/Vertical): 55°/20°.
• Average power input (max): 250 W.
• Connector: N Female.
• Shock Protection: CD Landing.
• Front/Rear Ratio (Typical): 20 dB.
• Temperature range: -40°C to +60°C.
• Dimensions (Height x Width x Depth): 1175 x 438 x 76 mm.
• Weight: 6.36 kgs.
• Wind resistance: 161 kph.

*Ask for delivery time
