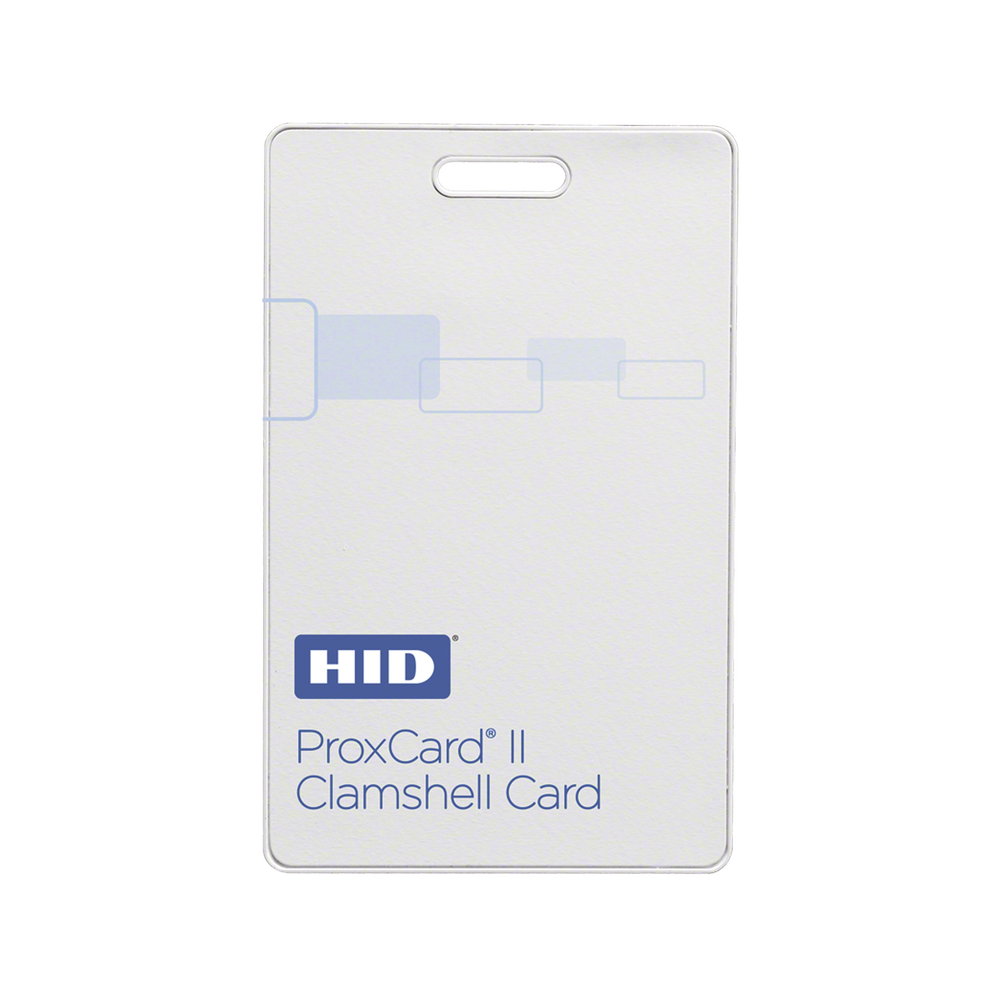

Proximity Card Matte Finish ProxCard II HID Clamshell (Thick) / Lifetime Warranty / (1326)

Proximity Card Matte Finish ProxCard II HID Clamshell (Thick) / Lifetime Warranty / (1326)

• HID Reference: 1326LSSMV.
• Compatibility with HID PROX readers: R10SE PROXPOINT MINIPROX THINLINE
• Made of PVC, for greater resistance to everyday use.
• When ordering, you must provide the format, site code, and card number. Please fill out the following form.
• Requires a minimum order of 100 pcs.
• Dimensions: 5.4 x 8.6 x 0.19 mm

Note: This card cannot be printed because it is a thick card, what you can do is print a DIC-100091 sticker and stick it on the card.

Typical maximum reading range

• Up to 3' (7.5 cm) with ProxPoint® Plus reader
• Up to 5.5' (14 cm) with MiniProx® reader
• Up to 5.5' (14 cm) with ThinLine II® reader
• Up to 8' (20 cm) with ProxPro® reader
• Up to 9' (22.9 cm) with ProxPro® II reader
• Up to 5.5' (14 cm) with Prox80™ reader
• Up to 24' (60 cm) with MaxiProx® reader

* Depending on local installation conditions.

Product on request

Learn what Corporate 1000 is.

• Add a user-controlled format.
• Available in SYSCOM at 48 bits.
• For Corporate 1000 formats, additional documentation must be completed at the time of purchase:
  • New project: Credential Program Application
  • Existing projects
• An additional cost must be considered when requesting this Corporate format, to the list price of the card add the MC-1000 model corresponding to a charge per card to be programmed in C1000.

How to buy HID cards?

All HID cards are custom programmed so additional information must be provided.

• Requires a minimum order of 100 pcs.
• It is essential to process any purchase order:
• For open formats:
  • Format: Confirm that it is H10301, that is, 26 bits.
• • Site Code (Site Code / Facility Code): (0 to 255, if it is 26-bit H10301 format).
  • Consecutive (range): The numbering that the cards will have (Between 0-65535 if it is 26 bits H10301).
  • Finally, indicate whether you want the card number printed on it.
  • You can fill out the following form and send it to your sales representative to process your request.
• In formats other than H10301 (26 bits) it is necessary to request validation and delivery time from the engineering department.
• For corporate formats, you must quote MC-1000 and follow the process described there.
• Any variation in the model or format, the estimated delivery time is 3 weeks.
• All purchases of this model through this portal are subject to the submission of the necessary information to process the purchase.
• It is recommended that if you have an existing card, send it to SYSCOM for identification prior to purchase.
