Main Features:

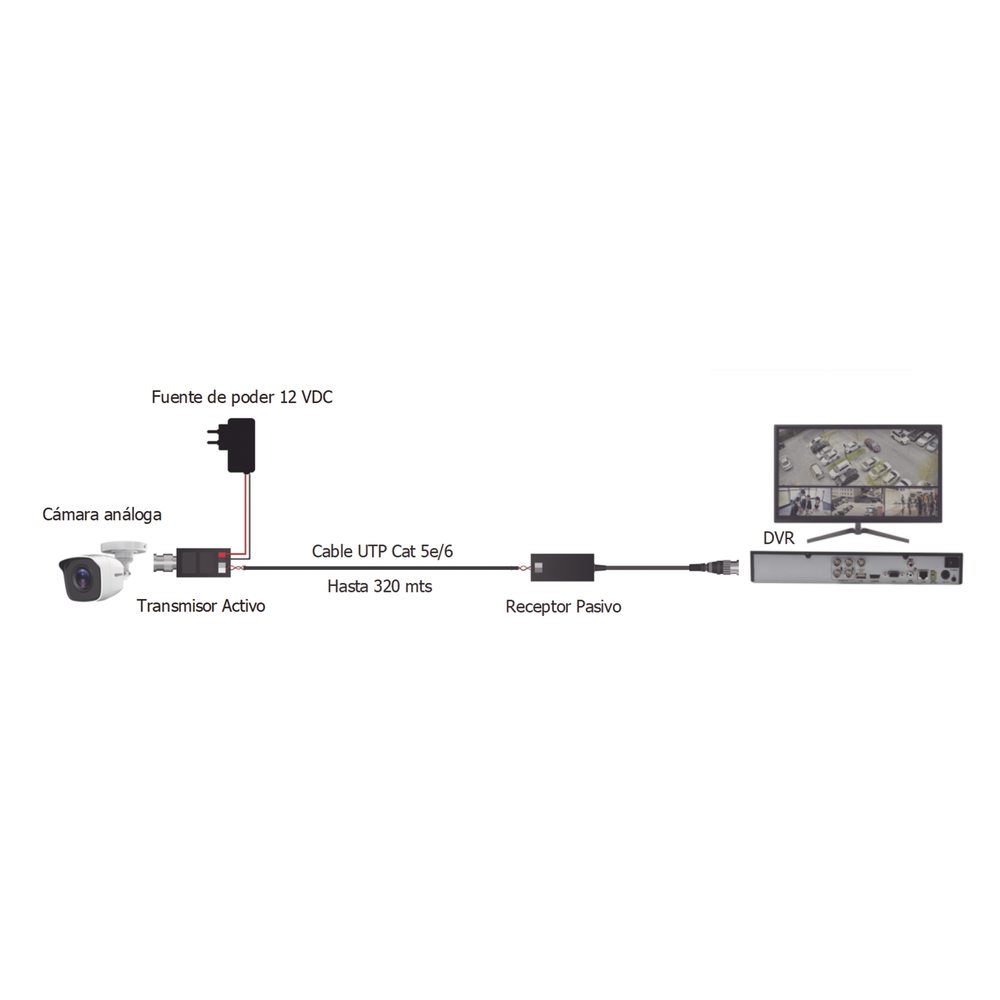

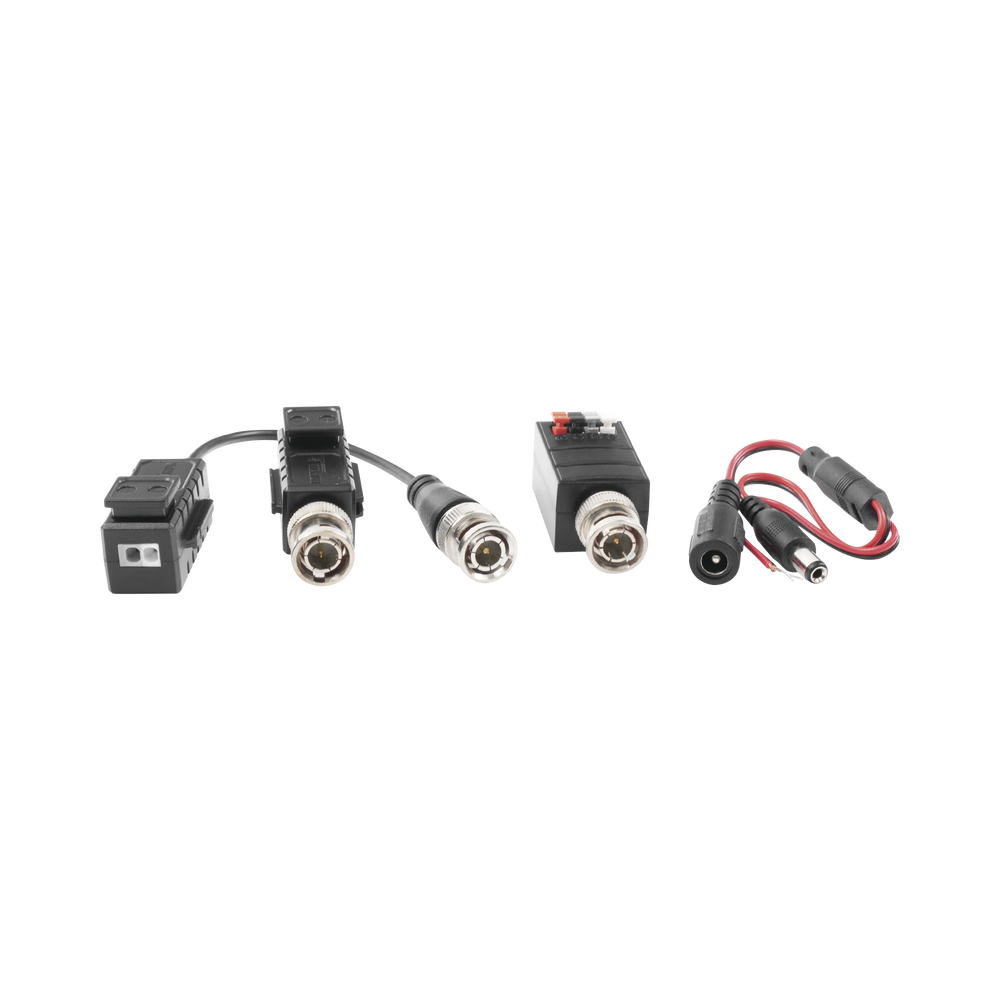

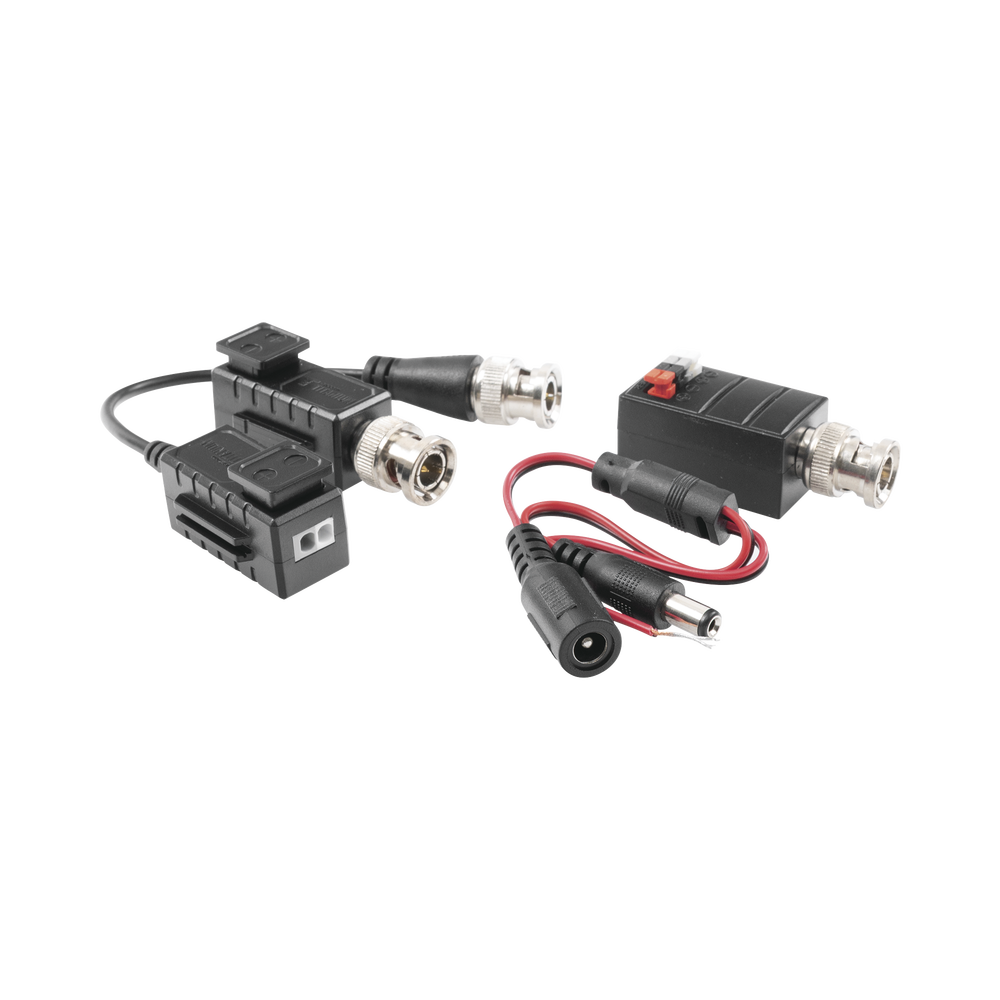

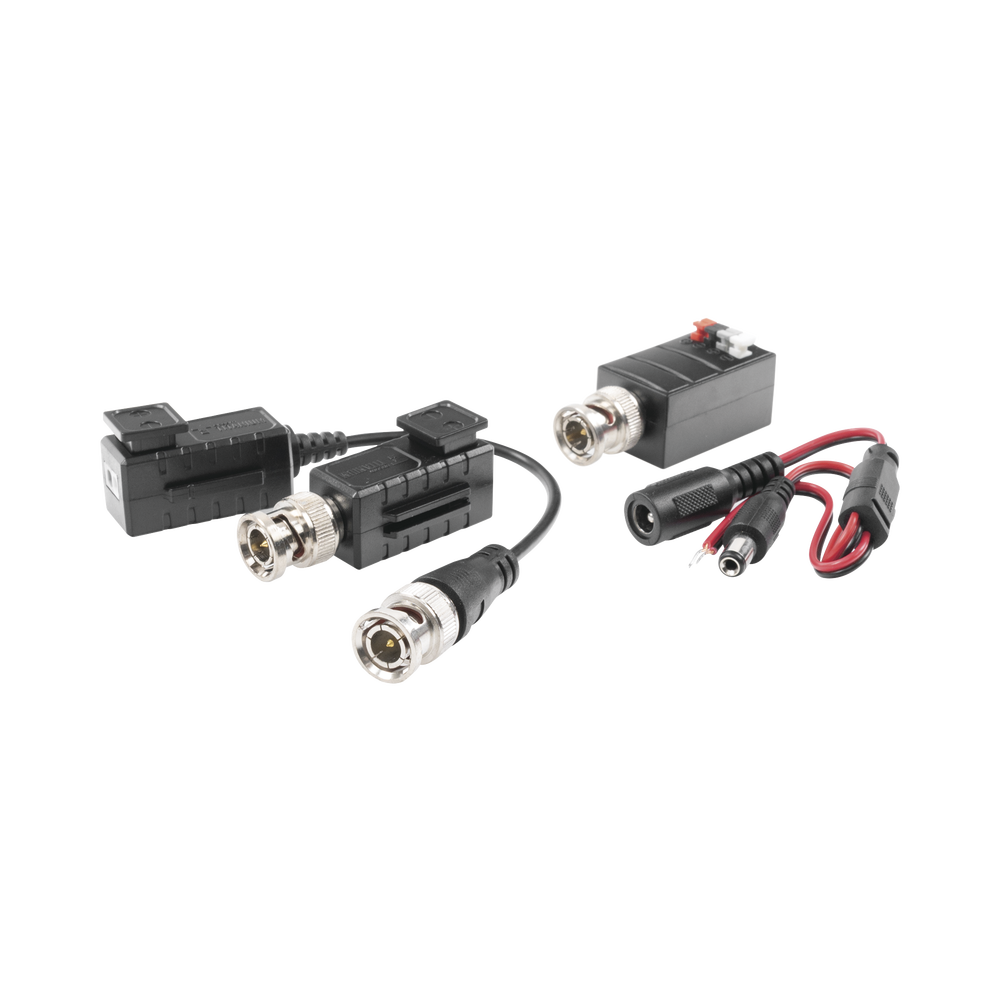

• TURBOHD Active Video Transmitter and Passive Video Receiver (includes a pair)
• Real-time transmission over UTP cat 5e/6 cable
• Supported video formats NTSC, PAL, SECAM
• Compatible with analog HD-TVI (TurboHD), CVI, AHD and CVBS cameras
• BNC male connectors
• Pin terminals for UTP cable

Physical and Electrical Characteristics:

• Receiver power supply at 12 Vdc
• Impedance 75 ohms
• Color: Black
• Operating temperature: -5°C to 45°C
• Dimensions ( L x W x H ) : 60 x 30 x 24.5 mm ( Transmitter )
• Weight: 50 grams. (Transmitter)
• Dimensions ( L x W x H ): 35.1 x 16.7 x 18.7 mm (Receiver)
• Weight: 40 grams.(Receiver)

Highlighted Features:

• Built-in surge protection
• Anti-static wave filter design
• Noise immunity of 60 dB
• ABS engineering plastic shell
• The TT4501R is recommended for use with 24AWG to 22AWG unshielded twisted pair (UTP) cabling.
• *The receiver contains a pair, so you can use the one that best suits your installation.
• *Does not support coaxitron
