Standard |
IEEE802.11b/g/n (2T2R 300Mbps) |
Working frequency |
2400~2500MHz (supports frequency expansion, extended range: 2312-2732MHz) |
The antenna |
Built-in antenna: 8dBi gain horizontal 70 degrees, vertical 70 degrees |
Output power |
20dBm |
Reception sensitivity |
-75dBm @ MCS7, -100dBm @ 1Mbps |
Maximum transmission speed |
11n: 300Mbps (40M channel width), 144Mbps (20M channel width) |
11g: (54Mbps) |
|
|
Working voltage |
12V DC |

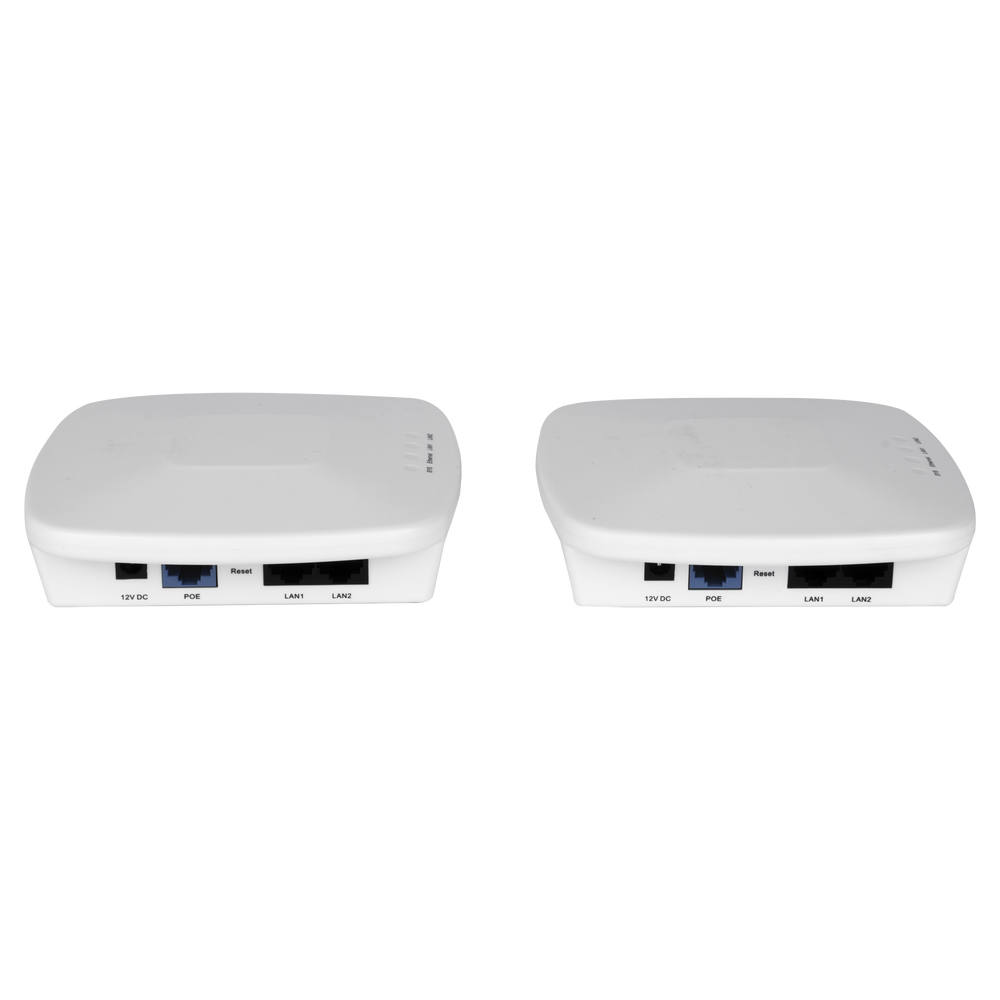

Interface |
3x10/100M Base-TX network port (Cat.5/5E, RJ45) |
Working temperature |
-30°C ~ +65°C |
| Storage temperature
|
-40°C ~ +85°C |
Working humidity |
5% ~ 95% RH non-condensing |
Dimensions |
130*130*36 mm |
