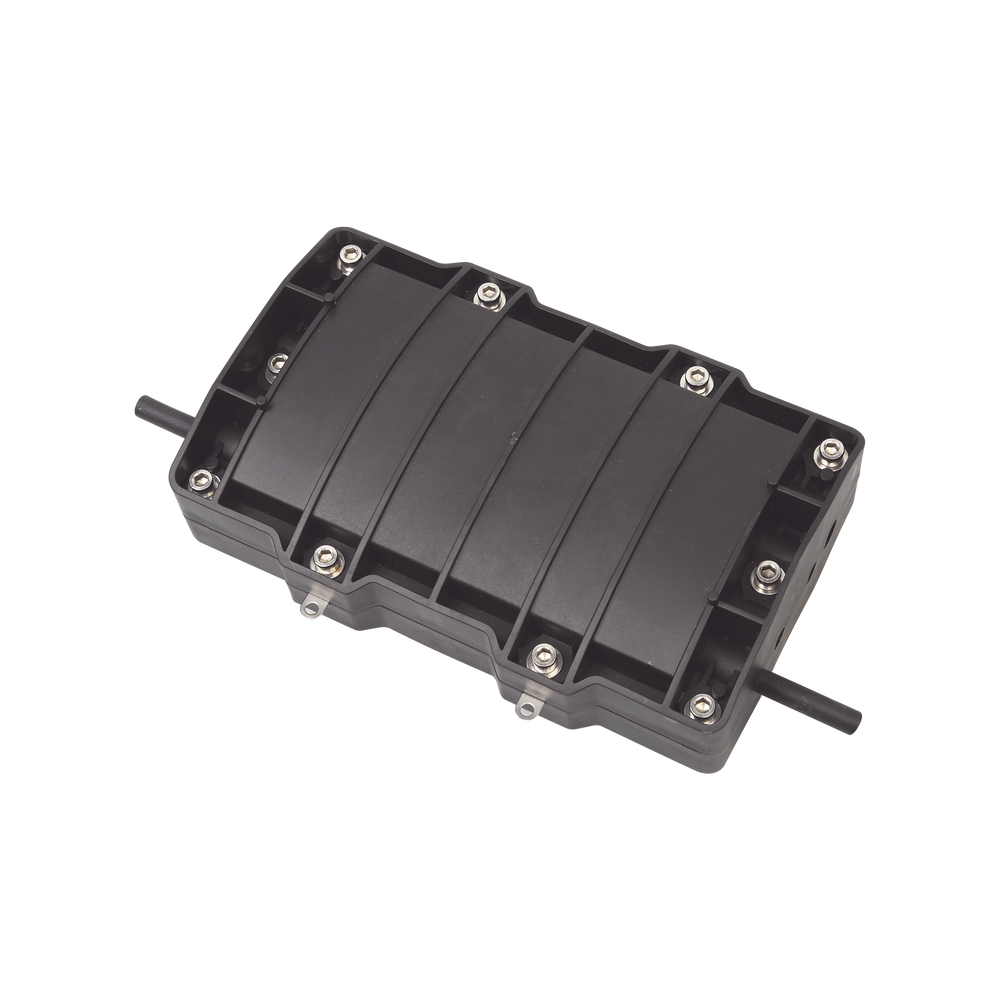

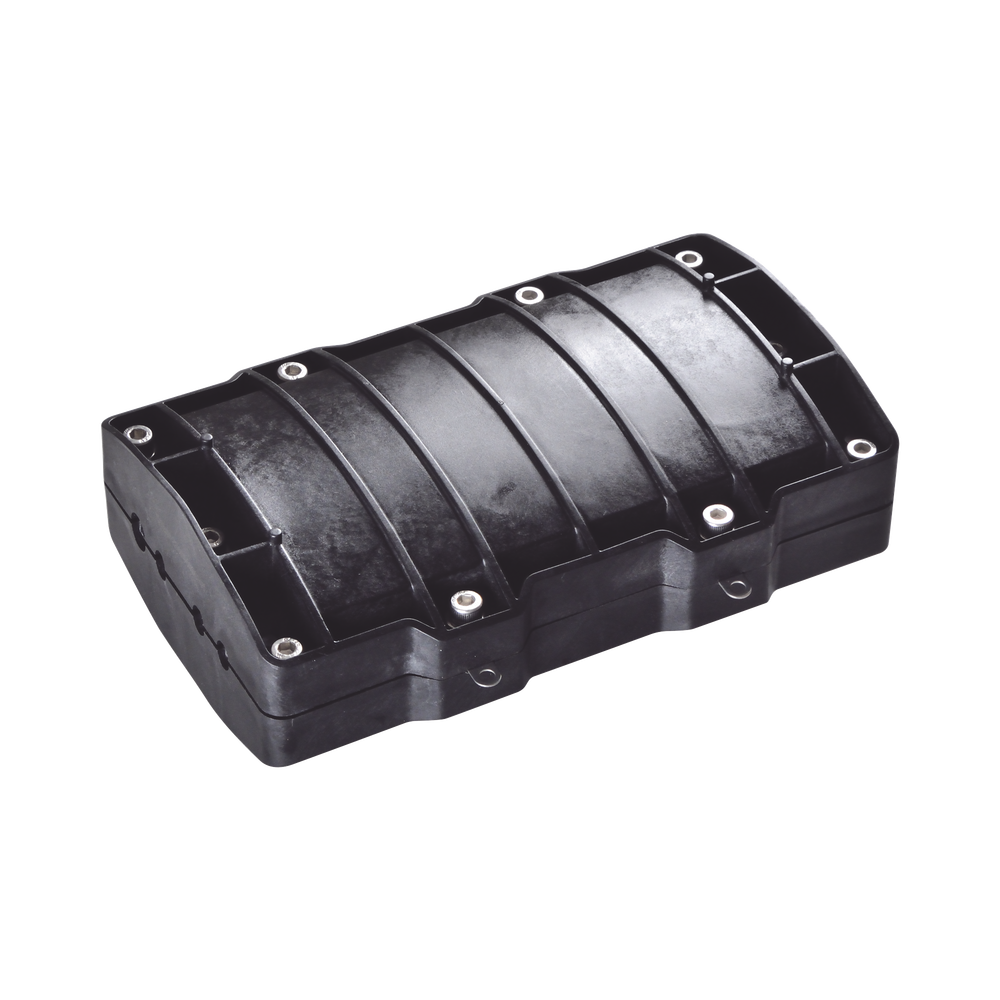

Horizontal Fiber Optic Distribution Box, up to 48 splices, Outdoor IP68

Horizontal Fiber Optic Distribution Box, up to 48 splices, Outdoor IP68

Characteristics:

• Horizontal design structure with mechanical seal
• For overhead or underground installation
• Made of polypropylene with high impact resistance
• Allows fiber derivation, as an intermediate point

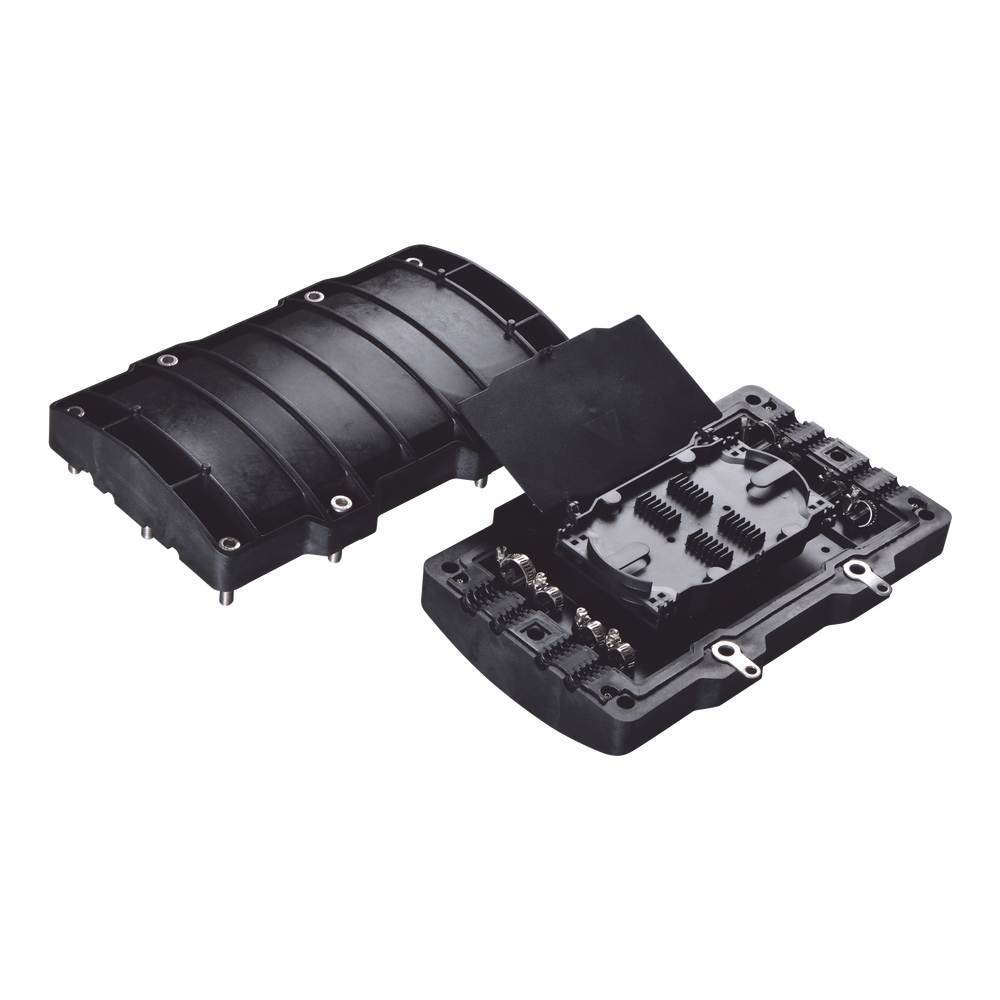

• It allows for easy opening, both for opening and closing.
• Allows the installation of a micro-splitter on its internal part (Not included)
• IP68 protection level
• Allows the fusion of 48 threads
• Complies with GR-771-CORE
• 6 cable entries (Ø 6 - 8 mm)
• 2 cable entries (Ø 9 - 12 mm)
• Dimensions (mm): 280 x 180 x 85
• Compatible with ADSS, Mini ADSS and Mini Figure 8 fiber*

*It is recommended to add more fusion tape (sealing mud) at the cable entry when used with Mini Figure 8 fiber ( OC-FIG8-06C , OC-FIG8-12C )

Includes:

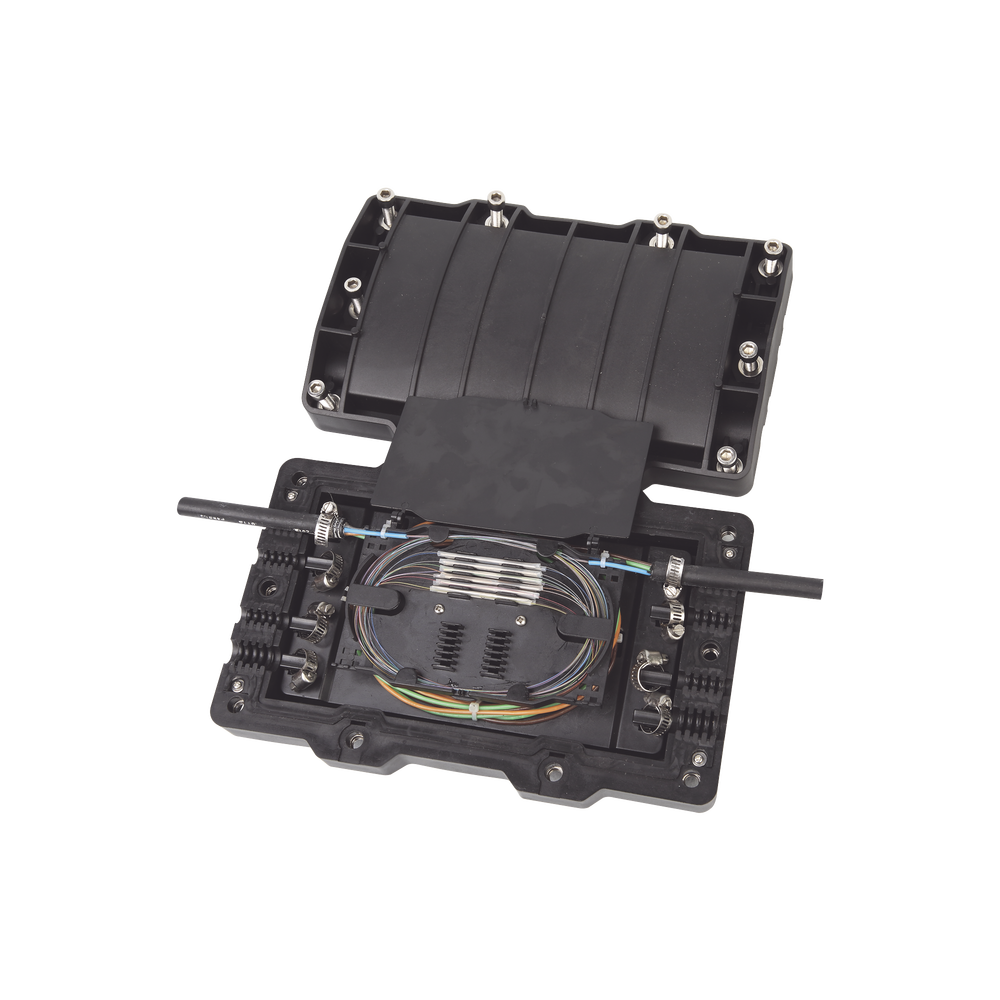

• 2 splice trays for 24 splices each (48 total)
• 1 Instructions
• 48 Splice sleeves (60 mm)
• 12 nylon ties (3 * 120 mm)
• 1 Bare fiber protection tube (Ø 4 mm x 2 m)
• 6 Blind plugs
• 1 Key
• 1 Fusion tape
• 1 Insulating tape
• 1 Set of accessories for hanging the junction box
• 1 fiber optic cleaning towel

For overhead or underground installation, made of polypropylene with high impact resistance, 2 trays for 24 splices each
