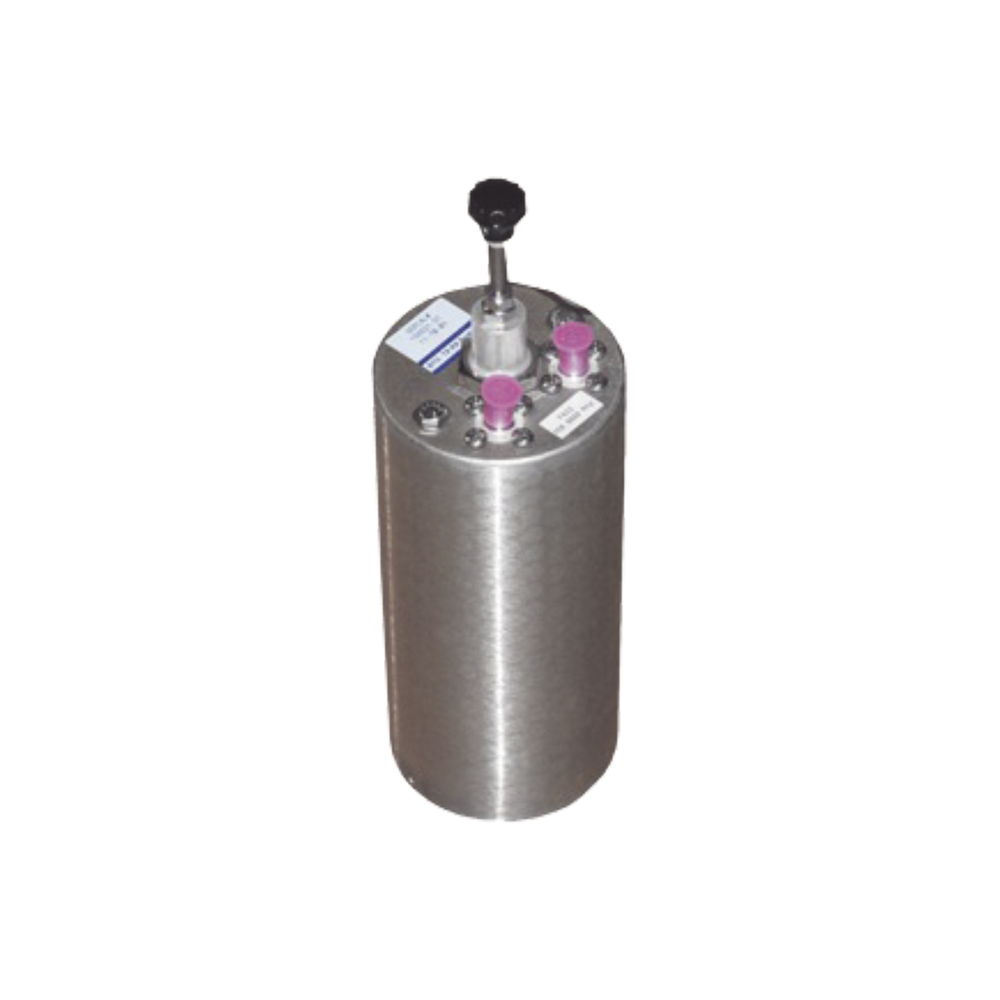

Bandpass Cavity, 806-960 MHz, 50 Ohm, 4" Diam. x 6.5" High, 1/4 Wave, 100 Watt, BNC Female.

Bandpass Cavity, 806-960 MHz, 50 Ohm, 4" Diam. x 6.5" High, 1/4 Wave, 100 Watt, BNC Female.

Band-Pass Cavity, 806-960 MHz, 100 Watt, BNC Female.

• The Band-Pass Cavity filter passes a narrow band of frequencies and attenuates all others with increasing attenuation above and below the pass frequency.
• It is equivalent to a parallel tuned circuit and is most often used for general spurious cleanup in transmitters or to sharpen the selectivity of the front end of a single receiver with or without amplification.
• The TX-RX bandpass cavities (4", 6", 8" and 10") have adjustable selectivity characteristics (rotating loops) to allow a trade-off between insertion loss (0.5-3.0 dB) and selectivity (insertion loss tuning).
• There are several low loss and high rejection models to choose from.
• All plate/loop connector assemblies are silver or Alballoy® plated for low IM.
• Soldered cavity construction, silver-plated probe and adjustable loops provide superior pass-through and rejection characteristics.

Specs:

• Frequency Range: 806-960 MHz.
• Maximum power per cavity: 100 Watt.
• Impedance: 50 Ohm.
• VSWR: 1.25:1
• Cavity Electrical Lambda: 1/4 Wave.
• Temperature Range: -30 ºC to +60 ºC.
• Cavity Dimension: 4" (101.6 mm) diameter.
• Height: 6.5" (165.1 mm).
• Connectors: BNC Female.
• Shipping Weight: 3 lbs (1.362 kgs).

*Ask for delivery time.
