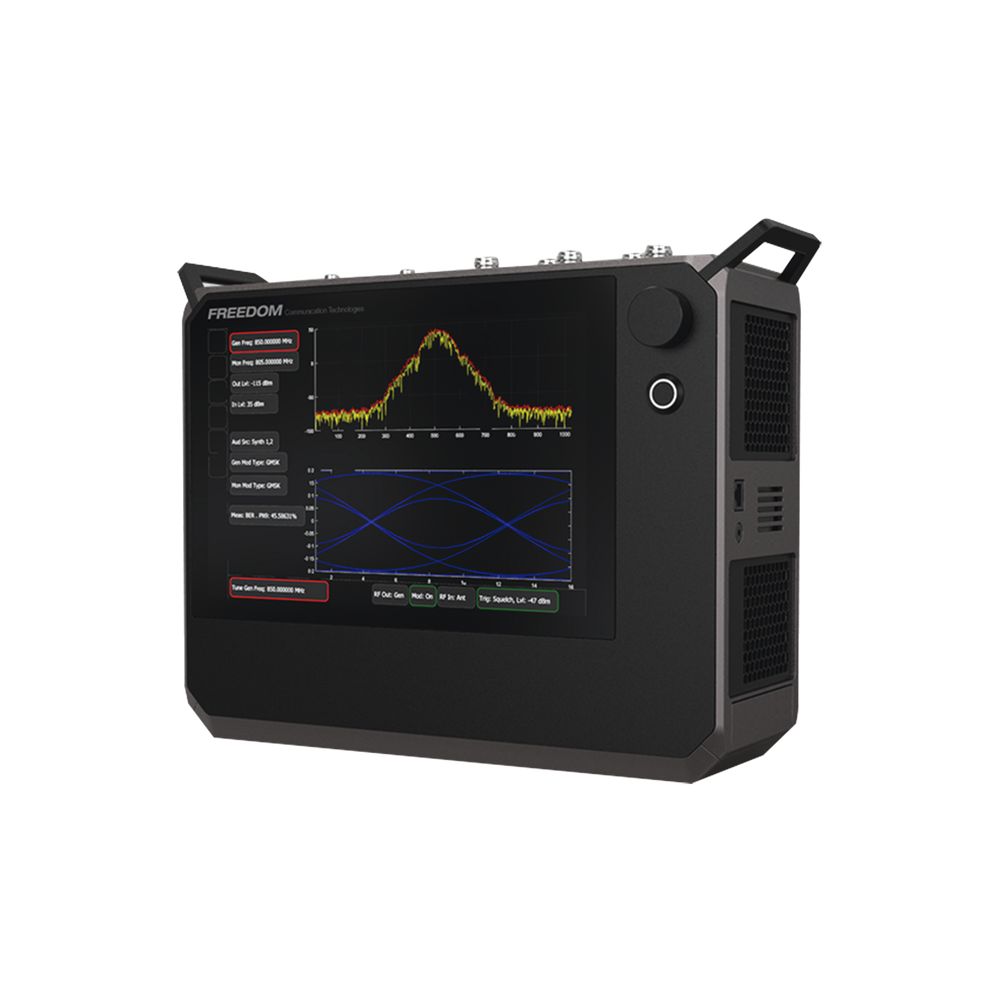

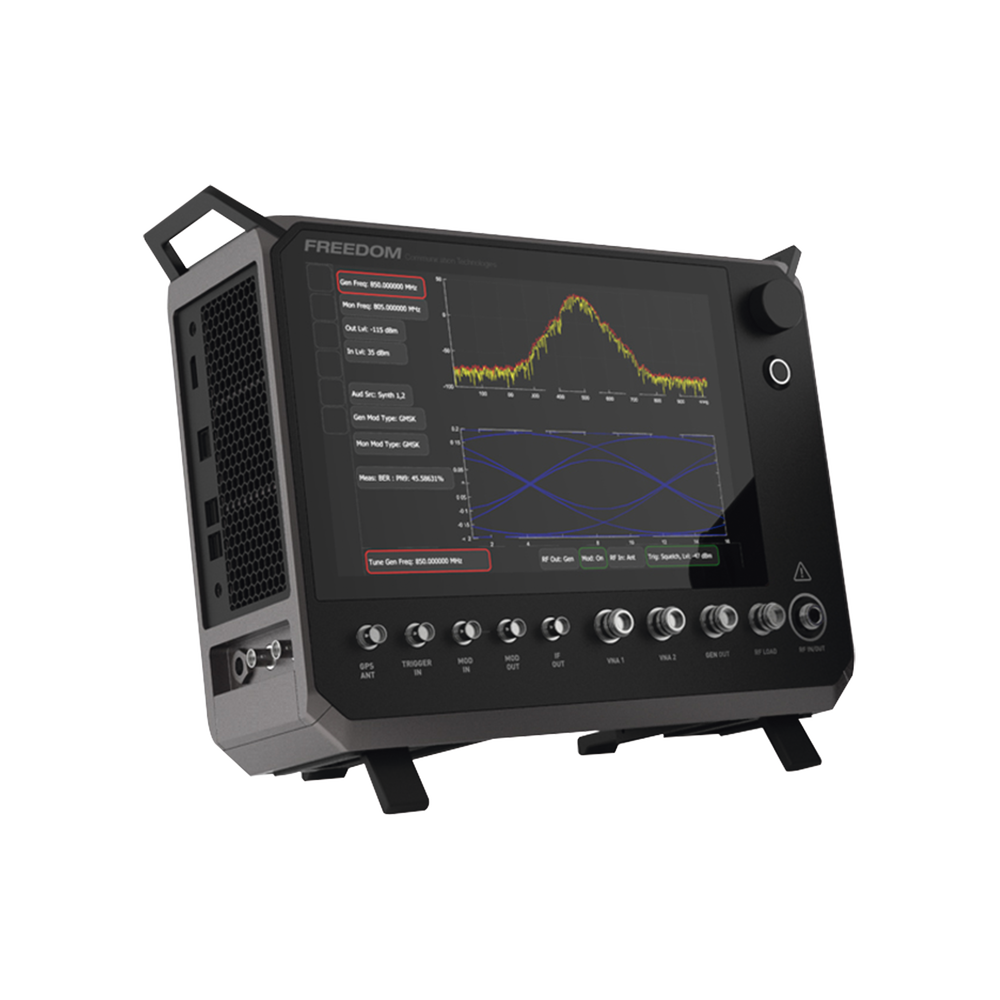

Professional Analyzer for Ultra Portable Radio Communication Systems, 6 GHz.

Professional Analyzer for Ultra Portable Radio Communication Systems, 6 GHz.

Excellence Analyzer for Ultra Portable Communication Systems , 6 GHz.

• 6 GHz frequency range
• Fully portable (less than 6 kg) targeting over 4 hours of battery life
• Full-color multi-touch screen
• LTE compatible (25MHz instantaneous bandwidth; 160MHz in future versions)
• Vector Network Analyzer (VNA)
• Interference analyzer
• Industry-best spectral purity (-110 dBc/Hz @ 20kHz offset)
• Configurable connector access (front and top access models available)
• P25 Phases 1 and 2
• DMR, NXDN, TETRA
• AutoTune™ automates testing and alignment options

Basic options:

• Frequency range from 10MHz to 6GHz.
• Analog modulation and demodulation (AM, FM and Single SideBand).
• 50W continuous input power and up to 150W peak input power.
• Output level at -130 dBm.
• Spectrum analyzer
• Signal generator
• Oscilloscope
• Vector Network Analyzer
• Integrated audio generators
• I/Q Recorder and Playback
• Audio quality tests (SINAD, THD)

Options:

• All major digital LMR protocols: P25 Phases 1 and 2, TETRA, DMR, NXDN and dPMR
• Interference analyzer
• LTE Test Options
• AutoTunes: Test and Alignment

.Includes VNA, Distance to Fault, Tracking Generator, Enhanced Spectrum Analyzer.
