D/THROAT MIC C/ PPT GDE P/KENWOOD NX240/340/220/320/420/TKD240/340/TK3230/3000/3402/3312/3660/3170

D/THROAT MIC C/ PPT GDE P/KENWOOD NX240/340/220/320/420/TKD240/340/TK3230/3000/3402/3312/3660/3170

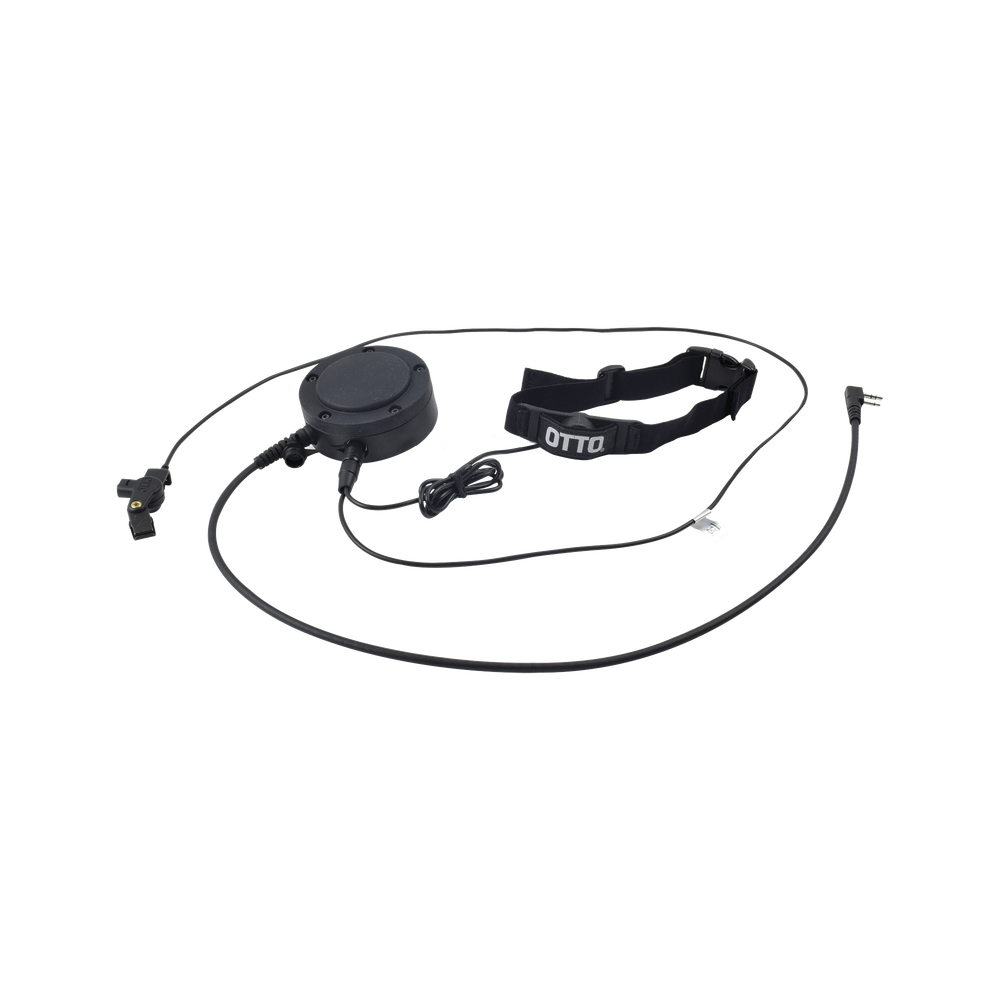

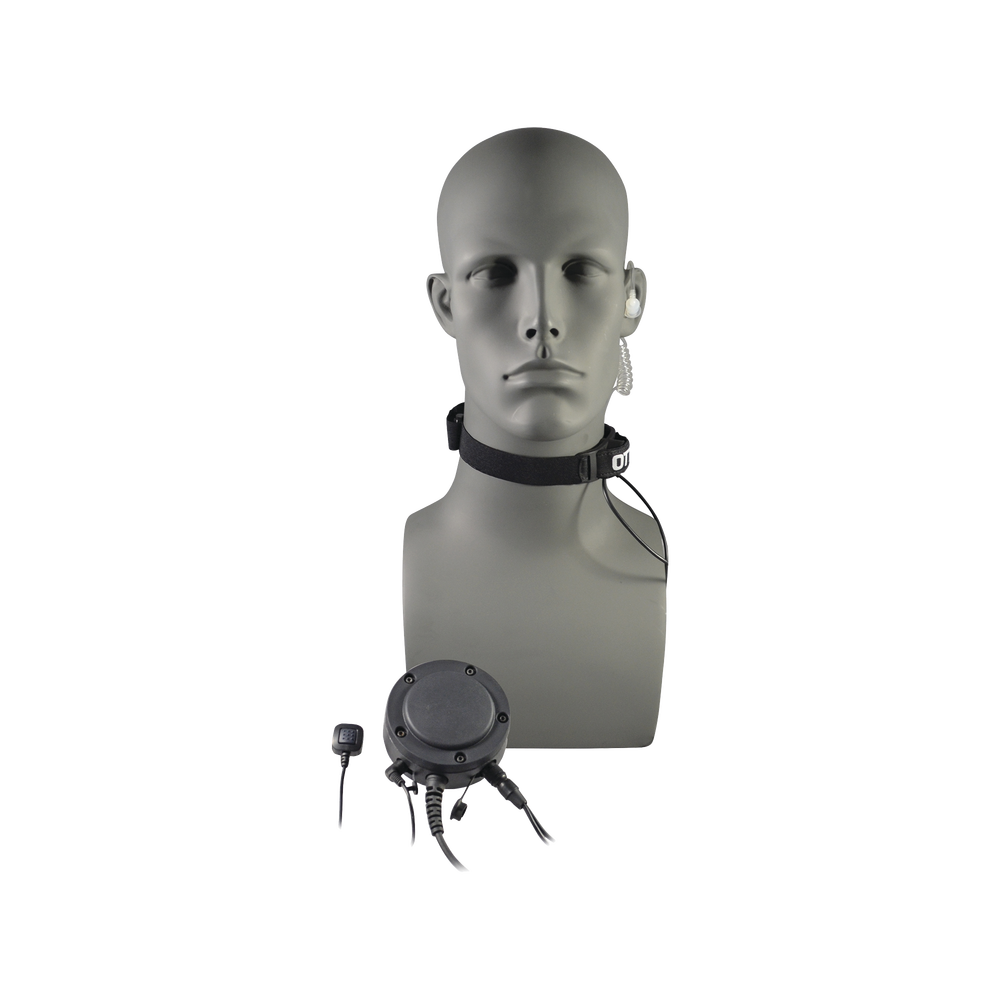

Velcro throat microphone with large PTT for Motorola GP300/DEP450 and Hytera Series TC500/600/700, PD506 radios

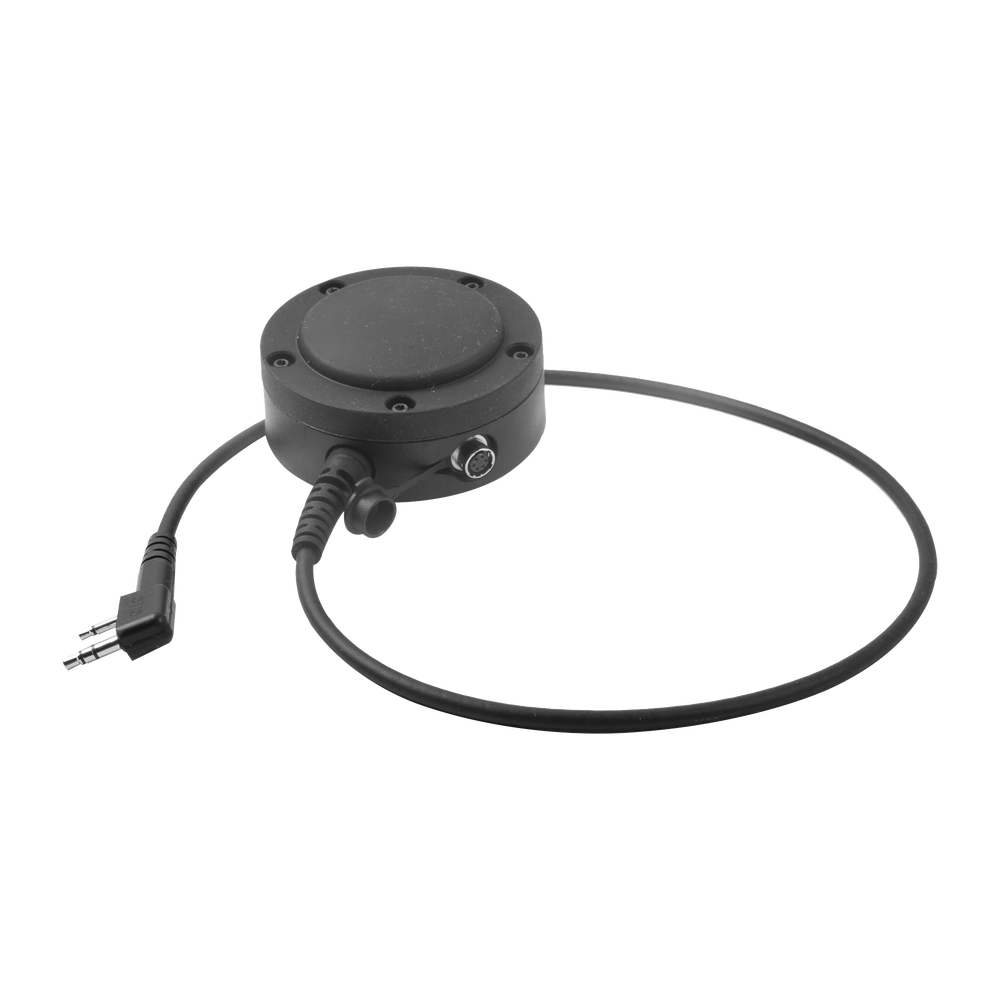

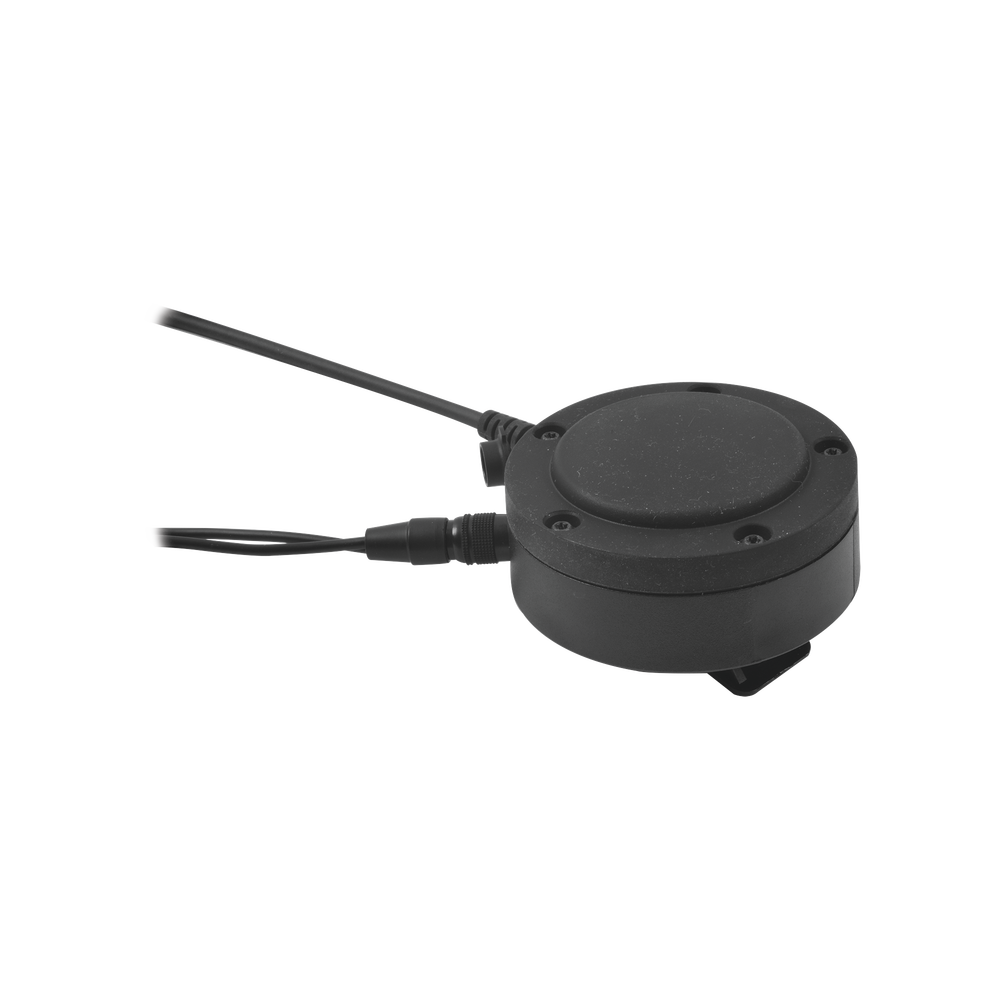

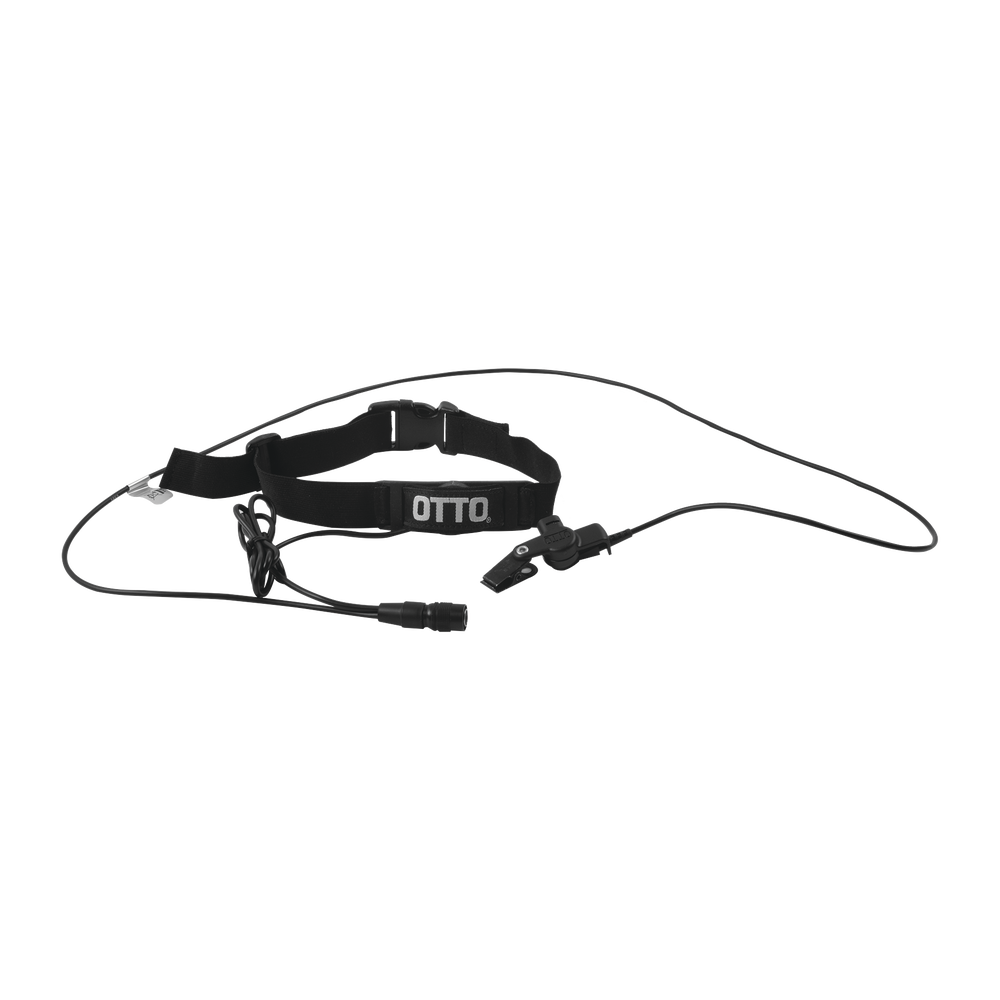

The wide-face PTT has a Hirose connection with a dust cover to connect the adjustable belt throat microphone with acoustic tube, and in addition to having another 2.5 mm input for the ring PTT, it also has a cable that goes to the accessory port with its respective connector for the radio.

This product must be manufactured in compliance with the latest applicable regulations of the EC directives for the Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS), Waste Electrical and Electronic Equipment (WEEE), and Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).
Each part is packed in a plastic bag, all parts are put inside a box, with a label on the box.
Headphone specifications
Impedance: 270 Ohms + - 30% 1 Khz
Minimum level of 90 dB SPL measured with input headphone level of .500 VRMS measured with the adapter and acoustic tube using the 2 cm3 coupler
Maximum power handling capacity: Must be higher to maintain a minimum of 3.46 VRMS without incurring audio performance degradation
