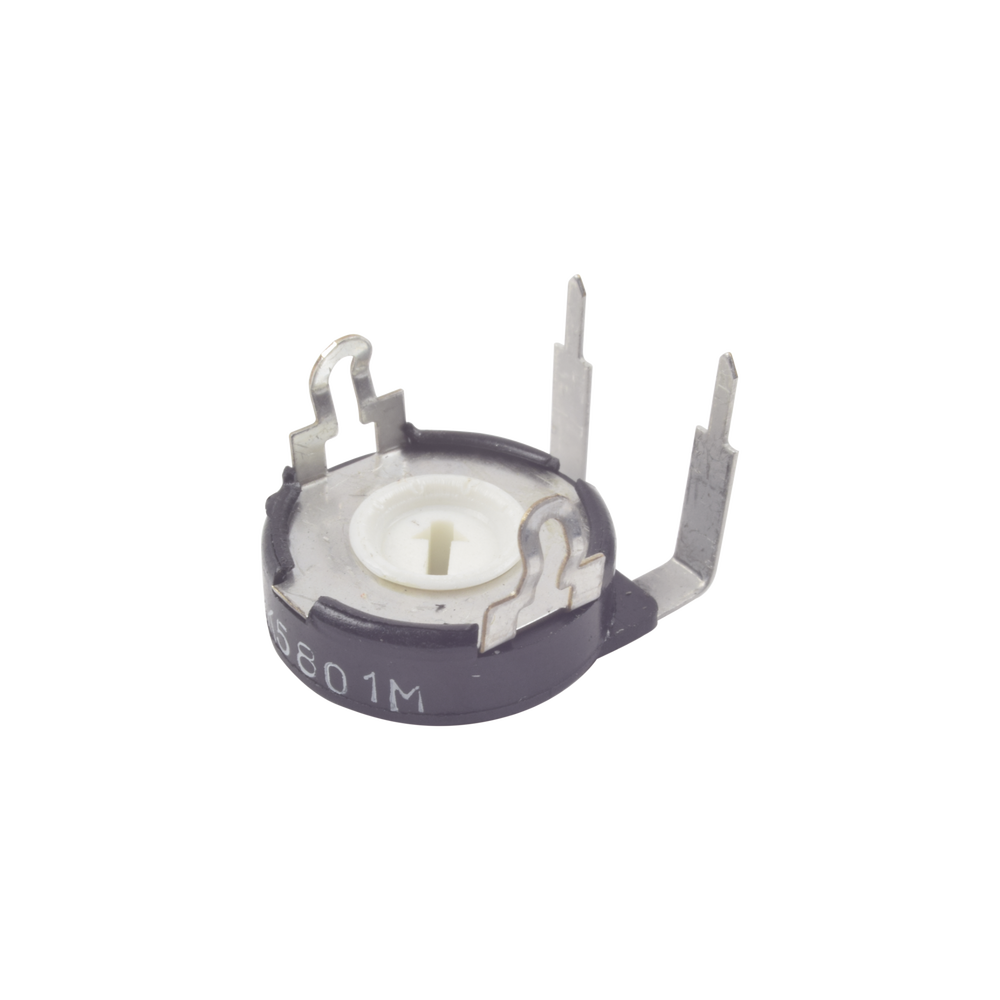

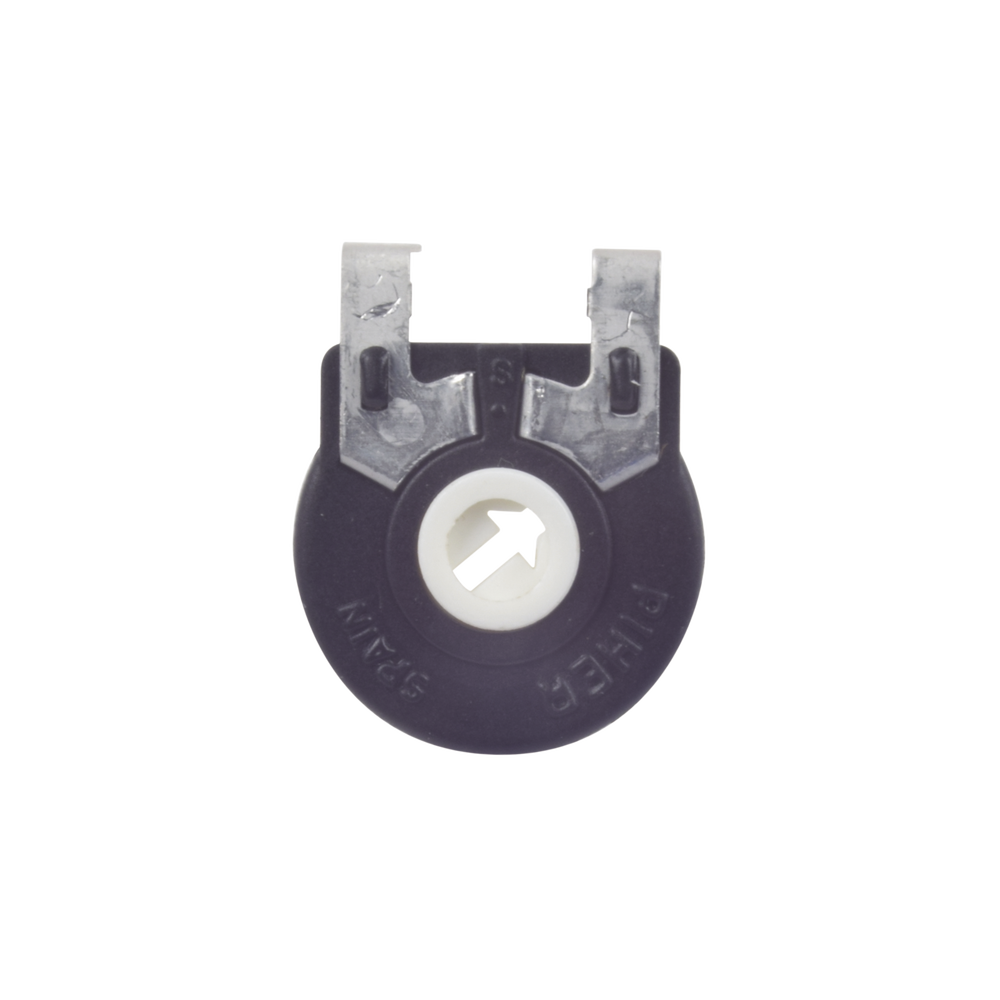

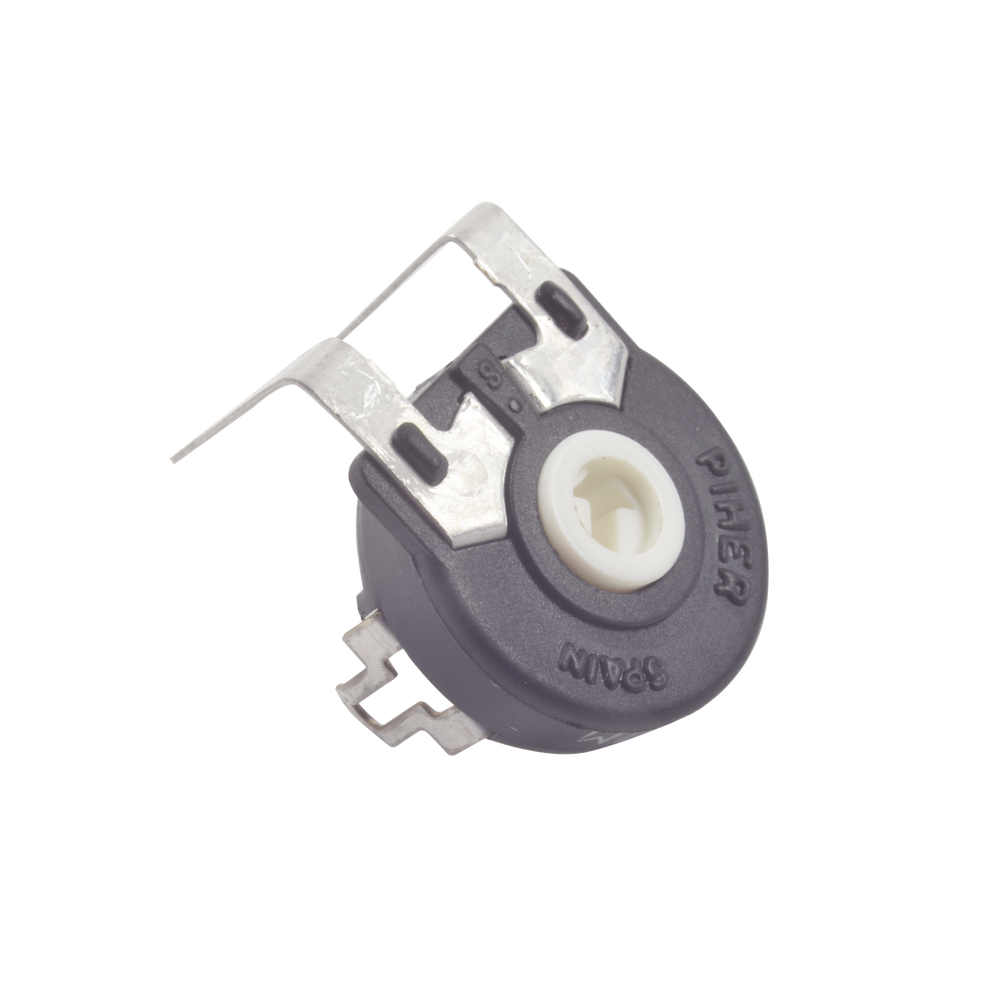

Cermet Potentiometer, 25 k Ohm, 0.25 Watt, 15 mm, Vertical Adjustment.

Cermet Potentiometer, 25 k Ohm, 0.25 Watt, 15 mm, Vertical Adjustment.

Cermet Potentiometer, 25 k Ohm, 0.25 Watt, 15 mm, Vertical Adjustment.

• Resistive Element: Cermet (Alumina Substrate)
• Plastic Body: Conforms to UL94V-0
• IP-54 Protection: Conforms to IEC 60529
• Resistance: 25 K Ohm.
• Tolerance: +/- 20%.
• Power: 0.250 Watt (Nominal).
• Diameter: 15 mm.
• Mounting: Horizontal for PCB.
• Adjustment: Vertical.
• Mechanical Rotation Angle: 265° +/- 5%.
• Electrical Rotation Angle: 240 +/- 20%.
• Voltage (max): 125 Vdc (Non-linear).
• Operating Temperature Range: -40°C to +90°C.
• Lifespan: 10k cycles.
