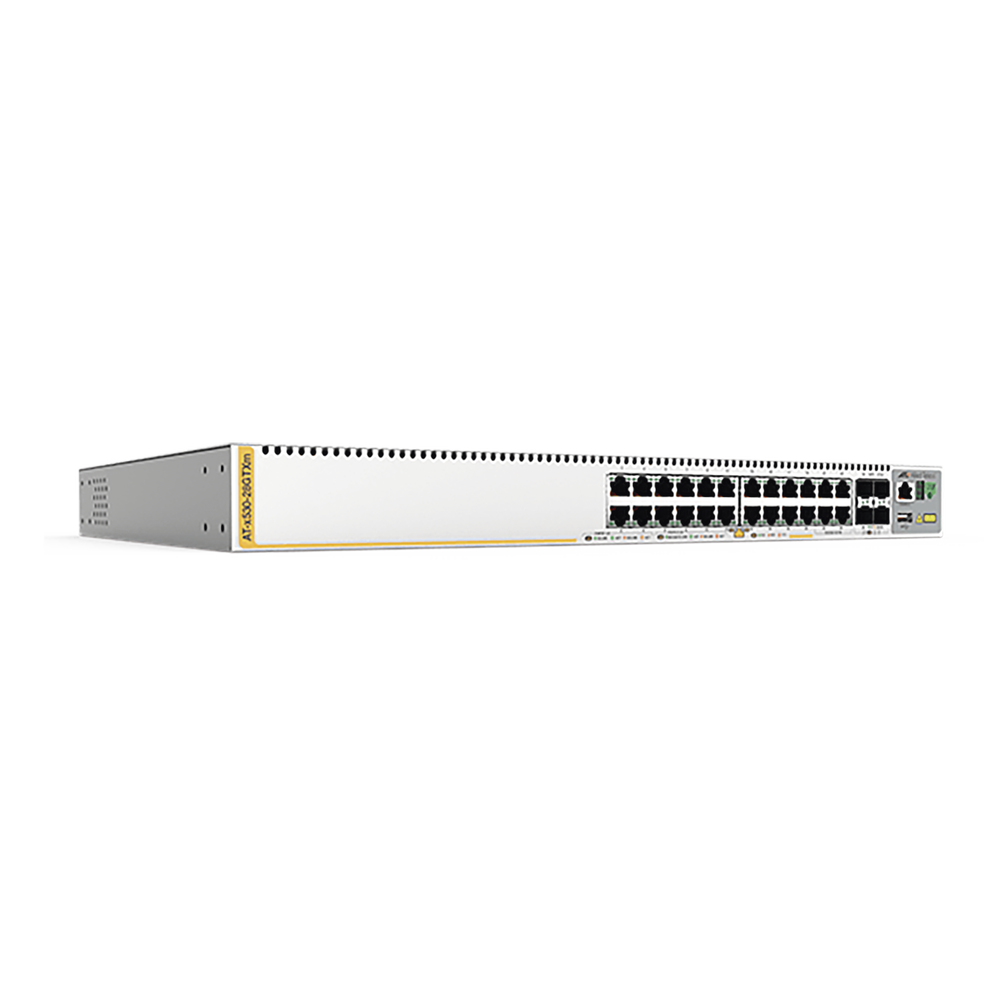

Layer 3 Stackable Switch, 20 ports 10/100/1000 Mbps + 4 x 100M/1G/2.5/5G-T + 4 ports SFP+ 10 G, redundant power supply

Layer 3 Stackable Switch, 20 ports 10/100/1000 Mbps + 4 x 100M/1G/2.5/5G-T + 4 ports SFP+ 10 G, redundant power supply

Ports:

20 10/100/1000 Mbps ports.

4 ports 100M/1G/2.5G/5G

4 SFP+ 10G ports (2 are stacked).

Forwarding rate: 119 Million packets per second (Mpps).

Switching fabric: 160 Gbps.

Operating system:

AlliedWare Plus™.

Administration:

Command Line Interface (CLI).

Telnet.

SSH.

SNMP v1, v2c & v3 monitoring.

General characteristics:

Voice VLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Multicast support -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

• 8 priority queues.
• Limit bandwidth by port or traffic class.

Routing protocols :

Static routing.

Border Gateway Protocol (BGP).

Routing Information Protocol (RIP).

Open Shortest Path First (OSPFv3).

AT-FL-X530-01 Premium Layer 3 License.

Redundancy features:

G.8032 Ethernet Ring Protection.

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Physical and electrical characteristics:

Power supply: 100-240 VAC, 50-60 Hz.

Dimensions: 1 U Rack, 44 x 323 x 441 mm.

Weight: 4.8 kg.

Operating Temperature: 0 to 50° C.

Warranty:

1 year.

Example of a high-performance business network.

Stackable up to 8 units., Up to 4094 VLANs., Routing protocols (OSPF, RIP, and BGP)
