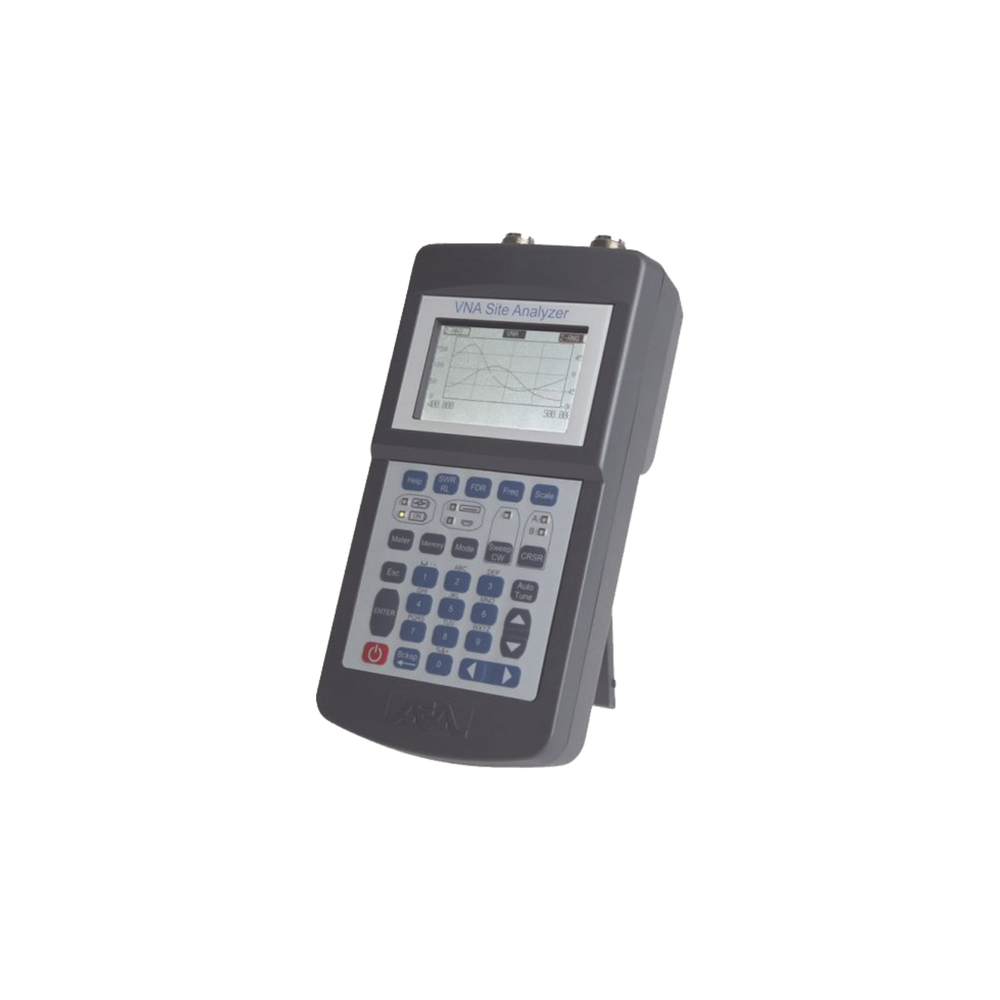

Site Vector Network Analyzer 100 kHz-1.5 GHz, N Female connectors.

• The VNA Site Analyzer comes with a complete set of S11 and S21 measurement ports for application in measurements such as Vector Network Analyzer, Spectrum Analyzer, Tracking Generator, FDR (Frequency Domain Reflectometer), SWR and Return Loss.
• It features a full-color backlit display with excellent daylight readability.
• 50 memory spaces to save graphs and retrieve them in the Site Analyzer or upload them to a PC using the ' Site Analyzer PC Vision '™ software (included).
• Includes replaceable 'AA' NiMH batteries for 4 hours of continuous operation.
• Easy-to-navigate menus, color settings, and user-customizable graphical measurement displays.
• The VNA Site Analyzer features user-selectable boundary lines and a visible toggle switch to select the SWR/Return Loss meter to locate the best SWR or Return Loss for your antennas.
• Its ease of operation makes the Liberator Analyzer flexible for both the novice and the engineer to use with minimal training.
• Communications to PC are via USB-2 (cable included).
• Technical support includes: PPT user training (.ppt) and free technical support for the life of the instrument.

Specs:

• Vector Network Analyzer, SWR, Return Loss, FDR, Spectrum Analyzer, Z Magnitude, Z Angle, Gamma Magnitude and Gamma Angle.
• Frequency range: 100 kHz - 1500 MHz.
• Tuning/Display Resolution: 1 kHz.
• Update Frequency: 2.5 times/second.
• Frequency display: 250 points.
• Measurement speed: 5 ms / data point.
• FDR measurements: DTF, end of cable and Antenna RL.
• FDR range: 0 to > 5000 ft (0 to > 1524 m).
• Minimum Resolution: 0.5% of scale.
• FDR Accuracy: 0.5% of scale.
• Output power: ~ 0 dBm @ 50 Ohm.
• Input power range: -100 dBm to +30 dBm.
• Impedance range: 10 to 1000 ohm, factory set 50.
• Diagram impedance scales: 8 scales from 10 to 2 K ohm.
• Impedance formats (S11): Resistance, Reactance, Total Z.
• Impedance accuracy: +/- 1 Ohm.
• Phase angle plot scales: +/- 5 to +/- 180 degrees.
• Gain formats (S21): Log, Linear or Phase.
• Gain accuracy: +/- 1 dB.
• Spectrum Analyzer Resolution: 30 kHz - 3 MHz.
• RF Connectors: Type 'N' Females.
• Power Requirements: 13.8-20 Vdc at 800 mA min. or 8 AA NiMH, or Alkaline.
• Size: 216mm x 109mm x 57mm.
• Weight: 1 kilogram, with case and batteries.
• Warranty: 2 years

Items included:

• VNA Site Analyzer.
• Terminals (Short circuit and 50 Ohm).
• 8 'AA' NiMH batteries (installed).

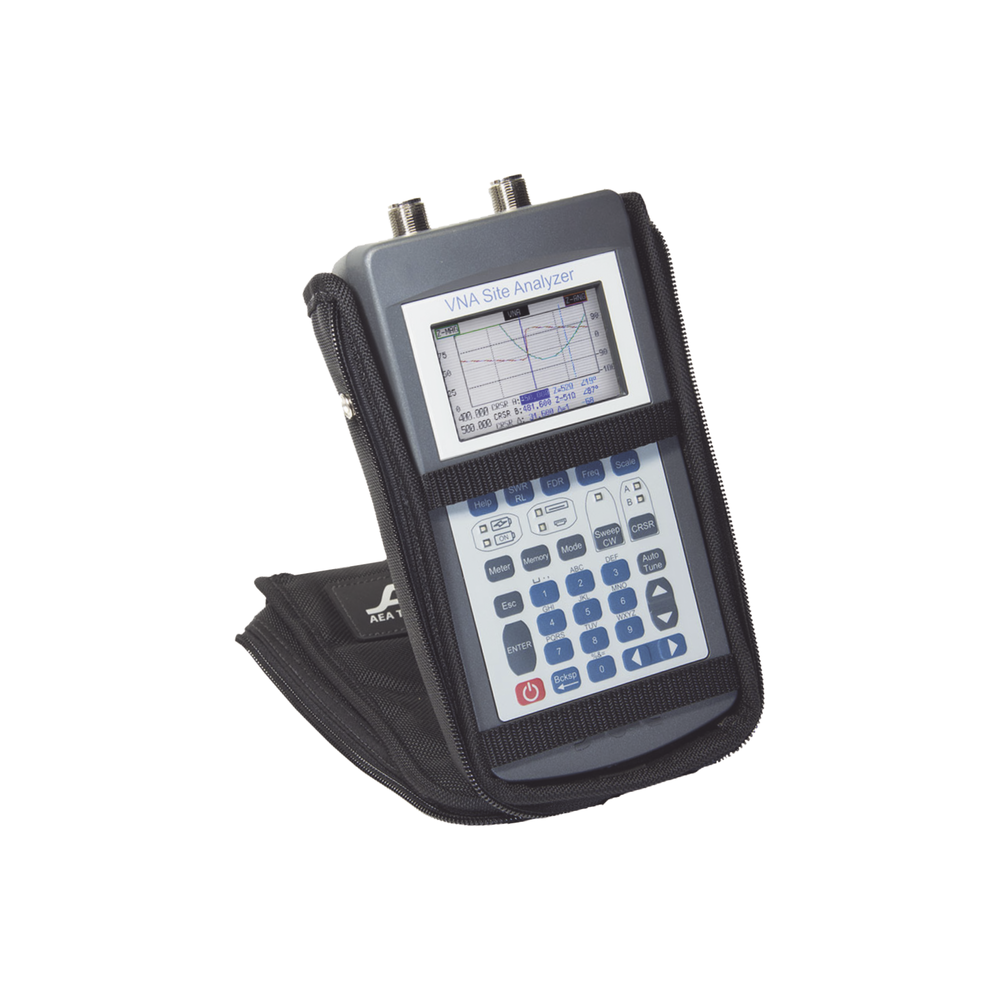

• Belt case with removable shoulder strap.
• USB cable.
• AC adapter.
• Quick Start Guide.
• Basic Guide.
• CD with instruction manual.
• Training PPT (.ppt)
• 'Site Analyzer PC Vision' software.

Characteristics:

• User-selectable boundary lines for at-a-glance selection in SWR/Return Loss mode.
• One-button auto-tune locates the antenna's best SWR or Return Loss.
• Spectrum Analyzer with Tracking Generator.
• Dual scale display in Trace Generator mode.
• Frequency Domain Reflectometer (FDR).
• Return Loss and Distance Fault measurement in a test to evaluate the performance of the cable and Antenna as a complete system.
• Impedance, Resistance and Reactance Formats.
• Site Analyzer PC Vision™ software and USB-2 cable included.
• Complete operation of the instrument through PC Vision software.
• The internal memory can hold up to 50 spaces and settings.
• Quarter-inch VGA backlit color display (user-selectable color scheme)
• Large numeric display in CW mode.

Benefits:

• Economic testing of the multifunction antenna system.
• Easy Adjustment of Duplexers and Notch Filters.
• Very fast response time in graphical display mode.
• Save, retrieve, and upload test results to a PC.
• Quickly switch between VNA, SWR and Return Loss.
• Colors can be customized for better viewing.
• The 'Belt Friendly' design makes it easy to carry on site.
• You have the 'Null Cable' option to eliminate the test cable or power line.
• Fully rechargeable NIMH batteries are commercially replaceable.

Optional accessories:

• N to SMA Adapter and Terminator Set.
• N to BNC adapter.
• BNC Terminators, Short-circuit and Load 50 Ω.
• N to TNC adapters.
• N to SO-239 (UHF) adapters.
• N female terminal set, Short circuit and Open.
• 3-way terminator set, Open, Short and 50 Ω Load.
• Vehicle Adapter/Charger.
• Lightweight case.
• Hard case.

*Ask for availability.

Spectrum Analyzer, SWR and/or Return Loss Meter, Frequency Domain Reflectometer (FDR) for Cable Testing, Field Adjustment of Duplexers, Cavities, and Filters, 2-Year Warranty.
