E20/20 Reflectometer, Graphical Time Domain Cable Analyzer, 2-5000 m, RJ-45, BNC Female, Carrying Case.

E20/20 Reflectometer, Graphical Time Domain Cable Analyzer, 2-5000 m, RJ-45, BNC Female, Carrying Case.

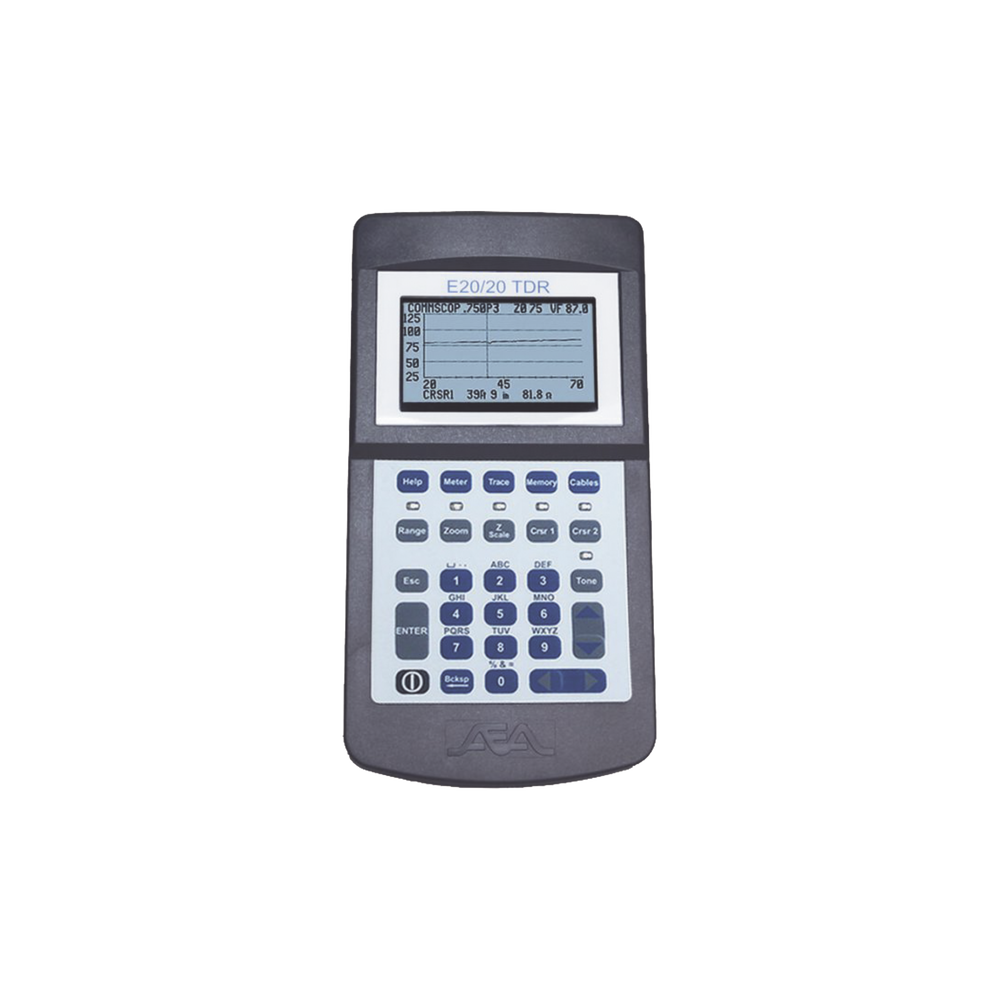

E20/20 Reflectometer, Time Domain Cable Analyzer.

• The NEW improved version of the 20/20 Step TDR is ideal for troubleshooting all types of coaxial cables, OSP (Out of Plant), twisted pair from Cat 2 to Cat 6A and individual cables in a bundle or harness.
• It is based on the current TDR 20/20, which employs the incredibly accurate fault location and visualization capabilities of 'Step' technology.
• The E20/20 TDR stores, retrieves, and uploads traces to a PC by name, date, and time.
• It has an easy-to-use interface to reduce the learning curve for technicians and reduce training time.
• It includes features such as the setup wizard, menu keys, and context-sensitive help.
• The E20/20 TDR also has a new MicroFault location for small kinks and crushes in coaxial cables that can affect service but are difficult to see on a normal TDR trace.
• It has clearer display fonts and LED indicators for active function keys.
• The E20/20 is ideal for testing and troubleshooting Cat 2 to 6A Coaxial, Twinax, Triax, Telco OSP or LAN twisted pair cables.
• It comes in a variety of connector configurations.
• The internal cable list contains 64 cable types, can be edited by the user and modified lists can be uploaded or downloaded to a PC using the included ETDR PC Vision™ software.

Characteristics:

• Ranges: from 0-10 ft (0-2 m) to 20,000 ft (5 km).
• No dead zone at any range setting.
• Zoom range at the cursor.
• Zoom impedance using the Z scale.
• Cursor reading to ± ½ inch (10 mm) using Zoom.
• Cable list with 64 cable types.
• Context-sensitive help.
• Cell phone style alphanumeric input panel.
• Keyboard LED indicators for active function.
• Setup Wizard - Step-by-Step Start.
• Tone on cable - coaxial or twisted pair.
• Stores 32 traces with name, date and time.
• Includes rechargeable 'AA' NiMH batteries.
• ETDR PC Vision™ software included.

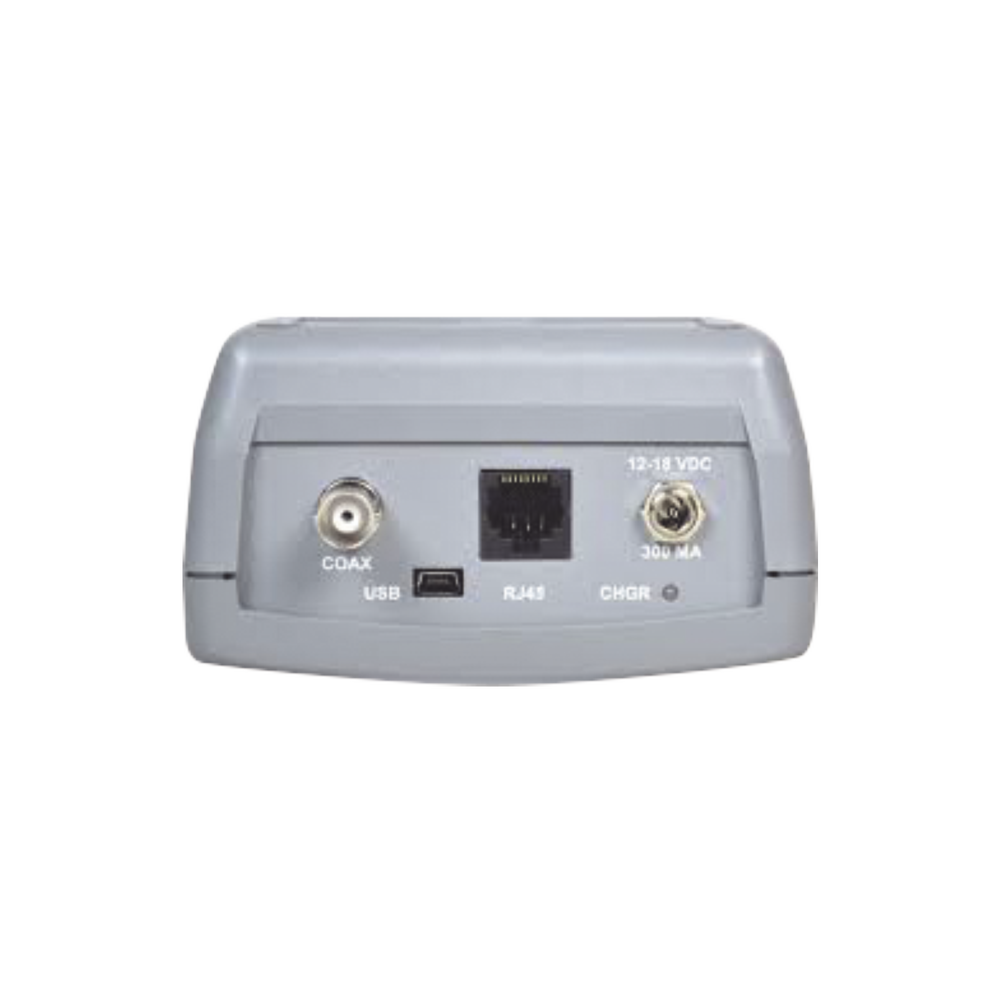

• N, BNC with RJ45 or F with RJ45 connector models.

Benefits:

• Testing coaxial and twisted pair cables using the same TDR.
• Precise and clearer indication of faults.
• More advanced features to help troubleshoot.
• Save, load, print, or email memories.
• Finds flaws that other TDRs can't.
• Solve problems faster with less testing.
• Upload, download, and customize cable lists.
• Saved memories are also configurations saved for recall.
• Noise detections and noise filtering.
• Locate coaxial cable runs or pairs using the tone function.
• The setup wizard makes training interactive.
• 'Belt Friendly' size and only 2 lbs (900 g).

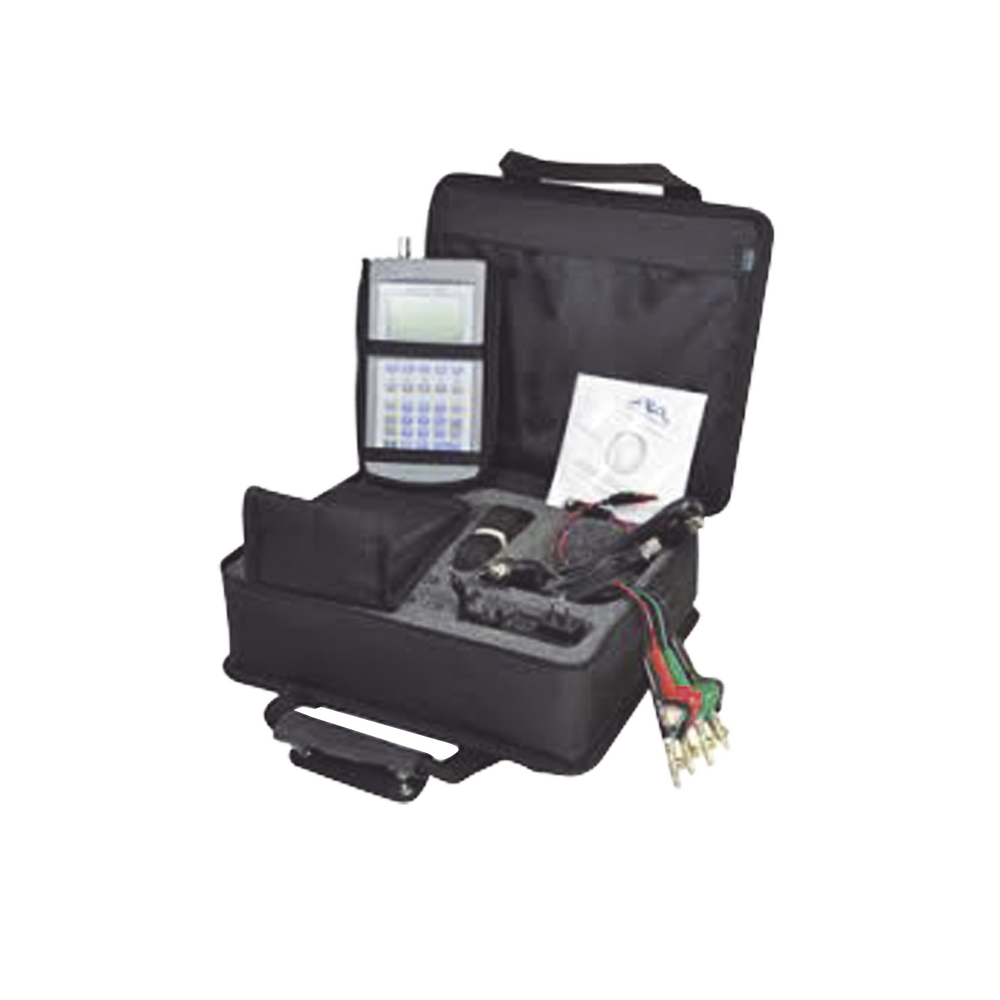

Accessories included with all models:

• Lightweight Carrying Case, Belt Holster, AC and DC Power Adapters, 8 AA NiMH Batteries (installed), USB Cable, Printed Getting Started Guide, Laminated Quick Start Guide and CD with ETDR PC Vision Software, Operator's Manual, Training Presentation, Application Notes and more.

Optional Accessories:

Part Number: Accessory ( Description ) .

• 0070-1500: BNC Test Cable ( Coaxial Cable) 2m, 50Ω with 1 male and 1 female BNC connector ) .
• 0070-1195: Na-UHF (SO-239) Adapter ( N ​​Male to UHF Female (SO-239) Adapter ) .
• 0070-1134: Na-TNC Adapter ( N ​​Male to TNC Female Adapter ) .
• 6025-0260: Na-SMA Set ( SMA Female to 2 N Male Adapters Set, 50Ω and Shorting Terminals, 1 Male and 1 Female. ) .
• 0070-1230: F Test Cable ( 1m Mini-coaxial cable (3GHz) with F connectors, 1-Female and another Male quick-disconnect style ) .
• 6015-1003: Tough Carrying Case ( Hard shell case, Handle, Latches, Locking Holes and custom cut-out sponge for the TDR E20/20 and Accessories ) .

Key specifications:

• Maximum ranges: 20,000ft (5Km) @ 0.99c or 14,000ft (4.3Km) @ 0.66c
• Minimum range: 0-2 m (0-10 ft).
• Range Scales: 11 selectable ranges
• Range Accuracy: <0.2% ± 1 inch (2 cm) + VF uncertainty.
• 0.5 inch resolution at 10 foot scale or 10 foot zoom.
• Z Accuracy: <2% (Z Cable = 45 to 125 Ohm).
• Z scales: 20, 50, 100, 200, 500 and 1,000 ohm.
• Dead Zone: Zero at any range setting.
• Cursors: 2 independent and differential readings.
• Memory: 32 memories with 1,920 data points (feet) and 2,000 data points (meters), name, date, and time. Recall by name in the list.
• Advanced Features: Null-Modem Cable Test, MicroFault Location, Setup Wizard - step-by-step startup instructions, Context-sensitive Help.
• Cable List: 64 cable types (Z and VF). Upload/download to PC, custom cable lists.
• Tones: Dual 900/1100, 977.5, 850, 577 Hz.
• Display: Quarter-size VGA, transflective and backlit.
• Communications: Serial / USB-2.
• Internal Power: 8 AA NiMH batteries (installed) for ~5.5 hours of continuous operation on a single charge.
• Alternating Batteries: 8 AA Alkaline Batteries, for ~7 hours of continuous operation.
• External Power: 90-240 VAC 50/60Hz to 12 VDC adapter. 12 VDC vehicle adapter included.
• Size: 216 x 109 x 57mm (8.5' x 4.3' x 2.25').
• Weight: 923 grams (2.1 lbs) with belt holster and batteries.
• Environment: Splash and dust resistant.
• Robustness: MILSTD 810G transient drop test, 48' (1.2m) to concrete, 27 drops.
• Warranty: 2 years.

*Ask for availability.
