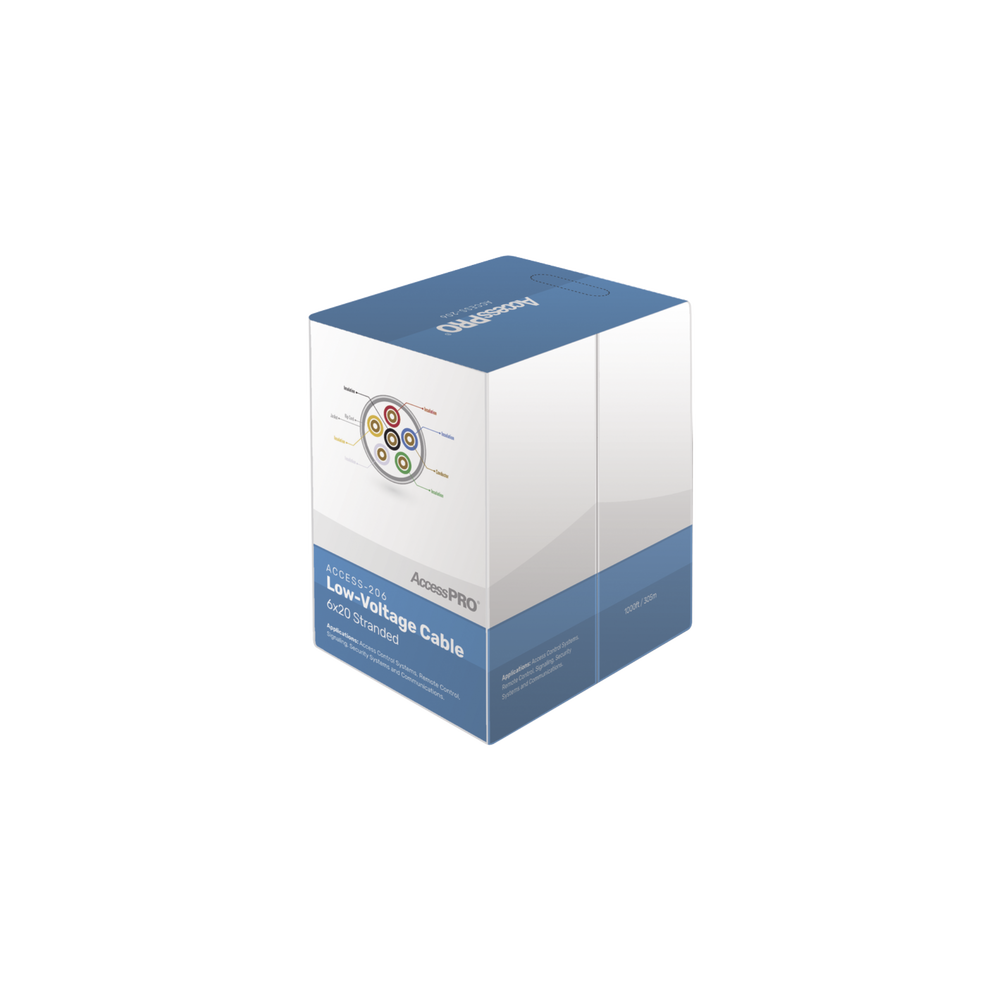

305-meter coil with six 20-gauge stranded copper conductors, individual high-quality FRPVC insulation, and a CM flame-resistant PVC outer jacket. For access control applications.

305-meter coil with six 20-gauge stranded copper conductors, individual high-quality FRPVC insulation, and a CM flame-resistant PVC outer jacket. For access control applications.

6 20 gauge stranded copper conductors, high quality FRPVC individual insulation, CM flame retardant PVC outer jacket.

Applications:

• Industry: Access control applications, analog ON/OFF signals.
• Security: Alarms and access control, connecting the control panel to accessories such as motion sensors, magnetic plates and counters, etc.
• Audio: Speaker connection.

Physical characteristics

Driver

• Size 0.50mm²
• STR 16/32AWG x 6C Formation
• Pure copper conductor

Isolation

• Average Thickness 0.25mm
• Nom. Diameter 1.5 ± 0.1mm
• FRPVC material - Fire resistant polyvinyl chloride
• Color Black, Red, Green, White

Jacket

• Average thickness 0.6 mm
• Nom. Diameter 4.6 ± 0.2mm
• CM Material Ratings PVC-Polyvinyl Chloride
• White color
• RoHS Compliant Yes

Mechanical characteristics

• DC Resistance, Max Ohm / KM (20) 34.80
• Capacitance 20.5 pF/ft. nom
• Impedance 74 ohms nom
• Temperature -20°C to 60°C
• Maximum operating voltage: 300 volts

Industry standard ISO 9001:2015

Packaging 1000FT/305M- Easy Pull Box

20 Gauge, 6 Conductors
