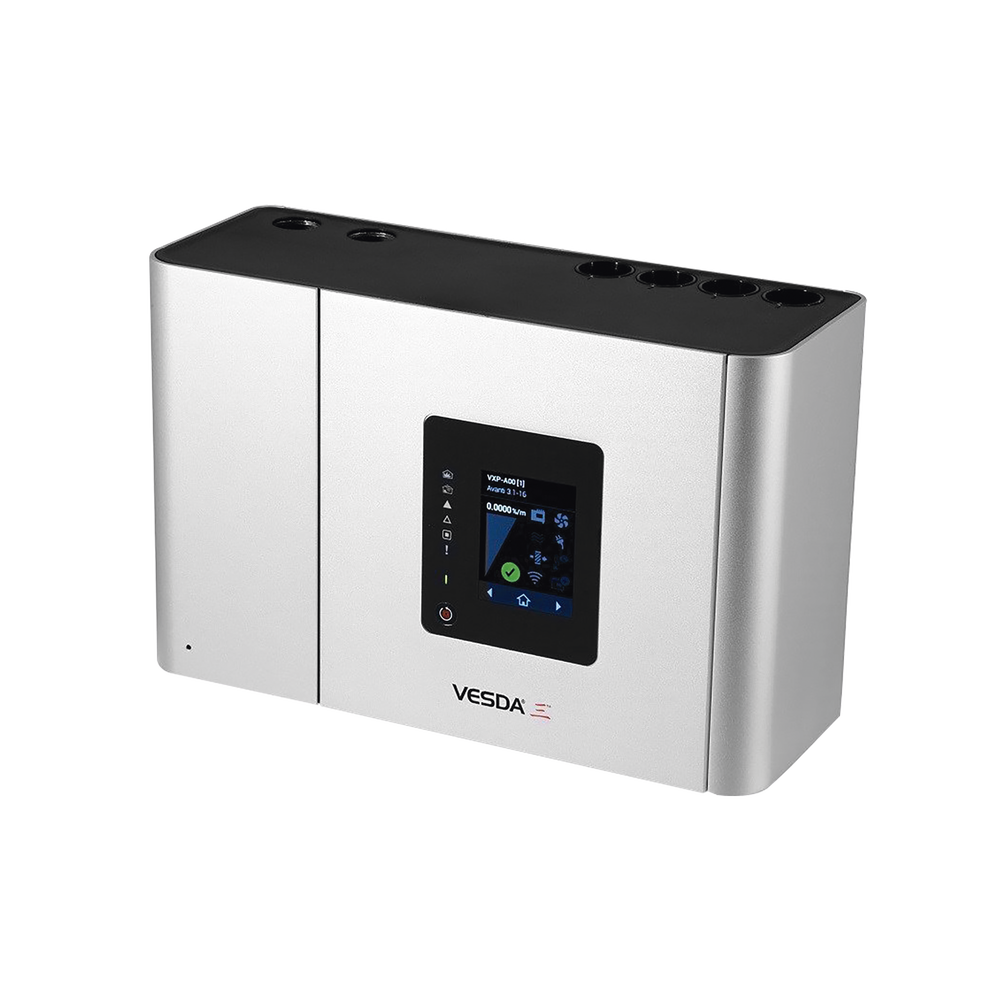

VESDA Aspiration Analyzer for 6,500 square meters and 800 meters of pipe

VESDA Aspiration Analyzer for 6,500 square meters and 800 meters of pipe

The VEU Series of aspirating smoke detectors is the premium detector in the VESDA-E range. An ultra-wide sensitivity range—15 times greater than VESDA VLP—and the provision of more sampling holes provides increased coverage in high airflow applications by at least 40%. Considerably longer linear pipe runs and extended branch pipe network configurations are perfectly suited to applications with higher ceilings, providing increased coverage of up to 80%, while allowing convenient mounting of the detector for ease of service and maintenance. A range of revolutionary new features provide improved detection performance, flexibility, field programmability, connectivity, and a reduced total cost of ownership.

Flair Detection Technology

Flair is the revolutionary new detection camera at the core of the VESDA-E VEP, providing improved detection, fewer nuisance false alarms, greater stability, longer lifespan, and particle characterization. Direct imaging of sampled particles using a CMOS imager combined with multiple photodiodes enables a wealth of data that can be used to gain actionable insights into observed particles through analysis.

VESDAnet™

VESDA devices communicate over VESDAnet, which provides a robust, two-way communication network that enables continuous redundant operation even during single-point wiring failures. VESDAnet enables primary reporting, centralized configuration, control, maintenance, and monitoring.

Ethernet and WiFi connectivity

VESDA-E detectors offer Ethernet and Wi-Fi connectivity as standard features. The detector can be added to a corporate network, allowing Wi-Fi-enabled tablet devices and PCs installed with Xtralis configuration and monitoring software to connect wirelessly to the detector over the network.

Wi-Fi and Ethernet connectivity, VESDAnet compatible, up to 4 tube inputs, 3.5" touchscreen, AutoLearn function
