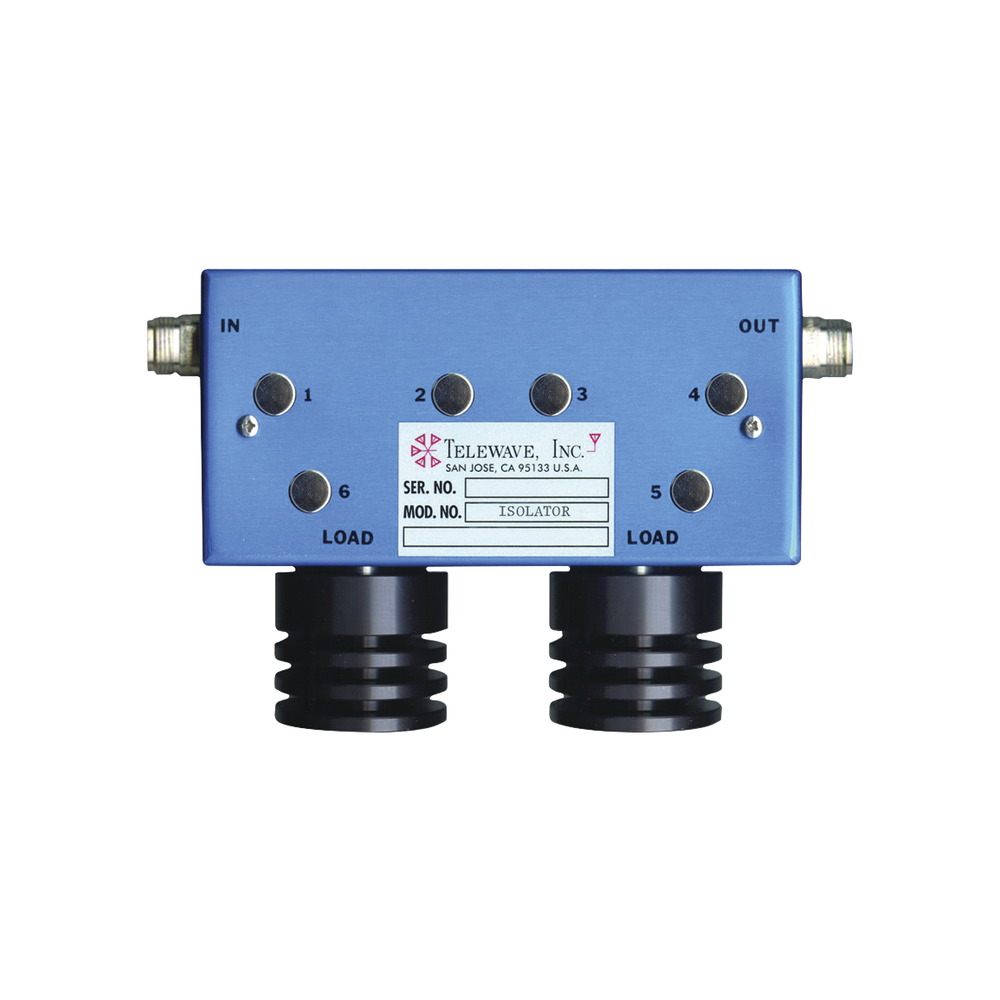

Double Isolator for 400-512 MHz, 70 dB Isolation, Adjustable in ± 5 MHz, 100 Watt, N Females.

Double Isolator for 400-512 MHz, 70 dB Isolation, Adjustable in ± 5 MHz, 100 Watt, N Females.

Double Isolator 400-512 MHz, 70 dB Isolation, Adjustable in ± 5 MHz, 100 Watt, N Females.

• Frequency band: 400-512 MHz.
• Tuning range (typ.): ± 5 MHz.
• Insulator Type: Dual.
• Isolation (typical/min.): 70 dB/60 dB.
• Insertion loss (typical): 0.7 dB.
• Impedance: 50 Ohm.
• VSWR (typical): 1.25:1.
• Input power: Up to 150 Watt.
• Load(s) included: 2 (35 Watt).
• Connectors: N-Female.
• Temperature range: -30 °C to +60 °C).
• Dimensions (Length x Width x Depth): 16.5 x 11.5 x 5 cm.
• Weight: 2.7 kg.
• Shipping weight: 3.2 kg.

*Ask for delivery time.
