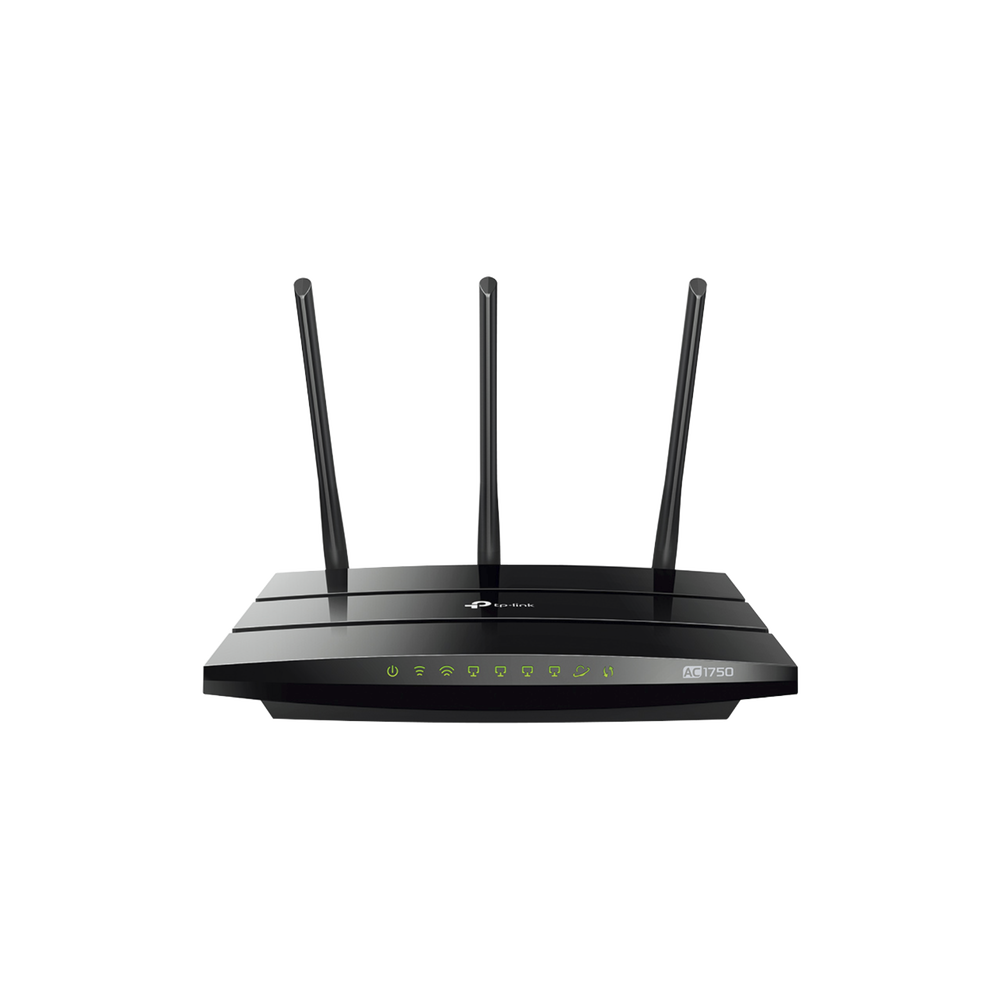

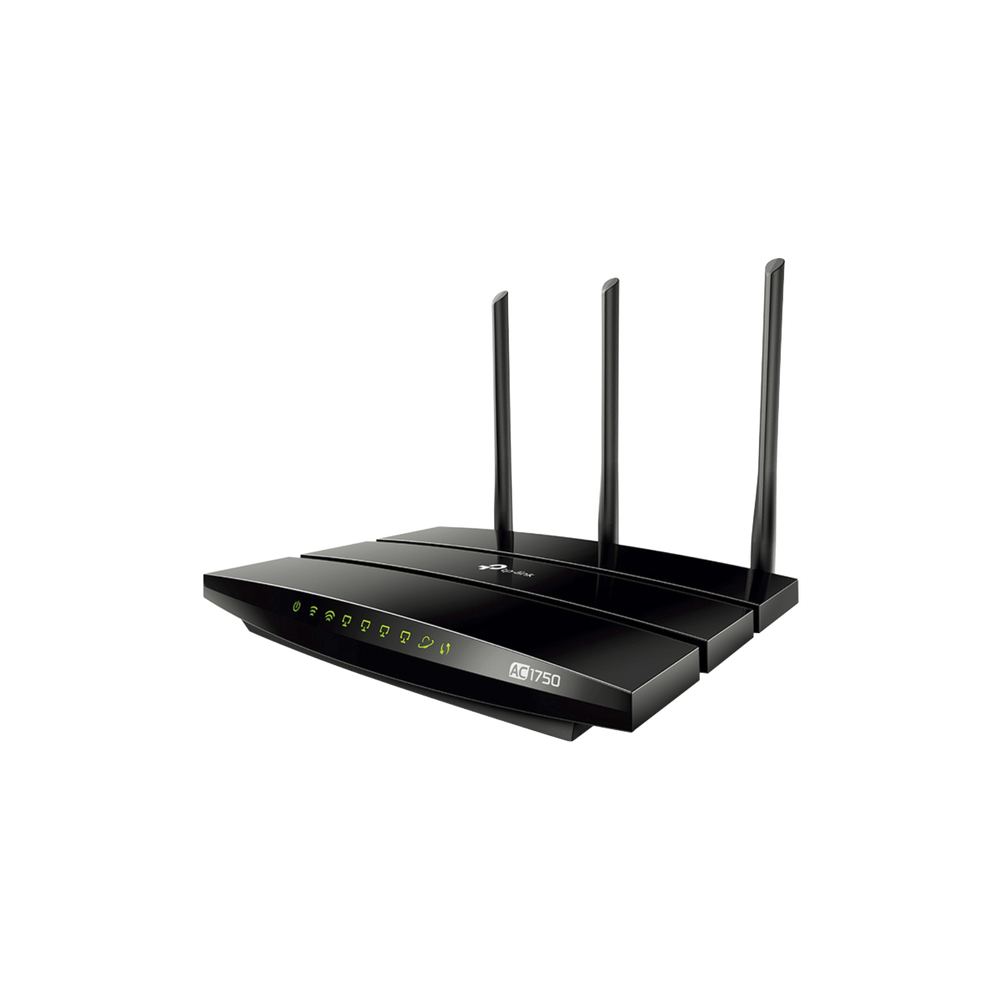

AC 1750 Dual Band Wireless Router 1 10/100/1000 Mbps WAN port and 4 10/100/1000 Mbps LAN ports, 1 USB 2.0 port

AC 1750 Dual Band Wireless Router 1 10/100/1000 Mbps WAN port and 4 10/100/1000 Mbps LAN ports, 1 USB 2.0 port

TP-LINK’s Archer C7 incorporates the latest generation 802.11ac Wi-Fi standard (3 times faster than Wireless N speeds) and delivers a combined wireless transfer rate of up to 1.75Gbps. With wireless speeds of 1.3Gbps over the crystal-clear 5GHz band and 450Mbps over the 2.4GHz band, the Archer C7 is the superior choice for lag-free HD streaming, online gaming, and other bandwidth-intensive applications.

General characteristics

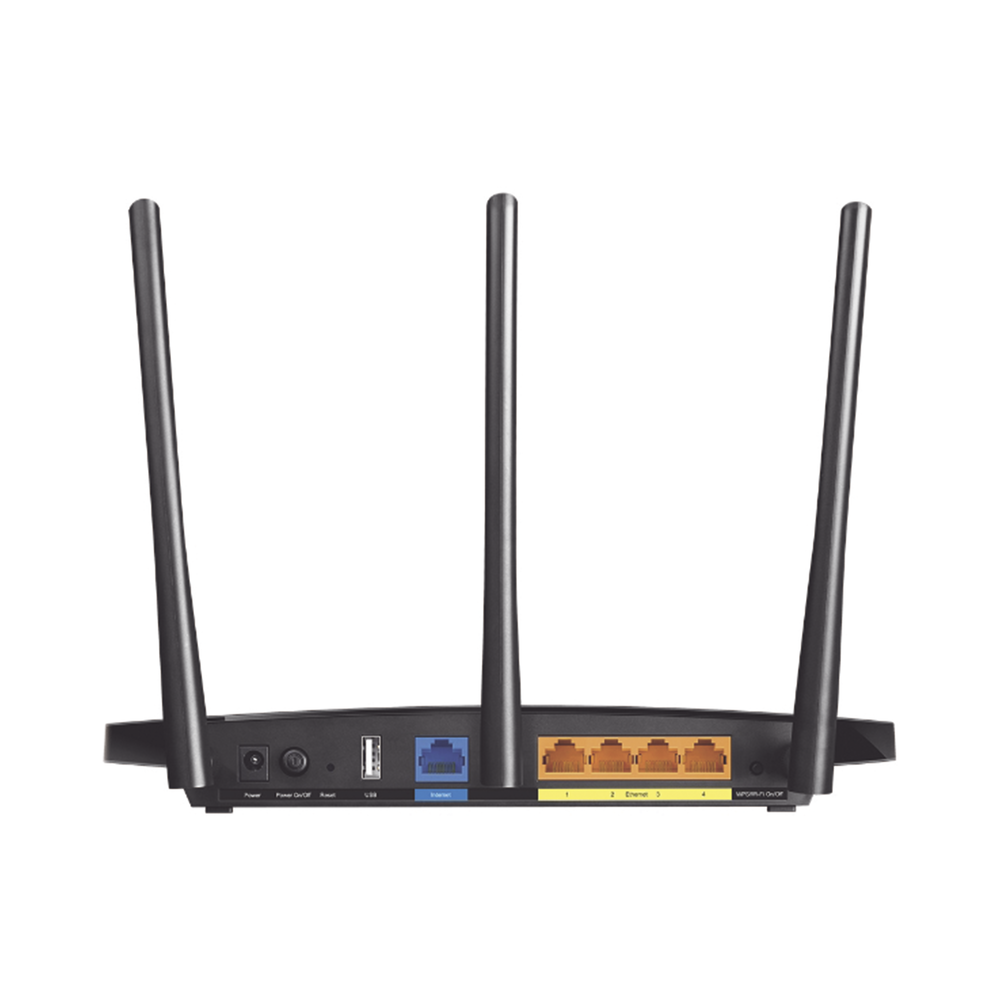

• 4 10/100/1000Mbps LAN ports
• 1 10/100/1000Mbps WAN port
• 1 USB 2.0 port
• 3 detachable antennas (RP-SMA) of 5dBi for 5GHz
• 3 internal antennas for 2.4GHz
• Wireless Standards IEEE 802.11n/g/b 2.4GHz and IEEE 802.11ac/n/a 5GHz
• 2.4GHz: up to 450Mbps
• 5GHz: up to 1300Mbps
• Encryption 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSKEl
• WMM, Bandwidth Control
• Virtual Server, Port Triggering, UPnP, DMZ
• Parental Control, Local Management Control, Host List, Calendar Access, Rule Management
• DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
• Reset button
• Guest network

Physical and electrical characteristics

• External Power Supply 12VDC / 2.5A
• Dimensions (WXDXH) 9.6x 6.4x 1.3 in. (243x160.6x32.5mm)
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Includes

• Archer C7 AC1750 Dual Band Wireless Gigabit Router
• 3 detachable antennas
• Power supply unit
• Utility CD
• Ethernet cable
• Quick Installation Guide
