ONU - GPON AC1200 Dual Band Wireless Router, 1 SC/APC Port, 4 GE Ports, 2 POST (FXS) Ports, 1 USB 2.0 Port

This device supports Agile Solution: https://agile.tp-link.com/mx/config

What is Agile Config?

TP-Link offers a solution to configure SSID, password, time zone, language, etc. according to WISP operator requirements for easy management.

•

  Advantages

  Configuration applicable to devices in bulk.

  Easy setup without special equipment.

Download agile solution:  https://agile.tp-link.com/mx/

HARDWARE FEATURES

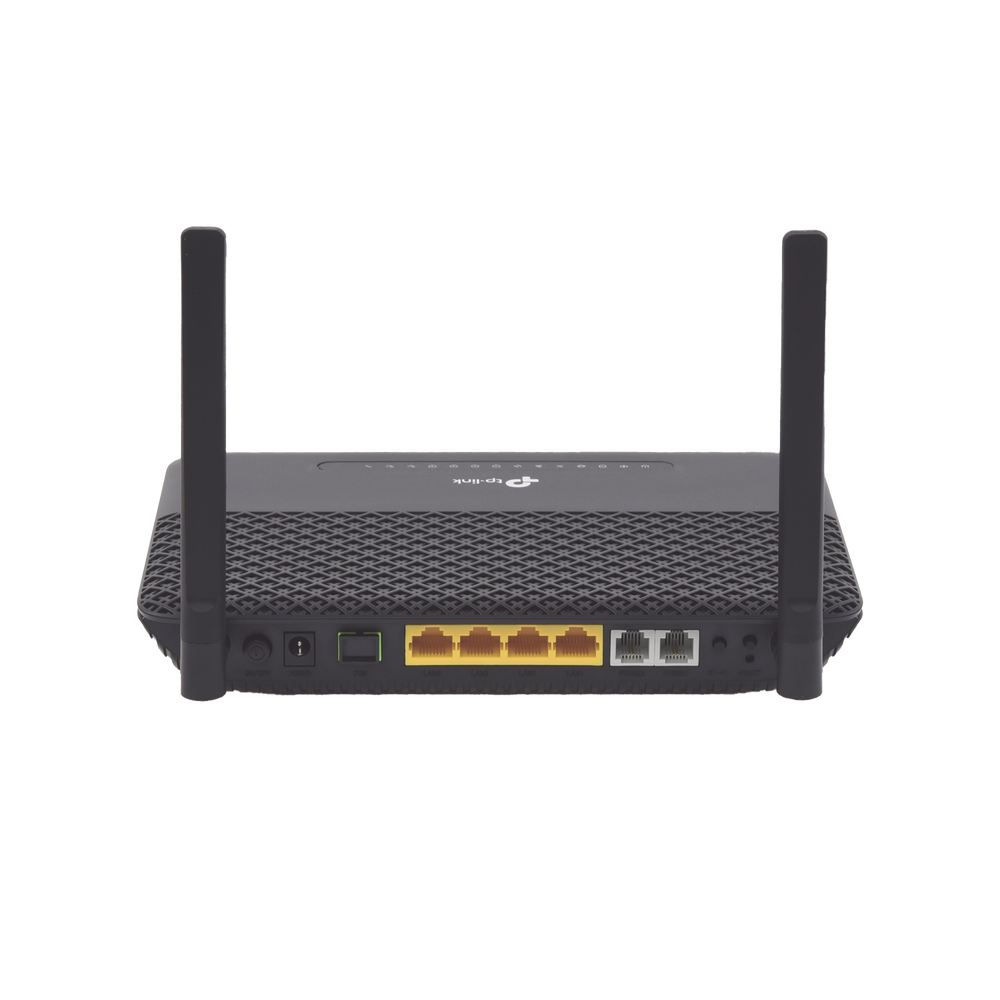

• Interface: 1 SC/APC GPON Port | 4 RJ45 10/100/1000Mbps Ports | 2 RJ11 Ports | 1 USB 2.0 Port
• Button: 1 On/Off | Wi-Fi On/Off | WPS Button | Reset
• External power supply: 12VDC / 1.5A
• IEEE Standards: 802.3, 802.3u.802.3ab
• Dimensions (W x D x H): 217.7 * 155.5 * 36.8mm
• Antenna type: Omnidirectional
• Antenna gain: 2X2，2.4G 3dBi / 5G 4dBi
• GPON Standards : ITU G.984.1 | ITU G.984.2 | ITU G.984.3 | ITU G.984.4
• Optical module: Class B+
• Optical wavelength: Tx at 1310 nm | Rx at 1490nm
• Transmission distance: 0~20Km Max
• Bandwidth: Downstream up to 2.488 Gbps | Upstream up to 1.244 Gbps Max

WIRELESS FEATURES

• Wireless Standards: IEEE802.11ac, 802.11n, 802.11g, 802.11b, 802.11a
• Wireless Speeds: Up to 1200Mbps (dynamic)
• Frequency and Transmission Power: 2.4G: <20dBm EIRP | 5G: <23dBm (EIRP)
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption, Wireless MAC Filtering

VOIP FEATURES

• VoIP Standards: SIP (RFC3261) / RTP (RFC1889/3550) ITU-T G.711A/u, G.722, G.729AB, G.726 | T.38 Passthrough
• VoIP Functions: Call Hold, Call Transfer, Call Forwarding, Warm Call, Do Not Disturb, Anonymous Call, Call Restriction, Speed ​​Dial, etc. | USB Voicemail, Caller ID, 3-Party Conference SIP Account - Up to 8 accounts

SOFTWARE FEATURES

• Security: SPI Firewall | DoS Protection | Access Control | MAC/IP/URL Filtering
• Administration: Web-based configuration (HTTP)
• WAN Connection Type: PPPoE, Dynamic IP, Static IP, Bridge
• DHCP: Virtual Server, Port Trigger, DMZ, UPnP
• Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
• Dynamic DNS: DynDns, NO-IP
• VPN: PPTP, L2TP, IPSec Pass-through
• Advanced Features: Parental Control, Network Address Translation (NAT), Port Mapping, Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3

OTHERS

• Package contents:
  Archer XR500v
  RJ-45 Ethernet cable
  Quick Installation Guide
  Power adapter

• Atmosphere:
  Operating temperature: 0℃~40℃ (32℃~104℃)
  Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  Operating humidity: 10% ~ 90% non-condensing
  Storage humidity: 5% ~ 90% non-condensing

Supports auto-provisioning with OLT P120108, Supports Agile Config and Agile ACS, 2 POST ports for telephony (FXS), Wireless AC technology, 4 Gigabit ports
