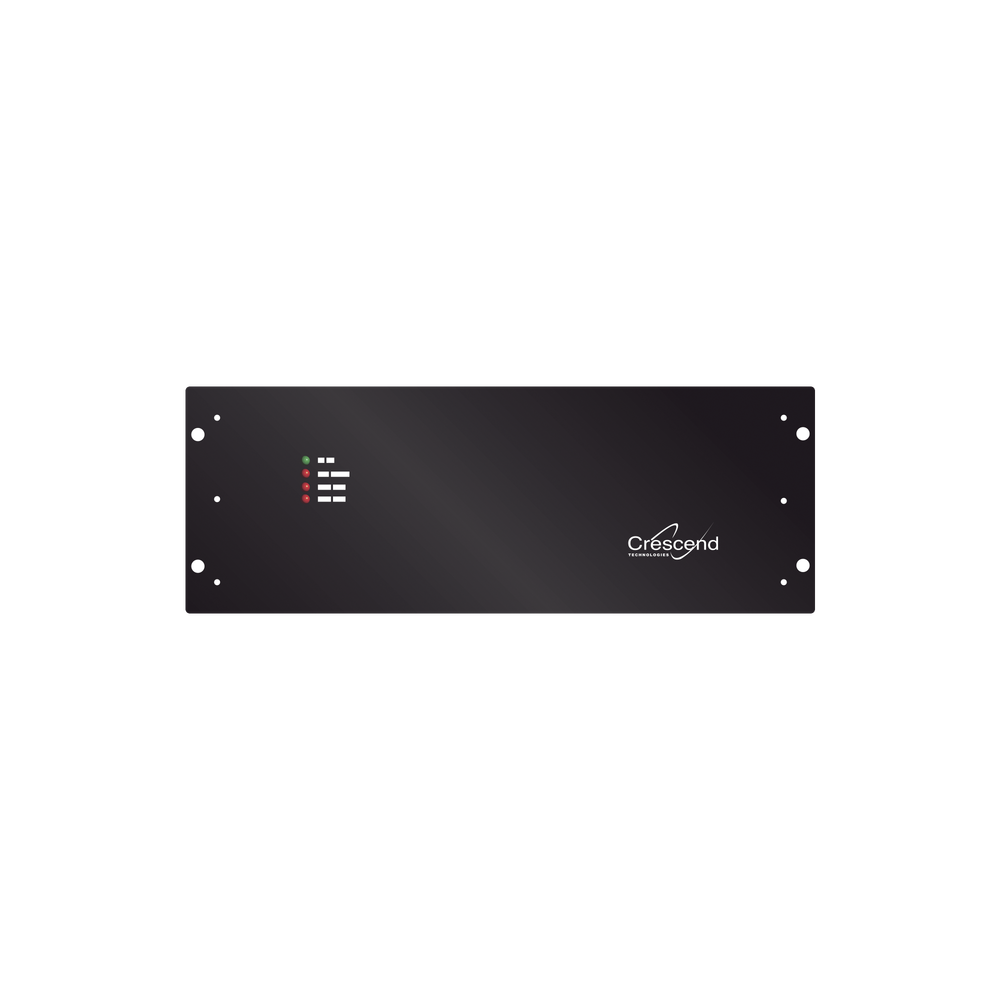

Continuous Duty Amplifier, 152-162 MHz, 10-20 W Input / 100 W Output, 23 A, 13.8 Vdc, N Female.

Continuous Duty Amplifier, 152-162 MHz, 10-20 W Input / 100 W Output, 23 A, 13.8 Vdc, N Female.

Continuous Duty Amplifier, 152-162 MHz, 10-20 W Input / 100 W Output, 23 A, 13.8 Vdc.

• Frequency Range: 152-162 MHz (EA)
• Current Consumption: 23 Amp.(Max)
• Operating Voltage: +13.8 VDC.
• Duty Cycle: 100%
• Input Power: 10 to 20 Watt.
• Output Power: 100 Watt, factory set.
• Harmonics and Spurious: -65 dBc.
• Input/Output Impedance: 50 Ohm (Nominal)
• VSWR Load Tolerance: Protected to VSWR.
• LED Indicator: DC On, Low Output, High VSWR, High Temp.
• Alarm: Additional Alarm Terminal.
• Input/Output Connector: N Type Female.
• Cooling Method: Forced Air with Fan over the Heatsink.
• Operating Temperature Range: -30º C to +60º C.
• Storage and Transport: -40º C to +70º C
• Humidity: 80% at +40º C (non-condensing).
• Altitude: 3000 mts. maximum.
• Dimensions (Height x Width x Depth): 178 x 483 x 153 mm.
• Nominal Weight: 4.54 Kgs.
