• Switch PoE de 24 Puertos Gigabit 802.3af/at con Modo Extendido 250 m, 2 Puertos SFP 1000SX , Pantalla LCD para Configuración Básica, Hasta 300 W para PoE
1 4

PLANET

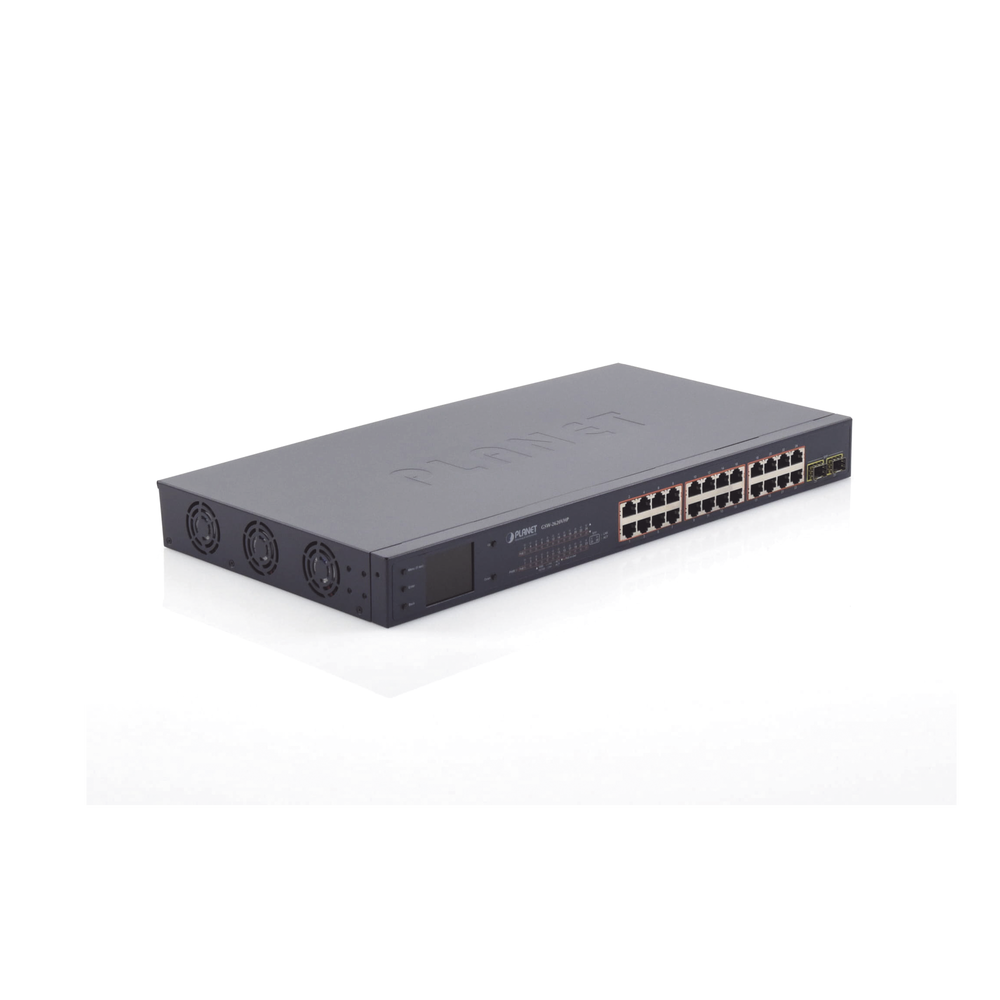

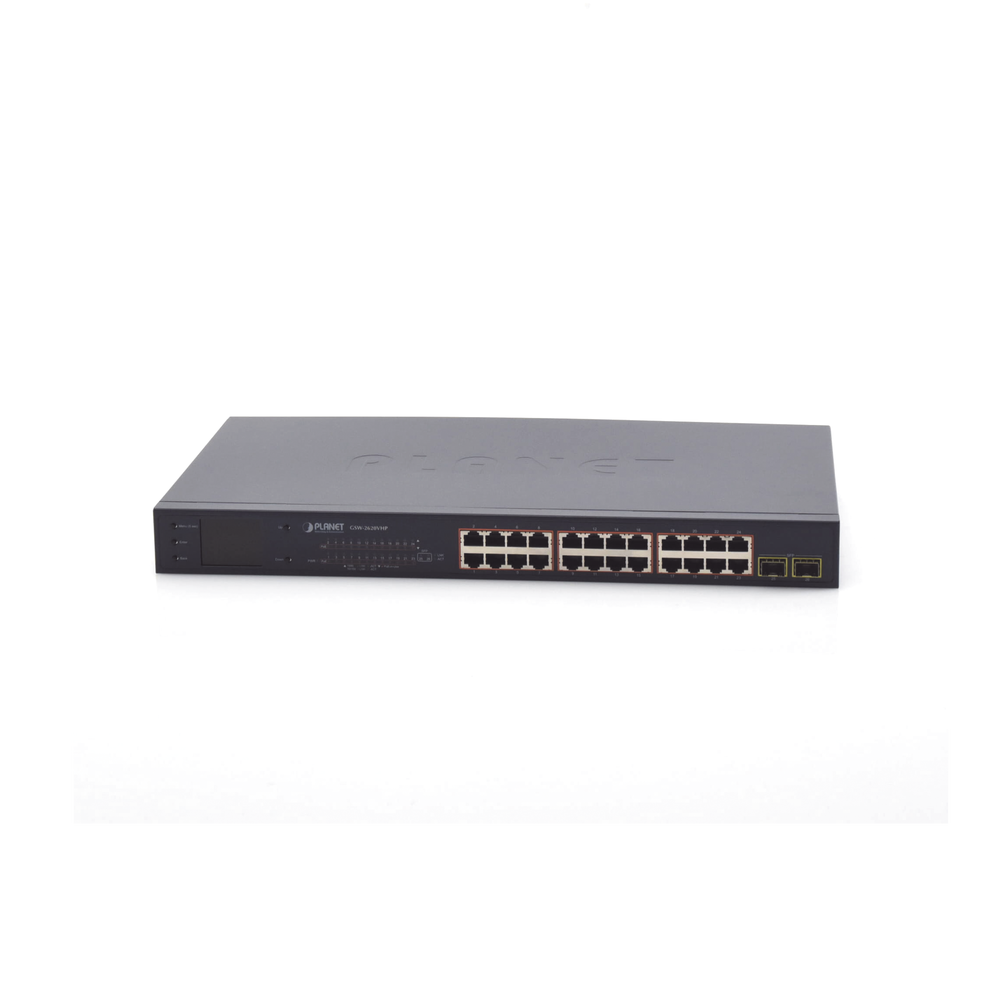

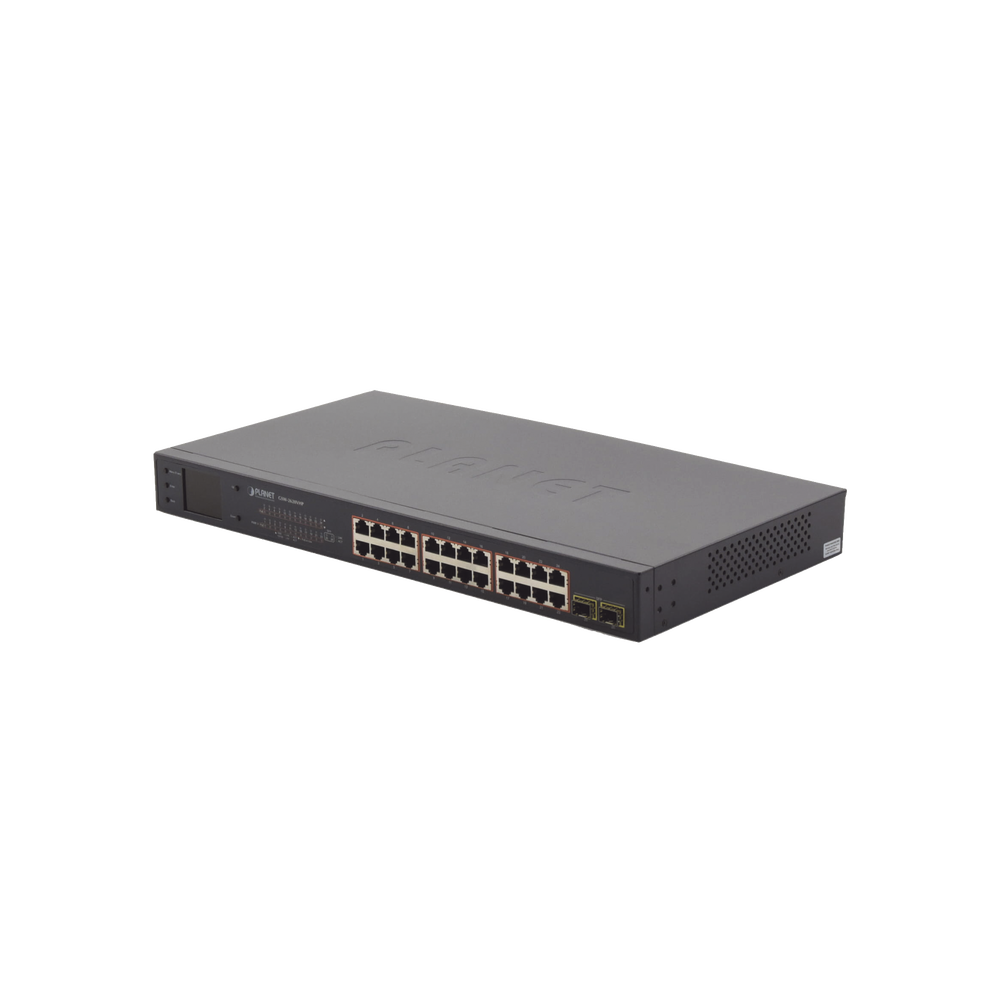

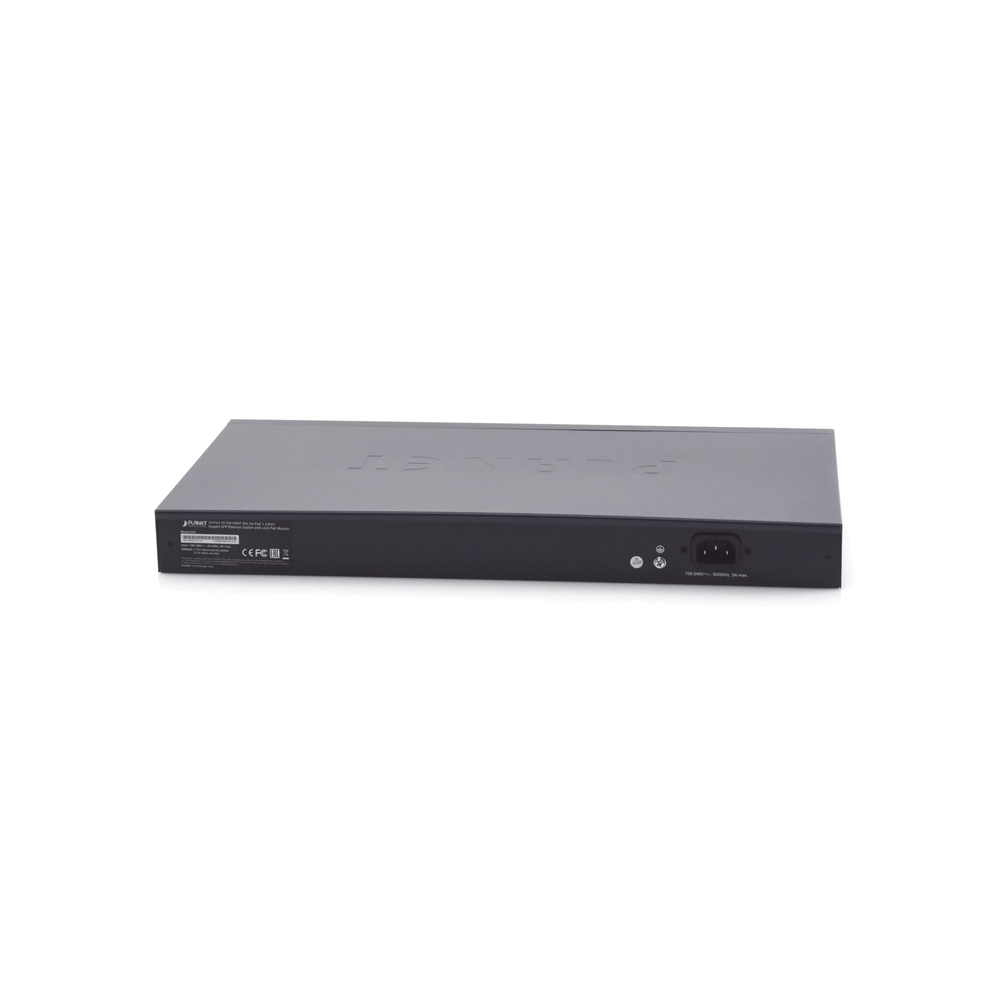

24-Port Gigabit 802.3af/at PoE Switch with Extended Mode 250m, 2 SFP 1000SX Ports, LCD Display for Basic Configuration, Up to 300W for PoE

24-Port Gigabit 802.3af/at PoE Switch with Extended Mode 250m, 2 SFP 1000SX Ports, LCD Display for Basic Configuration, Up to 300W for PoE

$1.866.454 COP
$2.041.434 COP $1.866.454 COP
Sale Sold out
Shipping calculated at checkout.

24-Port Gigabit 802.3af/at PoE Switch with Extended Mode 250m, 2 SFP 1000SX Ports, LCD Display for Basic Configuration, Up to 300W for PoE

PoE+Port VLAN802.3at 30WattsSmart LCDUTP Extend 250mGigabit Uplink

LCD with Intelligent Management

Provides an intuitive color panel that makes Ethernet management and PoE PD management easy.

PoE Management and Status

Port management and status

Switching Mode: Standard, VLAN, Extender

Budget and bandwidth control

Maintenance: Screen saver, fan control, factory defaults and saved settings

VLAN Isolation Mode

For example, it features port-based VLAN function which can help prevent IP camera multicast or broadcast storm from influencing each other.

Extended Mode

It operates per port at 10 Mbps full-duplex operation, but can support 20 Watts of PoE power output at a distance of up to 250 meters, exceeding the 100 m limit of UTP Ethernet cable.

Hardware specifications
802.3af/802.3at PoE injector port 24
10/100/1000BASE-T MDI/MDIX ports 24
1000BASE-X SFP/mini-GBIC slots 2
Switch fabric 52 Gbps/non-blocking
Performance change to 64 bytes 38.7 Mpps at 64 bytes
MAC Address Table 8K
Dimensions 440 x 233 x 44 mm (1U height)
Weight 3.5 kg
Energy requirements 100~240 VAC, 50/60 Hz, 5 A max.
Consumption max. 330 Watts/1132 BTU
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE power supply type End Span
PoE Power Budget 300 Watts
Temperature -10 ~ 60 degrees C
Storage Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
Accessories included

1 - Switch

1 - User Manual

1 - Power cable

1 - Pack of screws

2 - Rack mount

4 - Rubber foot

    Out of stock

    MODELO: GSW-2620VHP
