ANDREW / COMMSCOPE

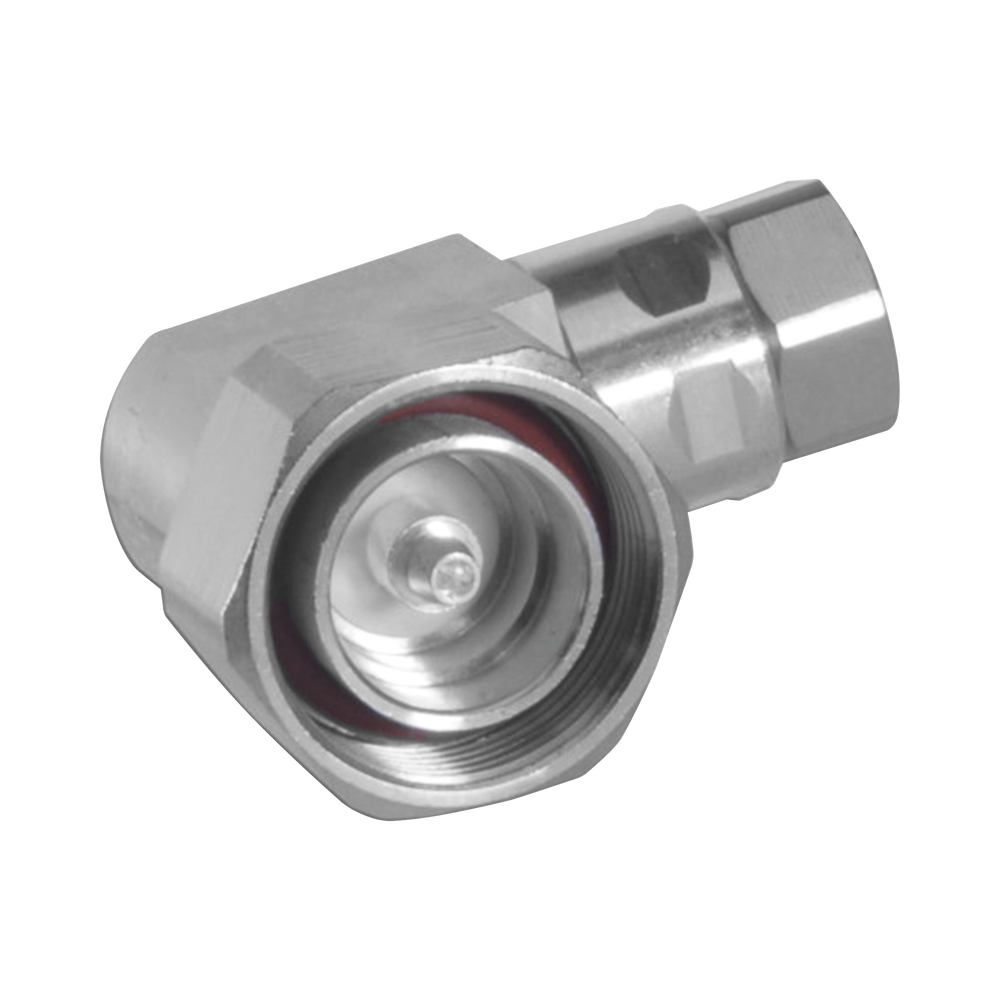

DIN 7-16 Male Right Angle Connector for FSJ450B Cable
DIN 7-16 Male Right Angle Connector for FSJ450B Cable
Regular price
$171.621 COP
Regular price
$187.710 COP
Sale price
$171.621 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DIN 7-16 Right Angle Male Connector for FSJ450B Cable
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 7500 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 884.00 V |
| DC Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 1.0 kW @ 900 MHz |
| Peak Power, maximum | 15.60 kW |
Insertion Loss, typical
|
0.05 dB |
| Shielding Effectiveness | -110 dB |
- Right angle, 1/2, DIN
Out of stock
MODELO: F4DR-C
