(PWR-Line AP) Power Line Access Point, with an Ethernet Port, capable of connecting through power lines
(PWR-Line AP) Power Line Access Point, with an Ethernet Port, capable of connecting through power lines
Regular price
$291.633 COP
Regular price
$318.974 COP
Sale price
$291.633 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
(PWR-Line AP) Power Line Access Point, with an Ethernet Port, capable of connecting through power lines

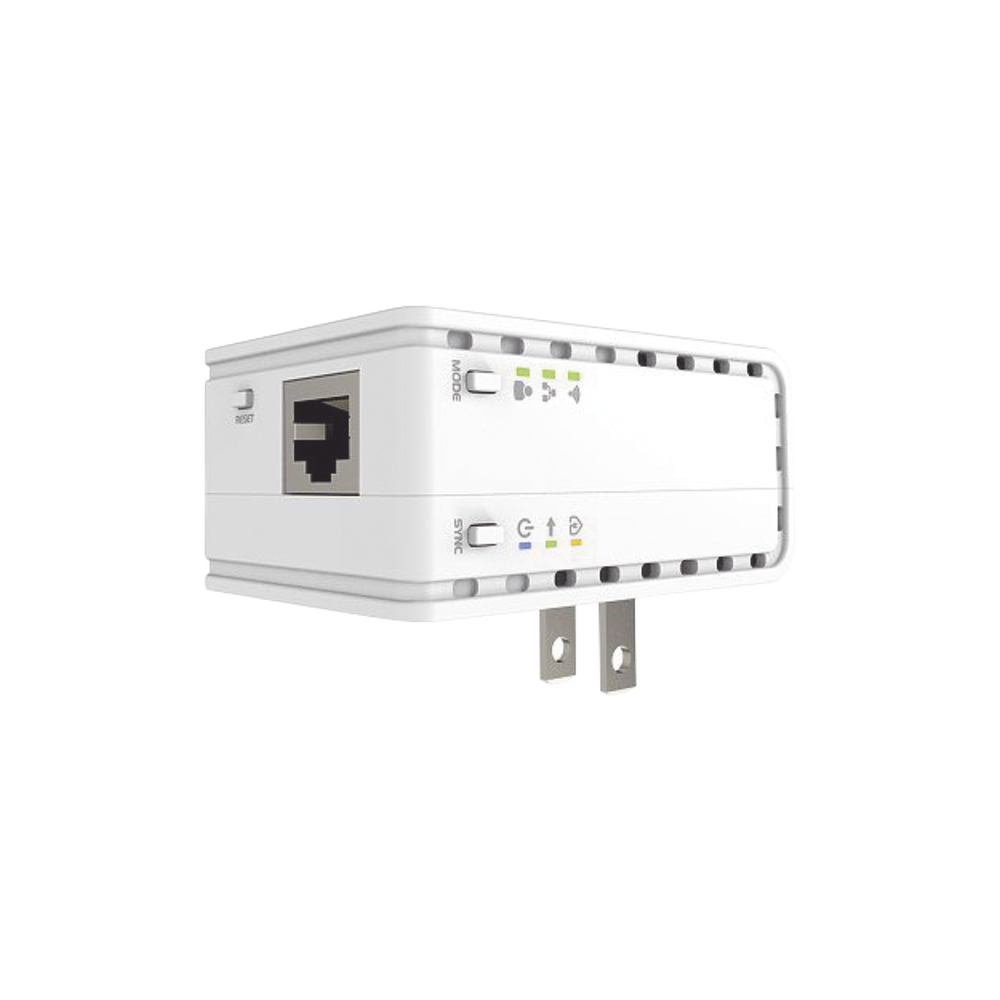

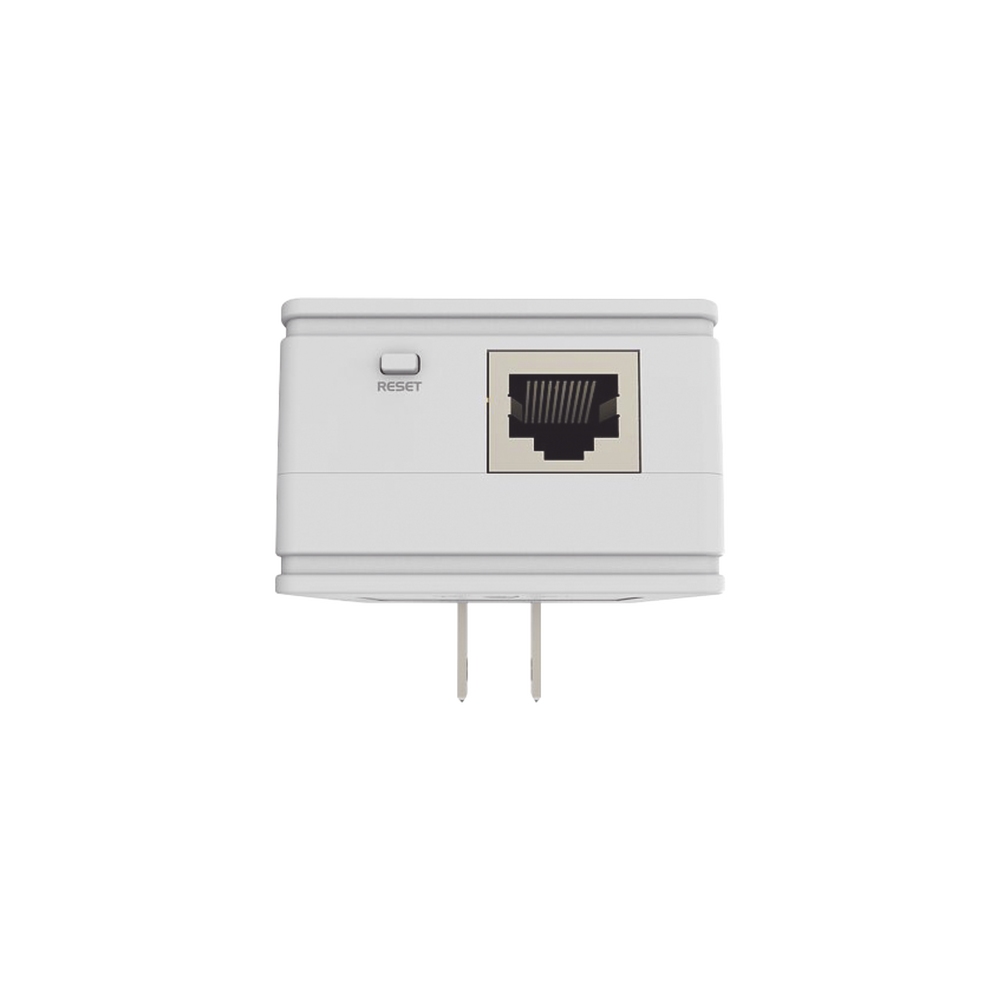

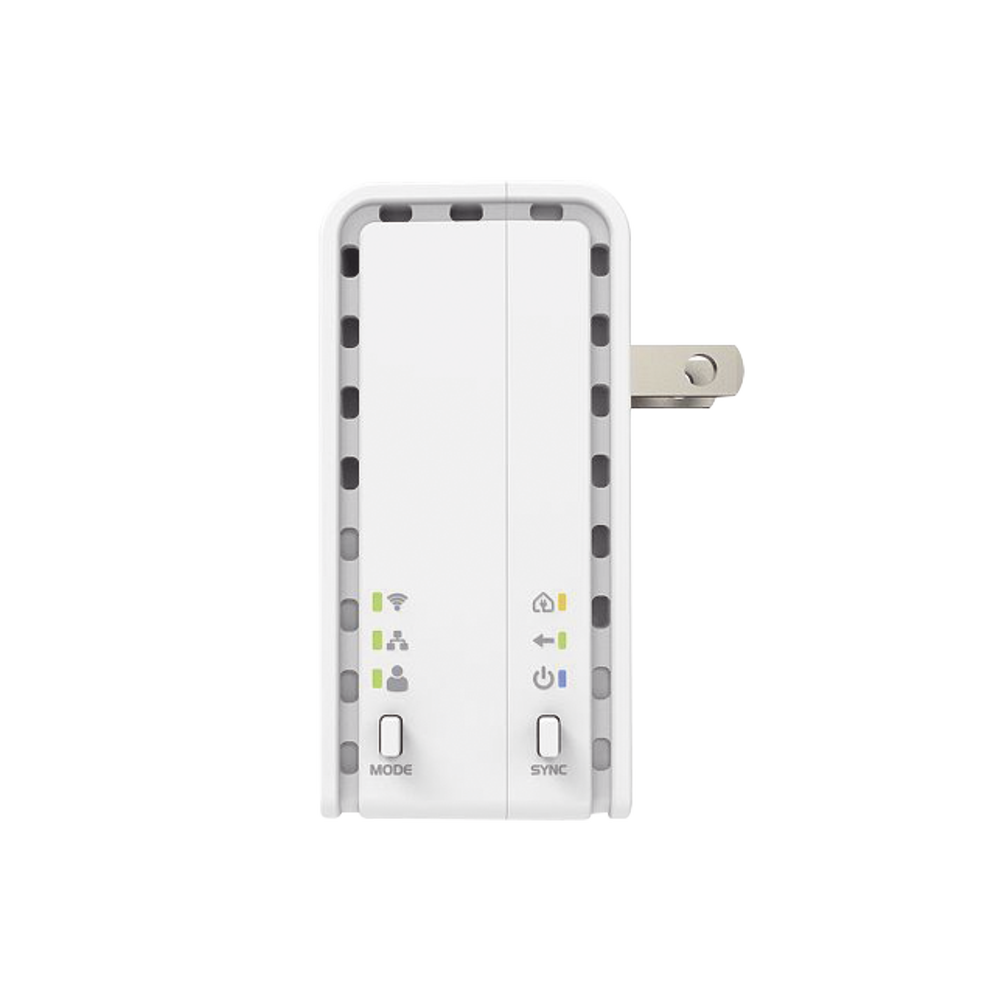

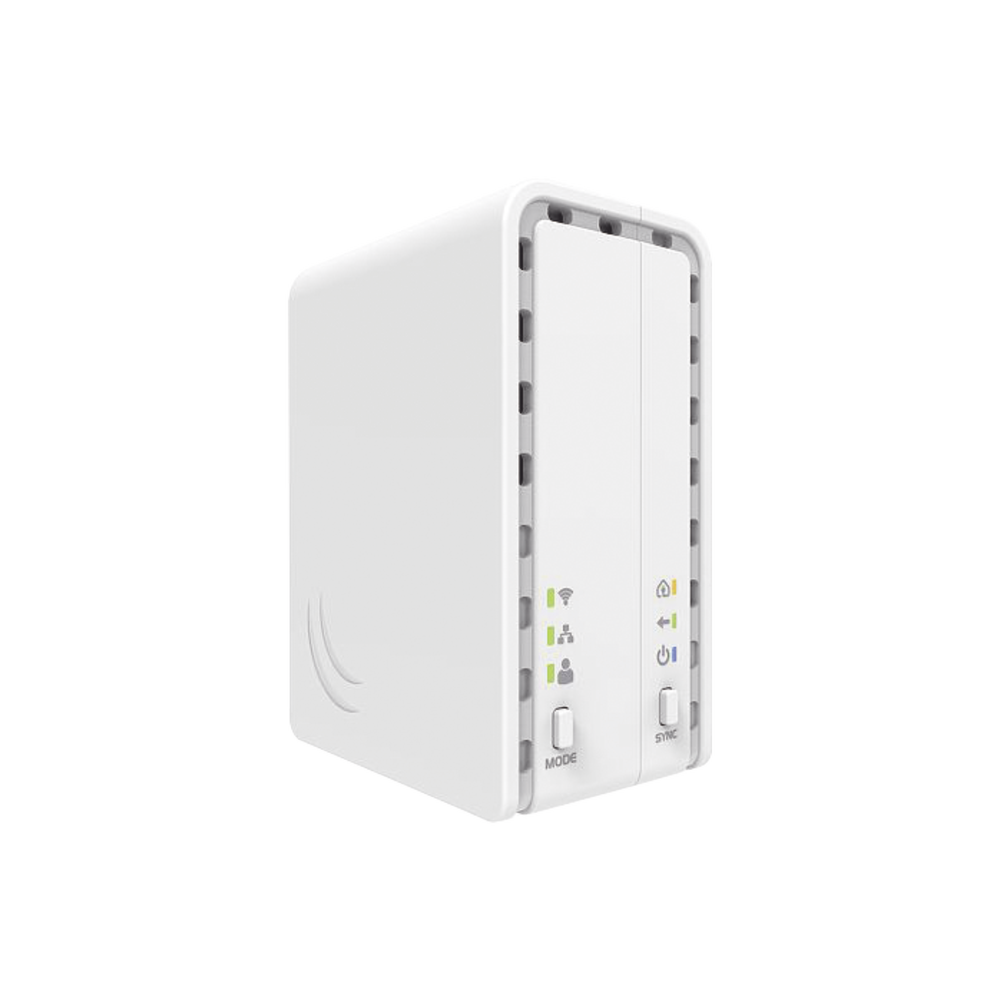

The PWR-Line AP is a small Wi-Fi access point, designed as an accessory to your existing network, for places where your signal or cable can't reach. The unit comes with a Type A power plug (commonly used in the US, Canada, Mexico, and Thailand).
Useful in homes with thick walls where it can extend WiFi coverage to those rooms where the signal is weak without having to rewire.
Simply connect this device directly to one of your MikroTik router's LAN ports and add another one elsewhere in your facility. They'll connect to each other via power lines. You can install up to eight PWR-LINE devices to further build your network.
Specs
| Details | |
|---|---|
| Product code | PL6411-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| Nominal CPU frequency | 650 MHz |
| PLC chipset | QCA6410 |
| Dimensions | 50 x 68 x 33 mm |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -20°C to 60°C |
| MTBF | Approximately 100,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| Frequency (Hz) | 50-60 |
| Maximum energy consumption | 6.3 W |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 2.4 GHz | 300 Mbit/s |
| Number of 2.4 GHz wireless chains | 2 |
| 2.4 GHz wireless standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| 2.4GHz Wireless Chip Model | QCA9533 |
| 2.4 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive sensitivity |
|---|---|---|
| 1 MBit/s | 22 | -96 |
| 11 MBit/s | 22 | -89 |
| 6 MBit/s | 20 | -93 |
| 54 MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
- Power Line Data Transmission
Out of stock
MODELO: PL6411-2ND
