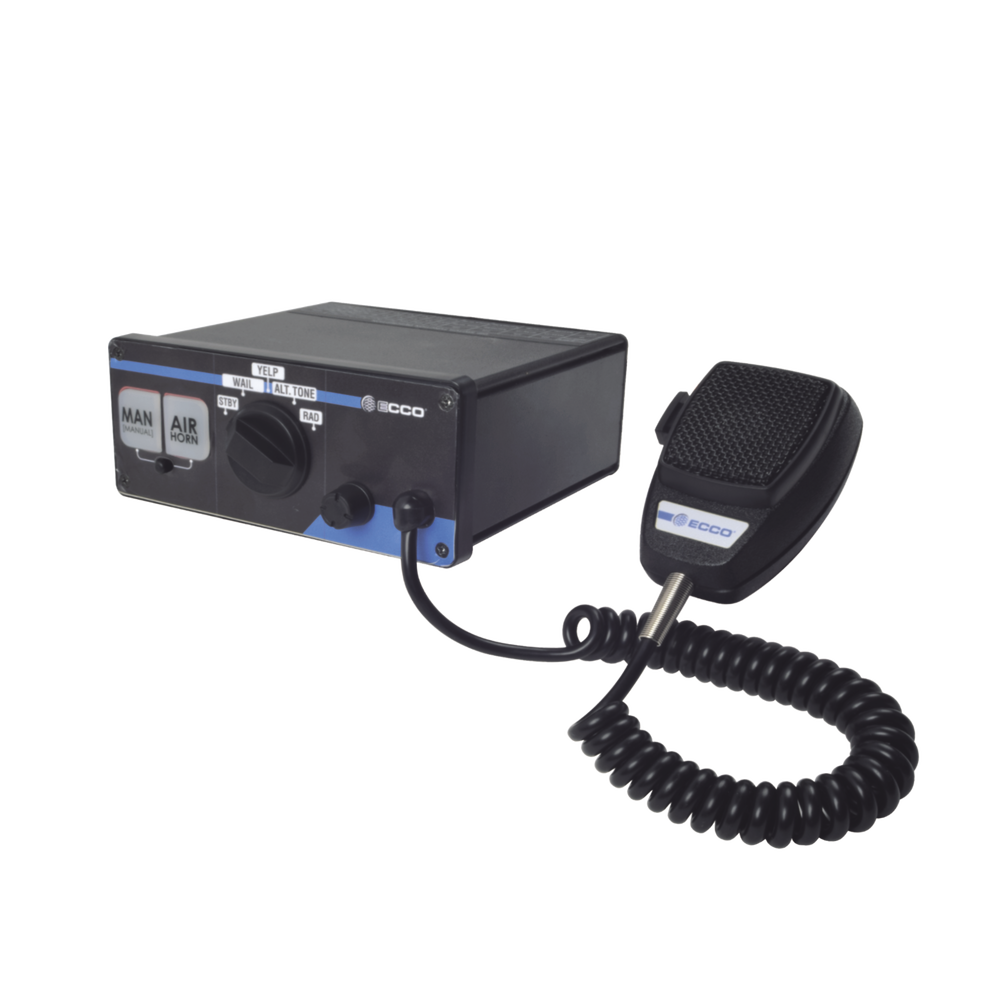

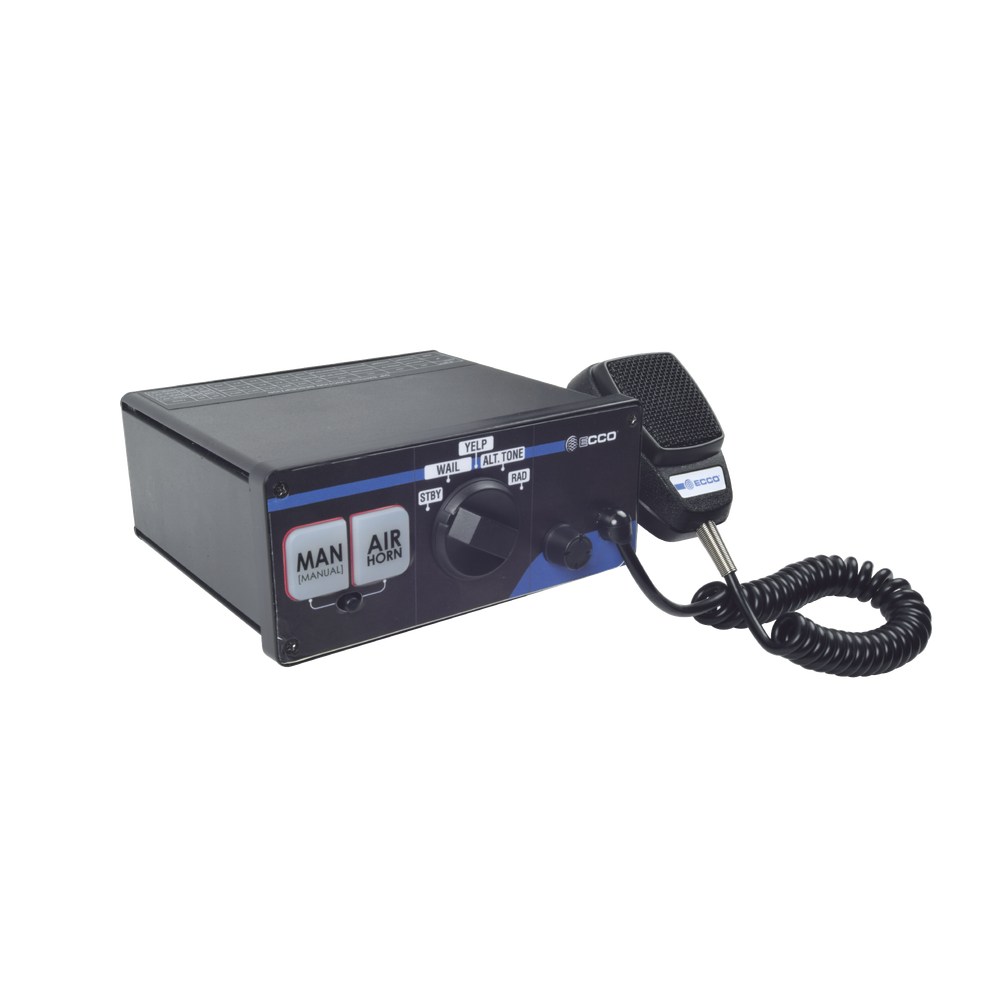

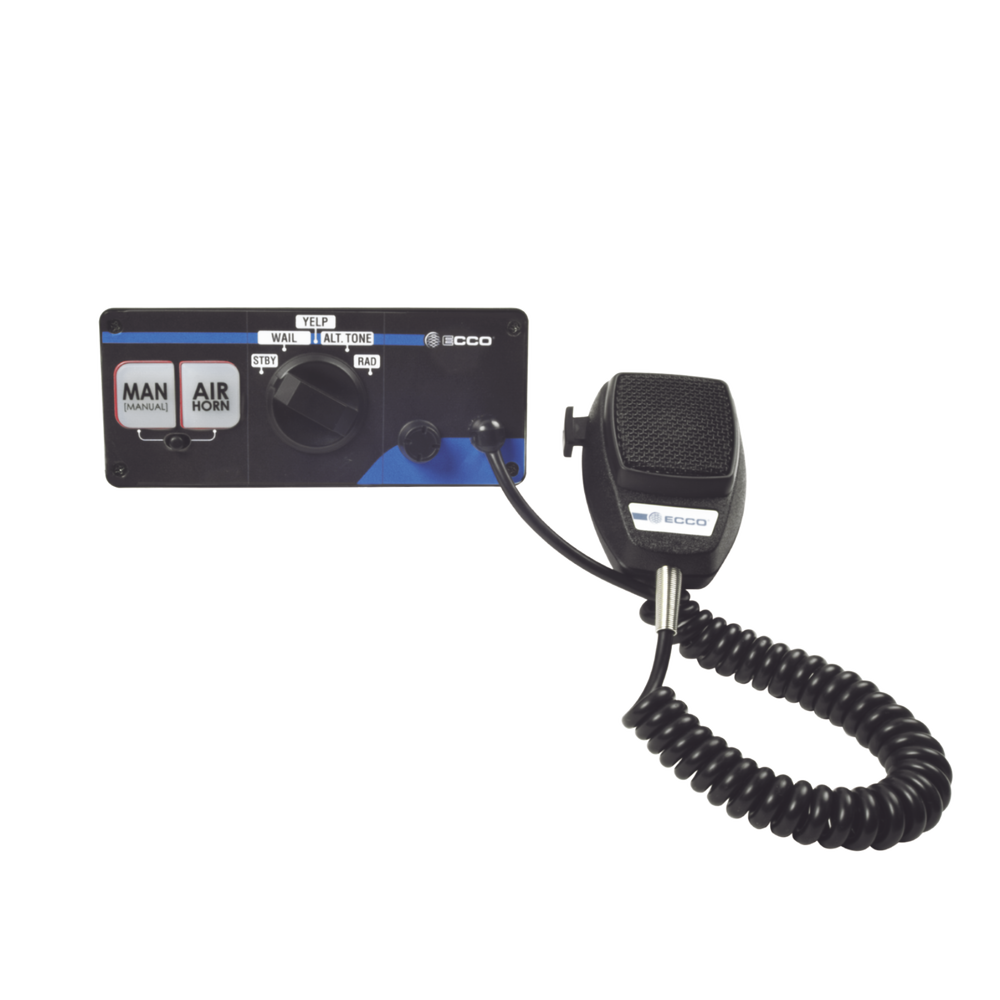

100 W vehicle siren with self-diagnostic mode (bill 3492S)

100 W vehicle siren with self-diagnostic mode (bill 3492S)

SIREN 3492:

Benefits:

• The 3-level slide switch can be programmed as independent, semi-progressive or progressive, giving you

More options when configuring the siren.

• Large Air Horn and Manual buttons allow the officer to keep his eyes on the road for extended periods of time

• Button backlighting can be adjusted to the officer's preferences

• The CA T13 program is delivered at the flip of a switch.

At the facility:

• Positive or negative Park-Kill and Horn-Ring Transfer triggers allow easy installation on all vehicle types

• Visual notification of switching and programming functions facilitates installation and service

• Plug 'n Play fuses and connections make installation and service easy.

In problem solving:

• Constant visual identification testing of speaker integrity makes siren diagnostics the fastest on the market

Design features

1.- Rotary switch positions: Standby (STBY) Wail,

Yelp, alt tone, radio broadcast

2.- Manual large air and air horn buttons

4.- 11 built-in automotive-style fuses

5.- 12 DIP switches to configure

Options

• Wired or microphone version

• Siren without light functions available

Specs:

• Size: 6 ½' W x 2 ¾' H x 5 9/16' D

• Weight: 3.5 pounds (1.587 kg)

• Operating voltage: 10-16 Vdc

• Output capacity: 100 W or 200 W

• Compliance: SAE J1849, 2004/104/EC, and

California T13

• 3-level switch current: Level 1, Level 2, Level 3A,

Level 3B, capable of 15 A each for a combined

total of 50 A

• 5-year warranty

5 Year Warranty, Compliance: SAE J1849, 2004/104/EC, California T13, Current: 50 A, Operating Voltage: 10-16 Vdc, Power: 100 W
