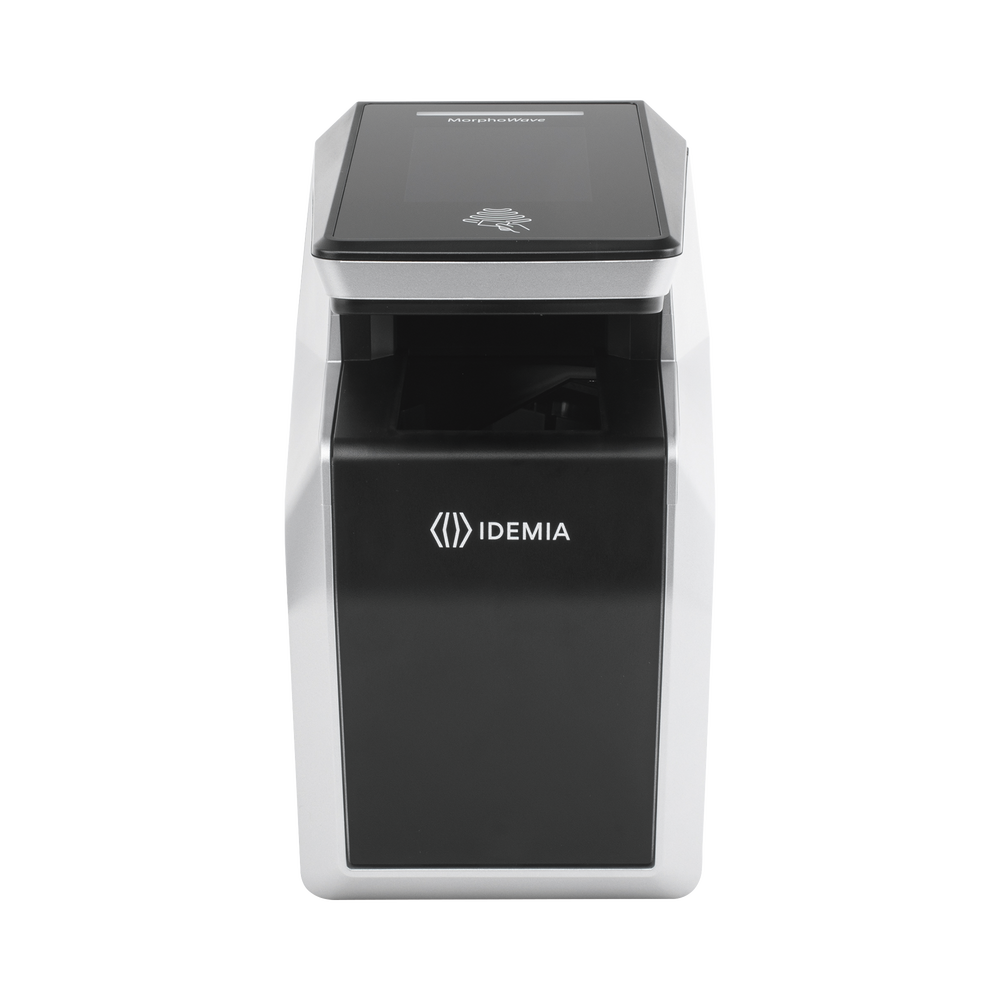

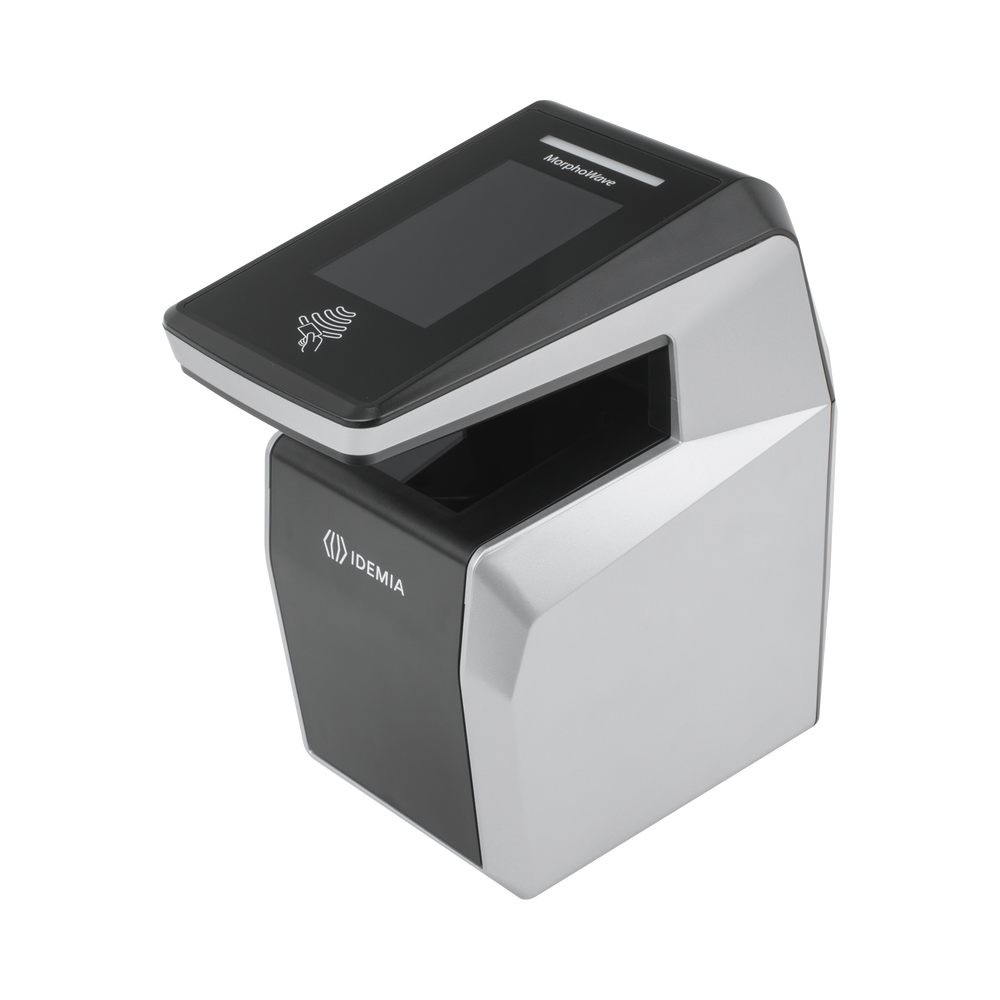

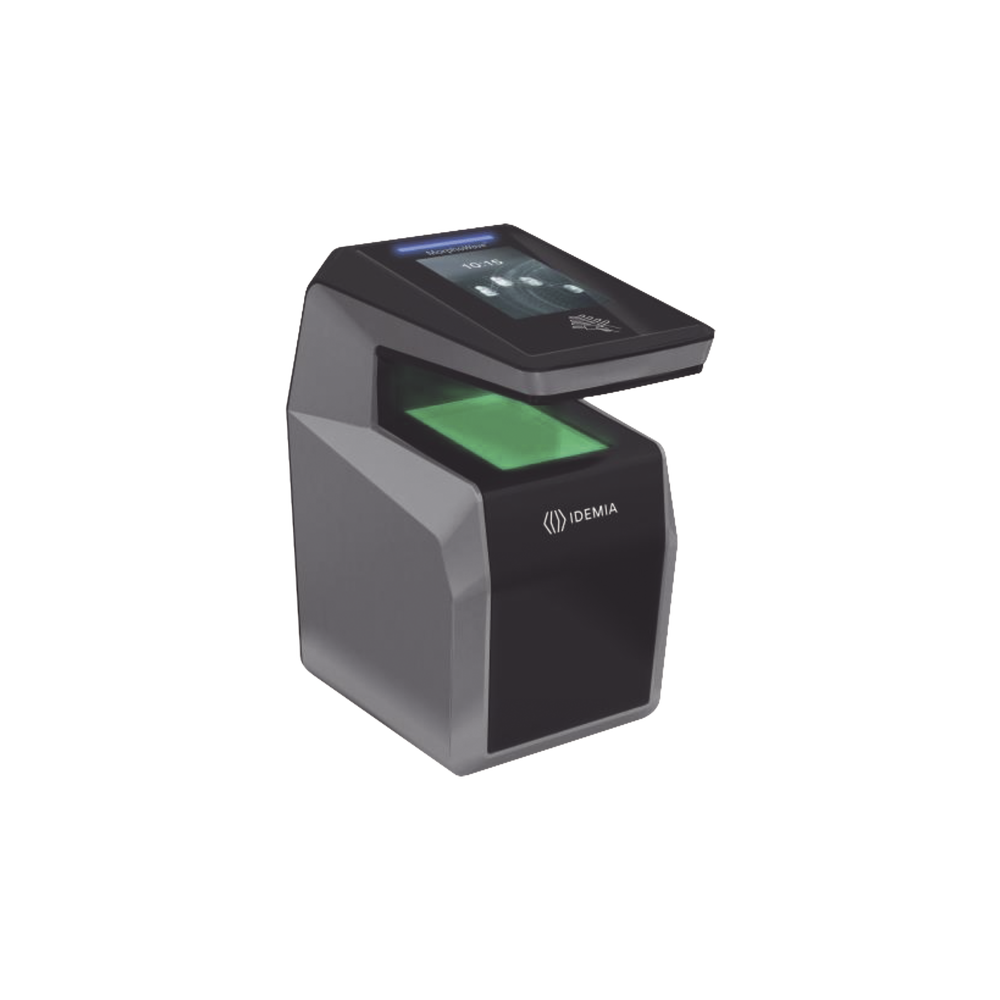

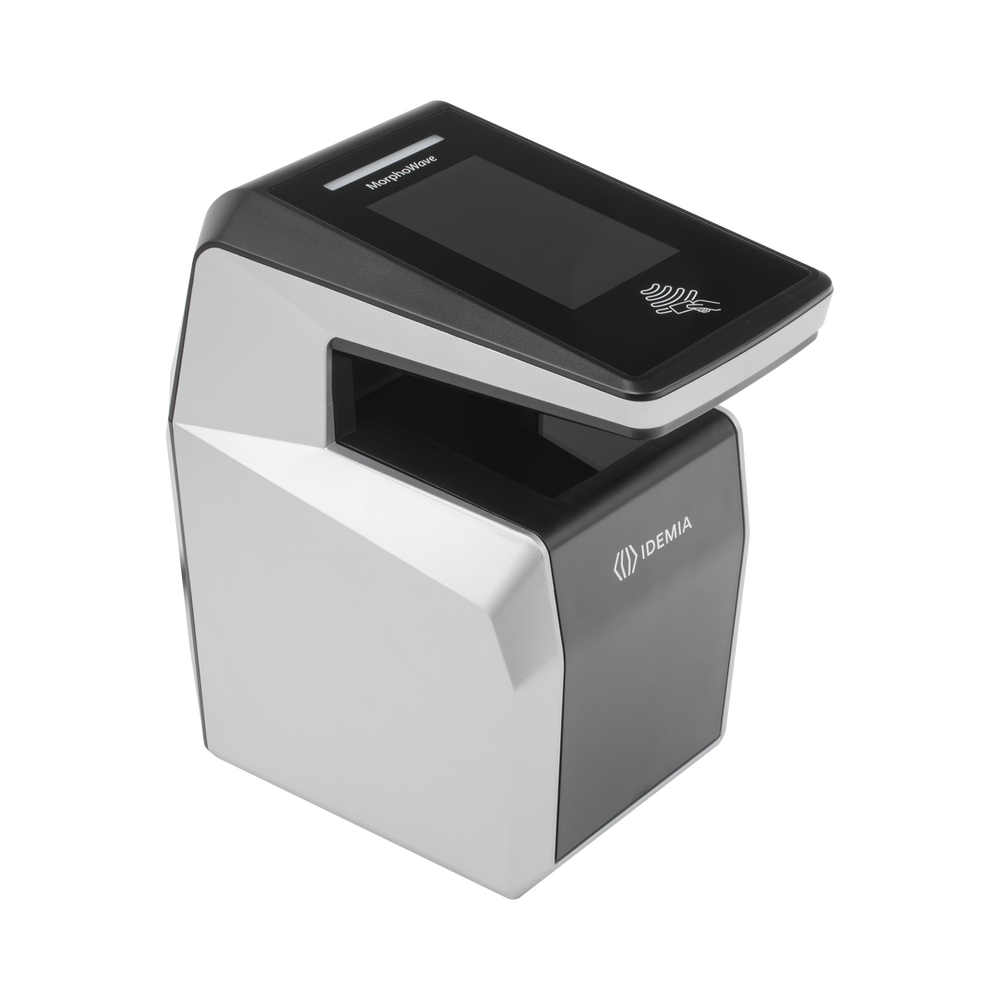

MorphoWave XP MDPI Contactless Fingerprint Reader / 40,000 Users (expandable to 100,000 with license) / Multi-format Card Reader Mifare, Desfire, HID Prox, IClass, Seos, QR / IP65 / PoE

MorphoWave XP MDPI Contactless Fingerprint Reader / 40,000 Users (expandable to 100,000 with license) / Multi-format Card Reader Mifare, Desfire, HID Prox, IClass, Seos, QR / IP65 / PoE

MorphoWave™ Compact by IDEMIA is the latest addition to IDEMIA

Range of readers for frictionless biometric access control. This engineering masterpiece offers the award-winning, field-proven performance of MorphoWave™ contactless 3D fingerprint technology in a compact and elegant design.

Wall-mounted device, suitable for any location.

MorphoWave™ contactless 3D fingerprint technology is designed for the real world.

• Capture 4 fingers on the right or left hand, in any direction

• Immune to environmental factors (external light, dust)

• Copes with wet and dry fingers.

• No latent prints remain on the scanner

• Mitigates hygiene concerns.

Award-winning MorphoWave™ technology has become the benchmark in friction

access, securing high-traffic access points at the world's largest financial institutions,

Infrastructure facilities, universities and healthcare organizations.

Characteristics:

• CPU: Nvidia ARM Cortex-A15 QuadCore 2.1GHz
• 4.3'' WVGA color capacitive touchscreen.
• Speaker and microphone. Intercom function.
• Audio and video player.
• Contactless fingerprint sensor Hand presence detection QR code scanning capability.
• Contactless reader options: Prox, iClass, MIFARE/DESFire.
• QR reader for visitor module. Requires printing.
• Tamper Switches • Internal storage capacity: 16GB Flash, 2GB RAM - 20,000 user records (2 * 4 fingers each) for 1:N identification, expandable to 40,000 with licenses (4) - 250,000 IDs in the authorized user list - 1 million transaction records
• Network/Communication: - Ethernet, RS485, RS422, USB - Wi-Fi and 4G options.
• Inputs/Outputs: Wiegand In & Out (customizable up to 512 bits), Door Relay, 3 GPI (including door monitoring), 3 GPO.
• Power Supply: 12 to 24 V DC (2.5A min @ 12V) Power over Ethernet with PoE+ switches.
• Operating Conditions: - Temperature: -10°C to 55°C (14°F to 131°F) - Humidity: 10% to 95% (non-condensing).
• Ingress protection: IP65 indoors.
• Dimensions: 250*152*216mm (9.9*6*8.5in)
• Weight: 2.2 kg (4.85 lb.).
• Safety/EMC Standards: CE, CB, FCC • Compliant with RoHS, REACh and WEEE

Reading in any direction, Hygienic, Accurate and Fast
