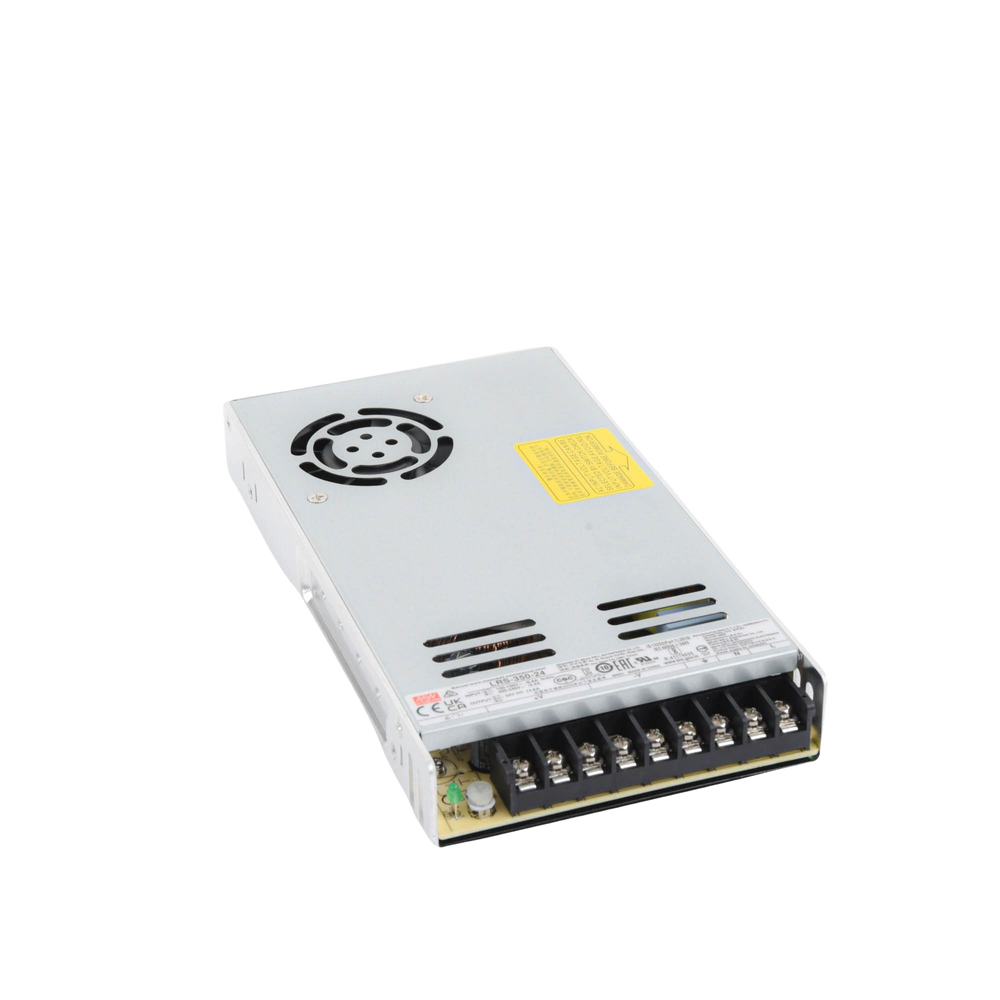

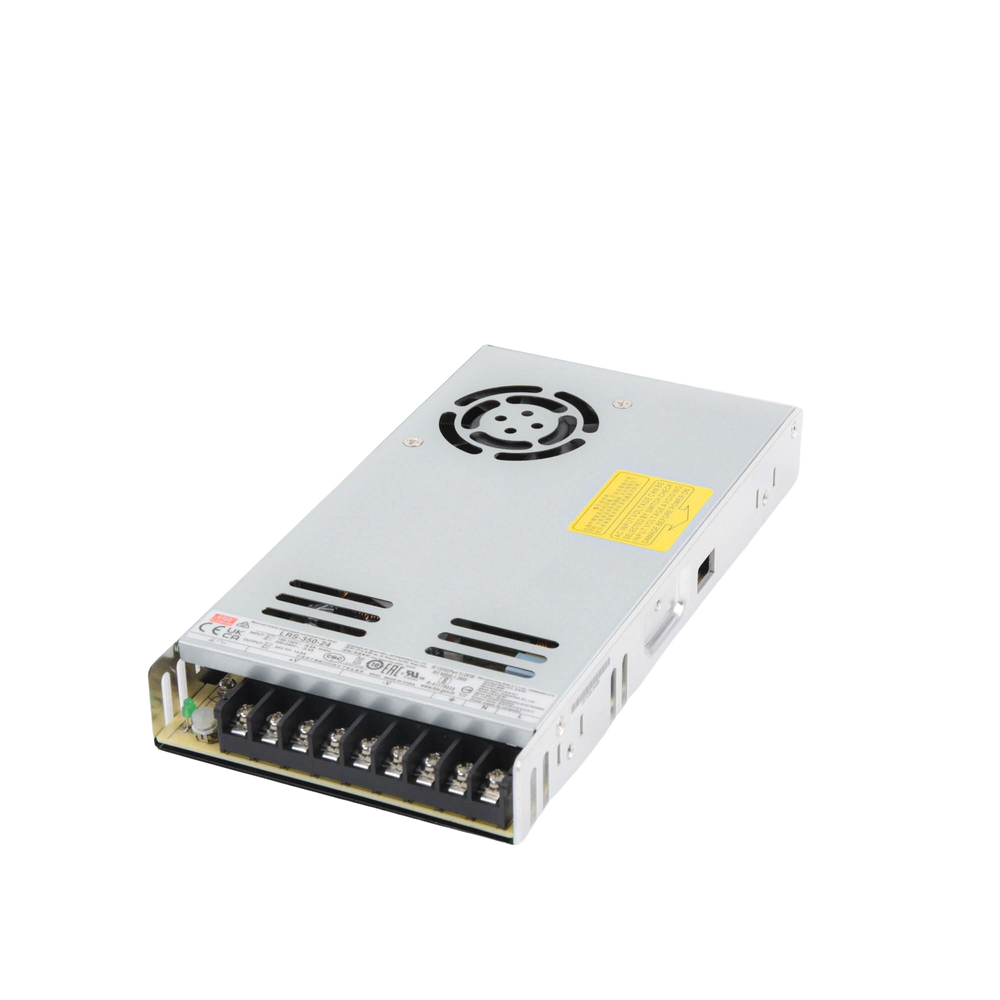

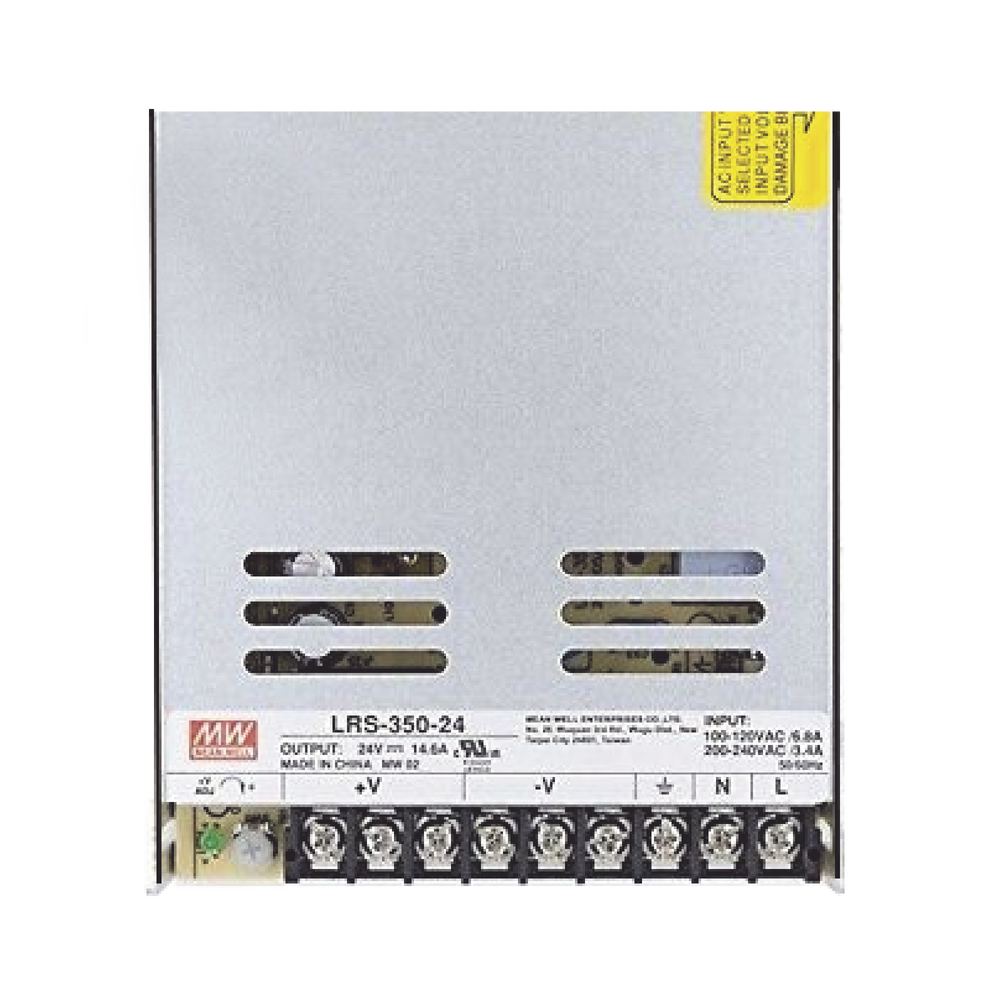

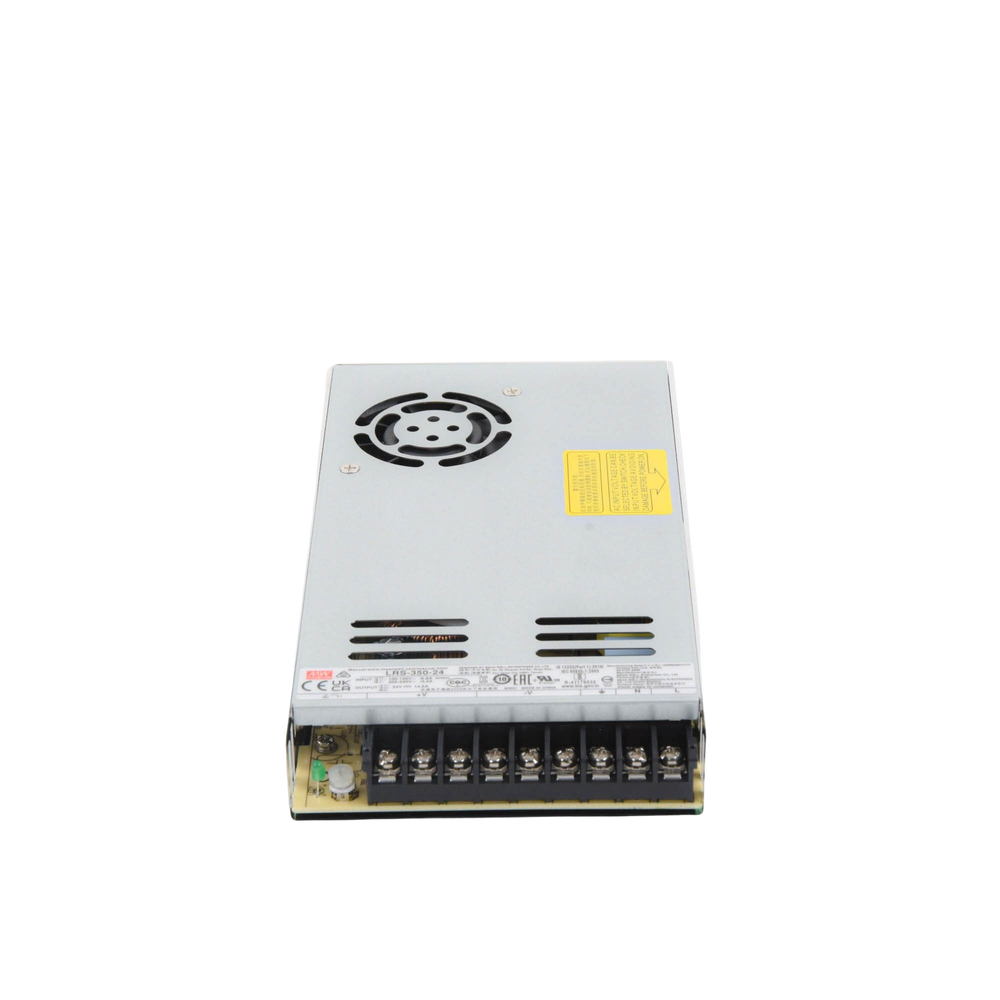

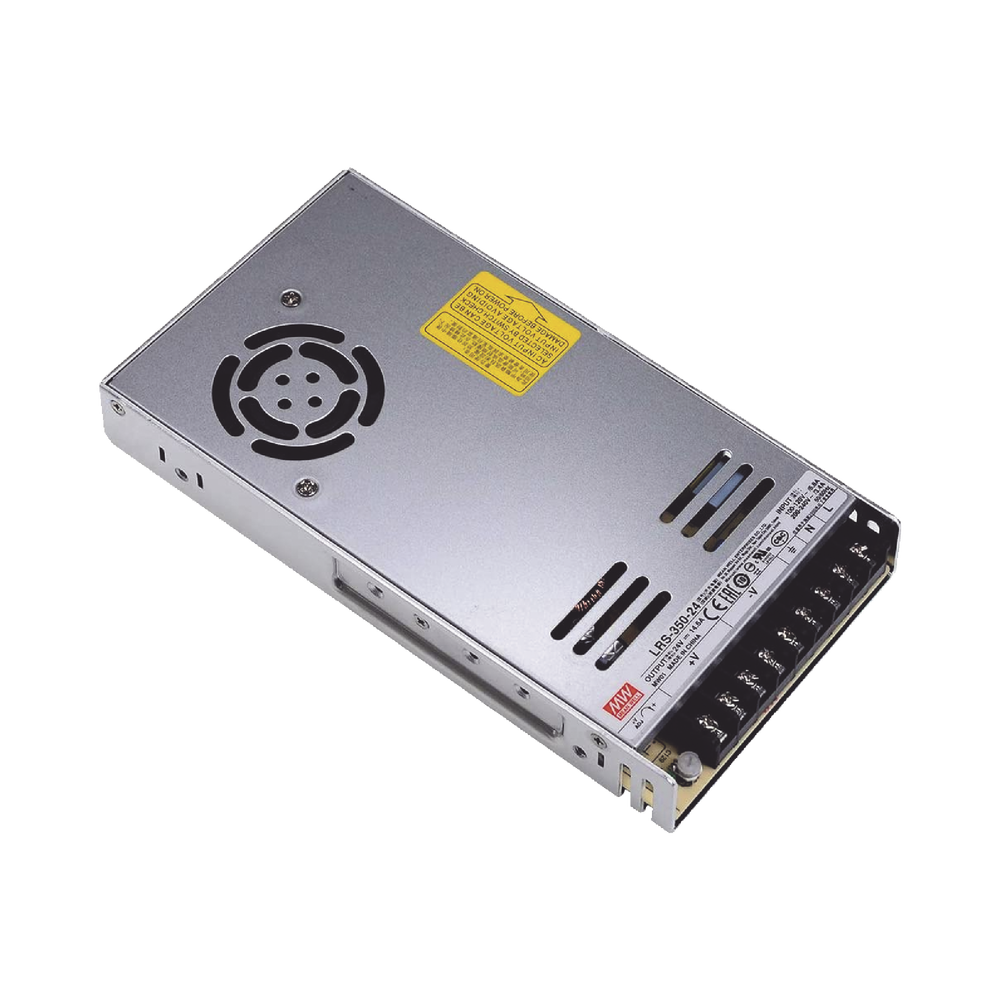

Industrial Switching Power Supply 350W, 24Vdc, 14.6A

Industrial Power Supply 350W Power

Characteristics:

• Protections: short circuit / overload / overvoltage
• Selectable AC input range
• Built-in fan
• LED power indicator
• Long-life electrolytic capacitors
• Resistance to work in high temperatures 70ºC
• 5G vibration test passed
• High efficiency, long life and high reliability
• 3 -year warranty

Technical Specifications

• Input Voltage: 100-120Vac 50/60 Hz 200-240Vac 50/60 Hz

Note: Selectable input voltage range

by means of a switch.

• Output Voltage: 24Vdc
• Output Current: 14.6A
• Output Power: 350W
• Dimensions: 115 x 30 x 215 mm
