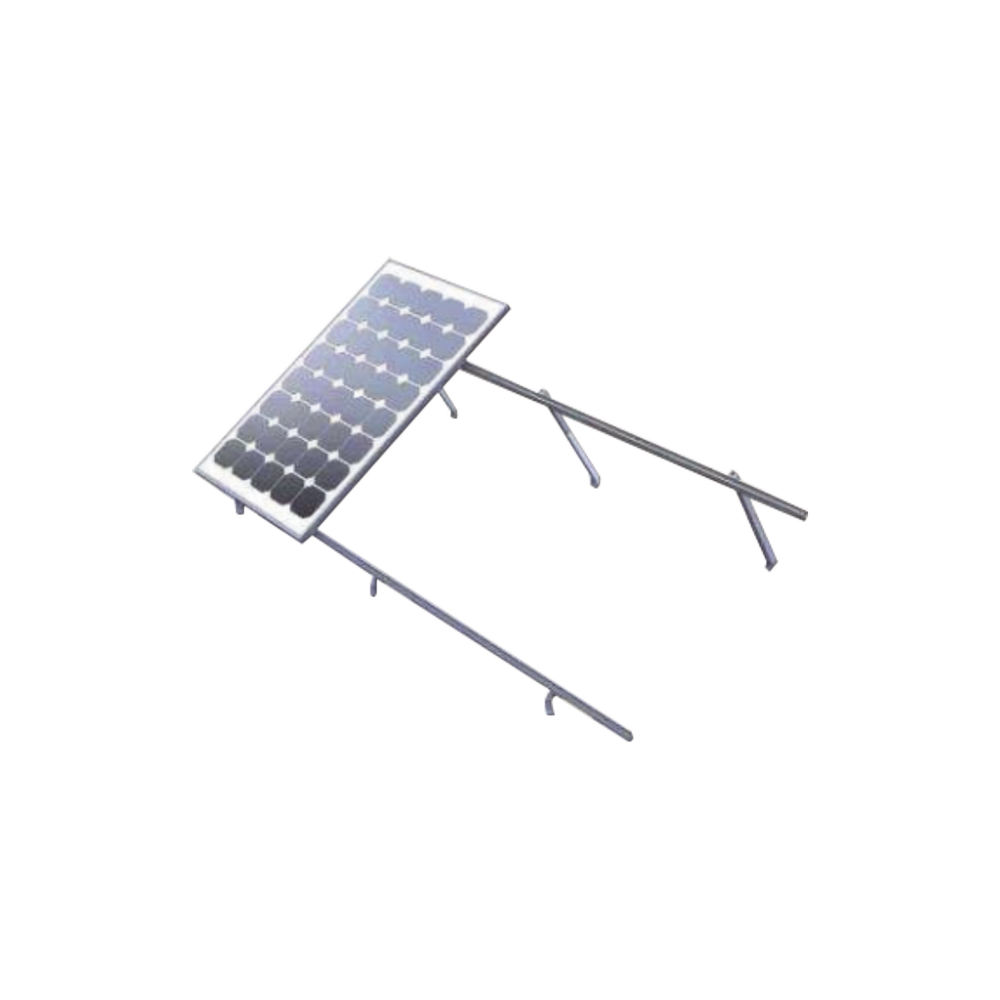

• Montaje para Panel Solar de aluminio anodizado para techo o piso de concreto, de alta resistencia y rápida instalación, arreglo 1x4 módulos fotovoltáicos de 40mm de espesor
1 1

EPCOM POWERLINE

Anodized aluminum solar panel mount for concrete roof or floor, high strength and quick installation, 1x4 array of 40mm thick photovoltaic modules

Anodized aluminum solar panel mount for concrete roof or floor, high strength and quick installation, 1x4 array of 40mm thick photovoltaic modules

$706.484 COP
$772.717 COP $706.484 COP
Sale Sold out
Shipping calculated at checkout.

Anodized aluminum solar panel mount for concrete roof or floor, high strength and quick installation, 1x4 array of 40mm thick photovoltaic modules

Anodized aluminum mounts, highly resistant to wind and corrosion with a 25-year warranty.

Benefits of using EPCOM POWER LINE Anodized Aluminum assemblies:

  • Mitigate corrosion caused by galvanic pairing, protecting your installations from premature corrosion.
  • Wind resistance up to 151 km/h, ideal for areas with strong winds.
  • Easy installation and adaptability to your needs due to the wide variety of accessories available.
  • 25-year warranty against manufacturing defects!
  • Integrated 'Ground Clip' landing system (does not include electrode or landing cable).

High-strength, quick-installation aluminum roof or concrete floor mount, 1x4 photovoltaic module arrangement.

Characteristics:

  • For arrangement of 1x4 photovoltaic modules of 40mm thickness
  • Tilt: 20-30°
  • Weight: 14.2 kg
  • Maximum wind speed: 151 km/h

Special considerations:

For the installation of 4 modules, the width of each module must be less than 1026 mm.

End fasteners according to module frame height:

30mm frame: EPL-ECG2-30R

35mm frame: EPL-ECG2-35R

*It is suggested to check compatibility with the engineering department.

Compatible modules:

- EPL-330-24

Advantages of Epcom Power Line mounting systems

  • Materials of the highest quality.
  • Quick and easy installation.
  • Easy-to-install 'Ground Clip' landing system.
  • More robust parts resistant to extreme climates.
  • Technical support 365 days a year.
  • 25-year warranty.
EPL-AM01-1X4LC Components
2 EPL-SR7-4200 Rail 7 4200 mm anodized aluminum
1 LB-AM01-1X4LC Group of tubes and parts for assembly EPL-AM01-1X4LC
EPL-LF2-01 Anodized aluminum L bracket. 3
EPL-Bolts-60 M8*60 screw 3
EPL-Bolts-55 M8*55 screw 3
EPL-ALG2-455 Adjustable bracket 455mm anodized aluminum 3
EPL-Bolts-22 DIN912 M8*22 Bolt(SS304) 3
EPL-Lconnector L-Connector(6005-T5 Anodize) 3
SFS-G2 G2Module(6005-T5 Anodize) 3
EPL-FFG2-03 Front L Feet Group 3
EPL-ECG2-40 Final Fastener group (40mm) 4
EPL-MCG2-40 Medium group bra (40mm) 6
EPL-ELG2-01 Grounding connector 2
EPL-GC-01 Grounding clip 6
EPL-ES-8/70 M8*70 stainless steel expansion screw 6

Note: This assembly does not include the photovoltaic modules.

Ask for delivery time

    Aluminum mounting kit for concrete ceiling or floor, high strength and quick installation, 1x4 module arrangement f

Out of stock

MODELO: EPL-AM01-1X4LC
