EPCOM POWERLINE

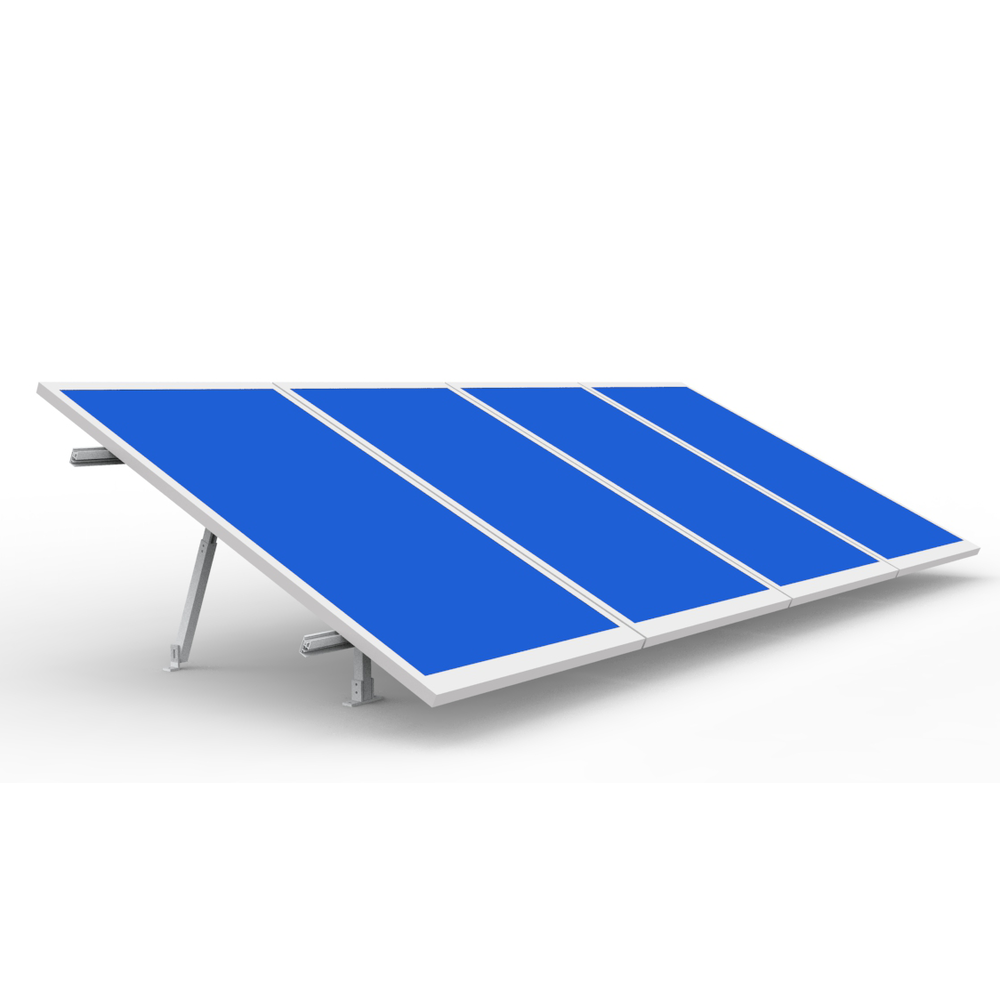

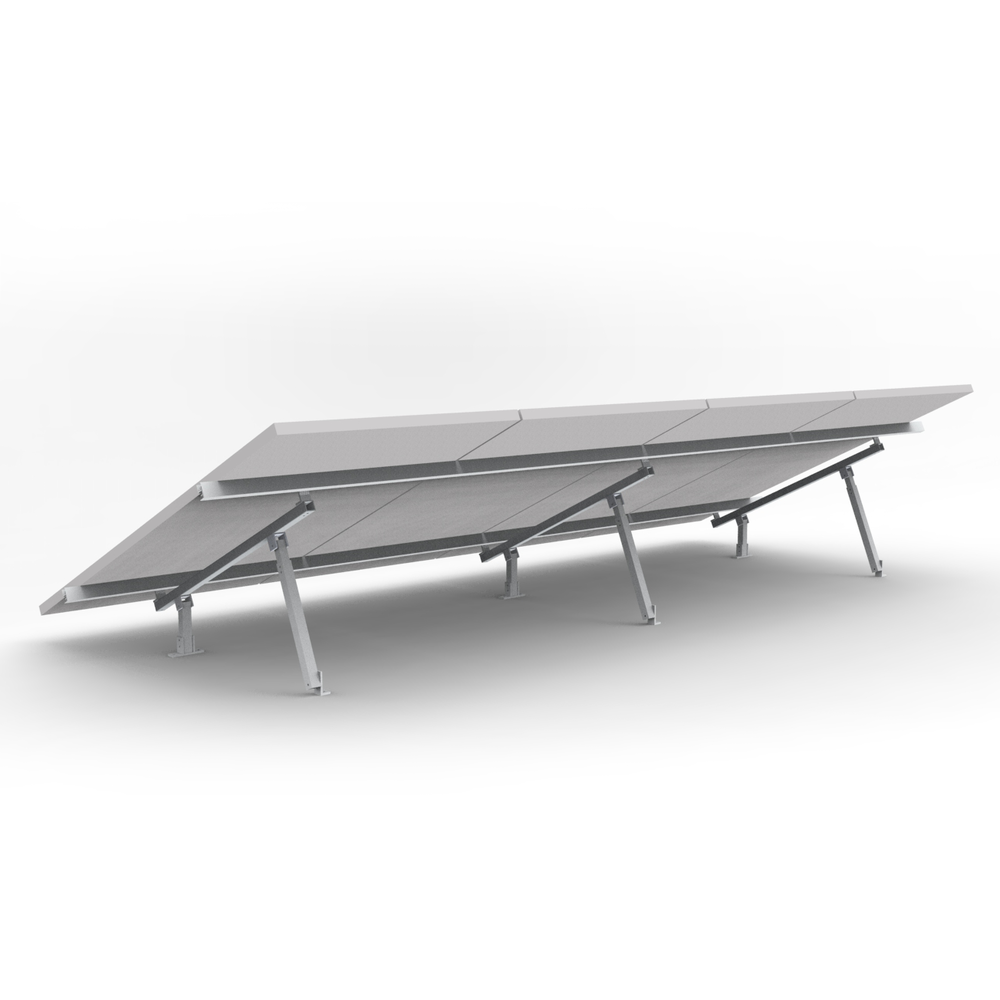

Anodized aluminum solar panel mount for concrete roof or floor, highly resistant to extreme climates and quick installation, 1x4 arrangement of 40mm thick photovoltaic modules
Anodized aluminum solar panel mount for concrete roof or floor, highly resistant to extreme climates and quick installation, 1x4 arrangement of 40mm thick photovoltaic modules
Regular price
$1.042.473 COP
Regular price
$1.140.204 COP
Sale price
$1.042.473 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Anodized aluminum solar panel mount for concrete roof or floor, highly resistant to extreme climates and quick installation, 1x4 arrangement of 40mm thick photovoltaic modules
Anodized aluminum mounts, highly resistant to wind and corrosion with a 25-year warranty.
Benefits of using EPCOM POWER LINE Anodized Aluminum mounts:
- Mitigate corrosion caused by galvanic pairing, protecting your installations from premature corrosion.
- Wind resistance up to 162 km/h, ideal for areas with strong winds.
- Easy installation and adaptability to your needs due to the wide variety of accessories available.
- 25-year warranty against manufacturing defects!
- Integrated 'Ground Clip' landing system (does not include electrode or landing cable).
Aluminum mounting for concrete roof or floor, 1x4 photovoltaic module arrangement.
Main Features:
- For arrangement of 1x4 photovoltaic modules of 40mm thickness
- Tilt: 20-45°
- Weight: 21.3 kg
- Maximum wind speed: 162 km/h
Special considerations:
For the installation of 4 modules, the width of each module must be less than 1026 mm.
End fasteners according to module frame height:
30mm frame: EPL-ECG2-30R
35mm frame: EPL-ECG2-35R
*It is suggested to check compatibility with the engineering department.
Compatible modules:
Epcom Power Line vs Competition
Advantages of Epcom Power Line mounting systems
- Materials of the highest quality.
- Quick and easy installation.
- Easy-to-install 'Ground Clip' landing system.
- More robust parts resistant to extreme climates.
- Technical support 365 days a year.
- 25-year warranty.
| EPL-AM01-1X4-V2 MOUNTING | ||||
| INCLUDES: | ||||
| 2 | EPL-SR7-4200 | Rail 7 of 4200 mm anodized aluminum | ||
| 1 | LB-AM01-1X4V2 | Group of tubes and parts for assembly EPL-AM01-1X4V2 | ||
| Includes: | ||||
| Model | Description | Cant | ||
| EPL-Tube1 | Tube 38*38-1200mm anodized aluminum | 3 | ||
| EPL-Tube2 | Tube 38*38*200mm anodized aluminum | 3 | ||
| EPL-ALG2-455 | Adjustable bracket 455mm anodized aluminum | 3 | ||
| EPL-LF2-01 | Anodized aluminum L bracket. | 3 | ||
| EPL-FF-U45 | U connector | 6 | ||
| EPL-FF-A40 | Fixing support | 3 | ||
| EPL-Bolts-55 | M8*55 screw | 6 | ||
| EPL-LFG2-03 | Soperte Group L anodized aluminum | 6 | ||
| EPL-ECG2-40 | Final Fastener group (40mm) | 4 | ||
| EPL-MCG2-40 | Medium group bra (40mm) | 6 | ||
| EPL-ELG2-01 | Grounding connector | 2 | ||
| EPL-GC-01 | Grounding clip | 6 | ||
| EPL-ES-8/70 | M8*70 stainless steel expansion screw | 9 | ||
| EPL-Bolts-65 | M8*65 screw | 15 | ||
- Aluminum mounting kit for concrete ceiling or floor, high strength and quick installation, 1x4 module arrangement f
Out of stock
MODELO: EPL-AM01-1X4V2
View full details
