LIBERATOR Site Antenna Analyzer, measures SWR, Return Loss and FDR (Frequency Domain Reflectometer), 100 kHz-1500 MHz, Single N Female port, 50 Ohm N Male Terminations and Short Circuit included.

LIBERATOR Site Antenna Analyzer, measures SWR, Return Loss and FDR (Frequency Domain Reflectometer), 100 kHz-1500 MHz, Single N Female port, 50 Ohm N Male Terminations and Short Circuit included.

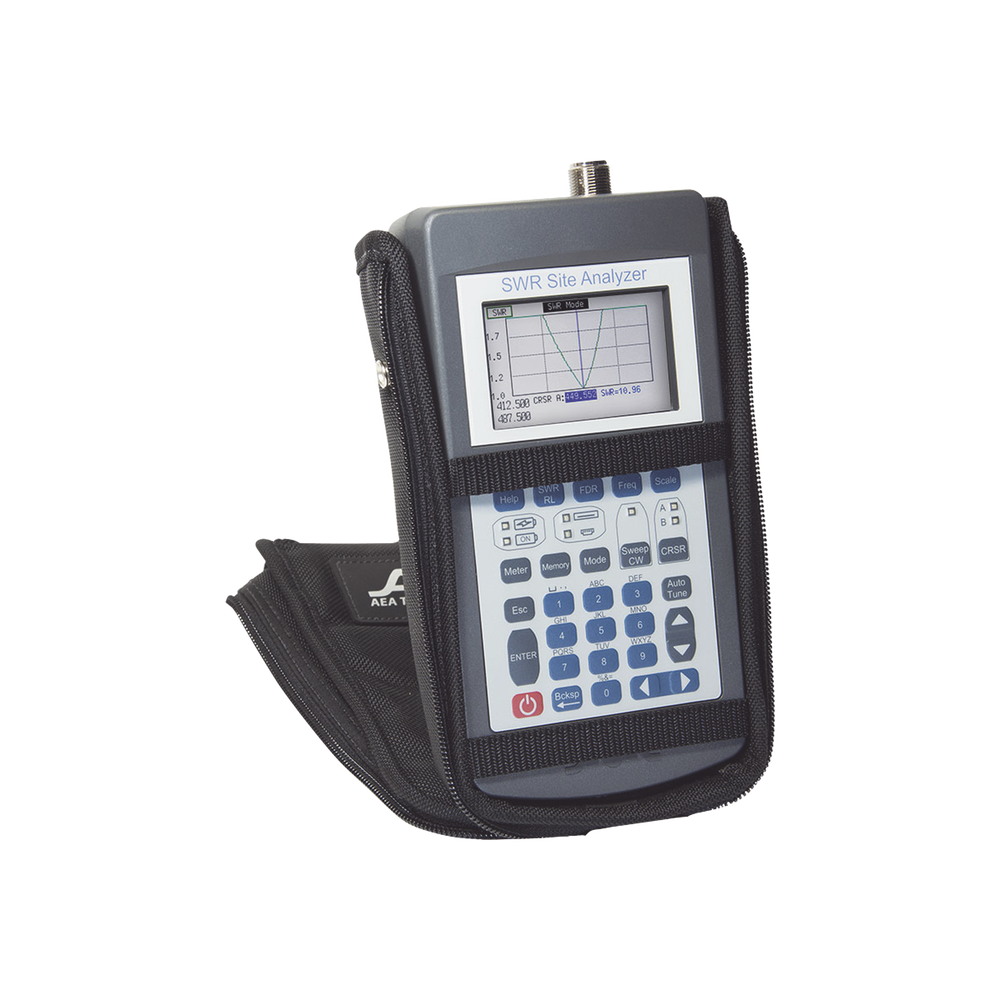

Site SWR Analyzer, 100 kHz-1.5 GHz, N Female connectors.

• The easy-to-use, single-port SWR Site Antenna Analyzer is suitable for SWR or Return Loss, FDR (Frequency Domain Reflectometer) measurements.
• It features a full-color backlit display with excellent daylight readability.
• 50 memory spaces to save graphs and retrieve them in the Site Analyzer or upload them to a PC using Site Analyzer PC Vision ™ software.
• They include NiMH batteries for 4 hours of continuous operation.
• Easy-to-use navigation menus, user-customizable color settings, and graphical measurement displays.
• The SWR Site Analyzer features user-selectable boundary lines and a visible toggle switch to select an SWR/Return Loss meter to locate the best SWR or Return Loss for your antennas.
• Its ease of operation makes the Liberator Analyzer flexible for both the novice and the engineer to use with minimal training.
• PC communications are via USB-2 (cable included).
• Technical support includes: PPT (.ppt) user training and free technical support for the life of the instrument.

Specs:

• Site Analyzer for measuring SWR, Return Loss, FDR (Frequency Domain Reflectometer).
• Frequency range: 100 kHz - 1500 MHz.
• Tuning/Display Resolution: 1 kHz.
• Input power range: -100 dBm to +30 dBm.
• Refresh rate: 2.5 times/second.
• Frequency display: 250 points.
• Measurement speed: 5 ms / Data Point.
• FDR measurements: DTF, end of cable and RL Antenna.
• FDR range: 0 to > 5000 ft (0 to > 1524 m).
• Minimum Resolution: 0.5% of scale.
• FDR Accuracy: 0.5% of scale.
• Output Power: ~ 0 dBm @ 50 Ohm.
• RF Connectors: Type 'N' female.
• Power supply: 13.8-20 Vdc at 800 mA min. or 8 AA NiMH or Alkaline batteries.
• Size: 216mm x 109mm x 57mm.
• Weight: 1 kilogram, with case and batteries
• Warranty: 2 years

Items included:

• SWR Site Analyzer.
• Terminals (Short circuit and 50 Ohm)
• 8 'AA' NiMH batteries (installed).
• Belt case with removable shoulder strap.
• USB cable.
• AC adapter.
• Quick Start Guide.
• Basic Guide.
• Instruction Manual on CD.
• Training PPT (.ppt)
• 'Site Analyzer PC Vision' software.

Characteristics:

• User-selectable boundary lines for at-a-glance selection in SWR/Return Loss mode.
• One-button auto-tune locates the antenna's best SWR or Return Loss.
• Frequency Domain Reflectometer (FDR).
• Return Loss and Distance Fault measurement in a test to evaluate the performance of the cable and Antenna as a complete system.
• Includes 'Site Analyzer PC Vision'™ software and USB-2 cable.
• The internal memory can hold up to 50 spaces and settings.
• Complete operation of the instrument through PC Vision software.
• The internal memory can store up to 50 graphics and configurations.
• Quarter-size backlit VGA color display (User-selectable color scheme).
• Large numeric display in CW mode.

Benefits:

• Economical multi-functional antenna testing system.
• Very fast response time in graphical display mode.
• Save, retrieve, and load test results to a PC.
• Quick switching between SWR and Return Loss.
• Colors can be customized for better viewing.
• The 'Belt Friendly' design makes it easy to carry on site.
• You have the 'Null Cable' option to eliminate the test cable or power line.
• Fully rechargeable NIMH batteries are commercially replaceable.

Optional accessories:

• N to SMA Adapter and Terminator Set.
• N to BNC adapter.
• BNC Terminators, Short-circuit and Load 50 Ω.
• N to TNC adapters.
• N to SO-239 (UHF) adapters.
• N female terminal set, Short circuit and Open.
• 3-way terminator set, Open, Short and 50 Ω Load.
• Vehicle Adapter/Charger.
• Lightweight Case.
• Hard Case.

*Ask for availability.

Frequency Domain Reflectometer (FDR) for Cable Testing, SWR and/or Return Loss Meter, PC Vision™ Site Analyzer, 2-Year Warranty.
