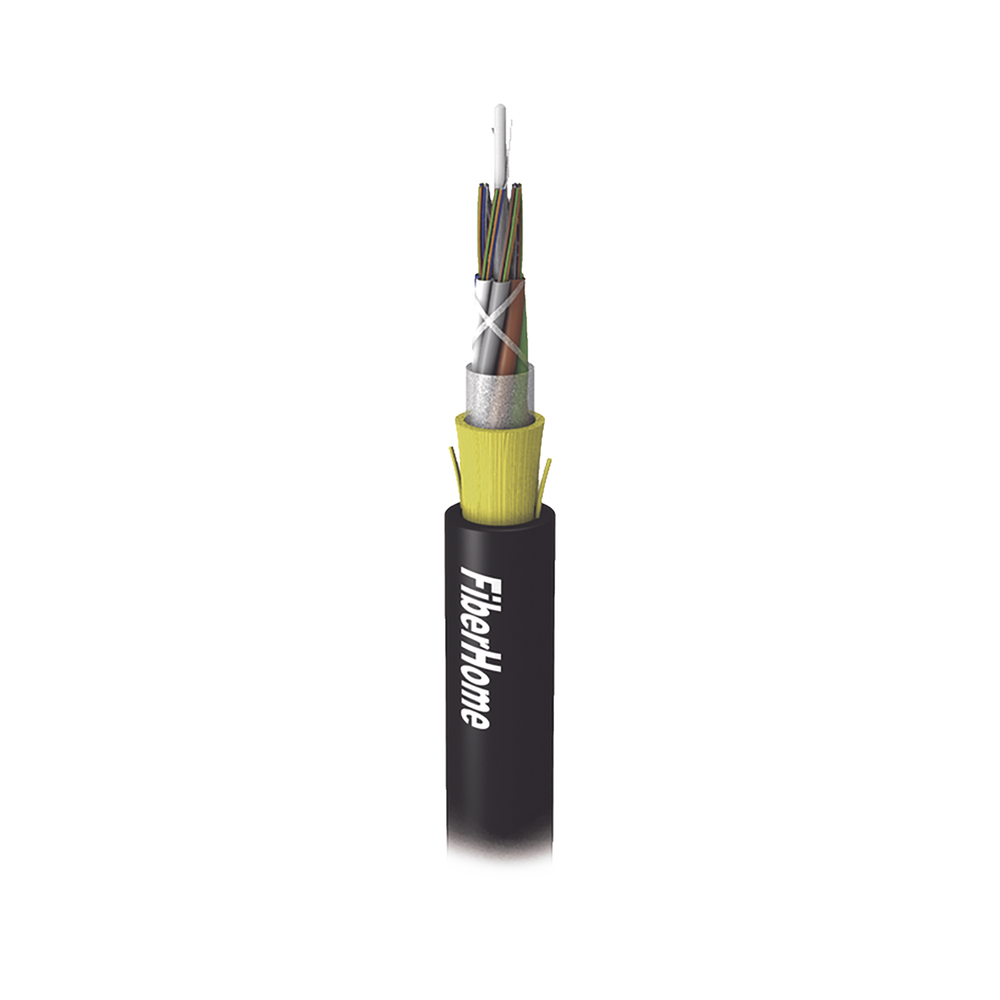

Kilometer of Aerial Optical Fiber (ADSS) G.652D, 12-Wire Single-Mode, Outdoor, Span 200, Loose Tube

Kilometer of Aerial Optical Fiber (ADSS) G.652D, 12-Wire Single-Mode, Outdoor, Span 200, Loose Tube

ADSS (All Dielectric Self-Supported) fiber optic cable is designed for aerial installations between poles. ADSS cables withstand the necessary tensile strength thanks to their aramid strands; they contain no metallic elements.

Technical Specifications:

• Fiber Optic ADSS G.652D Singlemode Loose Tube
• Outer Cover: HDPE (High Density Polyethylene)
• Maximum tension: 3800 N
• Operating temperature: -20ºC ～ +65ºC
• Span (Distance between Poles): 200 meters
• UV and moisture protection
• Nominal diameter (D): 10.9 ± 0.5 mm
• Minimum bending radius: Installation 25D , Operation 12.5D
• Crush resistance: 1000N/10cm
• Rated weight (kg/km): 91 ± 15 kg
• 12 threads
• Black Lining

Outer Cover: HDPE (High Density Polyethylene), Operating Temperature: -20ºC to +65ºC, Span (Distance between Posts): 200 meters, Maximum tension: 3800N
