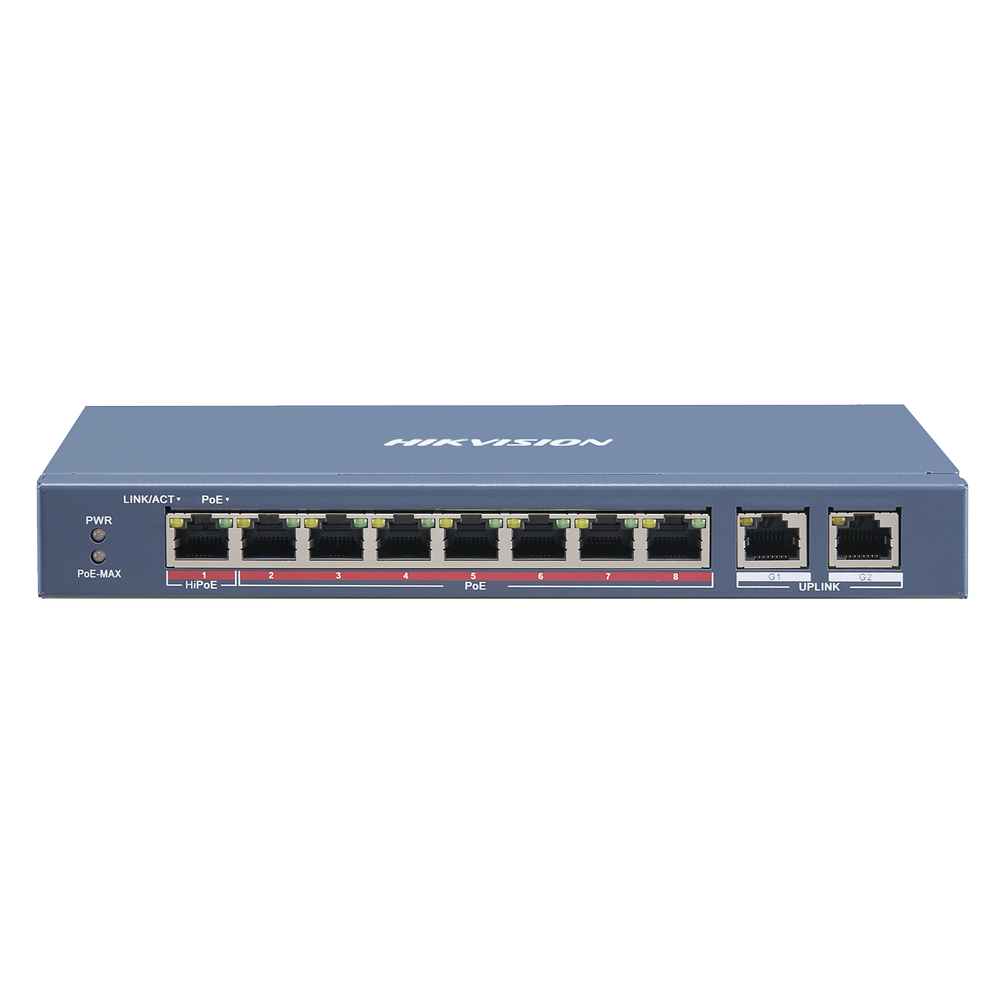

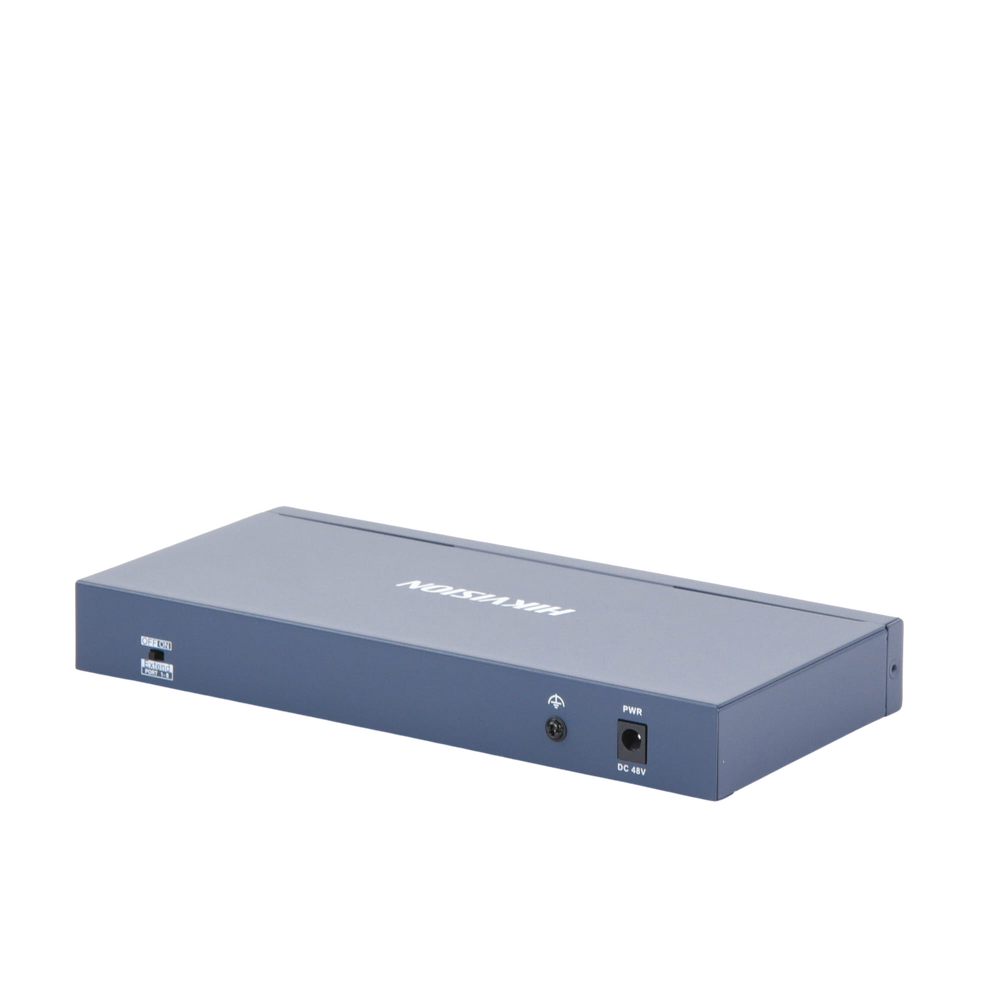

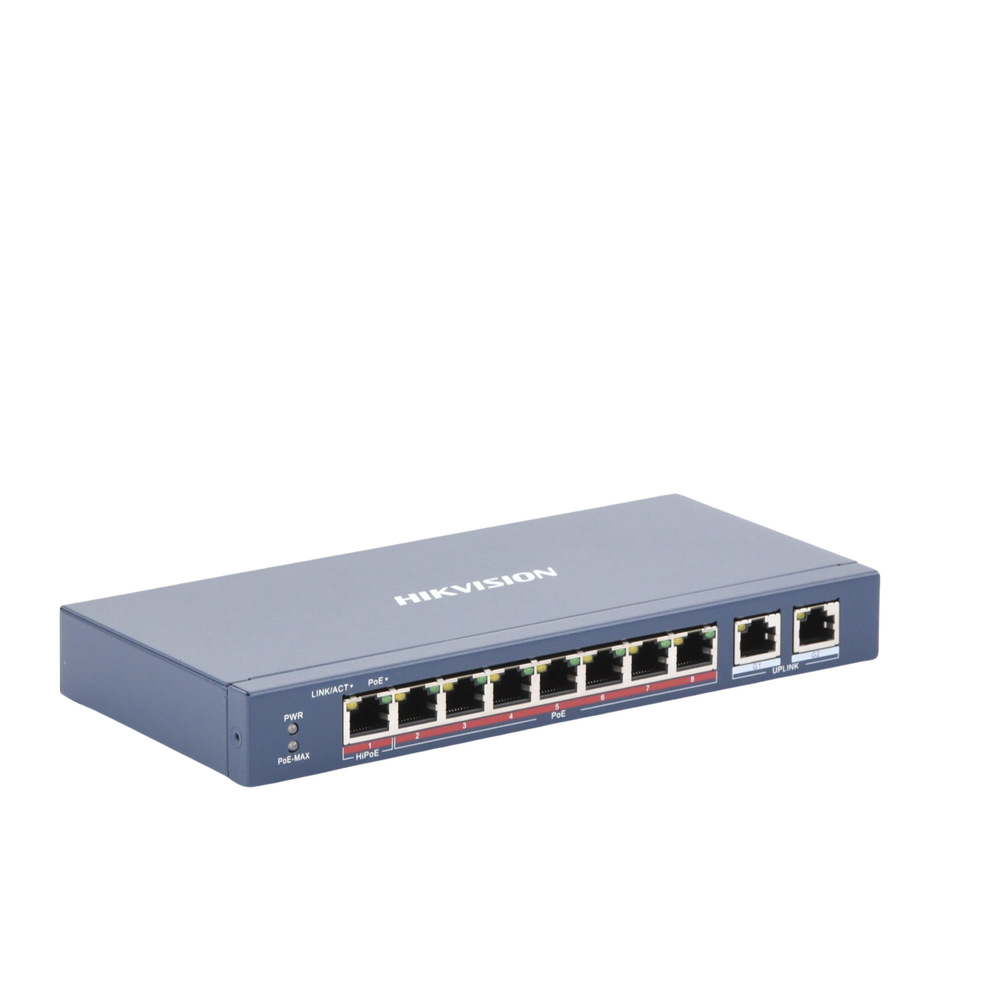

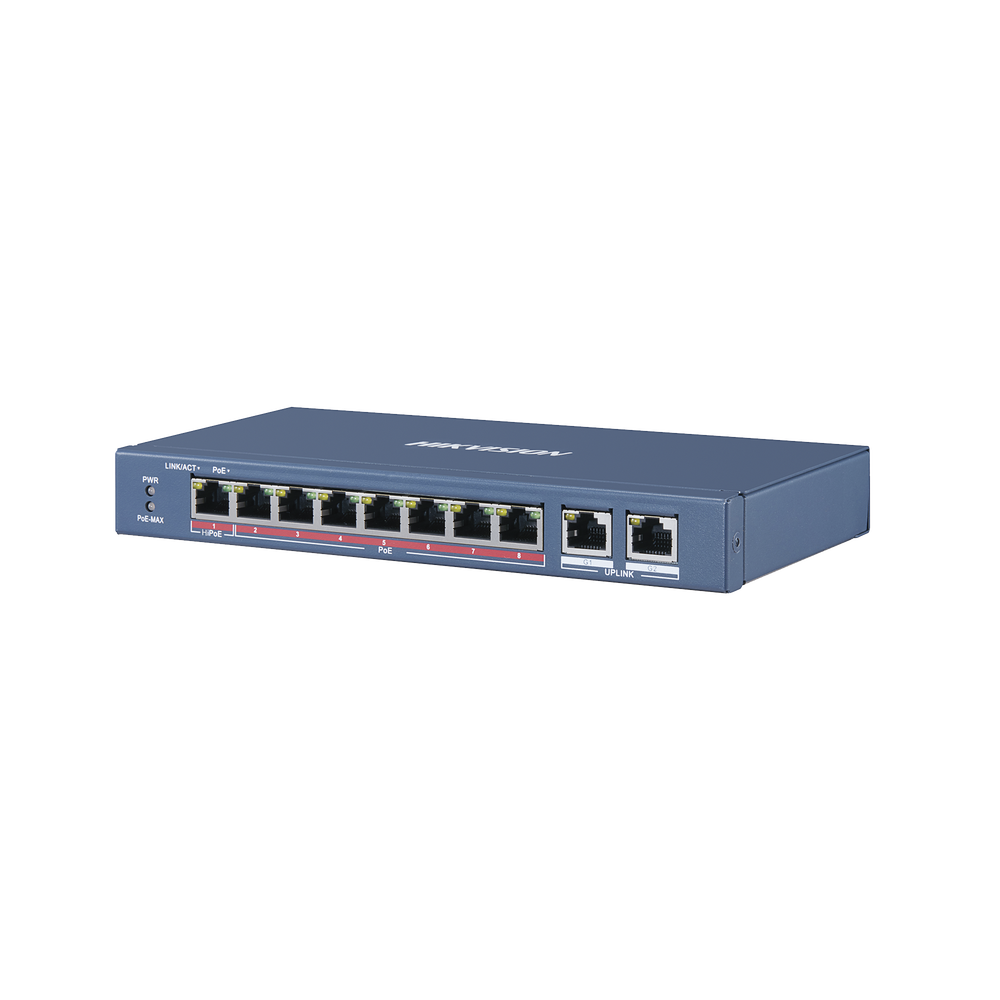

PoE+ Switch / Not Manageable / 7 Ports 10/100 Mbps PoE+ (30 W) / 1 Port 100 Mbps PoE++ (60 W) / 2 Ports 10/100/1000 Mbps / PoE up to 250 meters / 110 W

PoE+ Switch / Not Manageable / 7 Ports 10/100 Mbps PoE+ (30 W) / 1 Port 100 Mbps PoE++ (60 W) / 2 Ports 10/100/1000 Mbps / PoE up to 250 meters / 110 W

Main features:

• 7 PoE Ports 100 Mbps 802.3 af/at (30 Watts).
• 1 PoE port 802.3 af/at/bt 100 Mbps (60 W) / Ideal for robust PTZ.
• 2 Gigabit uplink ports.
• Supports extended mode up to 250 meters per camera (check compatibility).
• Dimensions: 217.6 x 27.8 x 103.35 mm.
• 120 watts total.

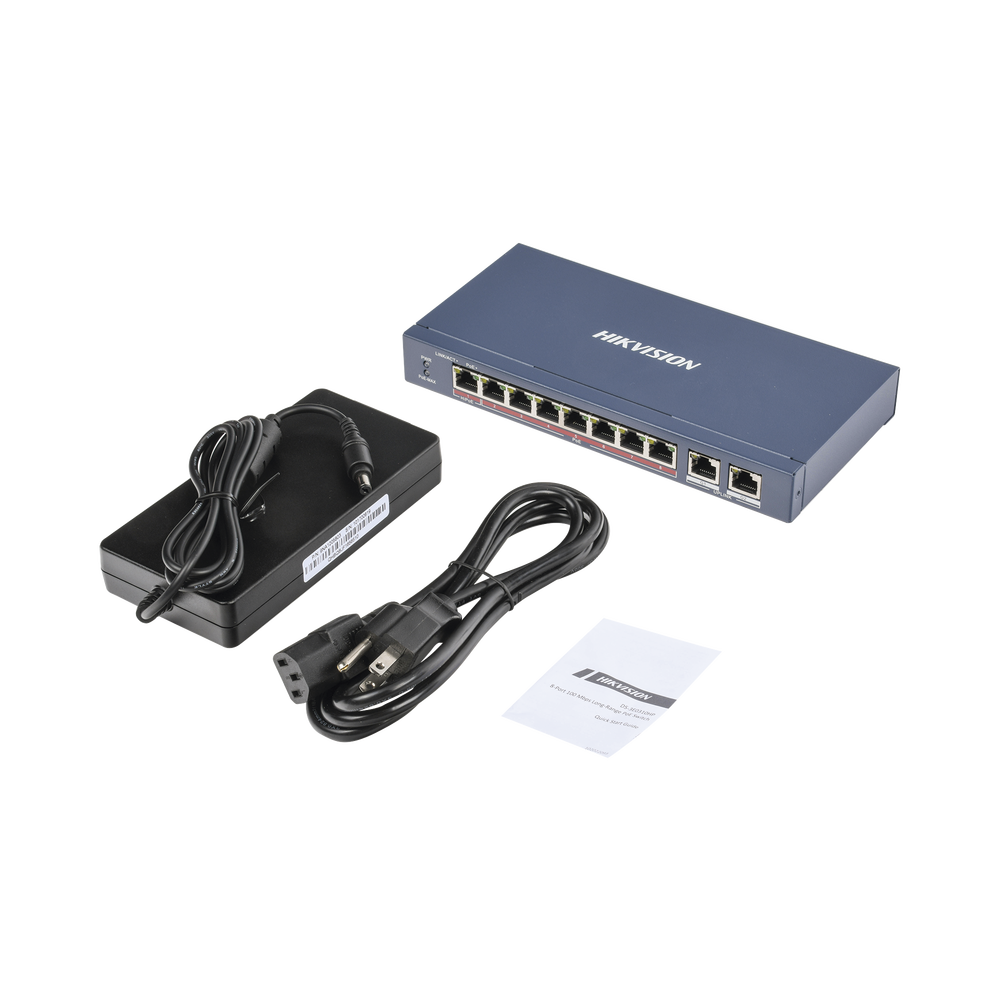

• Power supply: 48 VDC / 2.5 A (power supply included).
• Warranty: 2 years.
• NOT rack mountable

Driving Mode 1

The HIKVISION PoE switch allows us to reach distances of up to 500 meters in total when using a HIKVISION PoE extender model DS-1H340101P .

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

Driving Mode 2

Enabling extended mode allows us to reach distances of up to 250 meters per port.

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.
