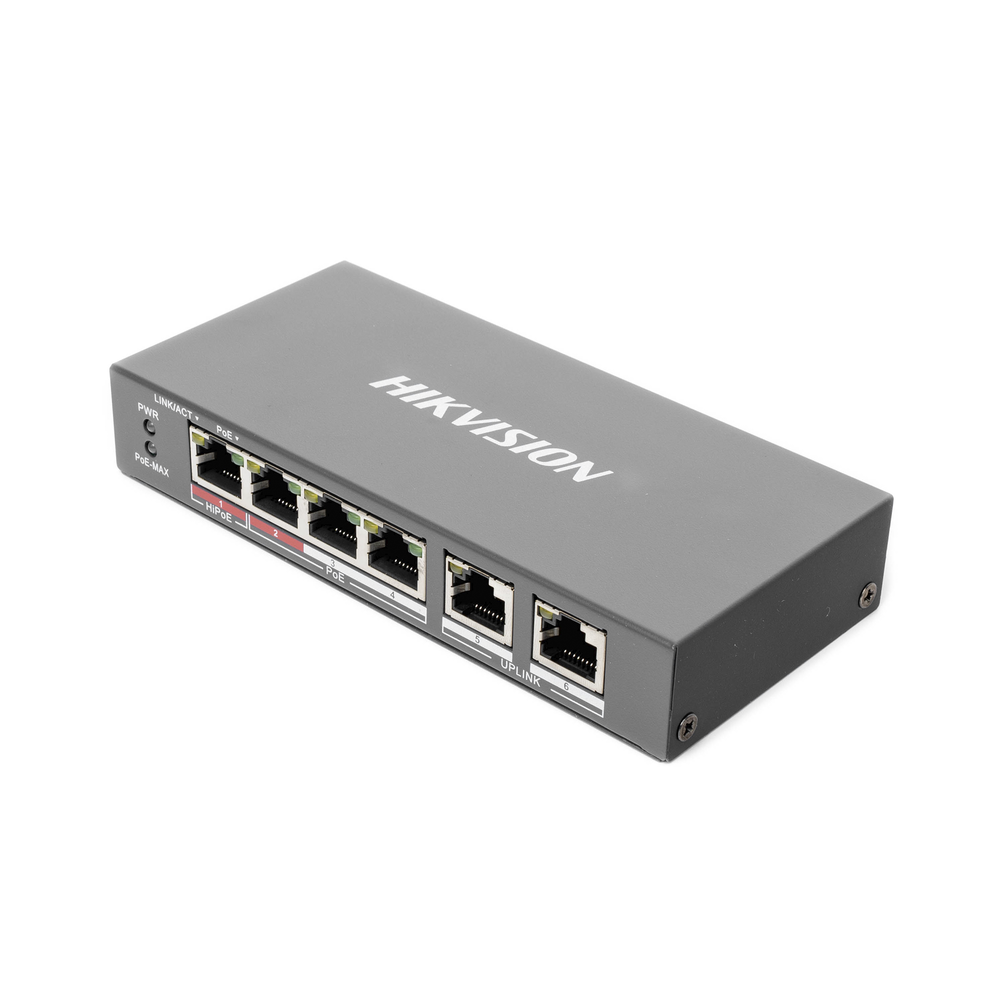

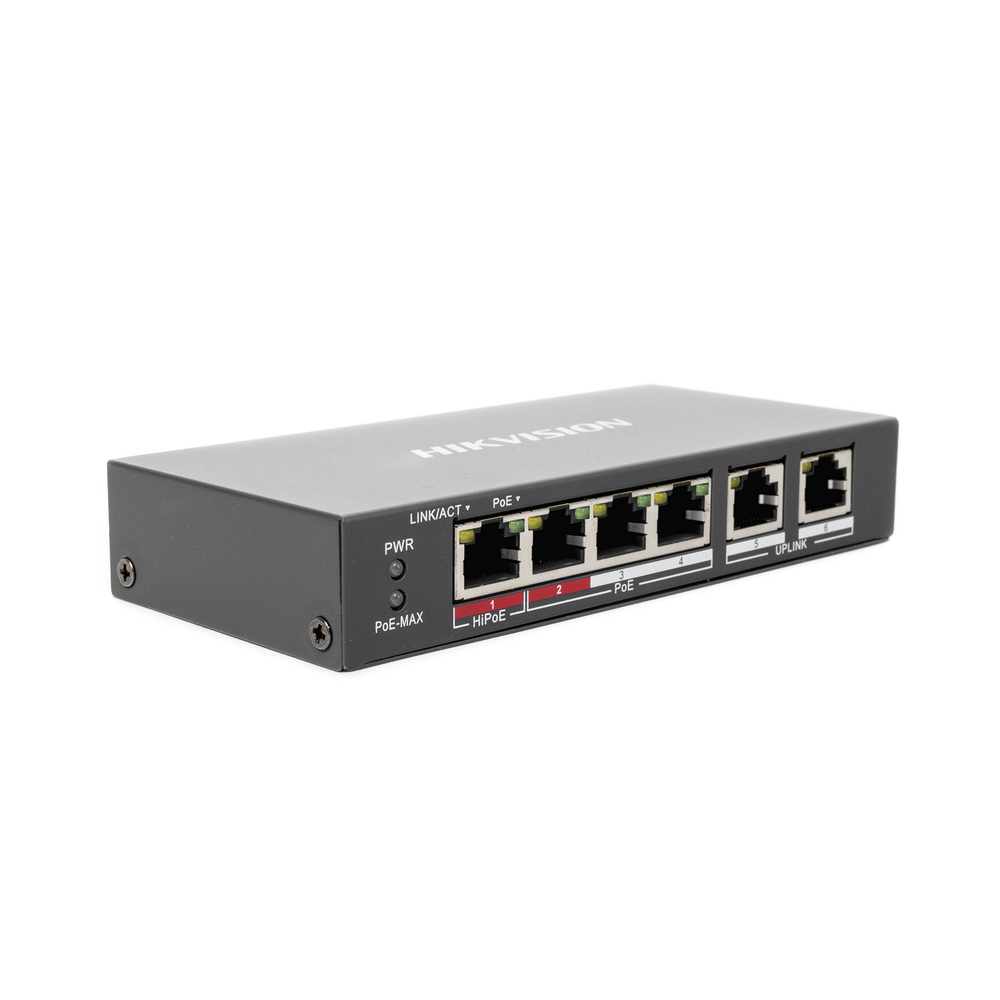

PoE+ Switch / Unmanaged / 3 10/100 Mbps 802.3 af/at Ports (30 W) + 1 100 Mbps Hi-PoE Port (60 W) / 2 10/100 Mbps Uplink Ports / 250 Meters Long Distance PoE / 60 W

PoE+ Switch / Unmanaged / 3 10/100 Mbps 802.3 af/at Ports (30 W) + 1 100 Mbps Hi-PoE Port (60 W) / 2 10/100 Mbps Uplink Ports / 250 Meters Long Distance PoE / 60 W

Main features:

• 3 PoE Ports 100 Mbps 802.3 af/at (30 Watts).
• 1 HiPoE 100 Mbps port (60 Watts) / Ideal for robust PTZ.
• 2 100 Mbps uplink ports.
• Supports extended mode up to 250 meters per camera (check compatibility).
• Dimensions: 100 x 100 x 26 mm.
• 65 watts in total.

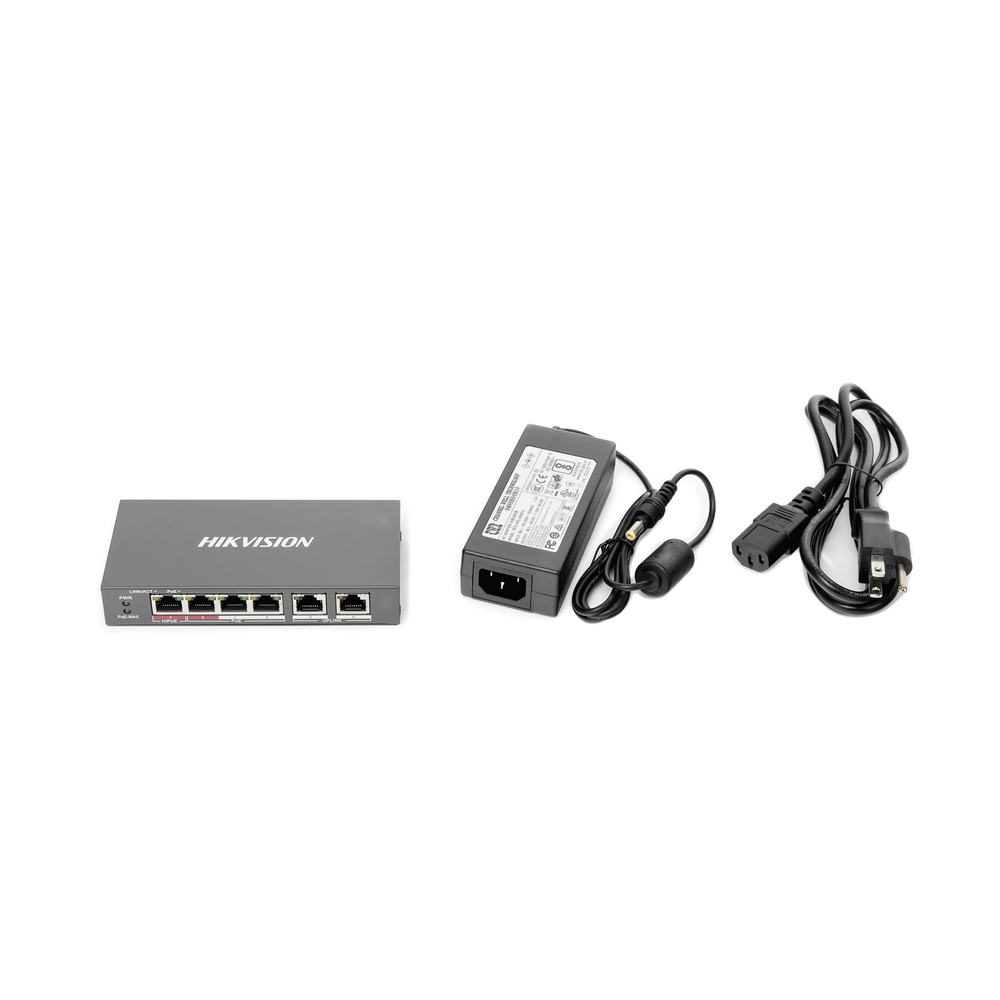

• Power supply: 48 VDC / 1.35 A (power supply included).
• Warranty: 2 years.
• NOT rack mountable

Driving Mode 1

The HIKVISION PoE switch allows us to reach distances of up to 500 meters in total when using a HIKVISION PoE extender model DS-1H340101P .

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

Driving Mode 2

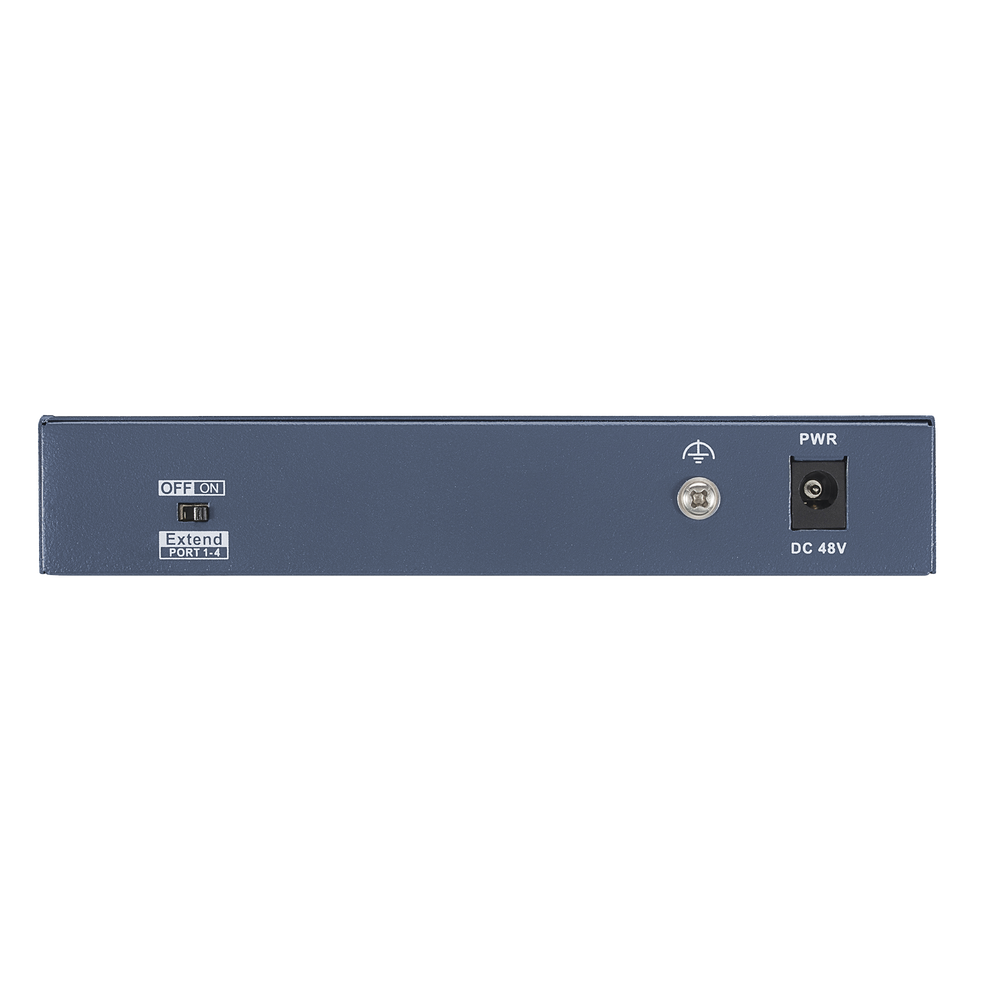

Enabling extended mode allows us to reach distances of up to 250 meters per port.

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.
