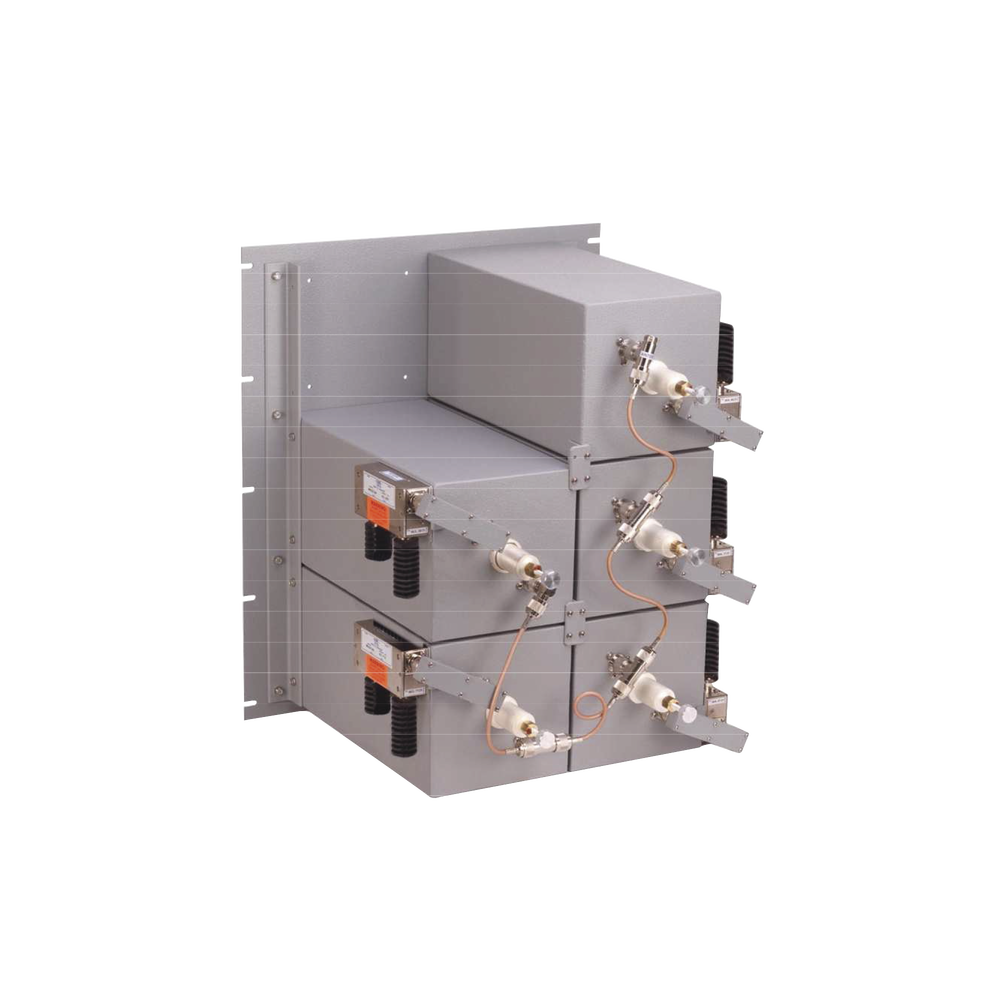

Combiner 452-500 MHz, for 5 Channels, 125 Watt, 300 KHz (min.) Sep. Tx-Tx, 2 N Female Isolators.

Combiner 452-500 MHz, for 5 Channels, 125 Watt, 300 KHz (min.) Sep. Tx-Tx, 2 N Female Isolators.

4 Channel Combiner, 452-500 MHz, 125 Watt, N Females.

• Frequency range: 452-500 MHz.
• Number of Channels : 5.
• Input Power (Max): 125 Watt per Channel.
• Separation Frequency (Min.): 300 KHz.
• Insertion Loss (Max.): 2.7 dB.
• Insertion Loss (Min.): 2.1 dB.
• Tx/Tx Isolation (Min./Typical): 70/80 dB
• Ant/Tx Isolation (Min./Typical): 60/70 dB
• Impedance: 50 Ohm.
• VSWR Input/Output (Max.): 1.1:1 / 1.25:1
• Insulation: Double Low Loss.
• Temperature Range: -30 ºC to +60 ºC
• Cavity Dimension (Width x Depth): 178 x 178 mm.
• Finished Dimensions (Height x Width x Depth): 401 x 483 x 483 mm.
• Connectors: N Female.
• Finish: EMR Grey.
• Shipping Weight: 27.7 kg.

*Ask for Delivery Time.
