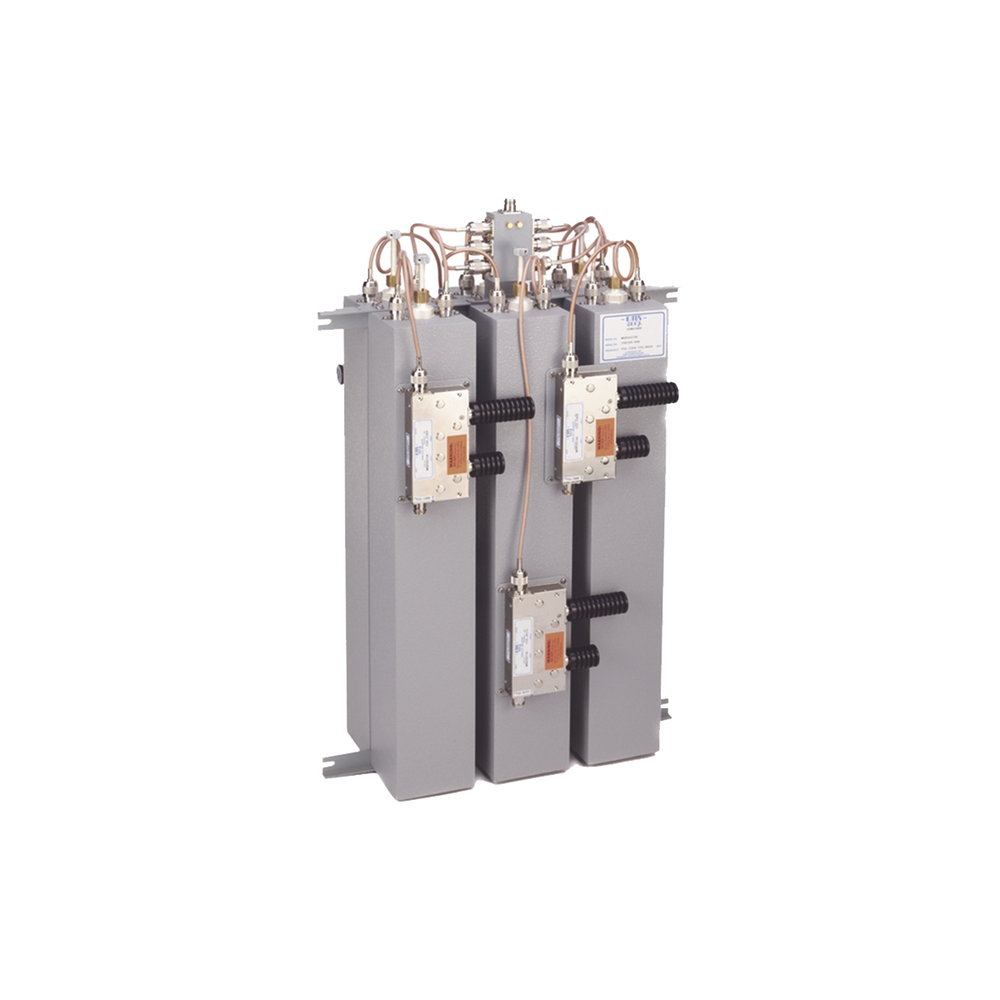

Combiner 148-174 MHz, for 5 Channels, 125 Watt, 200 KHz (min.) Separation between Tx-Tx, Double Isolators, N Female Connectors.

Combiner 148-174 MHz, for 5 Channels, 125 Watt, 200 KHz (min.) Separation between Tx-Tx, Double Isolators, N Female Connectors.

Combiner 148-174 MHz, 5 Channels, 125 Watt, 200 KHz Sep., 2 Isolators, N Female.

• Frequency range: 148-174 MHz.
• Number of Channels : 5.
• Input Power (Max): 125 Watt per Channel.
• Separation Frequency (Min.): 200 KHz.
• Insertion Loss (Max.): 3.1 dB.
• Insertion Loss (Min.): 2.0 dB.
• Tx/Tx Isolation (Typical): 70 dB
• Ant/Tx Isolation (Typical): 60 dB
• Impedance: 50 Ohm.
• VSWR Input/Output (Max.): 1.1:1 / 1.25:1
• Insulation: Double Low Loss.
• Temperature Range: -30 ºC to +60 ºC
• Cavity Dimension (Width x Depth): 102 x 102 mm.
• Finished Dimensions (Height x Width x Depth): 826 x 483 x 245 mm.
• Connectors: N Female.
• Finish: EMR Grey.
• Shipping Weight: 31.8 kg.

*Ask for Delivery Time.
