Mounting for aluminum solar panels on a concrete roof or floor for a 2 x 2 40mm thick photovoltaic module array
Mounting for aluminum solar panels on a concrete roof or floor for a 2 x 2 40mm thick photovoltaic module array
Regular price
$1.704.469 COP
Regular price
$1.864.263 COP
Sale price
$1.704.469 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

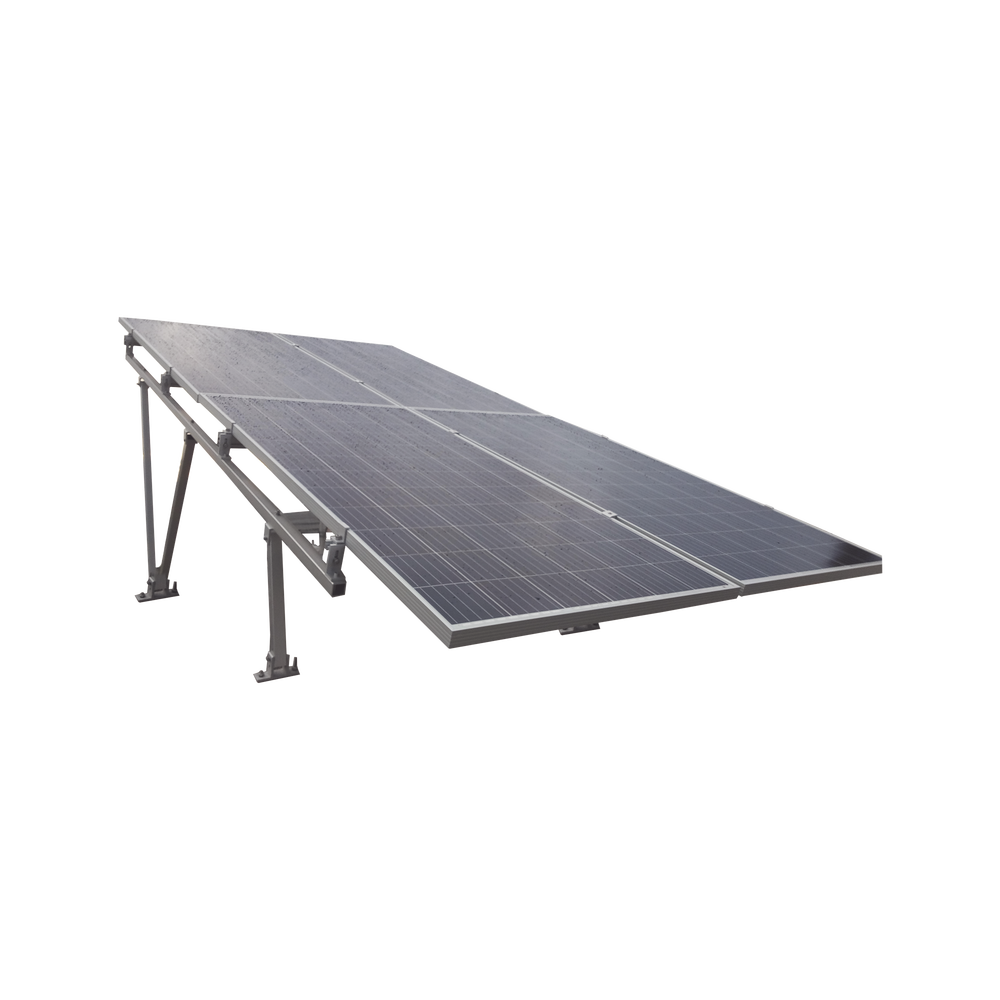

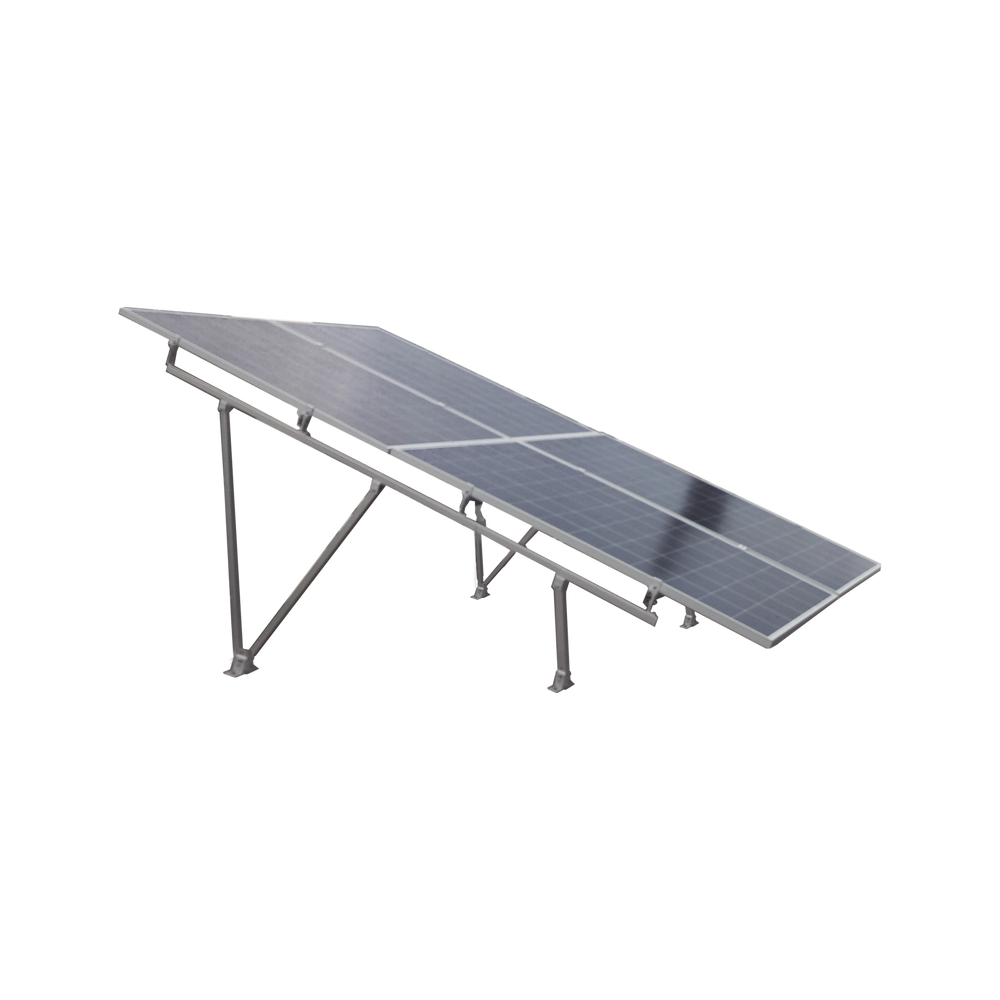

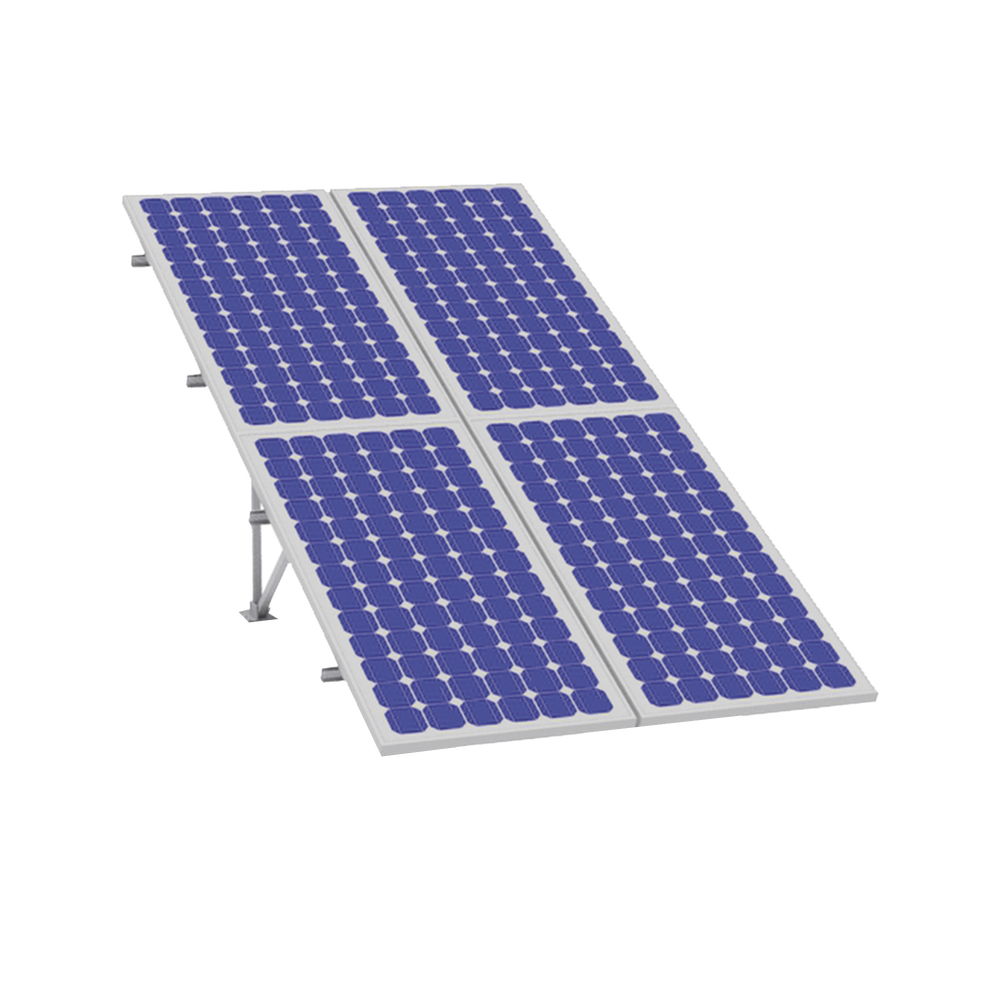

Mounting for aluminum solar panels on a concrete roof or floor for a 2 x 2 40mm thick photovoltaic module array
Anodized aluminum mounts, highly resistant to wind and corrosion with a 25-year warranty.
Benefits of using EPCOM POWER LINE Anodized Aluminum mounts:
- Mitigate corrosion caused by galvanic pairing, protecting your installations from premature corrosion.
- Wind resistance up to 151 km/h, ideal for areas with strong winds.
- Easy installation and adaptability to your needs due to the wide variety of accessories available.
- 25-year warranty against manufacturing defects!
- Integrated 'Ground Clip' landing system (does not include electrode or landing cable).
Main Features:
- For arrangement of 2x2 photovoltaic modules of 40mm thickness
- Tilt: 25°
- Weight: 29 kg
- Maximum wind speed: 151 km/h
Special considerations:
For the installation of 2 modules, the width of each module must be less than 1019 mm.
End fasteners according to module frame height:
30mm frame: EPL-ECG2-30R
35mm frame: EPL-ECG2-35R
*It is suggested to check compatibility with the engineering department.
Compatible modules:
Epcom Power Line vs Competition
Advantages of Epcom Power Line mounting systems
- Materials of the highest quality.
- Quick and easy installation.
- Easy-to-install 'Ground Clip' landing system.
- More robust parts resistant to extreme climates.
- Technical support 365 days a year.
- 25-year warranty.
Includes:

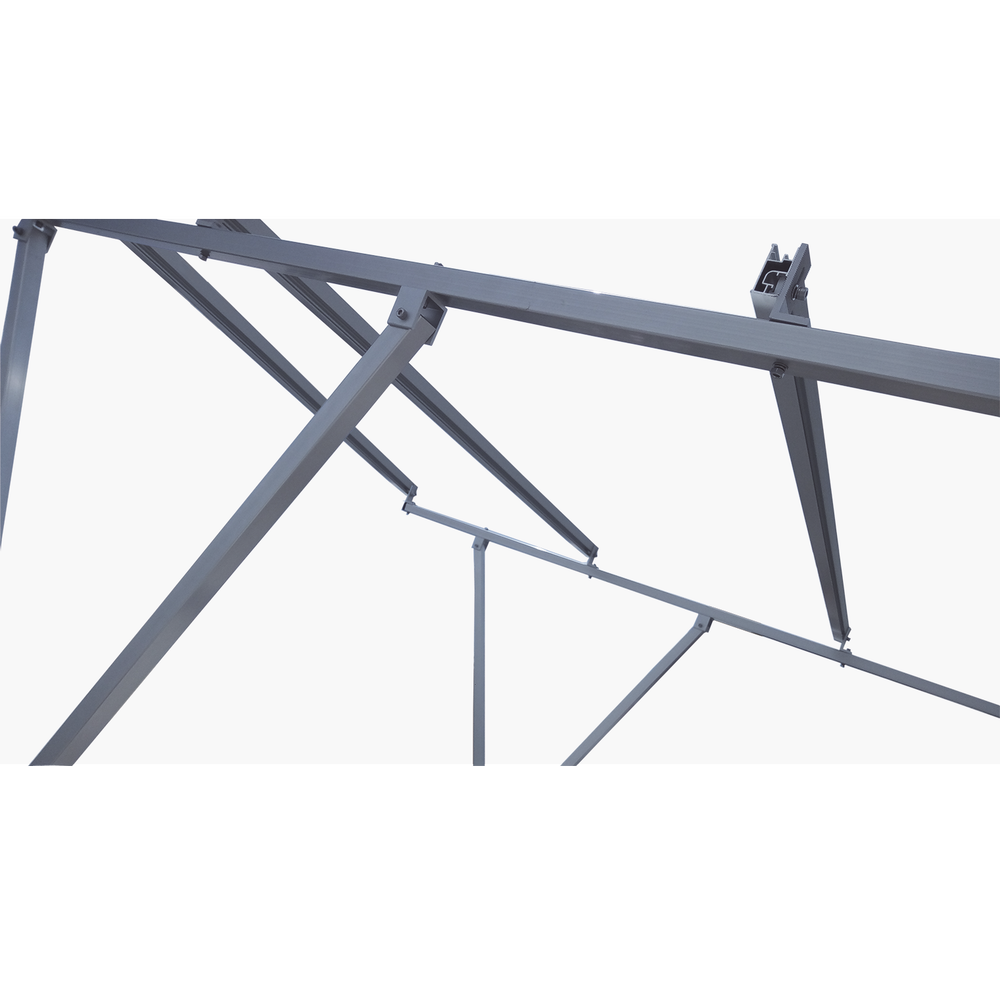

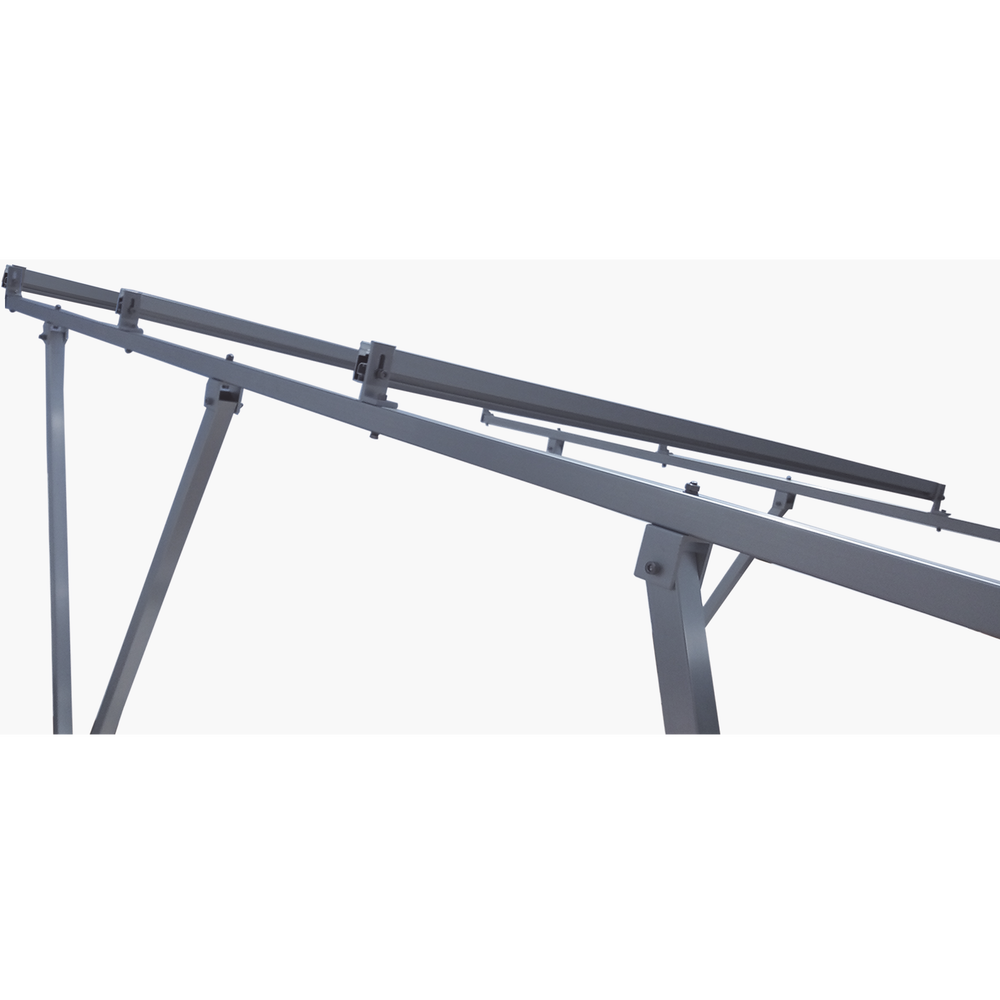

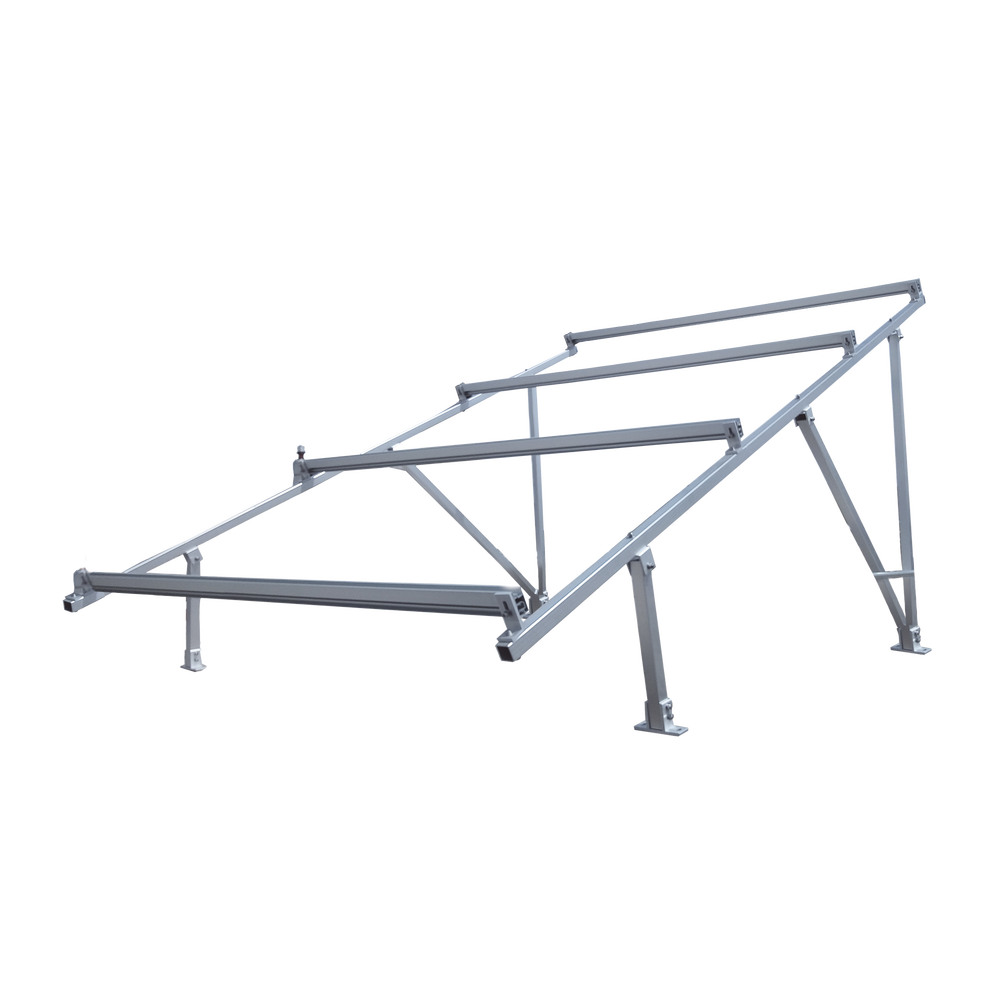

| EPL-GM01-2X2V2 MOUNTING | ||||
| INCLUDES: | ||||
| 4 | EPL-SR7-2100 | Rail 7 of 2100 mm anodized aluminum. | ||
| 1 | LEGS-GM01-2X2 | EPL-GM01-2X2V2 tube and mounting bracket set | ||
| Includes: | ||||
| Model | Description | Cant | ||
| EPL-SL1-A2990 | Main tube 2990 mm | 2 | ||
| EPL-SL1-A1210 | Support Tube 1210 mm | 2 | ||
| EPL-SL1-A400 | Front post 400 mm | 2 | ||
| EPL-SL1-A1275 | Rear post 1275mm | 2 | ||
| 1 | BOX-GM01-2X2 | EPL-GM01-2X2V2 assembly parts group |
||
| Includes: | ||||
| Model | Description | Cant | ||
| EPL-FF2-A120 | A120 Support Fixer | 2 | ||
| EPL-FF-U45 | U connector | 6 | ||
| EPL-FF-A40 | A40 bracket fixer | 2 | ||
| EPL-BOLTS-65 | (EPL-DIN912) Screw M8X65 | 16 | ||
| EPL-BOLTS-55 | (EPL-DIN912) Screw M8X55 | 6 | ||
| EPL-LFG2-03 | L bracket | 8 | ||
| EPL-ECG2-40 | End fastener (40mm) | 8 | ||
| EPL-MCG2-40 | Intermediate Fastener (40mm) | 4 | ||
| EPL-ES-10 | M10 expansion screw | 12 | ||
| EPL-ELG2-01 | Grounding connector | 4 | ||
| EPL-GC-01 | (EPL-GC2-01) Grounding Clip | 4 | ||
Out of stock
MODELO: EPL-GM01-2X2V2
