EPCOM POWERLINE

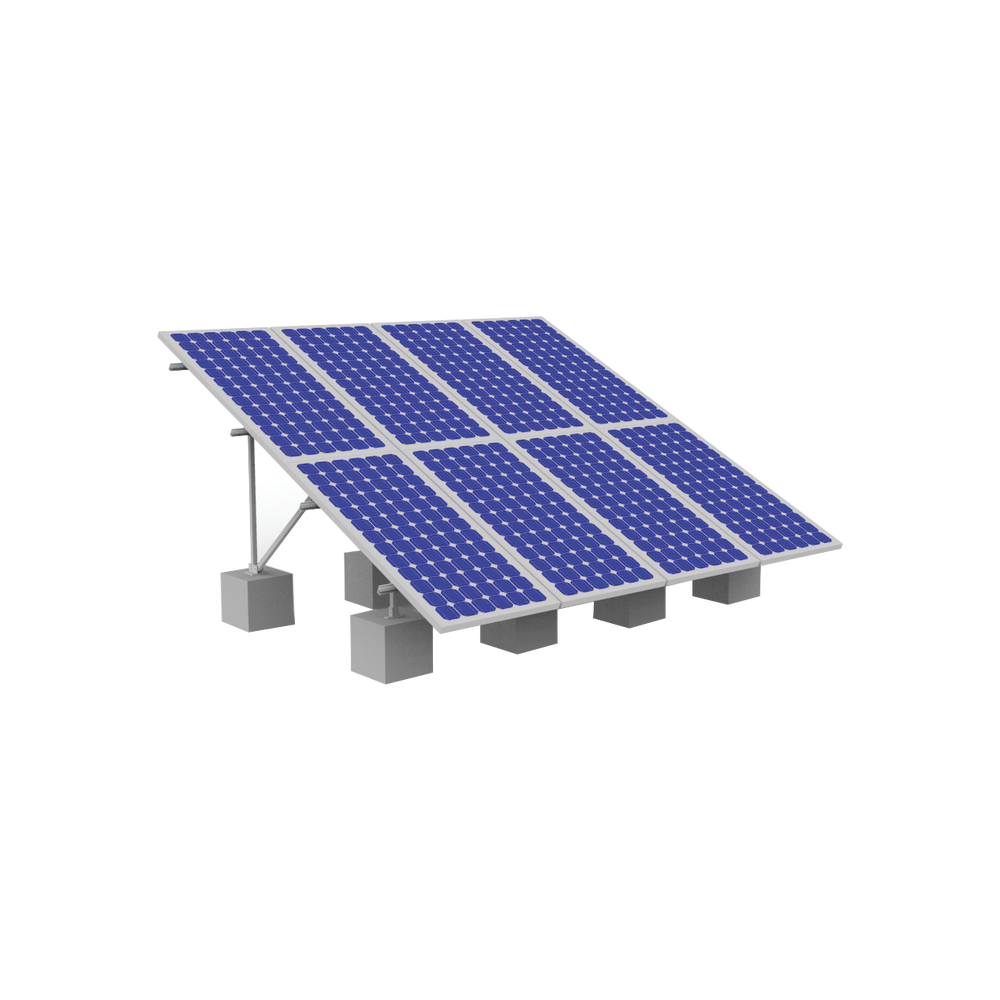

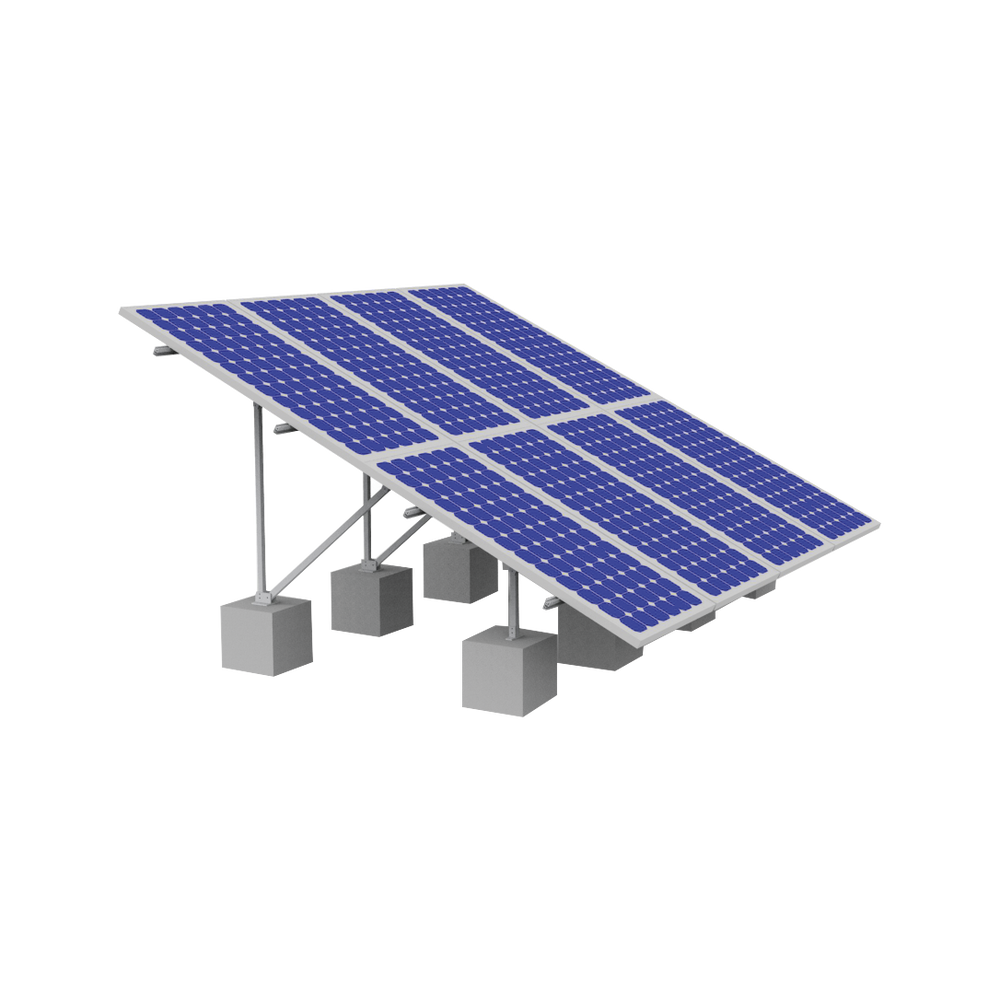

Aluminum mounting on concrete roof or floor for 2 x 4 photovoltaic modules of 40mm thickness
Aluminum mounting on concrete roof or floor for 2 x 4 photovoltaic modules of 40mm thickness
Regular price
$3.358.759 COP
Regular price
$3.673.643 COP
Sale price
$3.358.759 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Aluminum mounting on concrete roof or floor for 2 x 4 photovoltaic modules of 40mm thickness
Anodized aluminum mounts, highly resistant to wind and corrosion with a 25-year warranty.
Benefits of using EPCOM POWER LINE Anodized Aluminum assemblies:
- Mitigate corrosion caused by galvanic pairing, protecting your installations from premature corrosion.
- Wind resistance up to 150 km/h, ideal for areas with strong winds.
- Easy installation and adaptability to your needs due to the wide variety of accessories available.
- 25-year warranty against manufacturing defects!
- Integrated 'Ground Clip' landing system (does not include electrode or landing cable).
Characteristics:
- For arrangement of 2x4 photovoltaic modules of 40mm thickness
- Tilt: 25°
- Weight: 59 kg
- Maximum wind speed: 151 km/h
Special considerations:
For the installation of 4 modules, the width of each module must be less than 1026 mm.
End fasteners according to module frame height:
30mm frame: EPL-ECG2-30R
35mm frame: EPL-ECG2-35R
*It is suggested to check compatibility with the engineering department.
Compatible modules:
Epcom Power Line vs Competition
Advantages of Epcom Power Line mounting systems
- Materials of the highest quality.
- Quick and easy installation.
- Easy-to-install 'Ground Clip' landing system.
- More robust parts resistant to extreme climates.
- Technical support 365 days a year.
- 25-year warranty.
| EPL-GM01-2X4V2 MOUNTING | ||||
| INCLUDES: | ||||
| 8 | EPL-SR7-2100 | Rail 7 (2100 mm) | ||
| 1 | LEGS-GM01-2X4 | EPL-GM01-2X4V2 tube and mounting bracket set | ||
| Includes: | ||||
| EPL-SL1-A2990 | Main tube 2990 mm | 4 | ||
| EPL-SL1-A1210 | Support Tube 1210 mm | 4 | ||
| EPL-SL1-A400 | Front post 400 mm | 4 | ||
| EPL-SL1-A1275 | Rear post 1275mm | 4 | ||
| 1 | BOX-GM01-2X4 | EPL-GM01-2X4V2 assembly parts group | ||
| Includes: | ||||
| EPL-FF2-A120 | A120 Support Fixer | 4 | ||
| EPL-FF-U45 | U connector | 12 | ||
| EPL-FF-A40 | A40 bracket fixer | 4 | ||
| EPL-BOLTS-65 | (EPL-DIN912) Screw M8X65 | 32 | ||
| EPL-BOLTS-55 | (EPL-DIN912) Screw M8X55 | 12 | ||
| EPL-LFG2-03 | L bracket | 16 | ||
| EPL-SCG2-01 | Connector for splicing | 4 | ||
| EPL-ECG2-40 | End fastener (40mm) | 8 | ||
| EPL-MCG2-40 | Intermediate Fastener (40mm) | 12 | ||
| EPL-ES-10 | M10 expansion screw | 24 | ||
| EPL-ELG2-01 | Grounding connector | 4 | ||
| EPL-GC-01 | (EPL-GC2-01) Grounding Clip | 12 | ||
Note: This assembly does not include the photovoltaic modules.
Out of stock
MODELO: EPL-GM01-2X4V2
