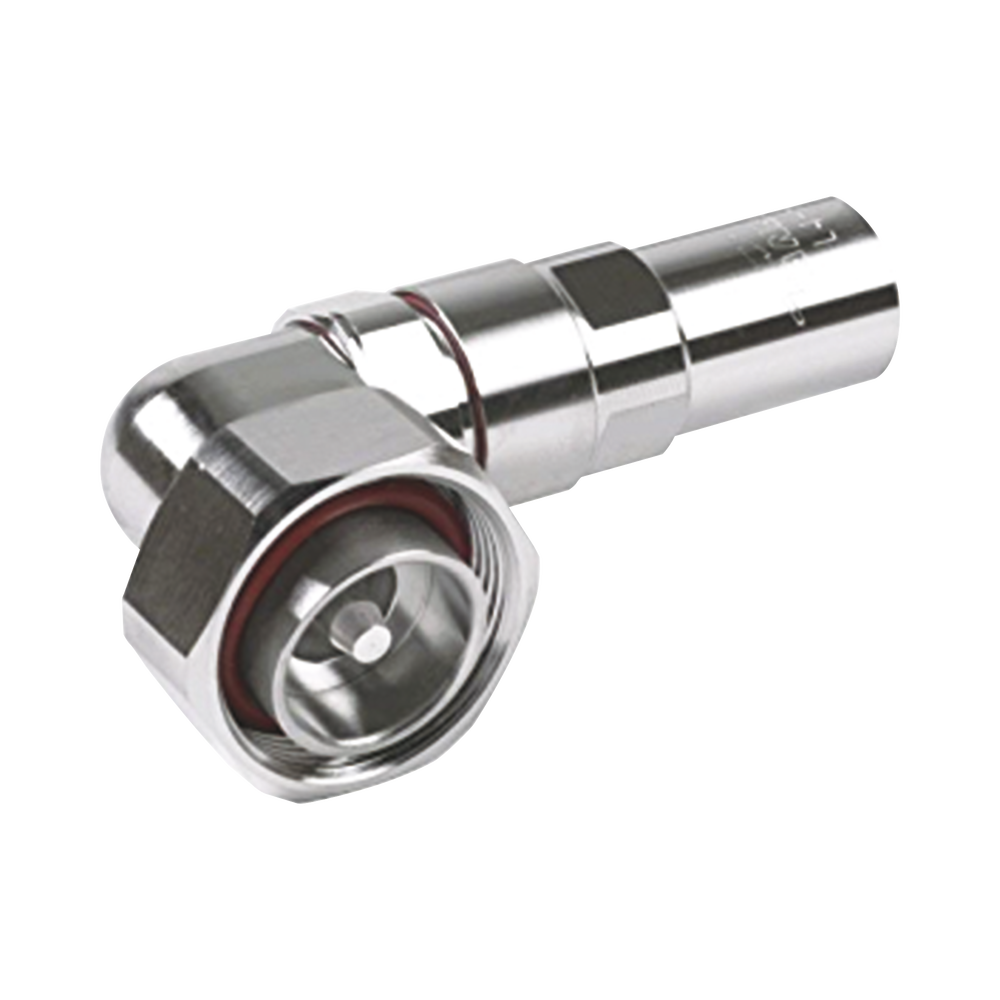

DIN 7-16 Right Angle Male Connector for LDF4-50A, Captive PIN

DIN 7-16 Right Angle Male Connector for LDF4-50A, Captive PIN

General Specifications.

• DIN 7-16 Male Interface.
• Body style Right angle.
• HELIAX® Brand | Positive Stop™.
• Mounting angle: Right angle.
• Order Note CommScope® Standard Product (Global).

Electrical Specifications .

• Connector impedance 50 ohm.
• Operating frequency band 0 – 8800 MHz.
• Cable impedance 50 ohm.
• Third-order IMD, typical 116 dBm at 910 MHz.
• Third-order IMD test method Two +43 dBm carriers.
• RF operating voltage, maximum (vrms) 707.00 V.
• DC test voltage 2000 V.
• External contact resistance, maximum 0.30 mOhm.
• Internal contact resistance, maximum 2.00 mOhm.
• Insulation resistance, minimum 5000 MOhm.
• Average power 0.6 kW at 900 MHz.
• Peak power, maximum 10.00 kW.
• Insertion loss, typical 0.05 dB.
• Shielding effectiveness 110 dB
