Sure-Fi

Wireless Transmitter and Receiver / 1 Wiegand / 2 Relays / 2 Inputs / Crosses 2 KM Any Construction or Material / Up to 80KM Line of Sight

Wireless Transmitter and Receiver / 1 Wiegand / 2 Relays / 2 Inputs / Crosses 2 KM Any Construction or Material / Up to 80KM Line of Sight

$1.365.074 COP
$1.493.050 COP $1.365.074 COP
Sale Sold out
Shipping calculated at checkout.

Wireless Transmitter and Receiver / 1 Wiegand / 2 Relays / 2 Inputs / Crosses 2 KM Any Construction or Material / Up to 80KM Line of Sight

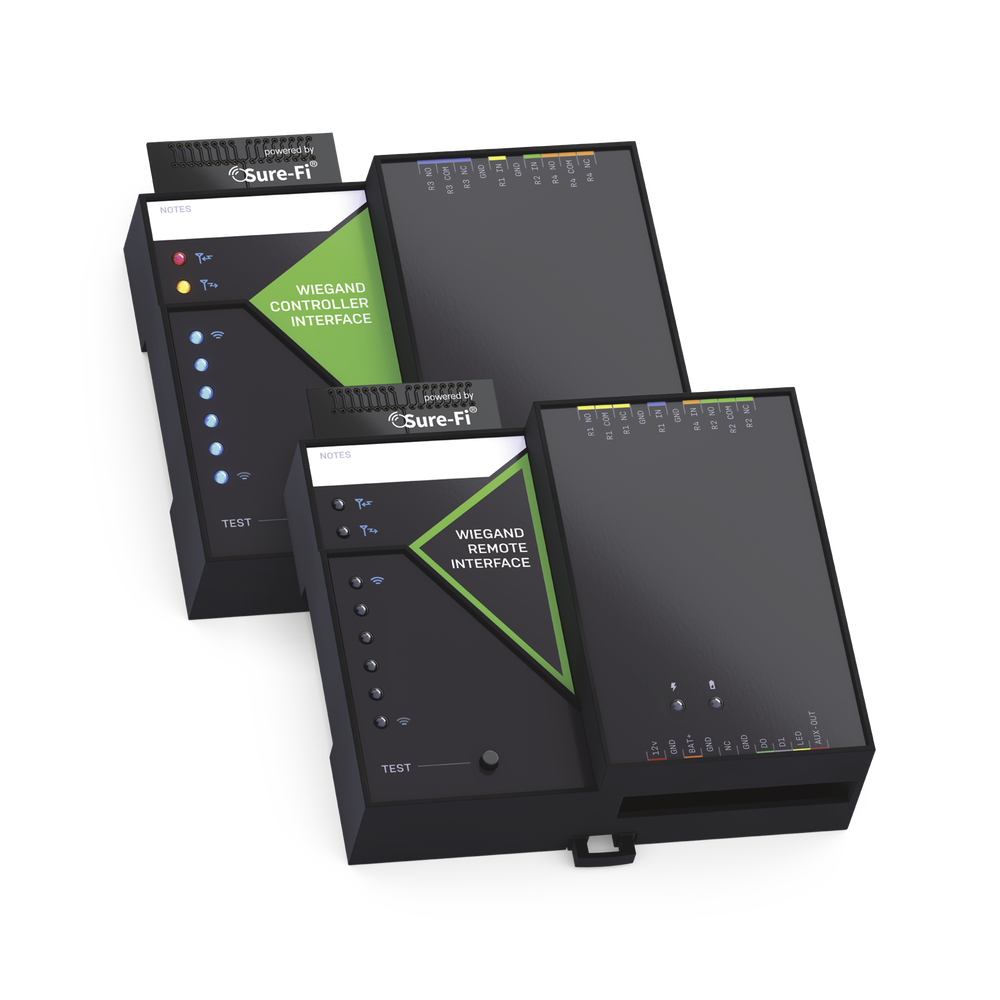

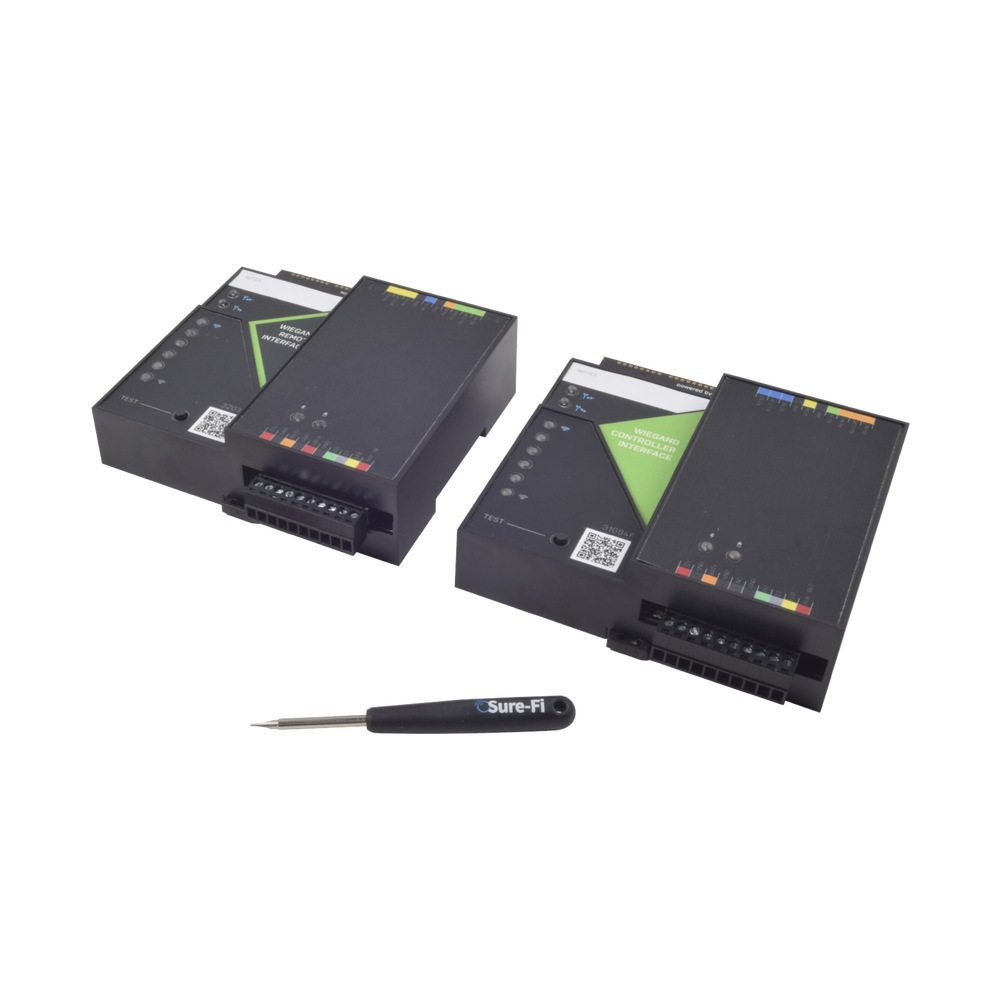

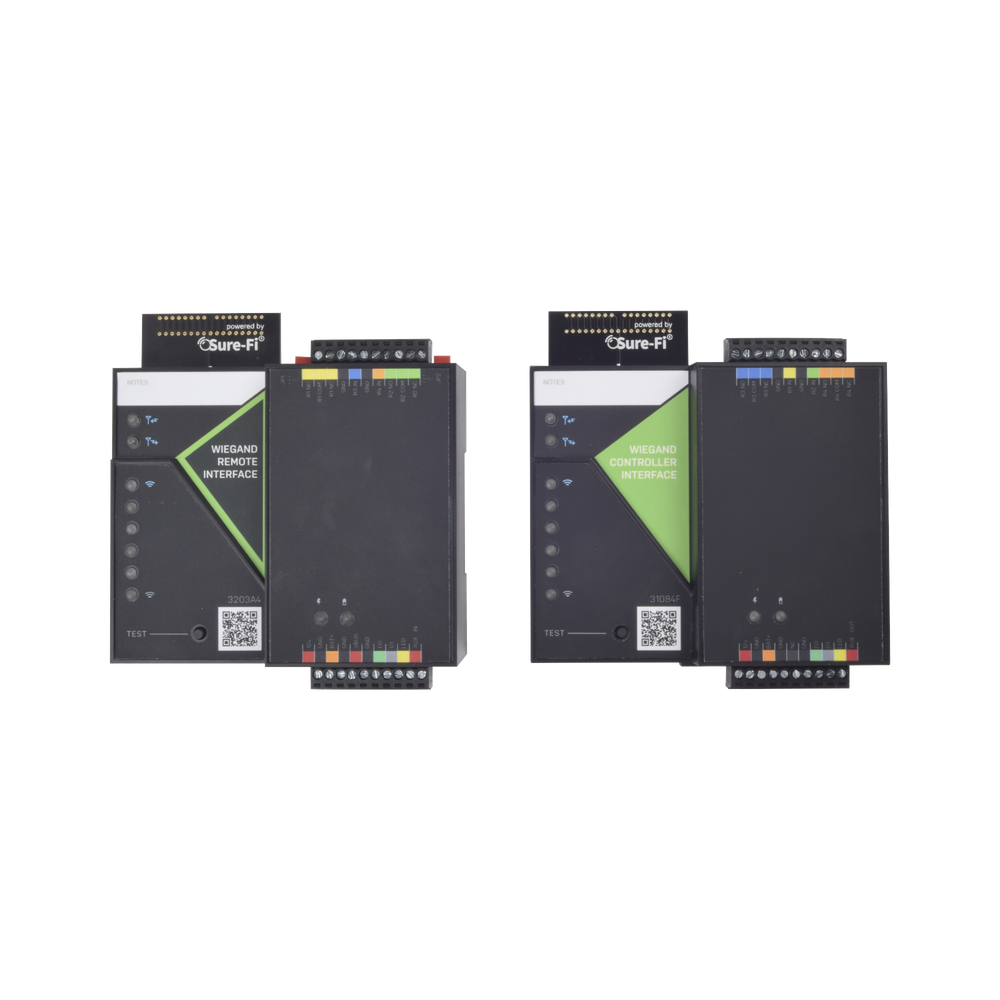

Sure-Fi Wiegand

This device is a Wiegand protocol remote controller; replace the wiring in a new or existing Wiegand connection system.

Sure-Fi Wiegand installs in minutes and is very cost-competitive with cabling for all types of jobs (easy and difficult cable pulls).

It is compatible with any device that works through the Wiegand protocol.

It also has AES128 (Advanced 128-bit Encryption System) encryption security.

Characteristics :
  • Works with any Wiegand protocol.
  • 1 Wiegand input
  • 2 relay outputs (wet or dry)
  • Request for Entry Exit (REX)
  • Door Monitor Input (DPS)
  • Battery backup input with battery charger and UPS function
  • DIN rail mounting or direct wall mounting
  • Signal strength, transmission and reception indicators
  • Test button for easy range testing
  • Field configurable and upgradeable with the Sure-Fi app
Technology
  • Range of up to 1.6 KM through obstructions and over 80 KM with line of sight
  • Patented bunker busting technology, using 900 MHz
  • Works inside metal enclosures.
  • Patented PCB antenna design
  • FCC (USA) and IC (Canada) certification
Specifications :
  • Operating voltage: 12VDC (9VDC - 15VDC)
  • Operating current (@ 12VDC): 0.08A (idle), 0.3A (transmitting)
  • Operating power (@ 12VDC): 3.6 watts (peak)
  • Transmission power: 1 watt (30dBm)
  • Frequency band: 915 - 928MHz
  • Channels: 72 (frequency hopping)
  • Receiver sensitivity: -133dBm
  • Link: 163dB
  • Range: Up to 1.6 KM through obstructions and over 80 KM with line of sight
  • Encryption: AES128
  • Battery Backup Connection: 12V Sealed Lead Acid (SLA) type only
  • Battery charging voltage: 13.75 V maximum in standby mode
  • Relays: 2A 250VAC / 2A 250VDC wet or dry. NO, NC, COM (x2)
  • Operating temperature: -40º C to +85º C
  • Storage temperature: -55º C to +125º C
  • Mounting options: DIN (35 mm x 7.5 mm) or direct mounting with two screws

    75 in stock

    MODELO: DS004BRIDGE(CO)
