• Transmisor Inalámbrico / 2 Relevadores / 2 Entradas / Atraviesa 1.6 Kilómetros Cualquier Construcción o Material / Más de 80 KM con Línea de Vista
1 1

Sure-Fi

Wireless Transmitter / 2 Relays / 2 Inputs / Crosses 1.6 Kilometers of Any Construction or Material / More than 80 KM with Line of Sight

Wireless Transmitter / 2 Relays / 2 Inputs / Crosses 1.6 Kilometers of Any Construction or Material / More than 80 KM with Line of Sight

$1.443.028 COP
$1.578.312 COP $1.443.028 COP
Sale Sold out
Shipping calculated at checkout.

Wireless Transmitter / 2 Relays / 2 Inputs / Crosses 1.6 Kilometers of Any Construction or Material / More than 80 KM with Line of Sight

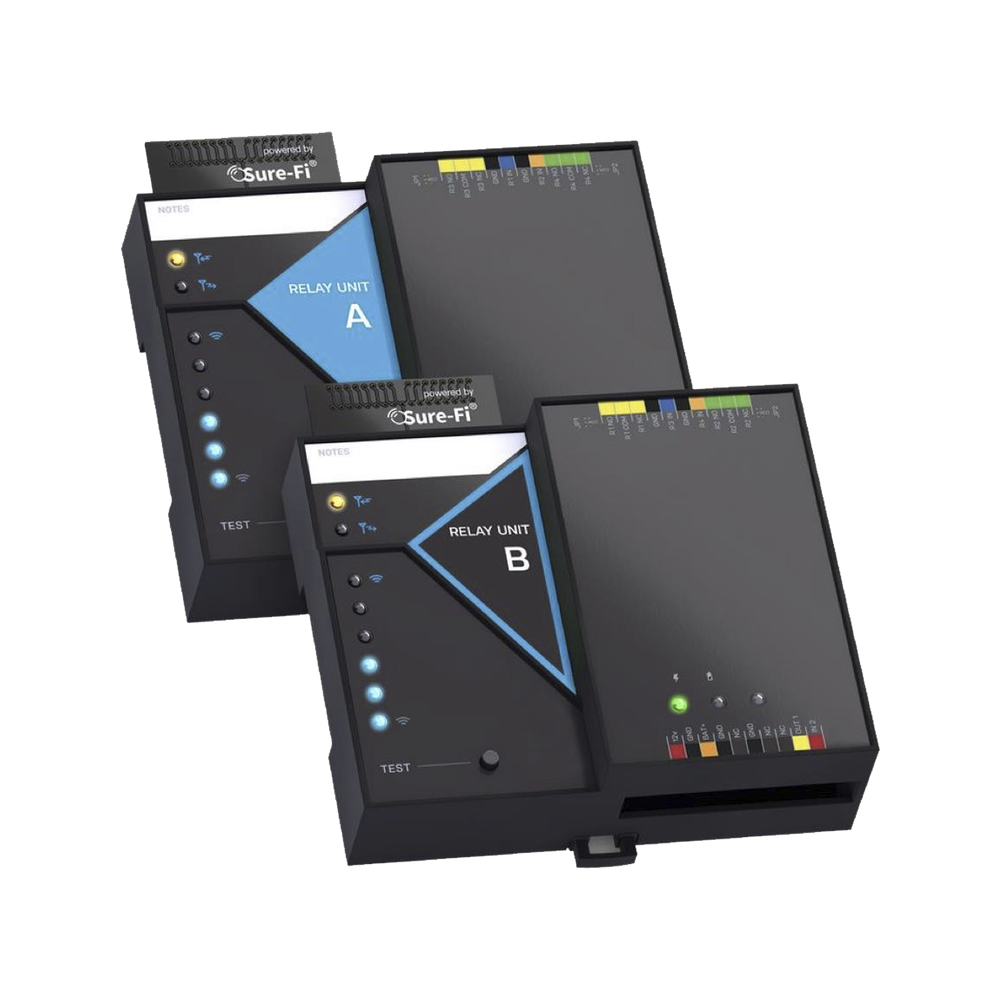

Sure-Fi Relay

This device is a remote controller for dry and wet contact relays; it replaces the wiring in a new or existing relay system.

Sure-Fi Relay installs in minutes and is very cost-competitive with cabling for all types of jobs (easy and difficult cable pulls).

It is compatible with any general-purpose relay in multiple applications.

It also has AES128 encryption security (128-bit Advanced Encryption System)

Characteristics :
  • 2 relay outputs (wet or dry)
  • Battery backup input with battery charger and UPS function
  • DIN rail mounting or direct wall mounting
  • Signal strength, transmission and reception indicators
  • Test button for easy range testing
  • Field configurable and upgradeable with the Sure-Fi® app
Technology
  • Range of up to 1.6 KM through obstructions and over 80 KM with line of sight.
  • Patented obstacle elimination technology, using 900 MHz.
  • Work inside metal structures.
  • Patented PBC antenna design
  • FCC (USA) and IC (Canada) certification
Specifications :
  • Operating voltage: 12VDC (9VDC to 15VDC)
  • Operating current: 0.08A (idle), 0.75A (transmitting)
  • Operating power: 9 watts (peak)
  • Transmission power: 1 watt (30dBm)
  • Frequency band: 915 - 928 MHz
  • Channels: 72 (frequency hopping)
  • Receiver sensitivity: -133Dbm
  • Link Budget: 163 dB Range: Up to 1.6 km through obstructions. Over 80 km with line of sight.
  • Security encryption: AES128
  • Backup battery connection: 12V Sealed Lead Acid (SLA) type
  • Battery charging voltage: 13.75 V maximum in standby mode
  • Relays: 2A 250VAC/ 2A 250VDC Wet or Dry: NO, NC, COM
  • Operating temperature: -40º C to + 85º C
  • Storage temperature: -55º C to + 125º C
  • Mounting options: DIN 35 (35 mm x 7.5 mm) or direct mounting with two screws.

    Out of stock

    MODELO: DS006RELAY(CO)
