WI-TEK

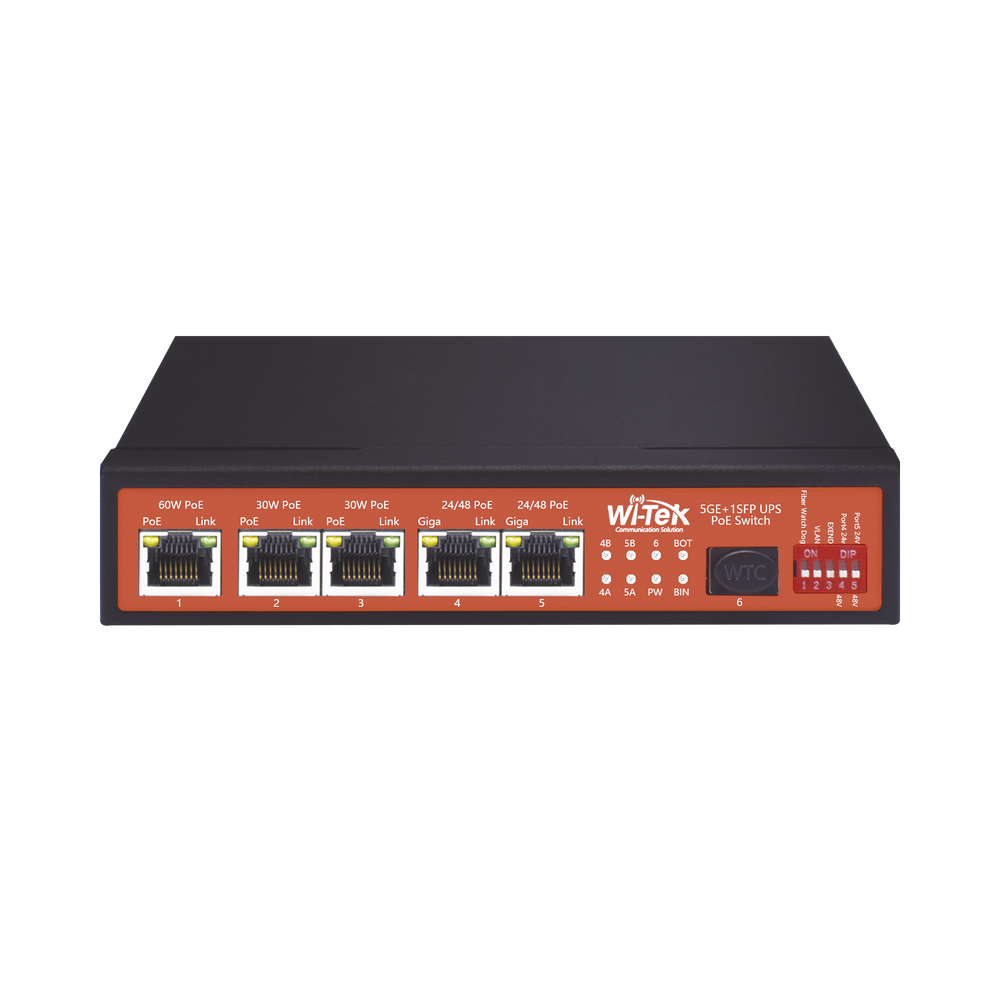

5A Solar Controller with PoE Switch / 1 Gigabit 802.3 bt PoE Port / 2 PoE 802.3 af/at Ports with 2 Passive 24 Vdc PoE Ports / 1 SFP Port / Unmanaged
5A Solar Controller with PoE Switch / 1 Gigabit 802.3 bt PoE Port / 2 PoE 802.3 af/at Ports with 2 Passive 24 Vdc PoE Ports / 1 SFP Port / Unmanaged
Couldn't load pickup availability
5A Solar Controller with PoE Switch / 1 Gigabit 802.3 bt PoE Port / 2 PoE 802.3 af/at Ports with 2 Passive 24 Vdc PoE Ports / 1 SFP Port / Unmanaged
**NOTE: Does not power Cambium Networks FORCE130
Industrial PoE Switch Mixed PoE 24V/48V
Wi-Tek's 24V/48V mixed industrial PoE switch is designed to provide a network solution for the WISP market.
The products are designed to automatically identify different power supply requirements, compatible with all power devices, providing a one-time investment to meet diverse business requirements.
The products are designed for installation, support wall and DIN rail mounting, industrial-grade CPU, redundant power supply, support operation in harsh environments, to ensure stable operation of the project.
Smart PoE Watchdog Function on a Switch
Plug and play, no configuration required. Automatically detects and reboots the IP camera if connectivity is lost.

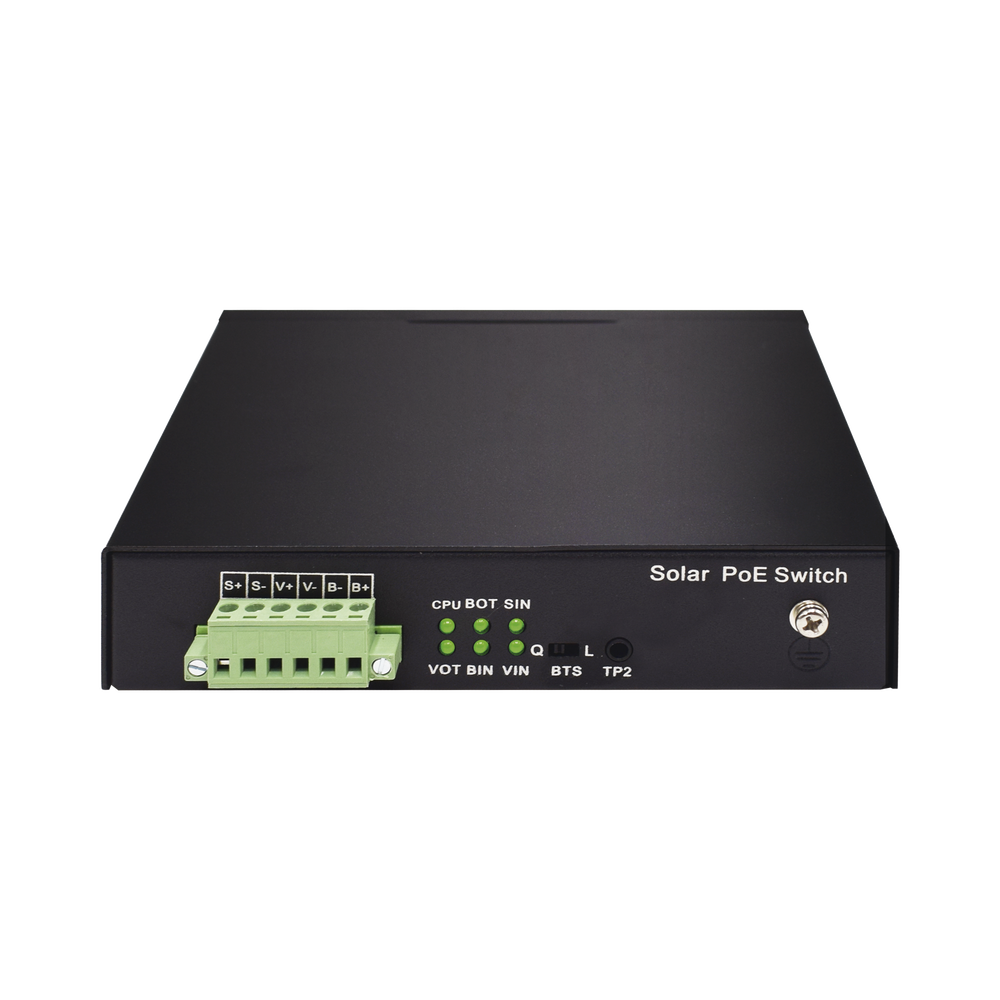

How to connect voltage inputs
DIP Switch Functions
.png)
Traditional Application / Application with Wi-Tek UPS
Specs
*Batteries and solar panels are not included.
| Dimensions | 160 x 130 x 34 mm |
| Network Interfaces | 5 Ports 10/100/1000 Mbps, 1 SFP |
| Ventilation. | Fanless |
| Feeding | Version 2 |
| PoE ports (RJ45) | Port: 1 > 802.3 af/at/bt 60W |
| Bandwidth | 12 Gbps |
| MAC Address Table | 2K |
| Packet Forwarding Rate | 8.94 Mpps |
| Battery input | 12V/24V 5A max |
| Operating temperature | -20 to 60° C |
| Certifications | CE, FCC, RoHS |
| Characteristics | |
| Energy consumption | 120W max (With PoE) 5W max (No PoE) |
| Solar Controller Input | ≤ 32V (standard 12V) ≤ 45V (standard 24V) Version 2 Max panel 250 W Version 3 Max panel 300 W |
| Priority of sources | 1. Solar 2. DC 3. Battery |
| Others | |

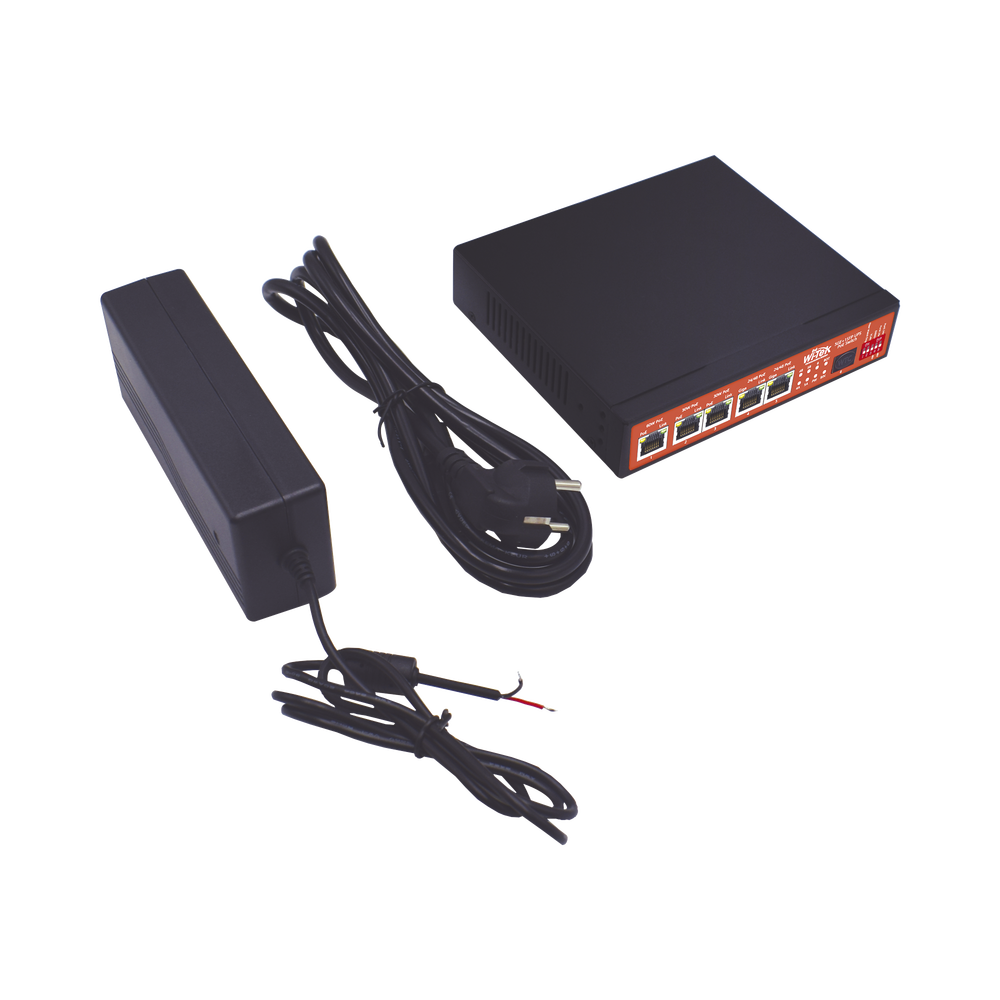

| Package Contents | PoE Controller Switch 24V 5A adapter Power cable Installation Guide |
- Small size design, 802.3bt port 1 60W, 802.3af/at port 2-3 30W, 802.3af/at port 4-5 and passive 24Vdc, Internal Solar Controller
111 in stock
MODELO: WI-PS306GF-UPS
