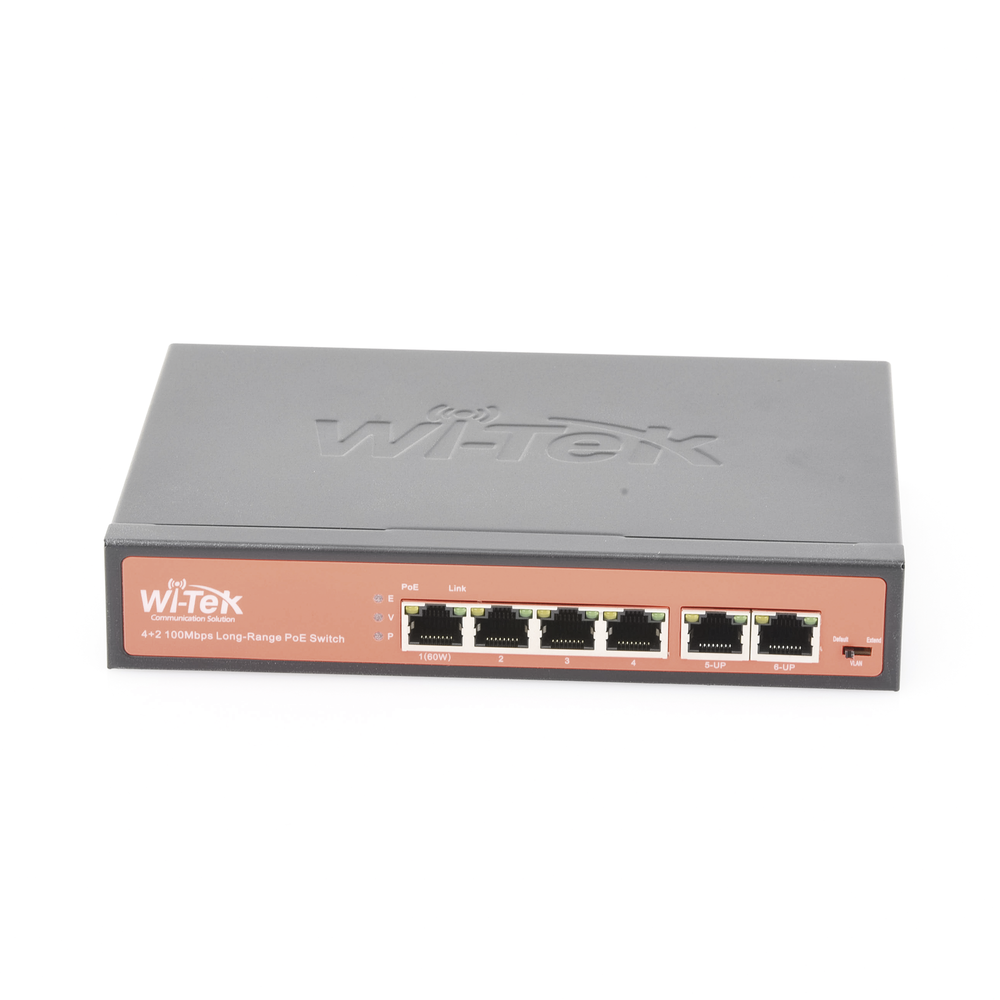

PoE Switch (802.3af/at/bt) / Long-range non-manageable / Up to 250m / 4x10/100Mbps (PoE) + 2x10/100Mbps Uplink / Budget 65 W

PoE Switch (802.3af/at/bt) / Long-range non-manageable / Up to 250m / 4x10/100Mbps (PoE) + 2x10/100Mbps Uplink / Budget 65 W

Long-range PoE switch up to 250 m

Long-range PoE with exclusive patented network extension technology utilizes common existing twisted pair cables and can support data transmission up to 250 meters, breaking the 100-meter transmission limit. Reducing its speed to 10 Mbps and a maximum PoE of 7 W.

Port VLAN

Helps prevent broadcast storms

Smart PoE Watchdog Feature on an Unmanaged Switch

Plug and play, no configuration required. Automatically detects and reboots the IP camera if connectivity is lost.

---

Specs
Dimensions	190 x 130 x 35 mm
Network Interfaces	(4) 10/100 Mbps (2) uplink 10/100/1000
Fans	Fanless
Internal power supply	AC 110-240 V, 50/60Hz
PoE ports (RJ45)	Port 1: 60W Ports 2-4: 30W PoE Budget: 65W
Bandwidth	1.2Gbps
MAC Address Table	2K
Packet Forwarding Rate	900Kpps
Level of protection	Lightning protection 6KV 6KV ESD Contact discharge
Operating temperature	-10 to 55° C
Certifications	CE, FCC, RoHS
Characteristics
Transmission Method	Store-And-Forward
Advanced Features	Priority Function Mac Address Self-Learning IEEE802.3x flow control for Full-duplex mode Backpressure for Half-duplex mode
Others
Package Contents	PoE Switch Power cable User Guide/Warranty

802.3bt PoE support up to 60W (port 1), 802.3af/at PoE support (ports 2, 3, 4), Extended mode for PoE up to 250m, Ping Watchdog function on unmanaged switch, VLAN port function (Port Isolation)
