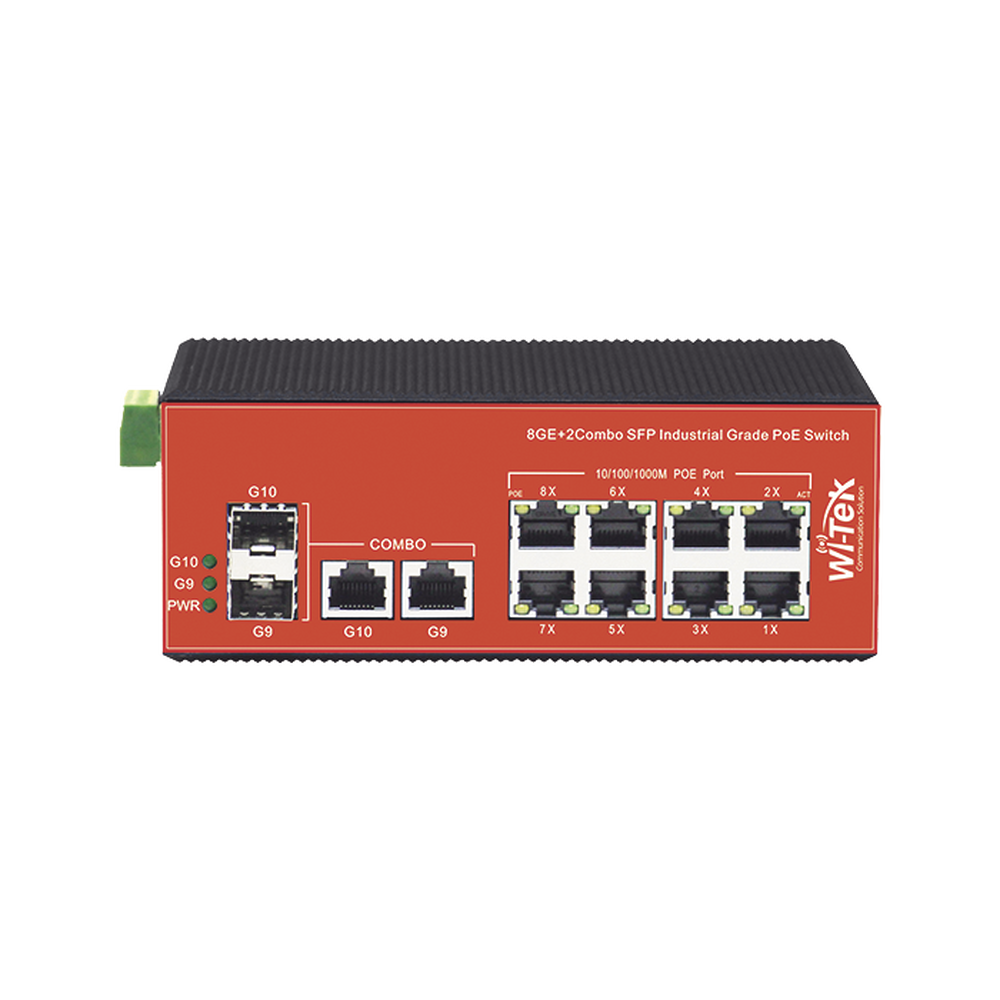

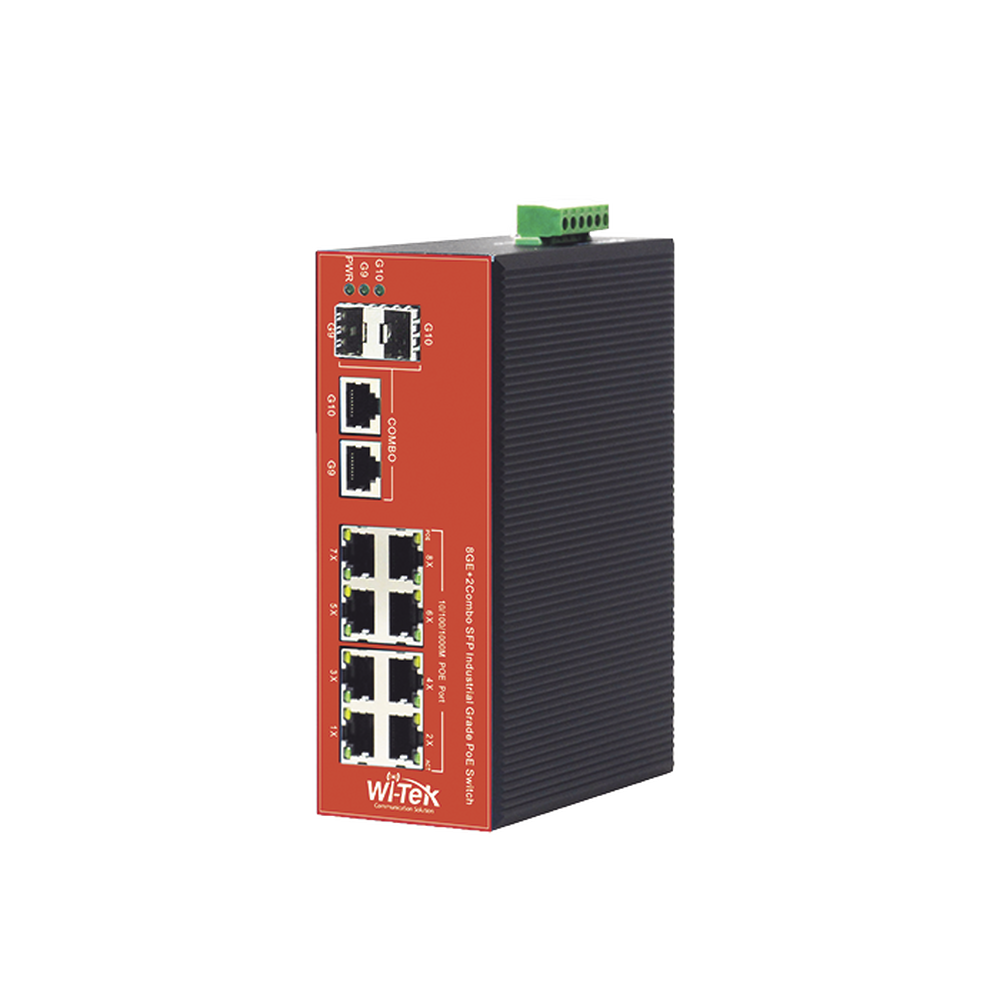

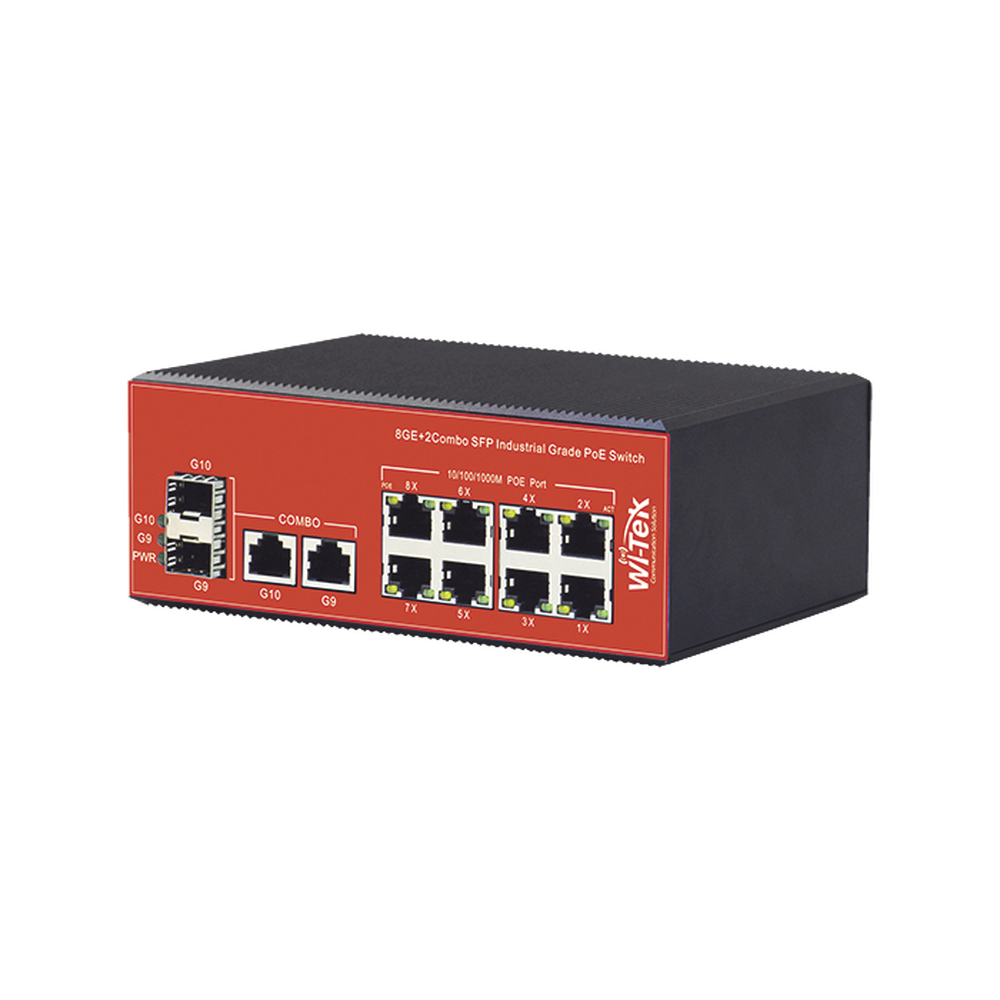

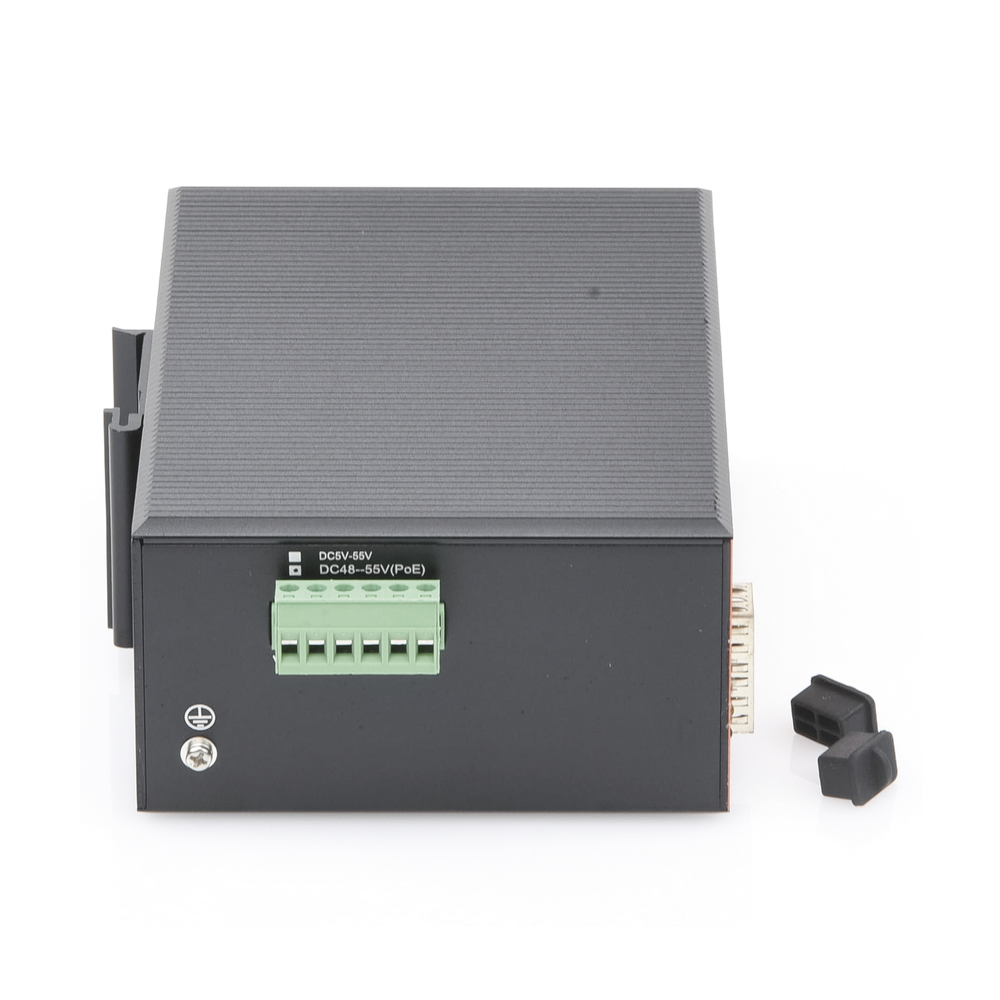

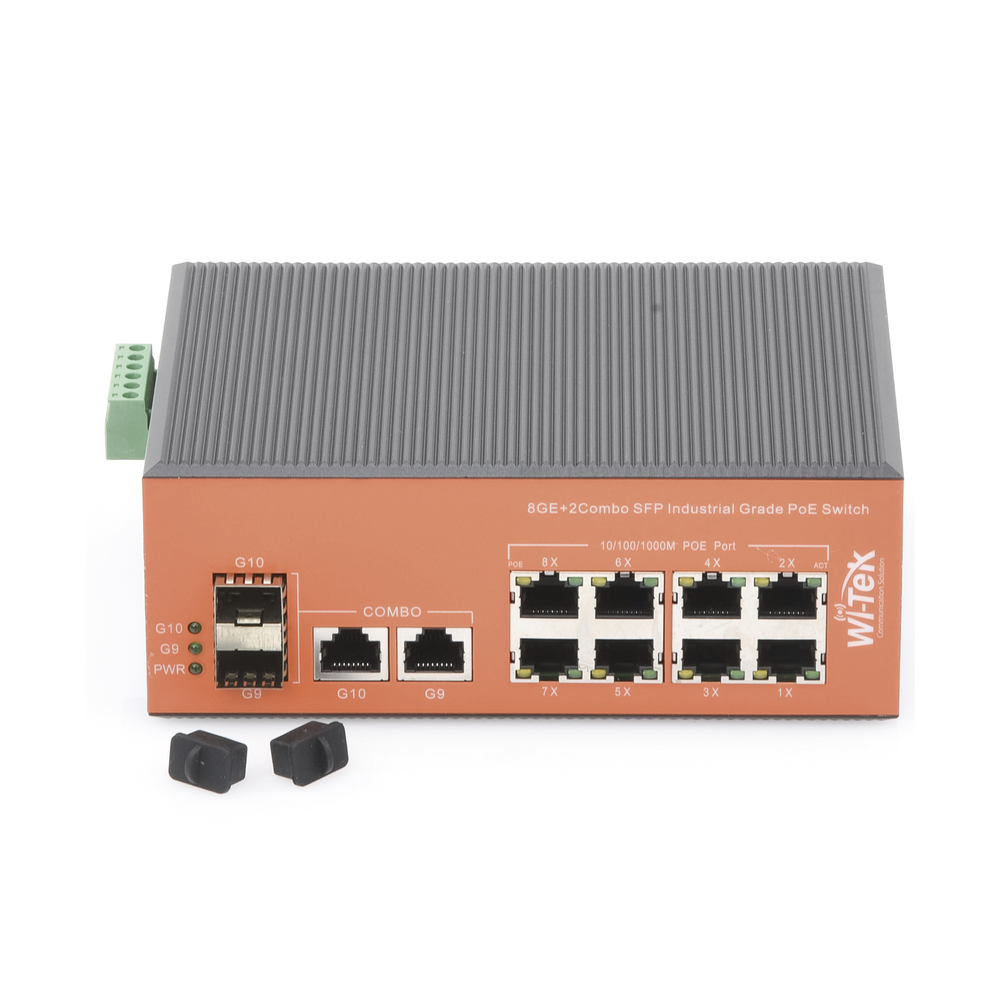

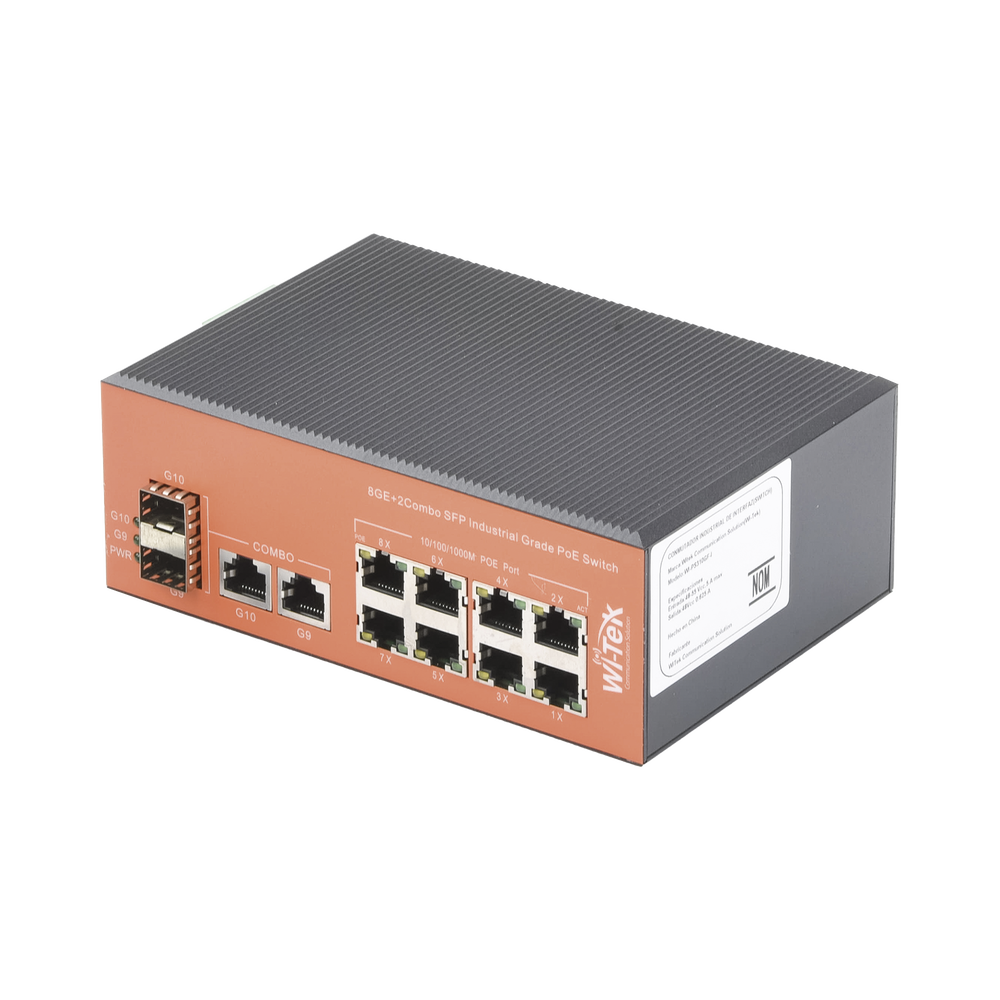

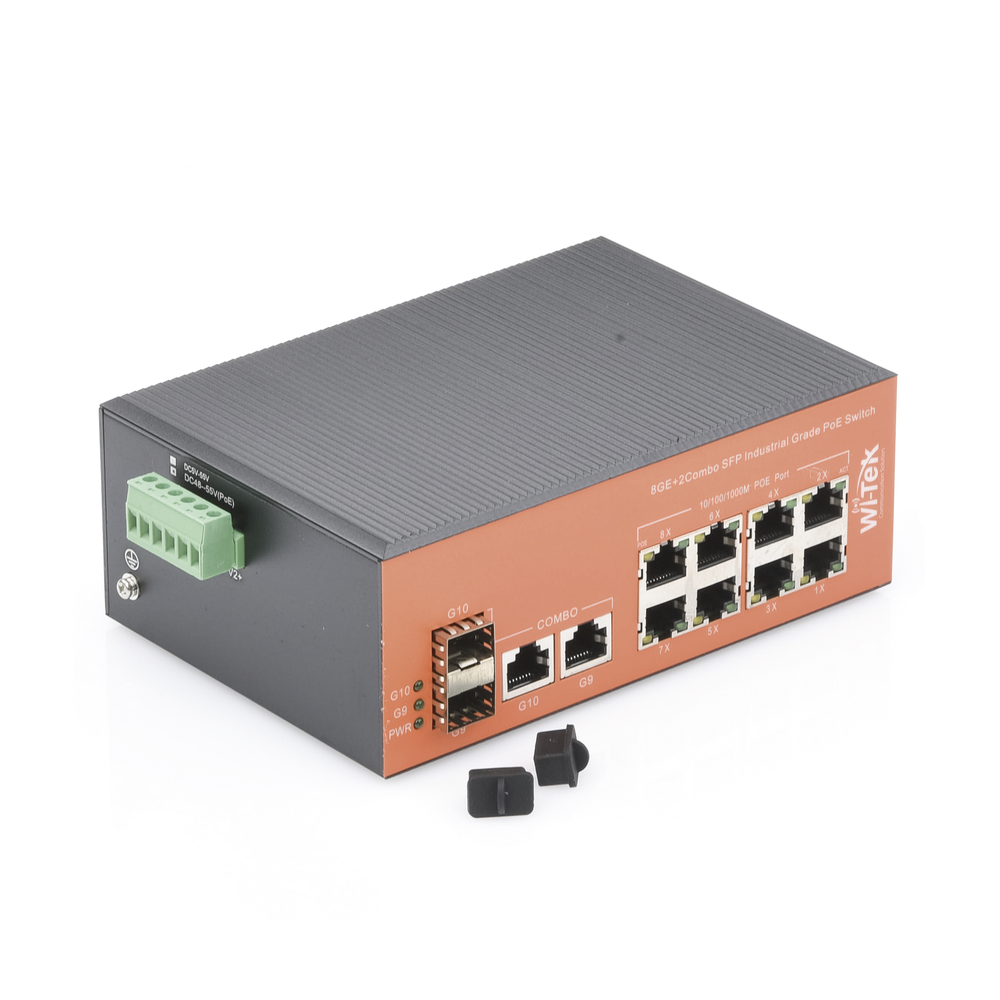

Unmanaged Industrial PoE+ Switch with 8 Ports 10/100/1000Mbps + 2 SFP Combo, 150 W

Unmanaged Industrial PoE+ Switch with 8 Ports 10/100/1000Mbps + 2 SFP Combo, 150 W

Gigabit ports

It's the best choice for a high-quality CCTV network. Auto-negotiation on each port detects the speed of a network device and intelligently adjusts for compatibility and optimal performance.

Network Solution for Harsh Environments

Smart PoE Watchdog Function for PD Alive Check

---

Specs
Dimensions	166 x 125 x 60 mm
Interfaces from Red	(8) 10/100/1000Mbps (2) SFP Combo
Fan	Fanless
Power supply	DC 48-55 V, 5A Max (not included)
PoE ports (RJ45)	IEEE802.3af (15.4W) and IEEE802.3at (30W), Port1-Port8
Bandwidth	24Gbps
MAC Address Table	8K
Packet Buffer Memory	17.8Mb
ESD Protection	Industrial Level 4 Protection (ESD, RS, EFT, CS)
Operating Temperature	-40 to 80° C
Certifications	CE, FCC, RoHS
Characteristics
Transmission Method	Store-And-Forward
Advanced Features	Priority Function Mac Address Self-Learning IEEE802.3x flow control for Full-duplex mode Backpressure for Half-duplex mode
Others
Package Contents	PoE Switch User Guide/Warranty

Ideal for high-quality networks., Designed for harsh environments., Smart PoE Watchdog function for PD Alive Check, Operating Temperature: -40 to 80 ° C, Industrial Level 4 protection (ESD, RS, EFT, CS)
