• Transmisor Inalámbrico MULTI-PUNTO / 8 Salidas / Expansión del modelo DS005HVAC / Atraviesa 1.6 KM Cualquier Construcción o Material / Más de 80KM con Línea de Vista
1 1

Sure-Fi

MULTI-POINT Wireless Transmitter / 8 Outputs / Expansion of the DS005HVAC model / Crosses 1.6 KM of Any Construction or Material / More than 80KM with Line of Sight

MULTI-POINT Wireless Transmitter / 8 Outputs / Expansion of the DS005HVAC model / Crosses 1.6 KM of Any Construction or Material / More than 80KM with Line of Sight

$1.228.803 COP
$1.344.004 COP $1.228.803 COP
Sale Sold out
Shipping calculated at checkout.

MULTI-POINT Wireless Transmitter / 8 Outputs / Expansion of the DS005HVAC model / Crosses 1.6 KM of Any Construction or Material / More than 80KM with Line of Sight

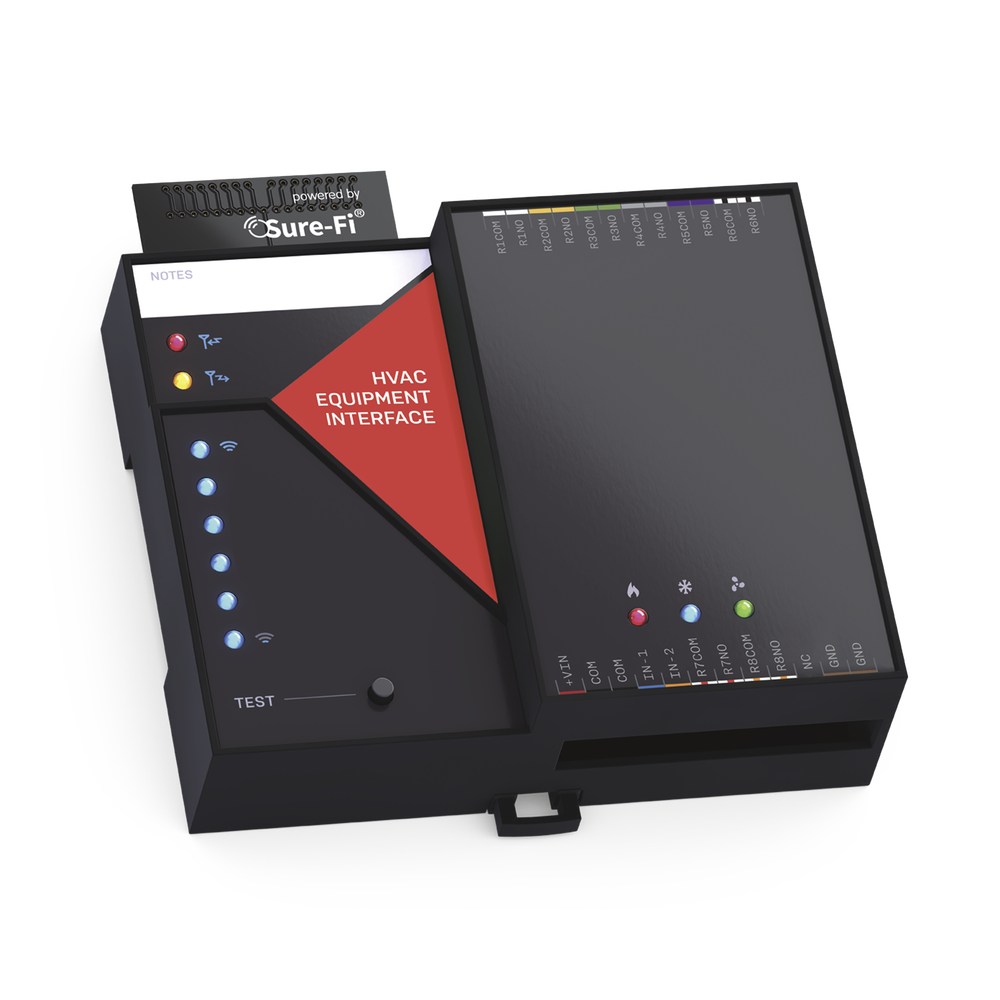

Sure-Fi Multi-Point (1 to 8 SUREFI), HVAC Support

This device is a 1-to-8 MULTIPOINT remote controller (8 inputs on 1 device, 8 outputs on 8 different devices) that can be used in HVAC (heating, ventilation, and air conditioning) systems; it replaces the wiring in a new system.

Sure-Fi HVAC installs in minutes and is very cost-competitive with wiring for all types of jobs (easy and difficult wire pulls).

It is compatible with any HVAC system of any brand.

It also has AES128 encryption security (128-bit Advanced Encryption System)

Characteristics :
  • Works with conventional 24 VAC low voltage systems.
  • Signal strength, transmission and reception indicators on the equipment interface
  • Test button for easy range testing
  • 2 inputs from the equipment interface, e.g. Equipment Monitor
  • Field configurable and upgradeable with the Sure-Fi app
Technology
  • Range of up to 1.6 KM through obstructions and over 80 KM with line of sight.
  • Patented obstacle elimination technology, using 900 MHz.
  • Work inside metal structures.
  • Patented PBC antenna design
  • FCC (USA) and IC (Canada) certification
Specifications :
  • Operating voltage: 20 to 30 VAC
  • Operating current: 0.02A (idle), 0.26A (transmitting)
  • Transmission power: 1 Watt (30Dbm)
  • Frequency band: 915 - 928MHz
  • Channels: 72 (frequency hopping)
  • Receiver sensitivity: -133Dbm
  • Link budget: 163db
  • Range: Up to 1.6 KM through obstructions and over 80 KM with line of sight
  • Encryption: AES128
  • Equipment interface relays: 1A 60V Peak NO, COM (X8)
  • Operating temperature: -40º C to +85º C
  • Storage temperature: -67º F to +257º F
  • Equipment mounting options: DIN rail mounting (Din35) or direct mounting with two screws.

    Low stock: 9 left

    MODELO: DS005HVACEXP(CO)
