S+RJ10 - 6-speed on RJ-45 up to 10 Gbps

S+RJ10 - 6-speed on RJ-45 up to 10 Gbps

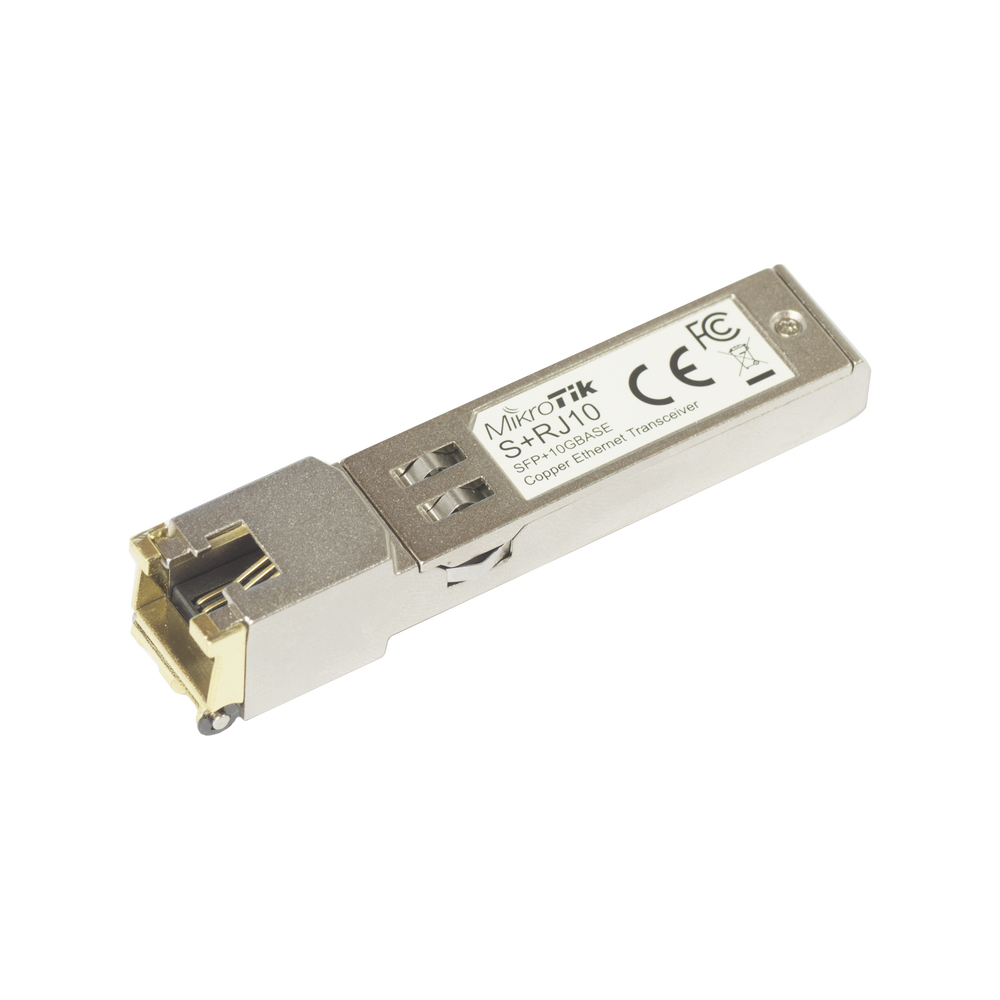

S+RJ10 6-speed RJ-45 module for up to 10 Gbps

This unique module opens up a world of high-speed connectivity possibilities, delivering speeds of up to 10 Gbps over standard twisted-pair cables found in existing products with SFP+ ports. Any actively cooled MikroTik device with SFP+ ports can now be used without installing any optical fibers—just plug in the S+RJ10 and your network can be upgraded to 10 Gbps, ready for the next generation of RJ45 hardware.

The S+RJ10 module is also compatible with passively cooled devices, but may require additional cooling.

The latest revision of the S+RJ10 includes '/r2' at the end of the serial number. It comes with the following improvements:

- Jumbo frames up to 10218 bytes are now supported at speeds of 2.5 Gbps, 5 Gbps, and 10 Gbps;

- Link speed reporting is fixed: the actual link speed is now displayed in the interface menu. Previously, 100M/1G/2.5G/5G link speeds were not reported correctly;

- DDM monitoring (supply voltage, module temperature) is now supported.

Product specifications
