cnPilot e430H Indoor Wall Plate WiFi Access Point, dual band, Wave 2, beamforming antenna, 4 output ports (1x Gigabit PoE and 3x Gigabit Ethernet)

e430H Indoor Wall Plate

802.11ac
Standard + MESH 256
Omi users
360º Controller
gratuitous

---



Free management in cnMaestro Comprehensive management of the entire network for inventory management, device onboarding, daily operations, maintenance, configuration, and provisioning, as well as ticket and/or voucher creation, time and bandwidth control, and a captive portal.	Designed for high capacity Triple Play Supports up to 256 active users with high traffic and up to 16 SSIDs.
Aesthetic wall design Designed to be installed on the wall of a room without sacrificing the aesthetic appeal of a network device, it adapts to any setting.	Roaming and MESH Backhauling capability for MESH designs and supports Roaming to avoid losing connectivity when moving around rooms.
Guaranteed, categorized as the best Cost-benefit Access Point The e430H offers a reliable, high-capacity indoor Wi-Fi networking solution at a significantly lower cost than its high-end competitors. You'll save network nodes, and we guarantee the equipment for 5 years.	Monitor what's happening on your network. Limit access to restricted pages using the cn Maestro ACL

The Cambium Networks cnPilot™ e430H enterprise-class indoor access point, based on 802.11ac Wave 2, is perfect for hotels, resorts, and residences, or any indoor location that needs a wall-mounted AP with multiple Gigabit ports with PoE output.

Maximum number of devices supported: 256

Operating modes: Access Point or Router (NAT, DHCP Server and Firewall)

Main features:

802.11a/b/g/n/ac Wave 2 standard

Simultaneous dual band 2.4 and 5 GHz.

MU-MIMO 2X2.

Up to 300 Mbps on 2.4 GHz

Up to 867 Mbps at 5 GHz

Beamforming antenna to increase performance in communication with devices.

Omnidirectional Antennas: 3.57dBi at 2.4 GHz and 4.96 dBi at 5 GHz.

Radio power: 25.57 dBm at 2.4 GHz and 25.96 dBm at 5 GHz

General characteristics:

Management type: Standalone, cnMaestro Cloud Managed (free), and cnMaestro on-premises VM.

Up to 16 SSIDs (Flexible on any band)

Fast Roaming: Browse from cell to cell without losing connection.

ACL: Create blocking rules for web pages.

ACS function for automatic channel switching to avoid interference.

Schedule SSID to activate SSID on desired days at certain times.

Captive portal Hotspot from the cloud, customizable vouchers.

Limit bandwidth per user or SSID.

Isolation between clients to prevent broadcast and multicast storms from entering the network.

Load Balancing to balance the load between each band.

Supports MESH.

Physical and electrical characteristics:

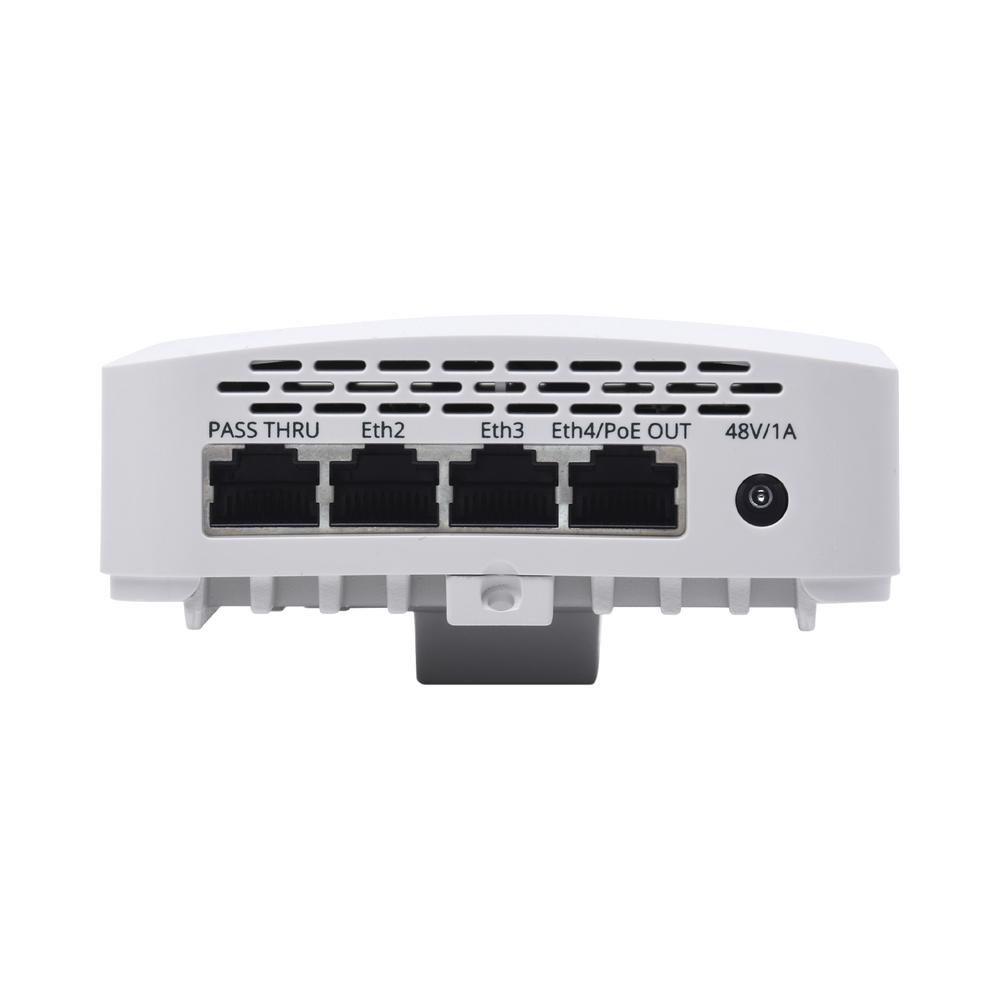

1 Gigabit PoE IN port 802.3af/at (802.3at required to activate PoE Out port)

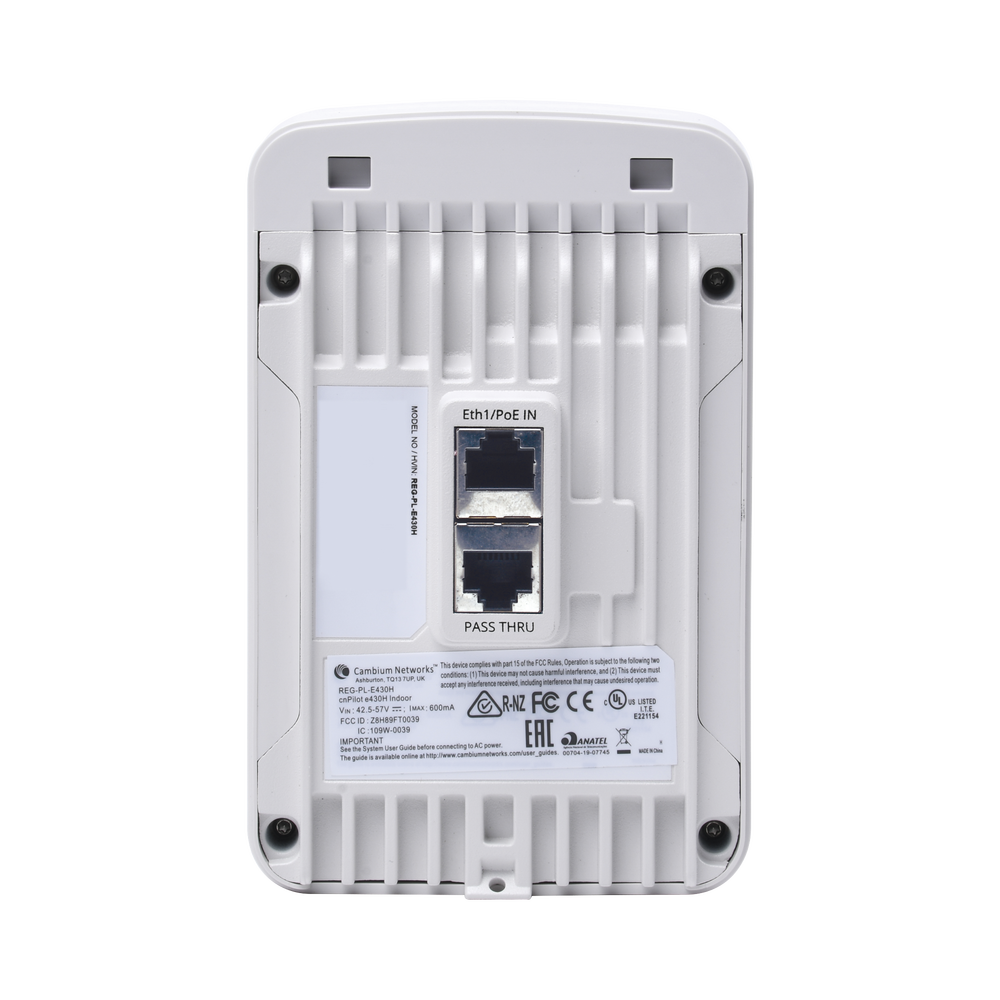

1 rear PoE Passthrough port for connecting an e425H or e430H device.

1 Gigabit PoE Out port 802.3af

1 Gigabit Ethernet port

1 optional 5.5 x 2.5 mm jack port for 48V, 1A power supply.

Power consumption: 9w without PoE out, 25w with PoE out.

Dimensions: 147mm X 94mm X 32mm

Package includes the following:

Applies to invoices from November 19, 2019.

Comparison.

Rear passthrough port to feed another e430 in another room, Incorporates ACL to create rules for blocking websites, Free captive portal with cloud-based voucher creator, ACS: Automatic channel switching to avoid interference, Beamforming antenna to increase performance in device communication
